NEWS MESSAGE
The new NOVACAT X8 collector
The mower combination with conveyor belts for even more flexibility
The new mower combination NOVACAT X8 collector has a working width of 8.3 m and is equipped with cross-conveyor belts as standard equipment. These enable flexible utilization of the mower combination in different operating conditions and working situations. The new conditioner with its large hood can now process large quantities of crop in a single pass. The crop is drawn away rapidly thanks to the large clearance between the conditioner and cross-conveyor belt. The NOVACAT X8 collector is available with the ED conditioner (Extra Dry) equipped with tines or with the new RC conditioner (Roller Conditioner) fitted with three conditioning rollers for lucern or other leafy legumes.

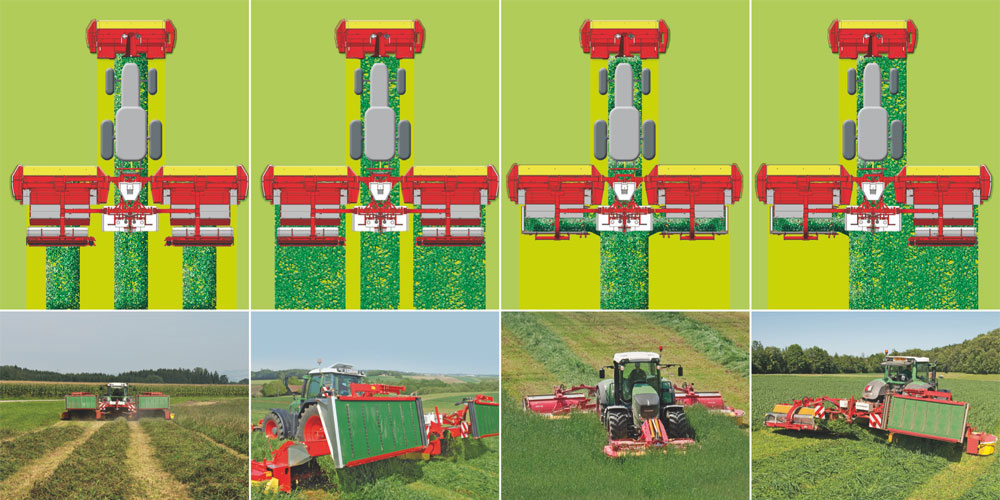

For larger forage quantities the conveyor belts can be pivoted upwards and the forage laid in a wide blanket. This guarantees an optimum drying phase. The swath plates, fitted as standard, enable three individual swaths to be placed as well.
The two conveyor belts can simply be lowered hydraulically into the working position again by pressing a button on the Power Control terminal. The forage is then fed from both sides into a large central swath. The swath can then be easily processed by harvesting equipment in the next pass. Highest efficiency and performance are guaranteed as a result.
The two cross-conveyor belts can also be raised individually. This means that a combination of swath and wide placement can be achieved. One cross-conveyor transports the forage to be placed between the swaths of the front mower and the other side mower. A width of around 3.5 to 4 m of the crop is then cleared. Using this configuration, the crop from more than 16 m working width of the mowers can be placed to form a swath blanket of around 9 m wide.
The forage can be allowed to dry in the field and yet the windrower needs to rake as much as 40% less area.
NOVACAT X8 collector saves time and above all costs. The ideal combination of increasing efficiency and silage production at the highest level.
Mower combination: NOVACAT X8
| Variante: | NOVACAT X8 | NOVACAT X8 ED | NOVACAT X8 ED collector | NOVACAT X8 RC | NOVACAT X8 RC collector |
| Mounting: | CAT. III/2 | CAT. III/2 | CAT. III/2 | CAT. III/2 | CAT. III/2 |
| Weight: | 1800 kg | 2200 kg | 3200 kg | 2400 kg | 3300 kg |
| Working width: | 8.3 m | 8.3 m | 8.3 m | 8.3 m | 8.3 m |
| Transport width: | 3 m | 3 m | 3 m | 3 m | 3 m |
| Transport height: | 4 m | 4 m | 4 m | 4 m | 4 m |
| Conditioner width: | - mm | 2240 mm | 2240 mm | - mm | - mm |
| P.T.O. speed: | 1000 rpm | 1000 rpm | 1000 rpm | 1000 rpm | 1000 rpm |
| Number of mower discs: | 14 | 14 | 14 | 14 | 14 |
| Knives: | 28 | 28 | 28 | 28 | 28 |
| Power requirement: | 140 hp | 160 hp | 160 hp | 160 hp | 160 hp |
| Coverage up to approx.: | 10 ha/h | 10 ha/h | 10 ha/h | 10 ha/h | 10 ha/h |
Created: 30.09.2009
