Rakes

EUROTOP with a single rotor

You can rely on ...

Types

Technical data

	EUROTOP 340	EUROTOP 340 U	EUROTOP 340 N	EUROTOP 380 N	EUROTOP 421 N
Working width	3,4 m	3,4 m	3,4 m	3,8 m	4,2 m
Rotor diameter	2,82 m	2,82 m	2,82 m	2,98 m	3,28 m
Transport width	1,4 m	1,4 m	1,67 m	1,96 m	2,1 m
Tine arms per rotor	10 pcs.	10 pcs.	10 pcs.	10 pcs.	12 pcs.
Removable tine carrier arms per rotor	10 pcs.	10 pcs.	10 pcs.	10 pcs.	12 pcs.
Tines per tine arm	3 pcs.	3 pcs.	3 pcs.	4 pcs.	4 pcs.
Weight	330 kg	350 kg	350 kg	380 kg	540 kg
Mounting	Rear 3-point linkage	Rear 3-point linkage	Rear 3-point linkage	Rear 3-point linkage	Rear 3-point linkage
Main wheels	Pivoting	Pivoting	rigid	rigid	rigid
Swath placement in direction of travel	Left	Left	Left	Left	Left
Height adjustment system	Hand crank	Hand crank	Hand crank	Hand crank	Hand crank
Axle (standard)	Single axle	Single axle	Single axle	Single axle	Tandem axle
Rotor tyres (standard)	15 x 6,00-6	15 x 6,00-6	15 x 6,00-6	16 x 6,5-8	16 x 6,5-8
Rotor tyres (option)	16 x 6,5-8	16 x 6,5-8	16 x 6,5-8

	EUROTOP 461 N
Working width	4,6 m
Rotor diameter	3,6 m
Transport width	2,36 m
Tine arms per rotor	12 pcs.
Removable tine carrier arms per rotor	12 pcs.
Tines per tine arm	4 pcs.
Weight	680 kg
Mounting	Rear 3-point linkage
Main wheels	rigid
Swath placement in direction of travel	Left
Height adjustment system	Hand crank
Axle (standard)	Tandem axle
Rotor tyres (standard)	16 x 6,5-8
Rotor tyres (option)

	EUROTOP 421 A	EUROTOP 461 A
Working width	4,2 m	4,6 m
Rotor diameter	3,28 m	3,6 m
Transport width	2,36 m	2,36 m
Tine arms per rotor	12 pcs.	12 pcs.
Removable tine carrier arms per rotor	12 pcs.	12 pcs.
Tines per tine arm	4 pcs.	4 pcs.
Weight	680 kg	835 kg
Main wheels	rigid	rigid
Swath placement in direction of travel	Left	Left
Height adjustment system	Turnbuckle	Turnbuckle
Axle (standard)	Tandem axle	Tandem axle
Rotor tyres (standard)	18,5 x 8,5-8	18,5 x 8,5-8
Wide angle P.T.O.	Wide-angle PTO shaft on one side	Wide-angle PTO shaft on one side

Dimensions and weights are subject to change due to ongoing technical development, and vary from country to country.

Standard Equipment

EUROTOP

Mounting	Rear 3-point linkage
Mounting option	Three point linkage c/w enclosed lower link pins
Mounting category	Cat. II / Width 2
PTO shaft guarding	with cam clutch
PTO shaft profile	1 3/8" 6-splines
Hydraulic connection	1 x single-acting for the hydraulic swath curtain
Electrical connection	1 x 7-pin lighting plug for warning signs with lighting
Standard equipment includes	Operator's manual Spare parts list

EUROTOP

Mounting option	Bar between lower linkages
PTO shaft guarding	with cam clutch
PTO shaft profile	1 3/8" 6-splines
Hydraulic connection	1 x single-acting for the lifting system 1 x single-acting for the hydraulic swath curtain
Electrical connection	1 x 7-pin lighting plug for warning signs with lighting
Standard equipment includes	Operator's manual Spare parts list

Technical highlights

TopTech-Windrower

Zero maintenance rotor

Heavy duty cam track made of high quality globular cast iron, adjustable for total precision: tidy raking at speed in all conditions.
Hardened steel cam rollers with ball bearings - zero maintenance and long service life.
P.T.O. gearing on transmission stub shaft - unit is quick and easy to remove.
Easy height adjustment using hand crank.
The tine arm bearings are separate from the cam control bearings to minimise collision damage with trees, poles, etc.
The cam track can be adjusted to different quantities of forage and changing harvesting conditions.

Example: EUROTOP 421 N, Cam track diameter 42 cm

TopTech is unbeatable; a classic example of proven long-life reliability

Tine arm bearings as far away from hub as possible to ensure the highest stability: especially important on bumpy ground.
Maintenance-free arm bearings and bearings spaced as wide apart as possible: essential to minimise stress. Strength and long service life without additional maintenance.

The heavy-duty rotor transmission
is submerged in oil, and on the EuroTOP 421 and 461 is completely sealed - no maintenance required. Large diameter gear wheel guarantees smooth running and a long service life.

LONG LIFE

Large diameter cam track
- computer optimised for consistently smooth cam track control. No sudden ramps, so there is no jerking of the control levers as on smaller diameter cam tracks. Much less stress on the whole control system.

Encapsulated and maintenance-free
The complete system is fully encapsulated and maintenance-free. No contamination, dust-free. The cam track need only be lubricated once a year!

Mounting variations N / U / A

Example Three point linkage mounted EUROTOP rigid
EUROTP 280 and EUROTOP 340

Example EUROTOP with pivoting headstock (N)
The windrower faithfully follows in the tractor's tracks. The windrower automatically swings to the centre position when lifted. Optimum safety even on slopes. The shock absorbing struts are ideal for slopes.

Example EUROTOP U = universal

Rear mounting for forward and reverse travel
Front mounting

Example EUROTOP A trailed machine
is fitted to the tractor drawbar

MOUNTING

Three point linkage mounted EUROTOP rigid
- low weight
- cost effective

EUROTOP with pivoting headstock (N)

EUROTOP U = universal

EUROTOP A trailed machine

Multitast for perfect ground hugging

The third wheel is always in front

TOP tracking with additional jockey wheel

The additional jockey wheel and chain top link provide a genuine three-point contour tracking system near the point where the tines contact the crop.
Top tracking ensures tidy swathes even in adverse conditions.
Tines do not scratch ground even on bumps.
Tines are subject to much less wear - longer service life.

Many satisfied TOP owners emphasise:
"The third wheel is what counts in difficult terrain".

TOP work, higher working speeds with EUROTOP tandem axles

With the wide axles and wide wheels near the point where the tines contact the ground, the best possible ground tracking is guaranteed: no jumping or scratching on uneven ground or on slopes.
Four large balloon tyres compensate for any big bumps.
The staggered wheel axle system ensures that the rotor moves up and down only half as much as with single axles or conventional tandem axles.
The crop remains clean and the stubble undamaged even at high forward speed.
The angle of the axles can be adjusted easily to ensure tidy work in all conditions.

MULTITAST - Raking up front

The level compensation of the frame and front jockey wheel guide the windrower with precision over uneven ground. A knuckle joint ensures that there is sufficient freedom of movement to the sides. A stabiliser prevents oscillation during transport.

SIMPLY TOP

Exclusive:
Wide wheels near the point where the tines contact the ground, the best possible ground tracking is guaranteed.

EUROTOP tandem-axles are adjustable.
By straight-forward adjustment of the inclination, clean raking is achieved over the full radius in all operating conditions with all kinds of crop.

Front jockey wheel
On the EUROTOP 380 F/H and 340 U front-mounted models, the front jockey wheel (which is located outside the rotor) guides the windrower precisely over uneven ground (patented design).

Detailed information

Mounting configuration

Pivoting headstock with heart-shaped pivot pin retainer

Perfect cornering with the windrower following in the tractor‘s tracks
When lifted the machine swings into the central position
Windrower cannot crab sideways, even on slopes
Pin interlock - to prevent freedom of movement for road transport, just relocate the locking pin
Double-acting shock absorbing struts on both sides ensure the machine remains centred, even on slopes

Rigid headstock with pivot wheels for front-mounting or reverse drive

Tractor does not drive over forage
Cam track and chassis are pivoted 180° from the tractor seat

Rigid headstock with pivot wheels for alpine applications

Ideal for mountainous terrain
Front mounting with right-hand swath placement and Multitast wheel in front of rotor
Rear mounting with right-hand swath placement - reversing gear required

Trailed version A

For smaller tractors with limited lifting capacity
Attached to tractor‘s lower linkages or linkage bar
Smooth running even at high transport speeds

Comfortable operation

Exact adjustment of working height using hand crank - easy to use, maintenance free
Infinitely adjustable swath curtains - the swath curtains can be adjusted to match the quantity of forage and the width of the swath
Hydraulic swath curtain lifting / lowering for highest level of comfort

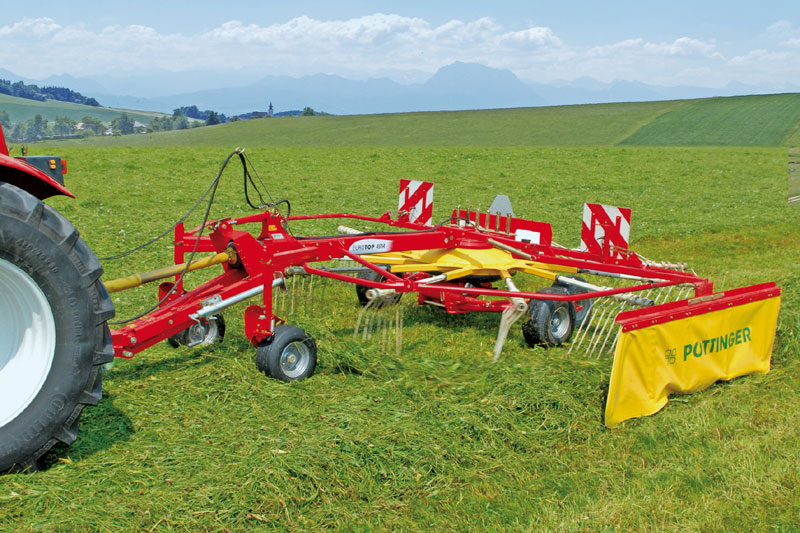

EUROTOP 461 A

News

29.03.2012
EUROTOP single-rotor and double-rotor rakes
What is new?

These rakes keep up with the mowers no problem, which is why we have also published this new brochure with updated information. Consisting of 32 pages, this brochure provides details on TopTech rotors, Multitast ground tracking and close-ups of single-rotor and double-rotor rakes for side swaths and central swath placement.

pdf brochure

Pöttinger Eurotop Rakes

32 pages
4 MB

Read and find out more in the brochure.

Images/Videos

Image gallery

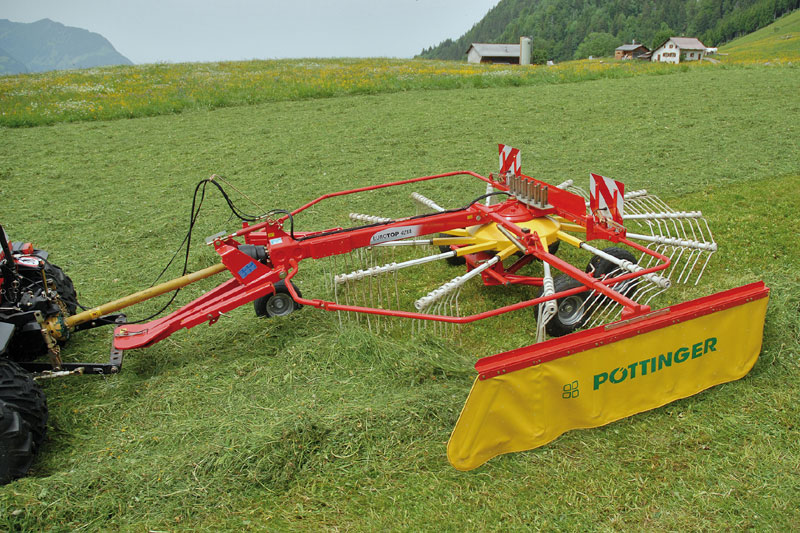

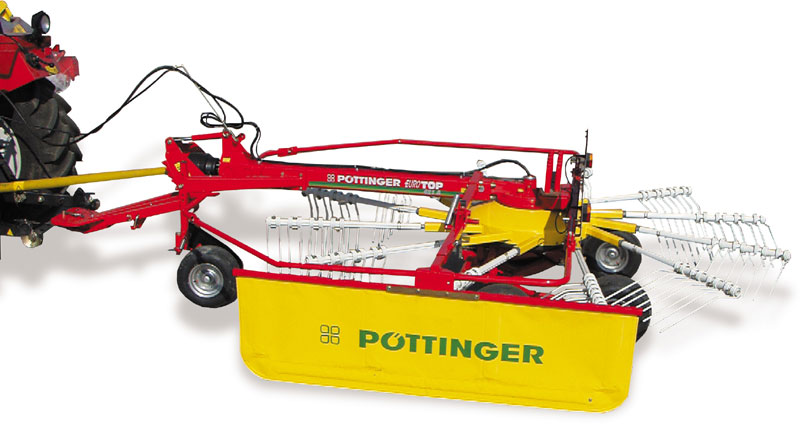

EUROTOP 421 A Press image (high res.)	EUROTOP 421 A Press image (high res.)	EUROTOP 461 A Press image (high res.)	TOPTECH Kreisel Press image (high res.)
