2.00 m wide with 6 rows of tines, 15 double-tines each row, automatic spring safety device,steered pneumatic jockey wheels 16 x 6.50- 8
Loading system:
POWERMATIC spiral feed rotor system with 8 rows of tines, Ø 800 mm, transmission by oversized bevel gear unit submerged in oil
Cutting system:
45 knife cutterbar with safety device and hydraulic swing in/out of knife bank, central knife releasing system, knife bank pivoting system "EASY MOVE" for easy access and maintenance
Frame:
Heavy duty frame, bolted-construction, frame profile carrier 300 mm high
Bodywork:
Metal sections, galvanised and plastic coated, flood light for loading chamber, hydraulically 3-position front flap with auto loading system
Pivot the knife bank bar out and decide how many sharpening sequences are required. Pivot the knife bank back in again and enter the number of sharpening sequences at the control panel
Select „Start grinding procedure“ on the silage trailer control panel in the tractor
- The knife bank and the cleaner are pivoted out of the working area of the ginder
- The grinding mechanism is pivoted from the parked position into the working position via a pressure control sequence
- After the sensors have detected that the mechanism is in the working position the grinding procedure starts on the left hand side of the first blade
The sharpening unit applies consistent pressure to all knives completely automatically. The process is repeated depending on the number of sequences entered by the operator
After the sharpneing process has been completed, "autocut" moves into the parking position and the loader wagon is ready for operation
15 % less power needed
Reduces fuel consumption by about 5 litres per hour, net saving at about 300 hours of use per year is about 1.500 EUR
Top quality cutting
The forage is always cut precisely and not squashed
Reduced maintenance expenses
fully automatic sharpening in about 4 min.
time spent on maintenance is reduced by about 45 minutes per day
net saving at about 300 hours of use per year ist about 1.500 EUR
Total cost saving: up to 3.000 EUR per year.
Pendular Suspension
The 6.56’ / 2.0 m wide pickup delivers incredible performance even with heavy or irregular swaths.
The pickup has six rows of tines. The central metal support disc provides a high
level of strength. The super “C” steel tines are bolted to the sturdy U–profile tine bars. The U profile reinforces the spring winding in heavy crops.
The narrow tine spacing of 2.17” / 55 mm means that the forage is collected cleanly and evenly at high speeds.
The pickup is controlled using two cam tracks made from steel with solid centres and an inspection cap is integrated into the housing. The cam rollers are two-row, permanently lubricated roller bearings (diameter of 1.58” / 40 mm), are sturdy and designed for large crops of forage.
The pickup tines are swept back to prevent damage to the sward, the throwing up of soil, and unnecessary wear on the tines.
Protects the sward by adjusting to the contours of the ground: Two-way heightadjustable castor wheels are in the optimum position for tine contour following. Two hinged support links give the pickup full mobility. In addition to this, spring suspension ensures low, soil-protecting ground pressure –
suspension is available as an option.
Automatic cut-off of pickup drive in D-type trailers – if the pickup is raised, drive is disconnected.
Perfect!
Perfect ground hugging
The pneumatic castor rear wheels (16 x 6.5-8) are standard.
The wheels sweep the ground on the same line as the tines,
and guide the pickup perfectly through each hollow. Castor
rear wheels enable excellent cornering.
A height-adjustable windguard with a swath roller ensures
perfect forage flow even when loading is fast and the crop is
short and wet.
Pick-up-width:
TORRO Total width: 1,85 m (1,77 m DIN)
JUMBO Total width: 2,00 m (1,90 m DIN)
Powermatic Loading system
The structure of the forage greatly determines its digestability. The rotor must be able to compress the forage even with a high flow. Powermatic is at the heart of Pöttinger silage trailers: Powerful, robust and capable. The rotor is suited to unlimited tractor power.
The silage collector
The Powermatic-loading rotor has a diameter of 31.5” / 800 mm and consists of 8 rows of teeth. The teeth are arranged in a helix in order to ensure jolt-free and smooth loading without torque peaks. The feed teeth ensure the continuous collection of the crop and the smooth preliminary pressing of the forage. This makes sure that the silage trailer is completely filled. The Powermatic-loading rotor is supported on both sides with self-aligning roller bearings. On the drive side the bearing is positioned between the rotor and the gear – reducing the load on the bearing.
Hardened feed teeth
The feed teeth are made of hardened fine-grain boron steel. JUMBO: 0.47” / 12 mm, TORRO: 0.39” / 10 mm thick.
The scrapers are positioned and bolted into place individually. Placing the scrapers at an ideal distance from the rotor teeth reduces energy expenditure. The scrapers have a large surface area, which prevents the forage from being crushed. Scraper width: JUMBO: 0.71”/18 mm, TORRO: 0.79”/20mm.
Simple! Maintenance made easy
The tine rings are clipped into the inner drum. Each ring can be replaced individually.
Reduced energy requirement
Simple but effective – a technical detail on the rotor discharge. The discharge end of the rotor is only 3.54” / 90 mm below the scraper floor. This protects the forage and enables the trouble-free loading of the loading chamber, especially when working in wet conditions. Powermatic. This conserves power and increases the flow rate.
Unique cutting unit
A precise and consistent cut is the basis for the best silage quality. The exceptional cutting quality of Pöttinger silage trailers has been confirmed in independent test reports.
This unique-to-the-market swing out knife bank makes light work of changing the knives.
The chopping unit is lowered hydraulically either from the tractor seat or by
pressing the button on the left-hand side of the wagon.
The whole knife bank can be swung out sideways in the traditional Pöttinger fashion. The knives can be automatically released via the central knife release and
removed without the need for any tools.
The pressure springs and rocker arm for securing individual knives are located in the protected area. This considerably reduces the amount of dirt which accumulates in the knife mountings. A dirt scraper, which automatically cleans spaces between the knives every time the knife bank is lowered, is also available on request.
Knife protection - A reassuring device
Time and cost pressures make machine idle time an expensive business.
Foreign bodies are a danger to the most important elements of the
machine – the rotor and chopping unit. Pöttinger protects the heart of the
silage wagon with an innovative device – patented foreign-body security. Each knife is individually protected.
Smaller pieces fall through baffle plates between the pickup and the rotor.
Larger foreign bodies are pushed by the rotor onto the knife
and move it briefly in the direction of rotation.
The trigger roll is lifted out of its holder at the back of the knife. The knife releases the foreign body. The resistance is minimal, which
protects the knife!
After the foreign body has passed the chopping unit, the knife springs back to its original position.
What’s special at Pöttinger:
The triggering pressure is independent of the size and point of contact of the
foreign body.
The knives are made of hardened tool-steel and the serration on one side ensures a precise cut even if the knife edge is dulled. The forage is always cut cleanly and not torn apart due to its pull-back chopping action. The knife shape provides a continuous sliding cut.
The new JUMBO knives with extra-strong backs and wide wave cut
ensure a prolonged service life.
Chassis - Ride comfort up to 31 total weight
Increasing load volumes and high transport speeds necessitate robust and soilprotecting chassis. Pöttinger has made great efforts in this area, responding with highquality, steering tandem or tridem axle and tyres with large footprints.
Tandem axle with parabolic suspension up to 22 t / 20 t total weight
Parabolic suspension with large spring-to-axle spacing and compensator for height regulation. Ideal suspension hopping properties at the silo and smooth running in fields and on the road. Stable trailing linkages apply the braking and steering force. An advantage of parabolic suspension with a large spring-to-axle spacing is better handling control on slopes.
The 4-wheel pneumatic brake system with automatic load-dependent braking system (ALB) controls ensures safe braking at high speed and with heavy loads. Can also be fitted with ABS if required. Hydraulic brakes can be supplied for some countries. Equipped with steering axle as standard.
Jockey steering axle (Standard for JUMBO) The rear axle pairs trail freely, thereby protecting both the wheels and the turf.
Boogie tandem axle (optional for Jumbo) up to 22 t / 20 t total weight Robust chassis for high speed stability and large axle pendulum swing for smooth load distribution with three-leaf parabolic springs.
Tandem axle with hydropneumatic suspension (optional for JUMBO) Hydropneumatic suspension with levelling valve for 25 t / 23 t total permissible weight. Ideal suspension hopping properties at the silo and smooth running in fields and on the road. Strong trailing linkages apply the braking and steering force.
TRIDEM Chassis
Soil protection with three axles (optional for JUMBO) Protecting the soil is the first priority. The Pöttinger tridem chassis distributes high loads across a large area so that the pressure on the ground remains low. Up to 33 t / 30 t total weight.
The large axle regulation is a special feature. A hydro - pneumatic suspension enables an axle pendulum swing of 10.63” / 270 mm. This allows the axle load to be distributed evenly. The trailer benefits from reduced side forces and runs quietly – with steering on both sides. Tests show that this saves fuel. The axle regulation ensures even wear of brakes on all axles.
8-wheel chassis
Perfect soil protection
Heavy machinery and high wheel pressure make soil protection a central issue. The 8-wheel chassis significantly reduces soil compaction. Up to 19.8 t / 18 t total weight.
On this unique chassis the wheels sit in pairs on the self-aligning axles. The rear axle pairs trail freely, thereby protecting both the wheels and the turf. A hydraulic leveller with patented pendulum swing ensures optimum pressure distribution. This improves slope efficiency. The hydraulic suspension optimises driving comfort, and pneumatic or hydraulic braking systems ensure a high braking performance even at speed. Due to the lower platform height in comparison with 26.5” tyres, the loading rotor can move more freely.
You have the choice - for up to 30 t total weight and 65 km/h.
Vredestein Flotation+
600/55-22,5 700/45-22,5
Vredestein Flotation Pro
650/50 R 22,5 710/45 R 22,5 710/50 R 26,5 800/40 R 26,5
Vredestein Flotation Trac
710/50 R 22,5
Nokian Country King
650/50 R 22,5 710/50 R 26,5
Michelin Cargo XBIB
710/45 R 22,5 710/50 R 26,5
Control Systems - POWER-/ISO-CONTROL
During long days of cropping, every driver appreciates the fact that
all functions can be carried out with ease from the driver’s seat. Pöttinger’s future-safe control concept goes one step further:
The ISOBUS system is fully integrated into the range.BR>
POWER CONTROL
JUMBO and TORRO silage trailers are fitted out with a standard POWER control pad.
JUMBO and TORRO silage trailers are fitted out with a standard POWER control pad. The computer also contains ISOBUS software. You can use the ISOBUS software to execute other functions such as speed- dependent control of the jockey steering axle, and pressure-dependent, torque-controlled loading and unloading functions. Integrated diagnostic functions and error reports allow problems to be solved quickly. The joystick control makes it particularly easy to use – and takes work to a new level.
ISO CONTROL
The ISOBUS CONTROL offers additional functions for the professional farmer and agricultural contractor. Tractor signal controls:
Pivoted chopping unit alert
Torque gauge for controlling the automatic loading systems. Quick and precise tuning for different forage properties operated from the tractor seat
Locking of the steering axle dependent on speed and when reversing.
The ISOBUS CONTROL offers additional functions for the professional farmer
and agricultural contractor. The ISOBUS-system is integrated as standard. All functions can also be controlled using the joystick.

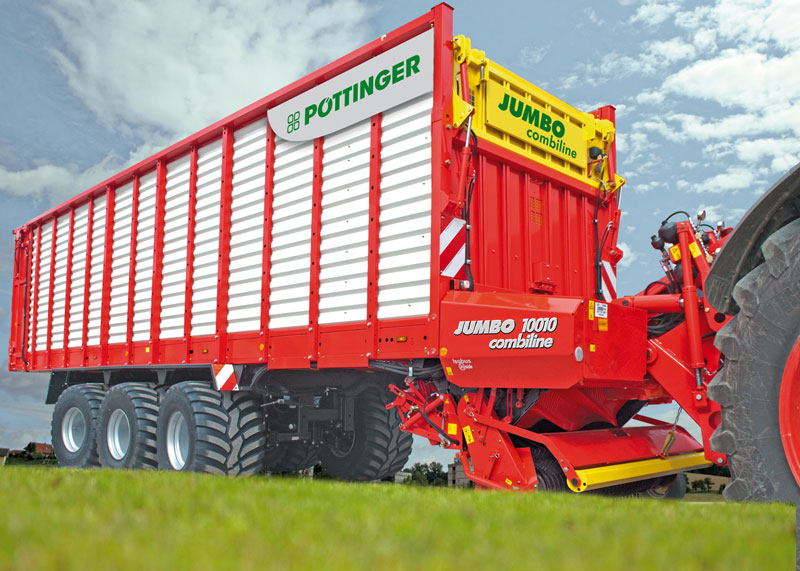

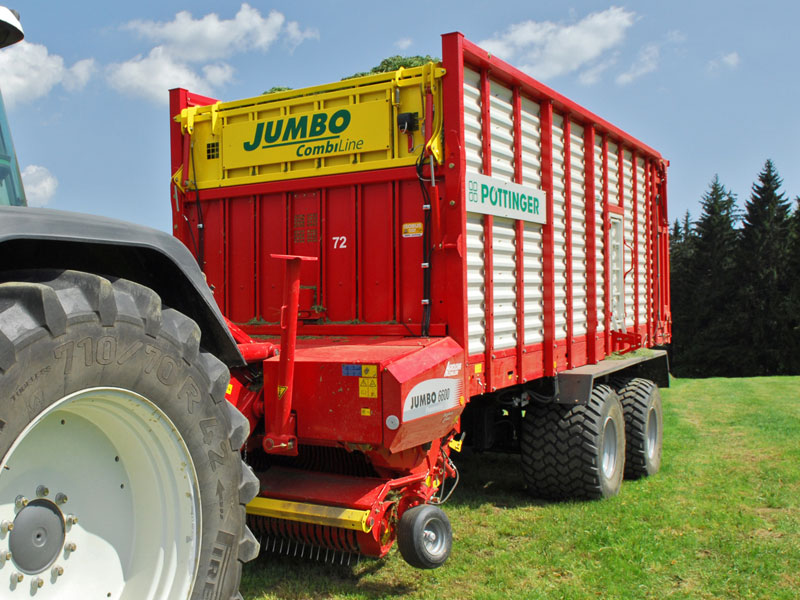

Cost benefits and increased productivity have made the selfloading wagon the silage system of the future. The new JUMBO Combiline is an advancement – a combined trailer that can be used as a silage trailer and a harvester transport wagon. A conversion can be performed in a matter of seconds from the tractor seat.
Silage trailer mode:
The wide forage compacting shutter controls the automatic loading unit.
Front part folded up
to make full use of the loading area.
Forage harvester mode:
Front part folded forwards - ideal for “opening out“ and good view into the loading area.
NEW JUMBO CUTTING UNIT
The cutting unit can be swiveled out under pressure. The knives are automatically released using a lever and can be removed without the need for tools. The whole knife bank can be swiveled out sideways in the traditional fashion. An active cleaning comb is available for particularly difficult conditions.
The chassis comprises of a bolted frame construction with a new 11.81 in / 300 mm high profile made of QSTE fine grain steel. Sturdy platform support profiles and close spacing provide high stability.
The straight side columns are bolted to the frame, not welded. Fine-threaded bolting is utilized for the highest possible rigidity.
3 t DRAWBAR
A particularly sturdy drawbar with 3.3 t / 3.0 t load capacity is available as standard.
SCRAPER FLOOR
The scraper floor has six chains. The tempered slats are separated and offset. The load-chamber floor is constructed of pressure-impregnated, durable wood. The boards are tongue-and-groove and are bolted to the frame. Simple maintenance The scraper-floor shafts can be lubricated from the side of the trailer.
Scraper floor drive Two strong hydraulic motors with integrated two-stage gearing provide the drive. The speed can be easily controlled. The drive shafts are fitted with six-heavy duty lubricated bushes
On request, the folding channel cover prevents the harvested crop from falling into the loading channel during use as a harvest trailer.
