8 rows with 75 cm spacing and central lifting

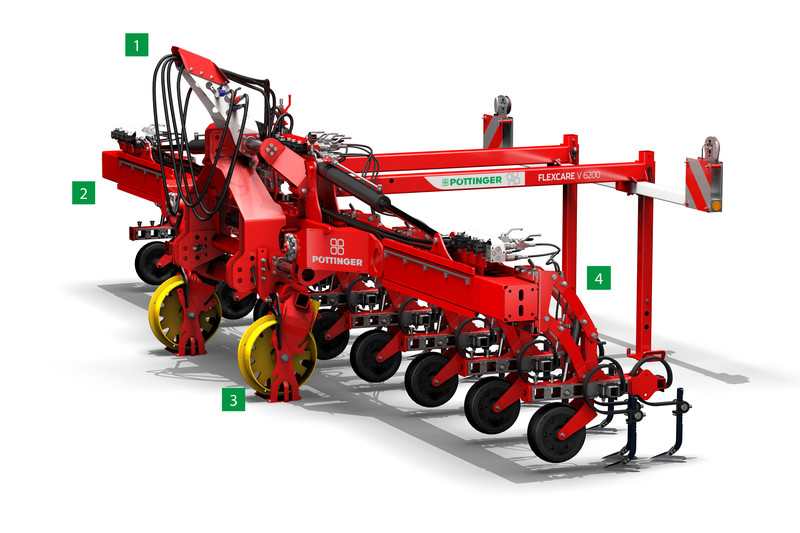

1 Tractor mounting

With its centre of gravity close to the tractor, FLEXCARE guarantees precision row guidance. Thanks to a choice of different lower linkage and top link positions, the FLEXCARE matches a wide range of tractor geometries.

• FLEXCARE V 4700 and V 6200: Cat. 2 and Cat. 3

  FLEXCARE V 9200: Cat. 3

• 5 lower linkage and 2 top link positions

2 Hydraulic shift frame

A hydraulic shift frame is integrated into the main frame to optimise plant row tracking.

• Shift path +/- 25 cm

• Controlled manually, or automatically with optional electro-hydraulic camera guidance

3 Flanged wheels

The large flanged wheels with a diameter of 450 mm supplied as standard increase the precision of the FLEXCARE. Smooth running is ensured during operation.

• FLEXCARE V 4700 and V 6200 are adjustable for track widths between 150 cm and 225 cm

• FLEXCARE V 9200 is adjustable for track widths between 180 cm and 240 cm

4 Parallelogram mounting

Each hoe element is mounted on a parallelogram for optimum ground tracking. Ground pressure and cultivation performance can be adjusted using an optional double-acting hydraulic cylinder.
