Chamber configuration

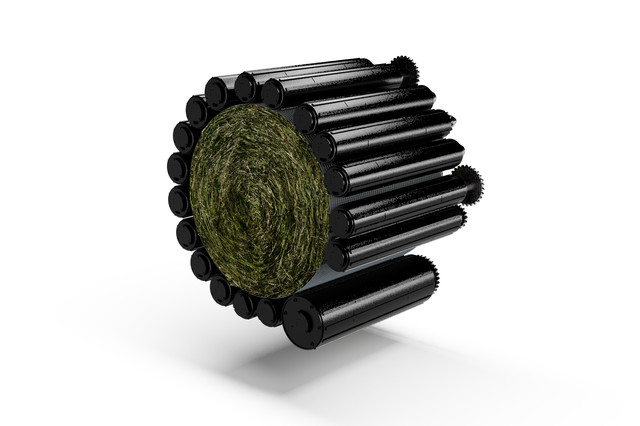

The 1.20 x 1.25 m baling chamber has 18 chain-driven compression rollers. These include 4 starter rollers and 6 main compression rollers that are particularly robust with a wall thickness of 4.5 mm and have an active shape. The remaining 8 shaping rollers are weight-optimised with a wall thickness of 3.5 mm. All the rollers are mounted on large dimensioned 50 mm self-aligning bearings.

The tailgate is hydraulically interlocked and determines the baling pressure.
