Single axle standard on PRIMO 351

Suspended tandem axle with parabolic springs, 10.5 t axle load

Nine large parabolic springs provide the necessary suspension. Excellent handling in the field, on the road and in the clamp. Spring spacing 1100 mm. The compensator arm distributes the pressure exerted on the ground evenly between the two axles. When driving over rough ground, the forces are distributed evenly to both sets of springs rather than a single axle.

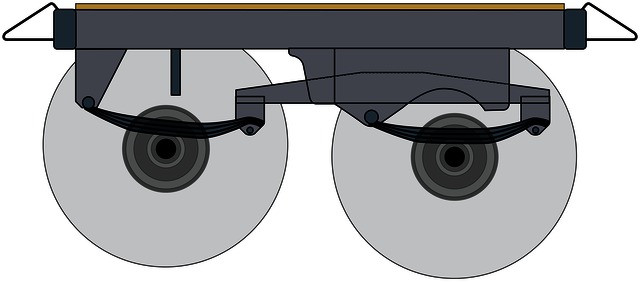

Suspended axle with beam link

Tandem axles with parabolic spring suspension (optional), 13 t axle load

Parabolic leaf springs with large spring–to–axle spacing and compensator arm prevent swaying for good stability on slopes.

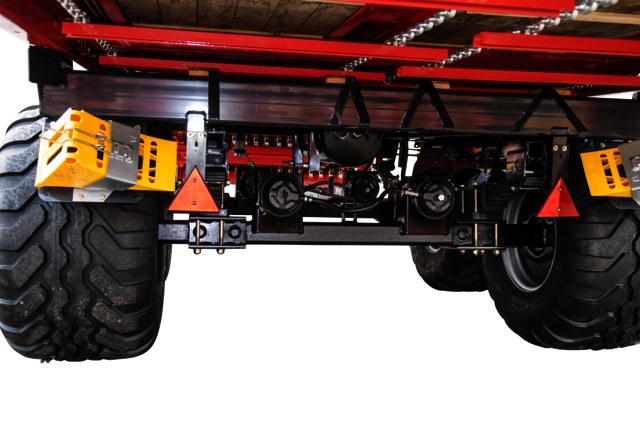

PRIMO axles

Air brakes:

The four wheel air brake system with automatic load-dependent braking system (ALB) ensures safe and smooth braking at high speed.

Hydraulic brakes:

Hydraulic brakes can be supplied dependent on local legislation.
