Maximum efficiency

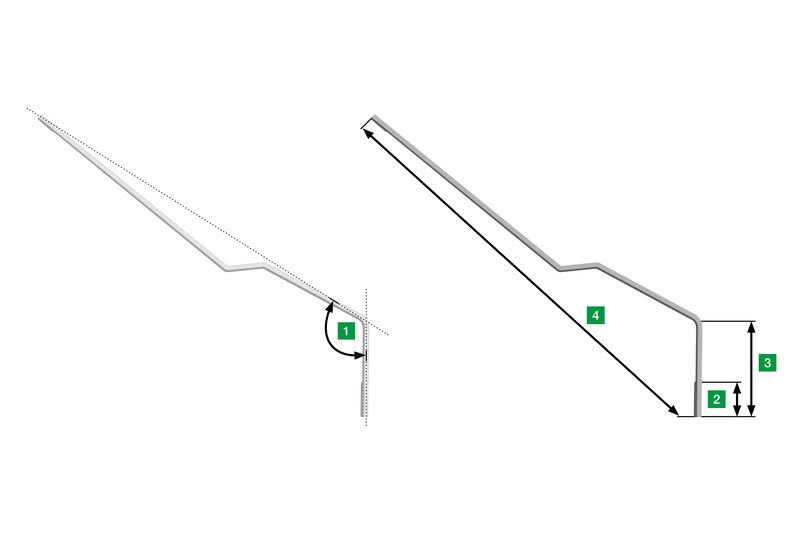

Optimised tines
1 Tine angle 120 °
2 DURASTAR PLUS coating
3 Wear length 125 mm
4 Effective tine length 600 mm
The TINECARE V tine harrow is equipped with durable spring steel tines with a diameter of 8 mm as standard. They offer impressive wear resistance, excellent straight line tracking, and a long wear length of 125 mm. Each tine can be replaced individually if required.
The tips of the tines have an effective angle of 120 ° for optimum plant compatibility and suitability for processing mulch-drilled crops. Thanks to the diagonal tine length of 600 mm, it is possible to harrow right along the plants without damaging them.
DURASTAR PLUS
For the TINECARE V there is a choice of CLASSIC tines or DURASTAR PLUS tines.
DURASTAR PLUS tines are equipped with a 50 mm long carbide coating on the tine tip. This extends the durability of the tine many times over.

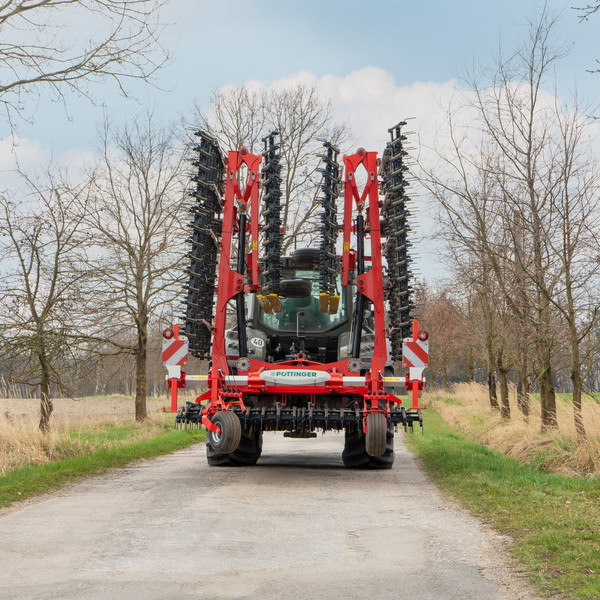

Road Transport
When changing from working in the field to road transport, all tine sections fold hydraulically into a defined transport position. The frame sections are tilted slightly inwards to provide a better view in the cab mirrors.
Space saving storage
The TINECARE V 12050 MASTER folds up its five sections to provide a compact storage position. With a height of 3.6 m and a width of 2.95 m when folded, the tine harrow saves space when it is stowed.
Easy servicing
Maintenance-free tine sections
Individually replaceable tines
Greasing points at the frame folding points
Protected spring units
Easy to clean
