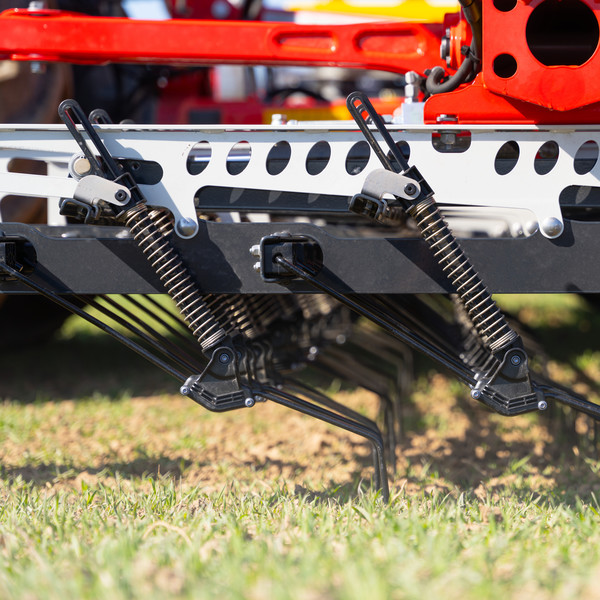

The tine sections on the TINECARE V feature a simple, light and crop-friendly design. The indirect pressure application system on the precision tine harrow is equipped with a spiral compression spring. Because the spring is located above the tine, it prevents even taller crop plants from being damaged by moving parts.

The ingenious linkage on the simple tine elements combines contour-independent tine pressure with maximum reliability.


Configuration and function

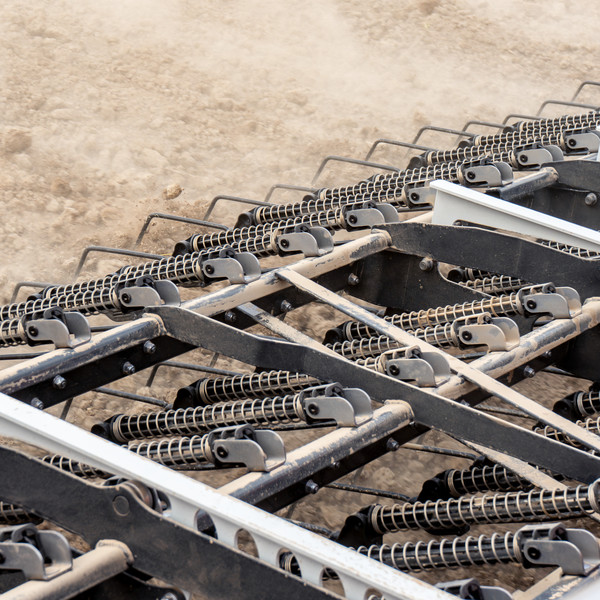

The tine section on the TINECARE V is installed on 6 beams.

The inter-gang spacing within each tine section is particularly large at 360 mm, so that perfect working results can also be achieved in fields with mulch on the surface.

In addition to the wide mounting and straight line tracking of the tine, the optimum tine diameter contributes significantly to maintaining the tine spacing of 30 mm.


Tine pressure adjustment

The tine pressure is infinitely variable and easily synchronised from the driver's cab using the tractor hydraulics. It can be set in the range of 500 g to 6000 g across the full working width.

Where conditions in the field are consistent, the working results can be adjusted quickly and easily.

This ensures that gentle to aggressive weeding can be carried out depending on the development stage of the plants and the site-specific soil conditions.


Tine settings

In order to achieve an optimum match to the conditions in the field, the tine harrow can be adapted in several different ways:

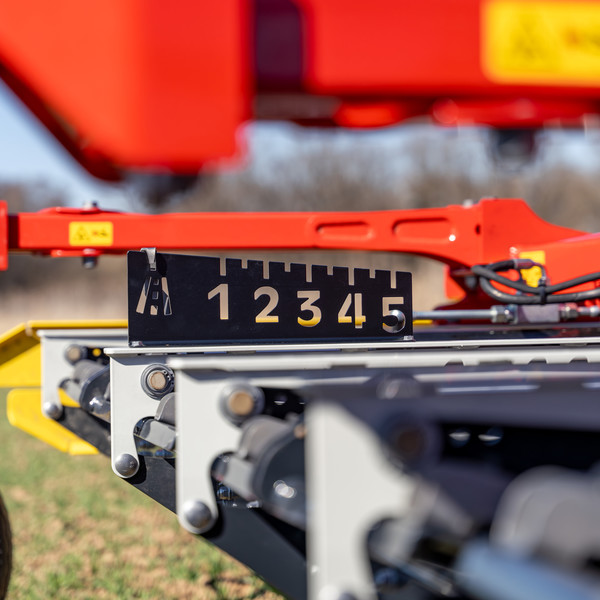

  • Tine angle: the angle of the tine is simply adjusted to fine-tune the aggressiveness of the tine harrow by changing the height of the frame.

  • Working depth: the working depth of the tines is a combination of the tine angle, tine pressure, and driving speed.
