Half-width shut-off
Adapting the working width to the tramlines
To save soil compaction and additional passes when working in fields with tramlines, tine sections on the left-hand side of the machine can be deactivated manually.

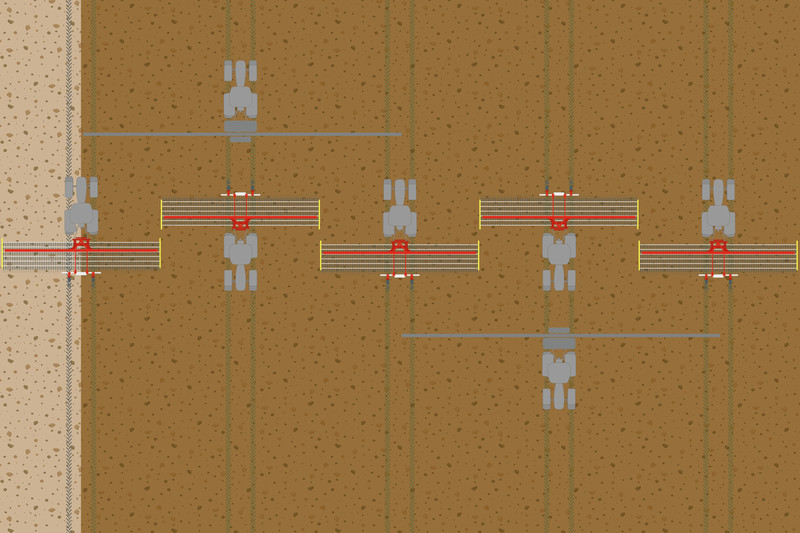

This capability allows the working width of the TINECARE V 12050 MASTER to be adapted to fit in with the tramline scheme of the sprayer or fertiliser spreader, for example, covering application widths of 18 m, 24 m, 36 m or 48 m.
Deactivating one side is also useful for working at the headland or on wedge-shaped corners, for example.
The result is that tramlines can be shared by several crop care machines. This conserves the soil and the crop, because excessive damage to the crops caused by double passes with the tine harrow is avoided.
Easy handling
To make optimum use of the available tramlines and avoid excessive overlaps, it is possible to lock each of the tine sections on the left-hand side of the machine in the raised position.

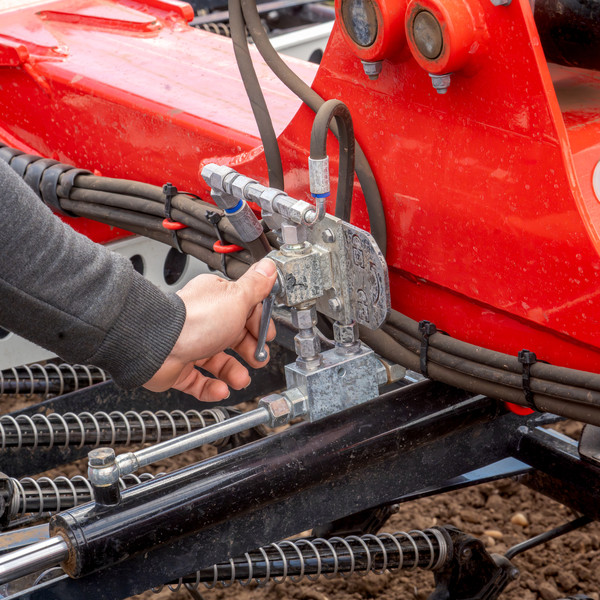

To activate half width switching, there are easily accessible switchover valves mounted on the frame of the machine.
Because half width switching is so easy to use, it can be activated quickly when needed at the headland or field boundary.
