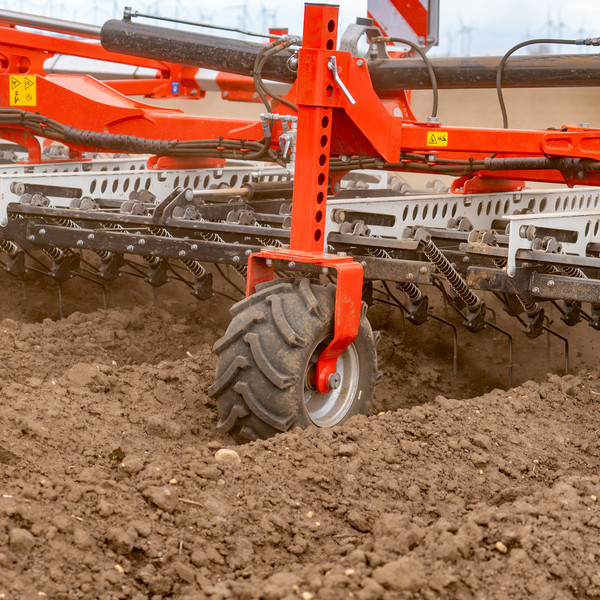

Fully-adaptable jockey wheels
The height and lateral position of the four front jockey wheels can be adjusted as standard. As a result they can make a significant contribution to ground tracking. When used in row crops, they are always positioned between the rows of plants.
In combination with the optional steerable rear wheels, they ensure the best ground tracking even in hilly terrain.

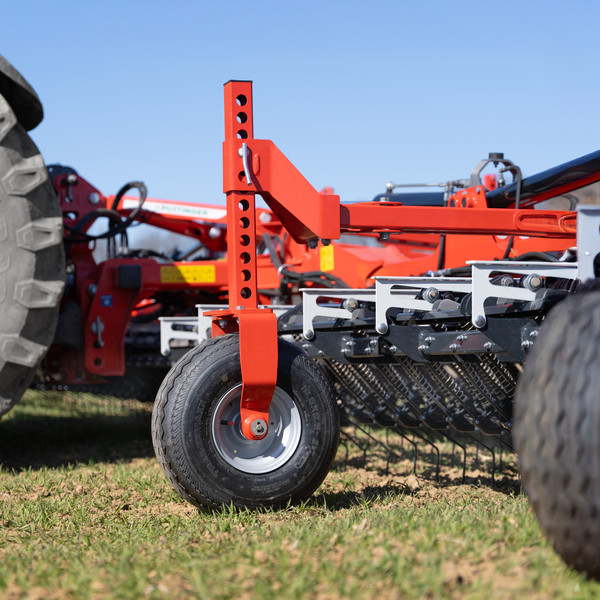

Ingenious wheel mounting
The double-sided wheel mounting offers an impressively narrow yet strong structure for working in closely spaced row crops and in ridges.
The frame height can be adjusted quickly and precisely using the pin-in-hole matrix.
Self steering rear jockey wheels
The option of steered rear jockey wheels further improves the ground tracking capability of the tine harrow.
They can be easily shifted to either side along the lighting bar to match tractor track widths between 150 cm and 225 cm.
Track harrow
An additional track harrow is available as an option to be mounted behind the rear jockey wheels. This lifts up weeds again that have been pressed into the soil to prevent them from growing back.
Choice of wheel options
The large 18.5 x 8.5 - 8 tyres on the jockey wheels are available with grooved or lug tread pattern. They run smoothly and reduce the pressure applied to the soil. The standard version includes air-filled grooved tyres.
Tyres with a lug tread pattern are particularly recommended if the track harrow is installed. Another advantage is their improved self-cleaning function.
