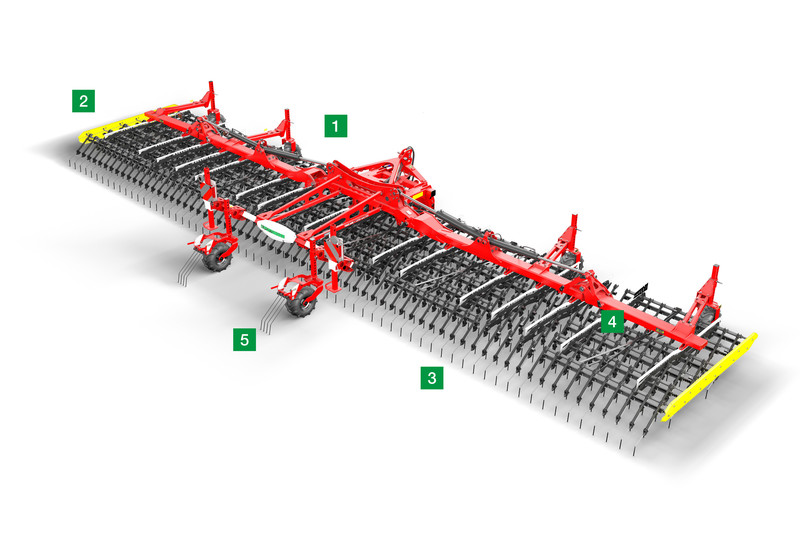

1 Frame

A large dimensioned frame ensures maximum service life. The central arrangement ensures optimum weight distribution.

  • Frame dimensions 120 mm x 180 mm

  • Folds in 5 sections

2 Tine section

The large inter gang spacing ensures a high clearance. The tine section of the TINECARE V is installed on 6 beams. The tine pressure is adjusted hydraulically.

  • Tine spacing: 30 mm

  • Inter row spacing: 360 mm

  • Maximum underframe clearance: 500 mm

3 Tine options

Guided tines guarantee a perfect working result. The ingenious tine mounting ensures excellent straight line tracking.

  • 8 mm thick harrow tines

  • Tine wear length: 125 mm

  • DURASTAR PLUS hardened tines available as an option

4 Pressure spring system

Each tine is preloaded by a pressure spring. Pressure fluctuations are avoided and a constant tine pressure is maintained in every working position.

  • Neat compression spring system

  • No snagging of plants

  • Consistent tine pressure in every working position

5 Track harrow

Track harrows are available as an option on the rear jockey wheels to loosen any weeds that have been pressed into the soil.

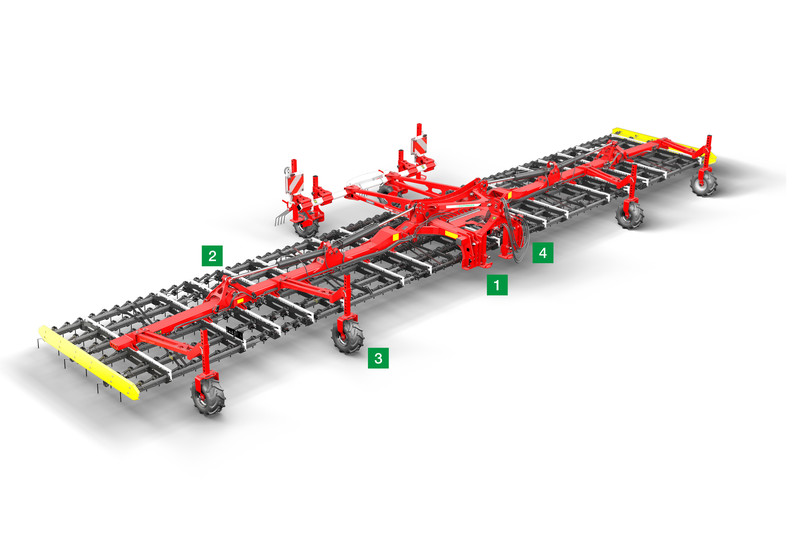

1 Mounting

Mounting the machine further forward provides a favourable centre of gravity and means less stress on the tractor. Thanks to a choice of different lower linkage and top link positions, the TINECARE matches a wide range of tractor geometries.

  • Cat. 2

  • Cat. 3 N

  • Cat. 3

  • 3 lower linkage and 3 top link positions

  • 115 mm top link slot with safety flap

2 Half-width shut-off

Switchover valves are available as an option to manually lock individual tine sections in the transport position. This is particularly relevant for controlled traffic farms where the working width of the tine harrow needs to match an existing tramline scheme.

3 Jockey wheels

The large-volume jockey wheels provide better soil conservation and optimum smooth running, even at higher driving speeds.

  • Self-steering rear jockey wheels are available as an option

  • With grooved or optional lug profile

  • Can be positioned ergonomically to match row widths

4 Hydraulics

The hydraulic systems provided as standard for folding and tine pressure adjustment place low demands on the tractor.

  • 1 double-acting spool valve for folding outer sections

  • 1 double-acting spool valve for main vertical folding

  • 1 double-acting spool valve for infinitely variable tine pressure adjustment

No additional spool valve is needed on the tractor if the HYDROLIFT hydraulic headland system is fitted.
