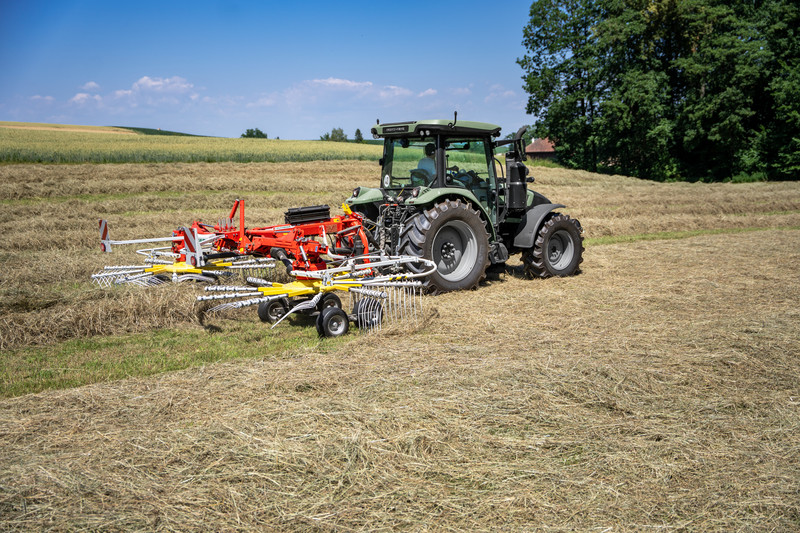

The best forage

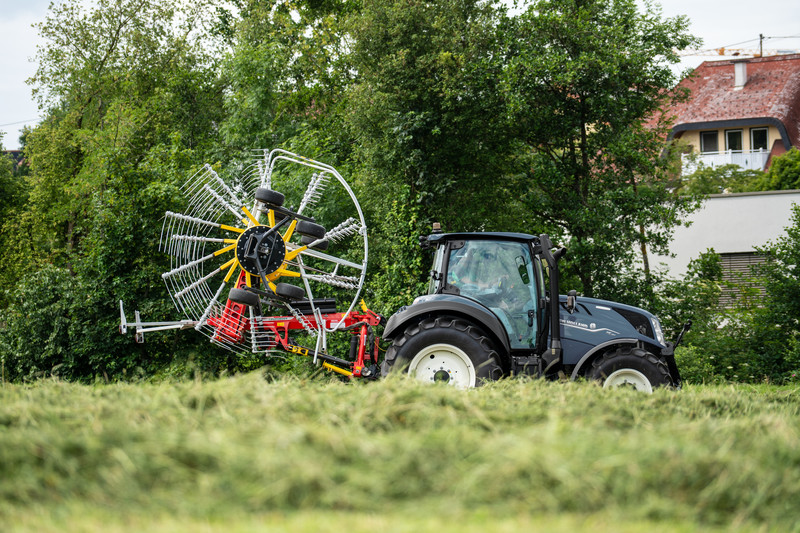

The TOP V 6520 C is particularly manoeuvrable thanks to its compact design without a chassis. The twin rotor rake mounted on the rear linkage is extremely convenient to operate in fields where a lot of turns are needed.
The TOP V 6520 C is particularly manoeuvrable thanks to its compact design without a chassis. The twin rotor rake mounted on the rear linkage is extremely convenient to operate in fields where a lot of turns are needed.
Customer benefits
Technology
Technical data
TOP V 6520 C | |||||
|---|---|---|---|---|---|
| Working width | 5,9 - 6,5 m | ||||
| Swath width | 1 - 1,6 m | ||||
| Rotor diameter front / rear | - | ||||
| Transport length | 3,65 m | ||||
| Rotor diameter | 2,8 m | ||||
| Tine arms per rotor | 10 pcs. | ||||
| Working width adjustment | Mechanical | ||||
| Transport width | 2,91 m | ||||
| Transport height | 3,5 m | ||||
| Transport length | - | ||||
| Tine arms per rotor rear / front | - | ||||
| Removable tine carrier arms per rotor | 10 | ||||

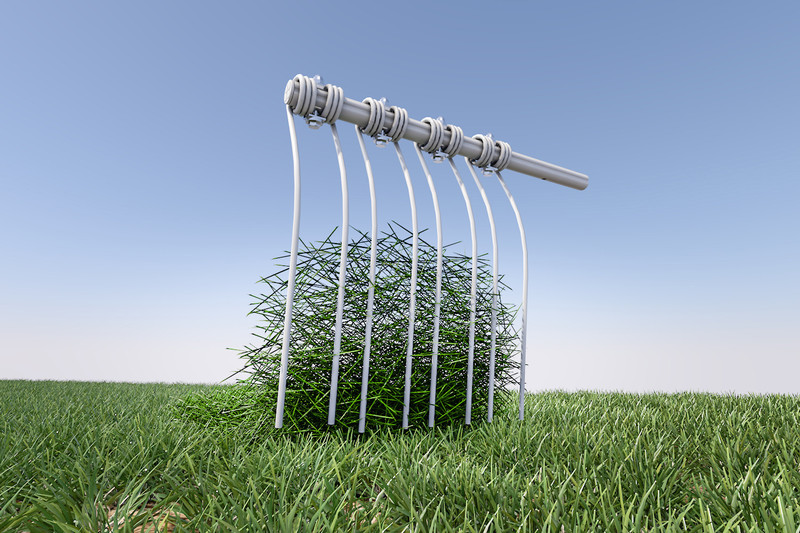

| Tines per tine arm | 4 pcs. | ||||
| Rotor unit | TOPTECH | ||||
| PTO Input Speed | 540 rpm | ||||
| Weight | 1300 kg | ||||
| Power requirement | 80 hp | ||||
| Mounting | Rear three-point | ||||
| Swath placement in direction of travel | Middle | ||||
| Height adjustment system | Crank handle adjuster | ||||
| Axle | 4-wheel tandem axle | ||||
| Rotor tyres (standard) | 16 x 6,5-8 | ||||
| Standard Equipment |
TOP V 6520 C
| Working width | 5,9 - 6,5 m |
| Swath width | 1 - 1,6 m |
| Rotor diameter front / rear | - |
| Transport length | 3,65 m |
| Rotor diameter | 2,8 m |
| Tine arms per rotor | 10 pcs. |
| Working width adjustment | Mechanical |
| Transport width | 2,91 m |
| Transport height | 3,5 m |
| Transport length | - |
| Tine arms per rotor rear / front | - |
| Removable tine carrier arms per rotor | 10 |
| Tines per tine arm | 4 pcs. |
| Rotor unit | TOPTECH |
| PTO Input Speed | 540 rpm |
| Weight | 1300 kg |
| Power requirement | 80 hp |
| Mounting | Rear three-point |
| Swath placement in direction of travel | Middle |
| Height adjustment system | Crank handle adjuster |
| Axle | 4-wheel tandem axle |
| Rotor tyres (standard) | 16 x 6,5-8 |
| Standard Equipment | |
