Convenient handling

• Improved accessibility and an optimal overview thanks to the longitudinally mounted hopper

• Full-length hopper cover is moved to the side during filling

• Low filling edge height: 2.17 m or 2.57 m

• Large filling opening: 1,22 x 1.92 m or 1,22 x 2.4 m

• Good accessibility using the side-folding loading platform

• Residual seed material is conveniently emptied from the side

Easy to use metering units

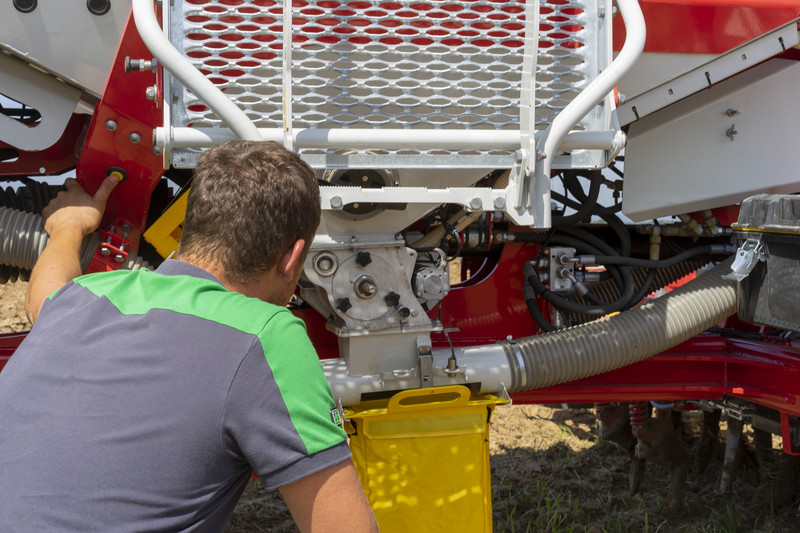

• Straightforward calibration procedure thanks to easily accessible metering units and calibration at the push of a button

• Metering system components are located in front of the tillage tools for optimum dust protection

• The system is protected against dirt ingress because the fan is integrated into the front wall of the hopper

• Metering wheel drive with wide speed range so no gear changes necessary

• Shut-off plate for straightforward metering wheel replacement

• Simple metering wheel selection using the METERING WHEEL ASSIST app or control terminal

• Toolbox for calibration bags, weighing scales and metering wheels

Reliable seed flow monitoring

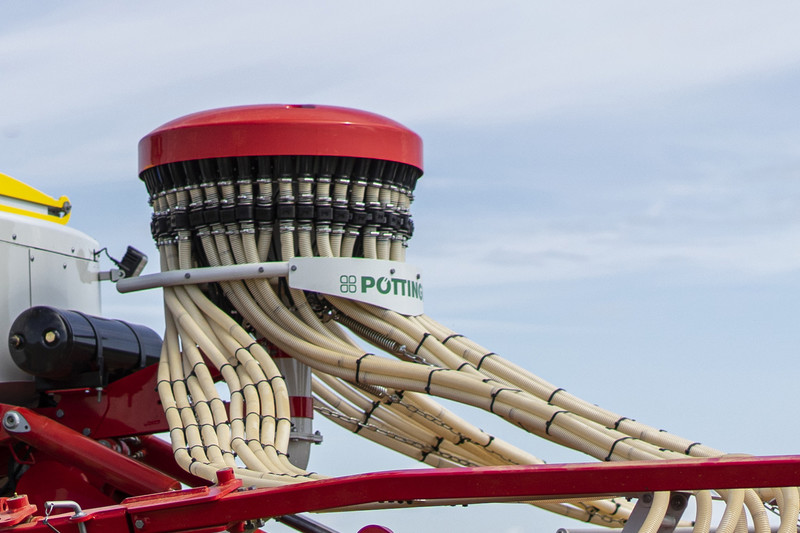

The optional seed flow sensors display constant and reliable feedback on the current seed flow at the control terminal. One sensor per coulter pipe is located directly behind the IDS distributor head, to ensures reliable application. The sensitivity can therefore be adapted to each type of seed. If the flow is not constant, the relevant row number is displayed on the control terminal. Furthermore, red and green LEDs indicate the status directly on the sensors.
