The best working results

Because the discs rotate and have a diameter of 410 mm, the machine needs less tractive power and consumes less fuel as result. Thanks to the aggressive soil entry angle of 15 ° and a disc inclination of 7 °, the soil is intensively loosened, mixed and levelled. The discs on the first row are arranged to face in the opposite direction to the discs on the second row. This ensures smooth operation without crabbing. The large row spacing of 510 mm provides excellent clearance, even with high volumes of organic matter. Optional track eradicator tines thoroughly loosen the tractor wheel marks to enable perfect mixing at a consistent working depth.

Minimal wear and maintenance requirement

• The twin race taper bearings are sealed and as a result 100% maintenance-free.

• A labyrinth seal with metal cover provides the best protection for the bearings.

• The disc elements are mounted on the frame in pairs using clamping brackets.

• Rubber elements also provide overload protection by allowing the disc arm to ride upwards to roll over stones.

Setting the working depth of the harrow discs

On the FOX compact combination it is possible to set the working depth of the discs individually.

• Guidance by rear roller

• Depth adjusted using 9-hole matrix

• Optional hydraulic depth adjustment

• Working depth from 3 - 8 cm

• Rigid linkage - disc section cannot deviate upwards

• The weight of the packer can be applied to the disc section

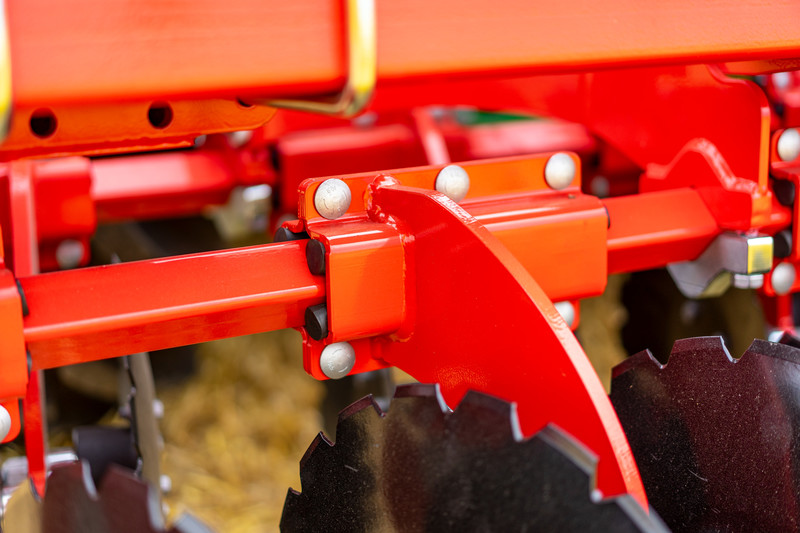

NONSTOP stone protection

Special rubber elements provide proven, maintenance-free stone protection over many years. The clamping brackets are mounted on a thick walled box section frame. Four rubber elements between each wide clamping bracket and the box section provide the discs with high soil entry power.
