The lightweights on the mountainside

The two ALPINHIT models with four rotors are absolute lightweights. Depending on the model, the tedder with rigid headstock (ALPINHIT 4.4 H) weighs just 285 kg. With a pivoting headstock (ALPINHIT 4.4 N), it is only 330 kg.

Both tedders provide a working width (DIN) of 4 m.

Designed for all forage types, the four rotor ALPINHIT tedder with a rotor diameter of 1.44 m ensures perfect crop take-up and optimum spreading quality in all operating conditions.

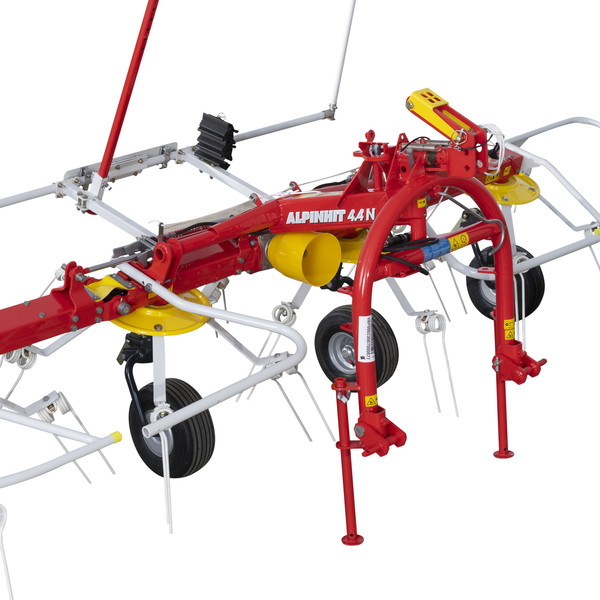

Pivoting headstock (N)

The ALPINHIT 4.4 N follows in the tractor's tracks thanks to its pivoting headstock. When cornering, the tedder follows the tractor without swivelling out. The vertical axis of rotation prevents under-running when working downhill.

When the tedder is raised, the heart-shaped pivot pin automatically centres itself in the motion link to secure the machine in the centre position. This design guarantees the greatest lifting height at the headland even when used with small tractors, because the tedder does not sag.

Optional stabiliser struts

Two optional mechanical stabiliser struts on the headstock ensure that the machine runs smoothly during operation.

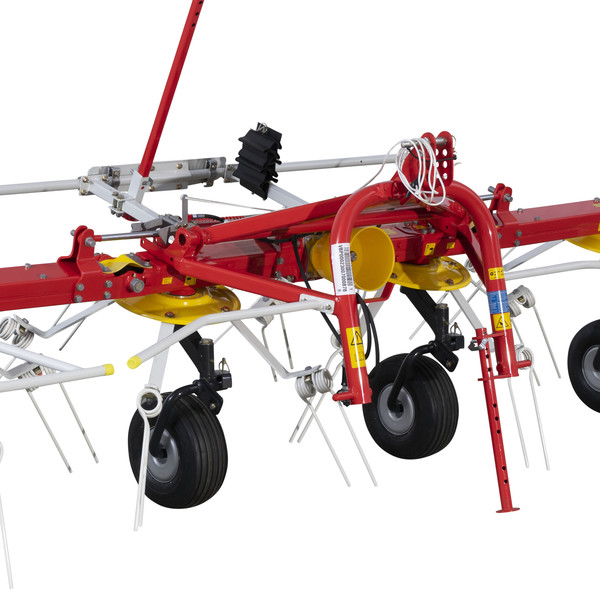

Rigid headstock (H)

The ALPINHIT 4.4 H has a rigid headstock. This places the machine even closer to the tractor. In addition, its simple design ensures yet another reduction in weight. This further improves performance on steep slopes.

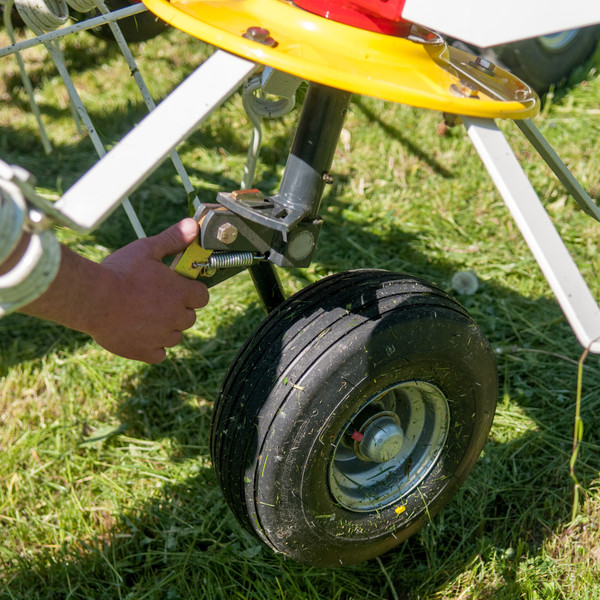

Mechanical fenceline tedding system

The ALPINHIT 4.4 N is equipped with a mechanical fenceline tedding system as standard. The wheels on all four rotors are set individually by hand: Lever positions centre – left – right.

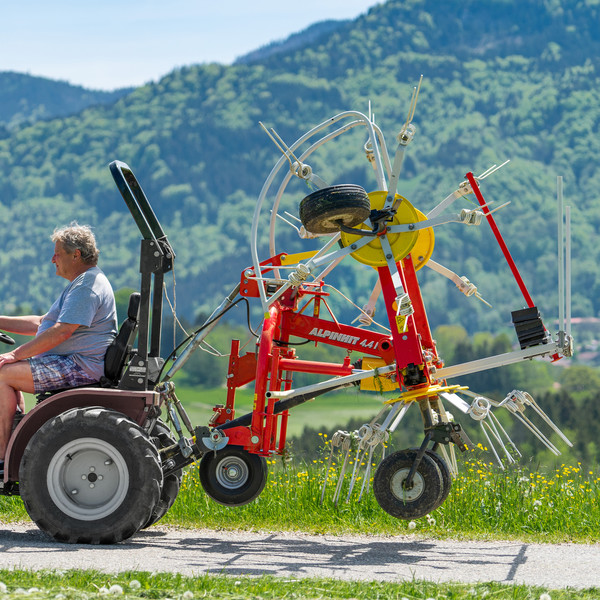

Compact and safe during transport

The rotors are folded upwards by hand, or alternatively using an optional hydraulic system. The raised rotors are tilted close to the tractor. This provides an optimum centre of gravity.

The transport width is 2.51 m.

Warning signs and road lights are optional.
