Filling up, adding and mixing, cleaning

The combination of three different tanks, which together make up the LIQUIDO F silage additive tank, is a unique feature. The tank combination makes it possible to fill the tank, mix in the silage additives by hand, then wash your hands and rinse the lines at the end of the harvesting process. It means that the workplace can always be kept clean.


Main tank

The main tank has a standard volume of 225 l. A 400 l tank is also available as an option to meet higher performance requirements if needed.

Because the silage additive system can be used with a low tank level, the quantity can be specifically adjusted for each application depending on the output required. The quantity in the tank is flexible and can be varied to meet all requirements, regardless of whether a low or high application rate is being used.

A maximum filling capacity of 225 l or 400 l offers the advantage of being able to operate for extended periods. There is no need to constantly refill the system, thanks to the large capacity of the tank.

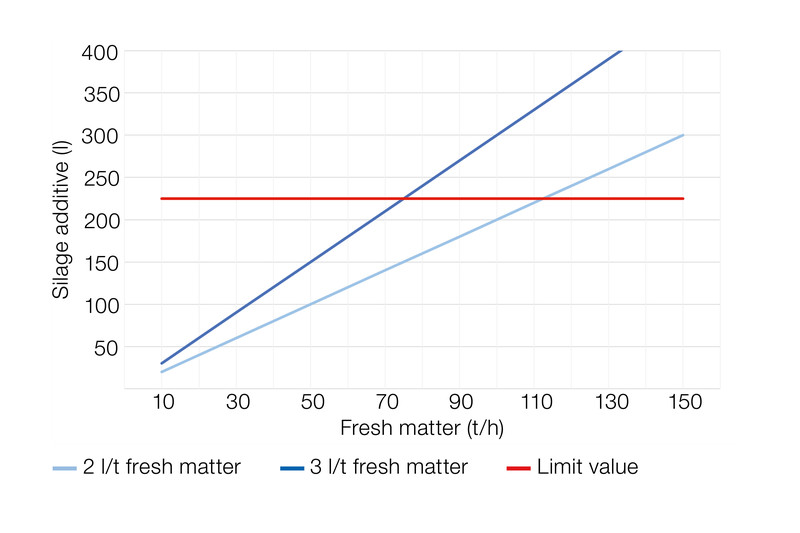

225 l or 400 l tank?



Fresh water tank

The fresh water tank is provided as standard and has a capacity of 45 l. This tank is integrated into the side of the main tank and is used to store clean water.

At the end of the harvesting process, the fresh water tank can be used to rinse the lines. The settings of the 4-way valve are changed so that water flows from the fresh water tank through the lines on the tractor to the nozzles. This rinses out the residues of the silage additive. As a result, there is no need to drive to a water supply to flush the lines because cleaning can be carried out directly in the field.

The contents of the fresh water tank can also be used as a backup for the LIQUIDO F 3000 during a harvesting day. The water can be fed into the main tank by changing the setting of the valve in the flow line. The silage additive mixture can then continue to be diluted with the additional water, or a new application rate can be mixed directly.


Hand washing tank

A 15 l hand washing tank is integrated into the LIQUIDO F in the same way as the fresh water tank. This container can be used to wash hands, mix inoculant solutions and then rinse out the silage additive container.

The hand washing tank is a practical additional feature for keeping everything clean.



Fast tank filling

A 1" camlock connection is provided for extremely fast filling of the main tank. This is a simple and leak-proof system using in plant protection technology, which is also referred to as a quick-fill system.

The connection is located at chest height on the left side of the tank in the direction of travel, so it is ergonomically positioned.

Easy attachment and removal make handling easy. Thanks to the large cross-section of the connection, the 225 l and 400 l tank can be filled in a very short time and do not require time-consuming supervision during the filling process.


Rapid tank emptying

Thanks to the simple system for draining the water from the main tank, a 225 l tank filled to the top can be completely emptied in under 10 min.


A clean and bright tank

Cleaning the main tank and lines ensures that the tank is bright and ready for the next job. Flushing the lines with fresh water is recommended to completely remove the inoculant solution from the pipes and prevent the nozzles from sticking.

The main tank on the LIQUIDO F 2000 is cleaned by hand. Thanks to the large opening and the removable screen, the tank is easy to clean.

On the LIQUIDO F 3000, there is a tank cleaning nozzle integrated into the main tank. Attaching a hose to the top of the main tank feeds water in for cleaning.

The LIQUIDO F either drains the residual water directly, feeds the water through the lines to the nozzles. Cleaning the lines is carried out using the residual water from the cleaned main tank, or water carried from the fresh water tank.


Precise measurement for a complete overview

Tank level scale

The level of the solution in the main tank can be measured manually using an indicator scale.

The indicator scale is located inside the tank. It is easy to read the tank level thanks to the notches on the scale.

Angle sensor including float

The level of the solution in the main tank is also displayed on the control terminal thanks to a float attached to an angle sensor.


See how much is left

A digital level indicator displays the amount of liquid at the control terminal.

The tank level is measured in two possible ways and can be displayed using a toggle button on the terminal:

  • A float included in the main tank measures the liquid level, and a sensor transmits the current value.

  • Before starting the harvesting process, the tank level is transferred at the touch of a button. The flowmeter registers the amount of silage additive applied. The difference between the contents of the tank before starting and the quantity applied to the forage also gives the current status.

That is how the fill level is monitored digitally at the terminal.


Hose package

The universal hose package, which carries the silage additive solution from the tank to the nozzles, is routed over the tractor as standard. The electrics for the silage additive tank system are also mounted on the tractor.

Both of these systems can remain on the tractor and only need to be installed once.

There are coupling points for the lines at the front and back of the tractor for removing the silage additive tank and the harvesting machine. Thanks to these bolted couplings, the lines from the front tank to the tractor and the tractor to the harvesting machines can be connected and disconnected in just a few simple steps.
