Nozzle header
JUMBO - LIQUIDO F 3000
The nozzle header is installed between the pick-up and rotor on the harvest machine. The nozzle header can be connected and disconnected to the hose on the tractor and the rest of the system using a screw coupling.
The position of the nozzle header ensures that the inoculant solution is applied precisely and evenly to the flow of forage between the pick-up and the loading rotor.
IMPRESS - LIQUIDO F 2000
Nozzles
The nozzle header is equipped with 2 nozzles on the LIQUIDO F 2000 and 4 nozzles on the LIQUIDO F 3000. A selection of different nozzle packages with different flowrates is also available. The fan spray nozzles are available in three different colours (yellow, red, grey) with three different flowrates.
The colour of nozzle is selected in advance depending on the application rate requirements to ensure a homogeneous distribution of the inoculant solution in the flow of forage.
LIQUIDO F | 2000 with 2 nozzles | 3000 with 4 nozzles |
Yellow | 40 l/h - 90 l/h | 40 l/h - 200 l/h |
Red | 80 l/h - 175 l/h | 80 l/h - 355 l/h |
Grey | 15 l/h - 245 l/h | 115 l/h - 470 l/h |
Application area
The 2 or 4 nozzles are positioned so that the silage additive is applied evenly to the flow of forage. Each nozzle covers an area 50 cm wide. This ensures homogeneous application and the best possible covering of all the forage. This quickly lowers the pH value in the clamp for perfect silage quality.
Variable metering quantity
The two LIQUIDO F models have different application capacities:
LIQUIDO F 2000: 40 l/h to 245 l/h
LIQUIDO F 3000: 40 l/h to 470 l/h
The silage additive is pumped through the lines from the tank by an electric pump. Once it arrives at the nozzles, it is applied directly to the flow of forage. Precision metering and application of the silage additive in litres per hour is guaranteed.
Metering can be flexibly adapted to the performance of each harvesting machine to ensure efficient operation.
Controlling metering
On the LIQUIDO F, metering of the application flowrate can be controlled manually using a + 10 % / - 10 % button. Use this button to respond to short-term changes in forage flow or a given situation in the field.
In addition, the LIQUIDO F 3000 dynamically regulates the metering of the additive according to the driving speed.

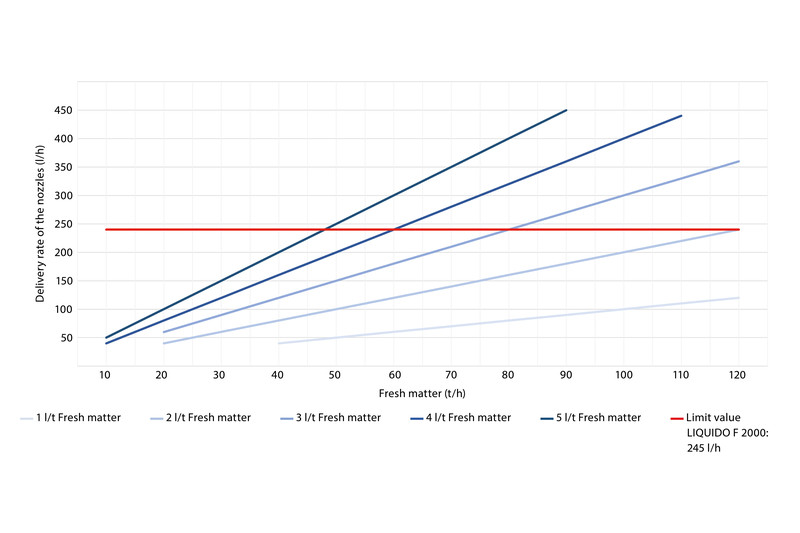

LIQUIDO F 2000 and LIQUIDO F 3000 application rate capacities
