We meet the high specifications of contractors and large farms with our two premium rakes.

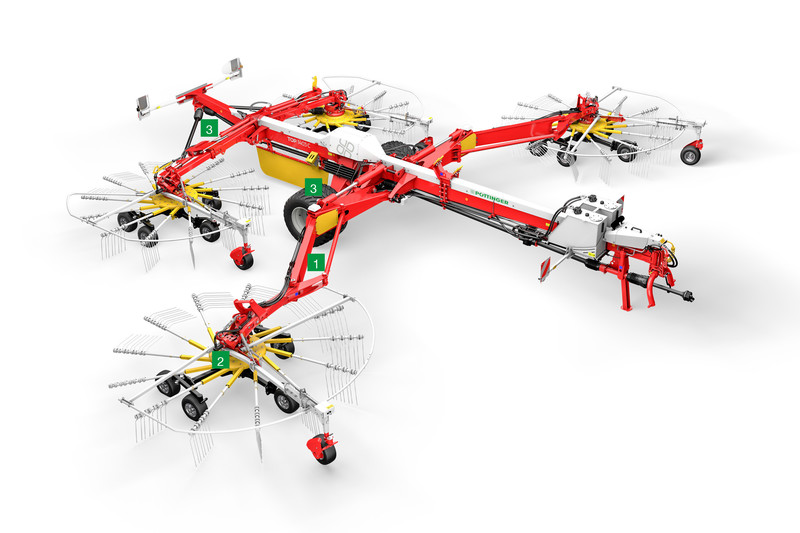

1 Z booms for enormous adjustment range

The key feature of these four-rotor rakes is the enormous adjustment range of the two front rotors. This is made possible by the Z-shaped booms. The adjustment range on each rotor is up to 2.5 m.

2 Unique hybrid drive

PÖTTINGER has developed a unique hybrid technology for these rakes:

• Front rotor drive hydraulic

• Mechanical rear rotor drive

The hydraulic driveline moves the rotors in and out extremely quickly. Moreover, you benefit from less wear and less maintenance. One oil pump with its own oil circuit operates each rotor.

3 Rotor weight alleviation

On the TOP 1252 C, all four rotors feature weight alleviation springs.

On the TOP 1403 C, the two front rotors have hydraulic weight alleviation, with suspension springs on the two rear rotors. The weight alleviation is adjusted automatically depending on the working width. In addition to protecting the sward, it also ensures a lower load on the rotor unit and maximum operating convenience.
