Tyres and brakes

Two different tyre packages can be factory fitted.

• 500/50-17 (standard on TOP 1252 C, VT 12540 C)

• 620/40 R 22.5 (standard on TOP 1403 C)

• 710/35 R 22.5 (optional)

Our four-rotor rakes are equipped with air brakes as standard. Hydraulic brakes are also available as an option on the TOP 1252 C and 1403 C.

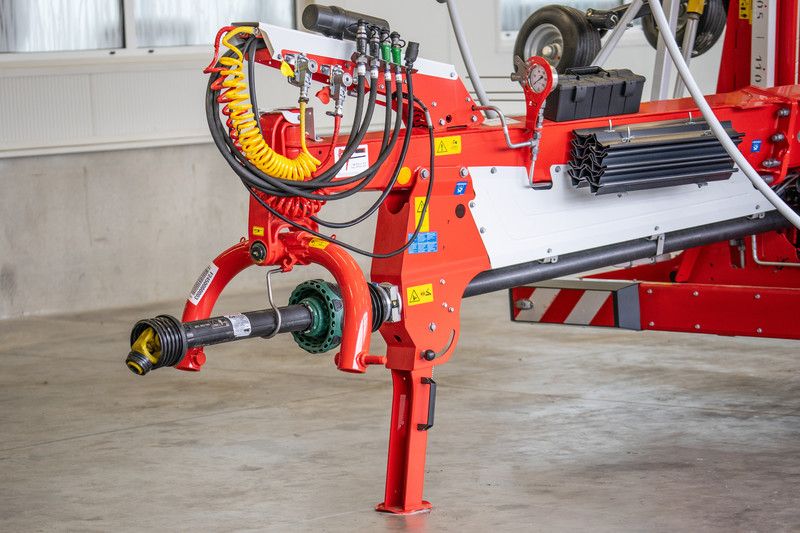

Mounting

The machine is mounted using a yoke. Double sided linkage lugs ensure an extended service life. All cables and hoses are routed tidily through the hose holder.

A PTO shaft holder and hose holder are standard equipment at PÖTTINGER.

Large turning angle

TOP four-rotor rakes are characterised by their tight turning angle. When equipped with the Profiline comfort control system, an angle sensor detects the steering angle and emits an acoustic signal if the turning angle is too tight. This prevents damage to the PTO shaft.
