Quick and uncomplicated adjustment to different operating conditions is an important factor these days. PÖTTINGER power harrows provide some clever details that simplify your working day.
The working depth of the power harrow can be flexibly adjusted by simply repositioning the bolts in the hole matrix.
The rear levelling board is standard and is set automatically with the depth of the rear roller.
Over the full working width the levelling board is always at a consistent distance from the tines
Perfect seedbed without re-adjustment
The system is preset using a hole matrix bar on the side, which is easily accessible and reliable even after many years of use
Optional:
A front levelling board in the same design as rear board
Bout markers on the power harrow (except CLASSIC models)

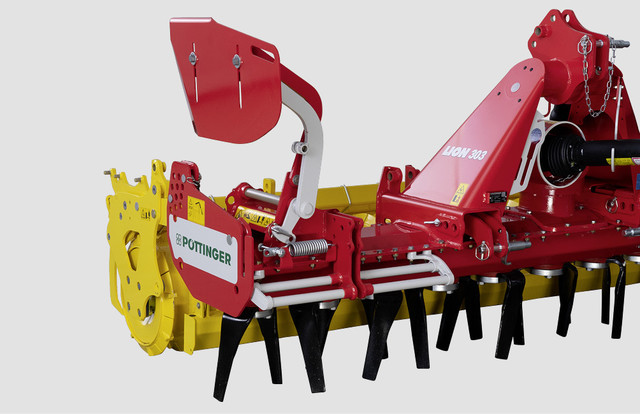

Depending on the model, LION power harrows are equipped with the right side boards to deliver tidy work within the specified working width while maintaining the necessary transport width.
LION 253 CLASSIC, LION 303 CLASSIC, LION 303.12 CLASSIC:
Side boards can be folded upwards with easy depth adjustment using slotted holes
Can be fixed in working position
Can be folded up for transport
Transport width less than 2.5 m or 3.0 m
LION 303, LION 303.12, LION 403, LION 3002, LION 4002:
Infinitely height-adjustable using slotted holes
Simply fold upwards for transport
Optional: parallel linkage

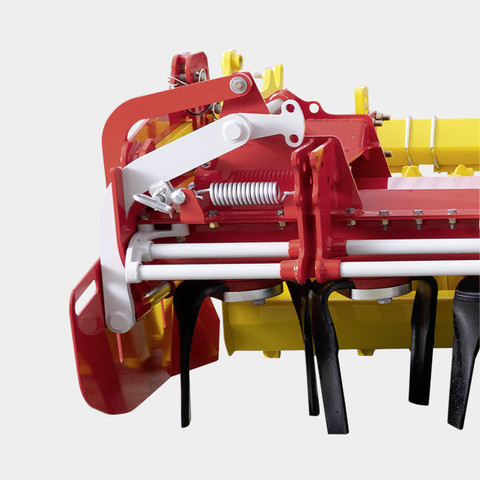

Optional: Unique side board mounting, the spring remains pre-tensioned on the machine when raised so the side board can be easily folded up.
The PTO shaft can be placed on a convenient fold-away support. When hitching up the LION power harrow to the tractor the PTO shaft is already positioned close to the PTO shaft stub, making it easy to couple up.
Constantly changing operating conditions make a large number of adjustment options necessary. With LION power harrows from PÖTTINGER, these adjustments can be carried out easily without the need for tools.
For a long service life and smooth running of the PTO shaft, it is important that the power harrow can be attached perfectly to a wide variety of tractor geometries.
The length and width of the lower linkage mountings can be adjusted without the need for tools
Optimum length and angle of the PTO shaft
Ideal for machinery rings with different tractor brands
Spring-mounted track eradicators are optional on all LION power harrows. At PÖTTINGER these are spring-mounted to protect against stones and foreign objects.
The working depth can easily be adjusted without the need for tools.
Up to 2 tines per coulter are possible
The side board mounted on springs helps to create a clean and even seedbed in heavy and stony soils. The special feature here is that the spring remains pre-tensioned on the machine when the plates are folded upwards into the transport position.
Optional for all LION power harrows (except the CLASSIC series)
With PÖTTINGER the bout markers can be mounted either on the seed drill or the power harrow.
Hydraulic bout markers for reliable activation also on slopes
Hydraulic operation
Transport interlock
Setting the intensity of the marking
Shear bolt as overload protection
Optional for all LION power harrows (except the CLASSIC series)
Constantly changing soil conditions require changes to the tine positions. Practical experience has shown that only what can be done easily is then really done.
LION power harrows combine technology and convenience in one to deliver the best working results.
The Quick-fix tine system provides a quick and safe solution for even more working convenience.
You can change the tines in just a few simple steps - it has never been so easy.
1. Remove lynch pin and lock pin
2. Remove tines
3. Fit new tines
4. Clamp in place - finished
LION power harrows with 10 tines can be used both as rotary harrows and rotary cultivators. All that is needed is for the tines to be repositioned.
One shape of tine covers standard drilling, mulch drilling and direct mulch drilling.
This ensures optimum mixing and good quality tilth at seed slot level right across the entire working width.
In this position, the tines produce a fine tilth at seed slot level.
Finer particles of soil are concentrated at the level of the seed
Larger clumps and harvest residues remain on the surface
Protection against erosion
Standard for every tine thickness
In this position, the tines aggressively break up the soil and optimum mixing is guaranteed.
The soil is broken up from below
Harvest residues are incorporated effectively
Only possible with 18 mm thick tines
