Impressive working results

×


User friendly operation

Straightforward configuration and simple technology make the rotary hoe easy to use. Adjusting the machine is easy and not complicated - because there are only a few settings, sources of error are reduced.

During operation, the tractor's lower linkage is allowed to sway freely while the hitch is set to the floating position for optimum ground tracking.

Optimum ground tracking

Because each rotary star is mounted individually on a 8.5 mm spring, the machine can adapt to uneven terrain. The ROTOCARE rotary hoe offers excellent reliability because each rotary star is able to ride up over any obstacle. Thanks to the depth control wheels being mounted close to the frame, the machine tracks the ground perfectly.

The wheels are height-adjustable using lock pins and can be adapted to the position of the top link.


Perfect weeding tools

Wear-resistant, self-sharpening spoon points with a width of 18 mm ensure an even, clean and tidy working pattern. The optimum working angle protects the crop but pulls out fine weeds. The soil is moved to a maximum depth of 40 mm.

The forged arms are mounted on precision-fit bushings to ensure that the star spacing of 89 mm is consistently maintained.

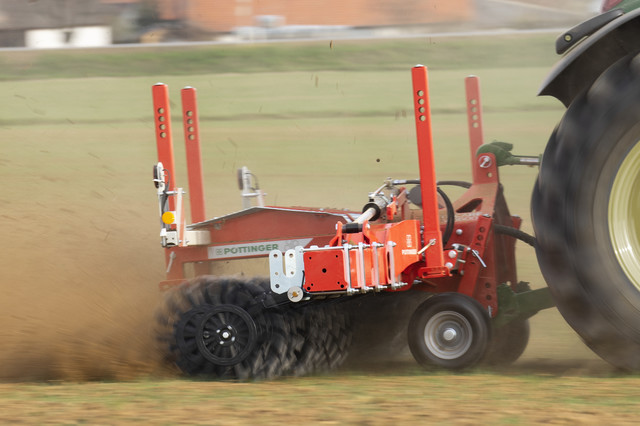

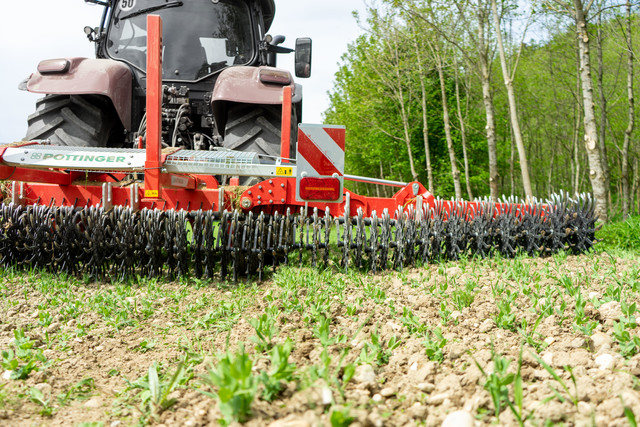

Crop care in action

The row-independent rotary hoe stars sweep weeds in the white thread, germination and 1-leaf stage out of the soil and deposit them on the surface. The rolling effect protects the crop and minimises plant losses. The driving speed determines the aggressiveness of the treatment - the higher the speed, the lower the actual working depth and the gentler the process.
