Setting up is quick and straightforward. With driving speeds of 10 to 30 kph and low pulling power requirements, the required tasks are completed promptly and cost-effectively.

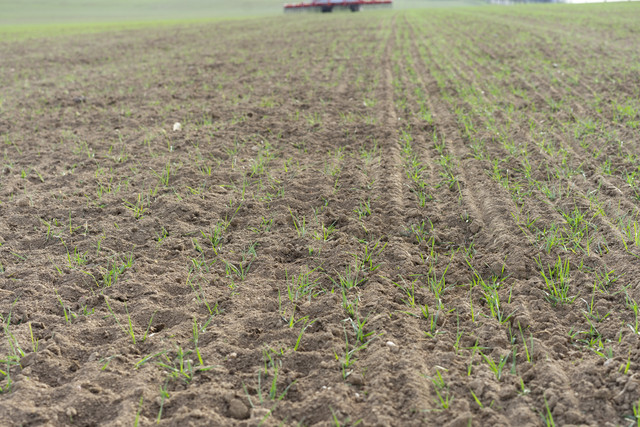

Weeds and soil are lifted thanks to the optimum angle of entry of the points. They break up crusting and sweep out weeds to deposit them on the surface.
During operation, the tractor's lower linkage is allowed to sway freely while the hitch is set to the floating position for optimum ground tracking.
Straightforward machine settings
Working intensity and ground pressure are adjusted using the top link.

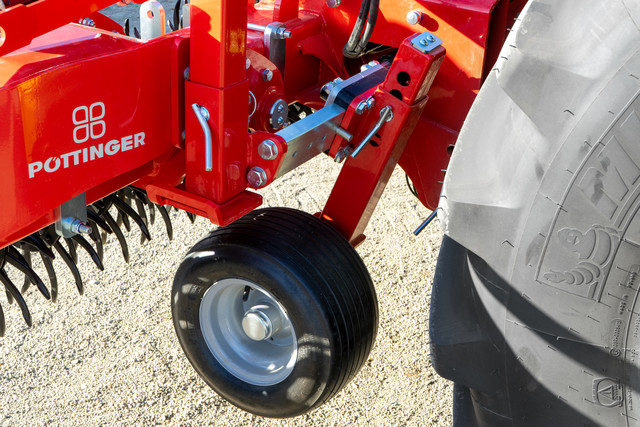

The working depth is adjusted using the depth control wheels and the top link position.
When used in row crops, the track width of the depth control wheels can be adjusted to the row spacing - mechanically as standard or hydraulically as an option.
The driving speed has a decisive influence on the working results and the intensity of the weeding tools (slow = aggressive; fast = gentle).
2 top link and 3 lower linkage coupling points are available for different tractor geometries.
