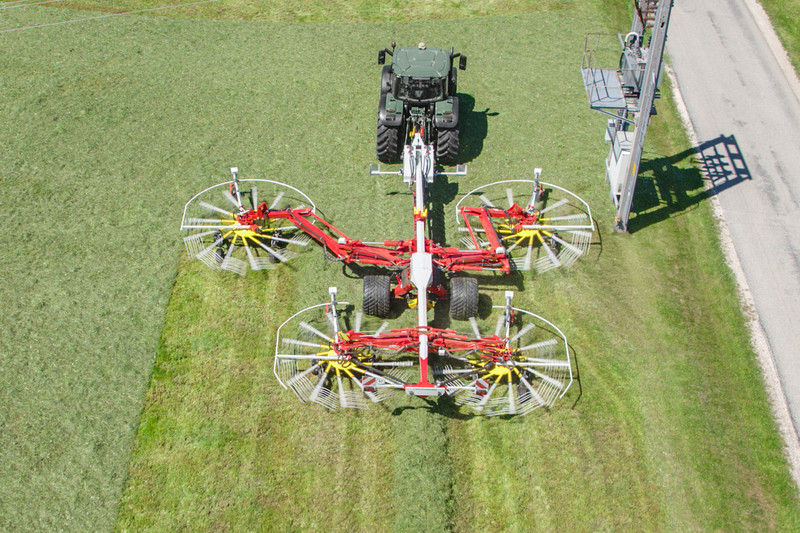

You can set the working width you need hydraulically as required. Depending on the equipment option, this can be done on both of the front rotors at the same time, or individually. Working in wedge-shaped fields and around obstacles such as electricity pylons or trees is no problem. Castors on the rotor chassis allow the rotors to be moved in and out quickly and easily while driving or when stationary.


Variable swath width

To match the pick-up of the machine that will collect the crop from the field, you can vary the swath width flexibly by adjusting the two rear rotor units.

On the TOP VT 12540 C with a Basicline preselect system, the rear rotors can be shifted into three positions without the need for tools. On the version with a Profiline comfort control system, the infinitely variable adjustment is made hydraulically. With both versions you create swaths between 1.2 m and 2 m wide.

On the TOP 1403 C, the swath width is adjusted hydraulically between 1.3 m and 2.2 m.

An optional swath curtain is available for both models.
