NOVACAT A10: The new standard for mower combinations
New driveline for a longer service life
The latest development from PÖTTINGER, is the NOVACAT A10 mower combination which is packed with advanced technology. Clearly setting new standards in terms of service life, reliability, cost effectiveness and convenience.

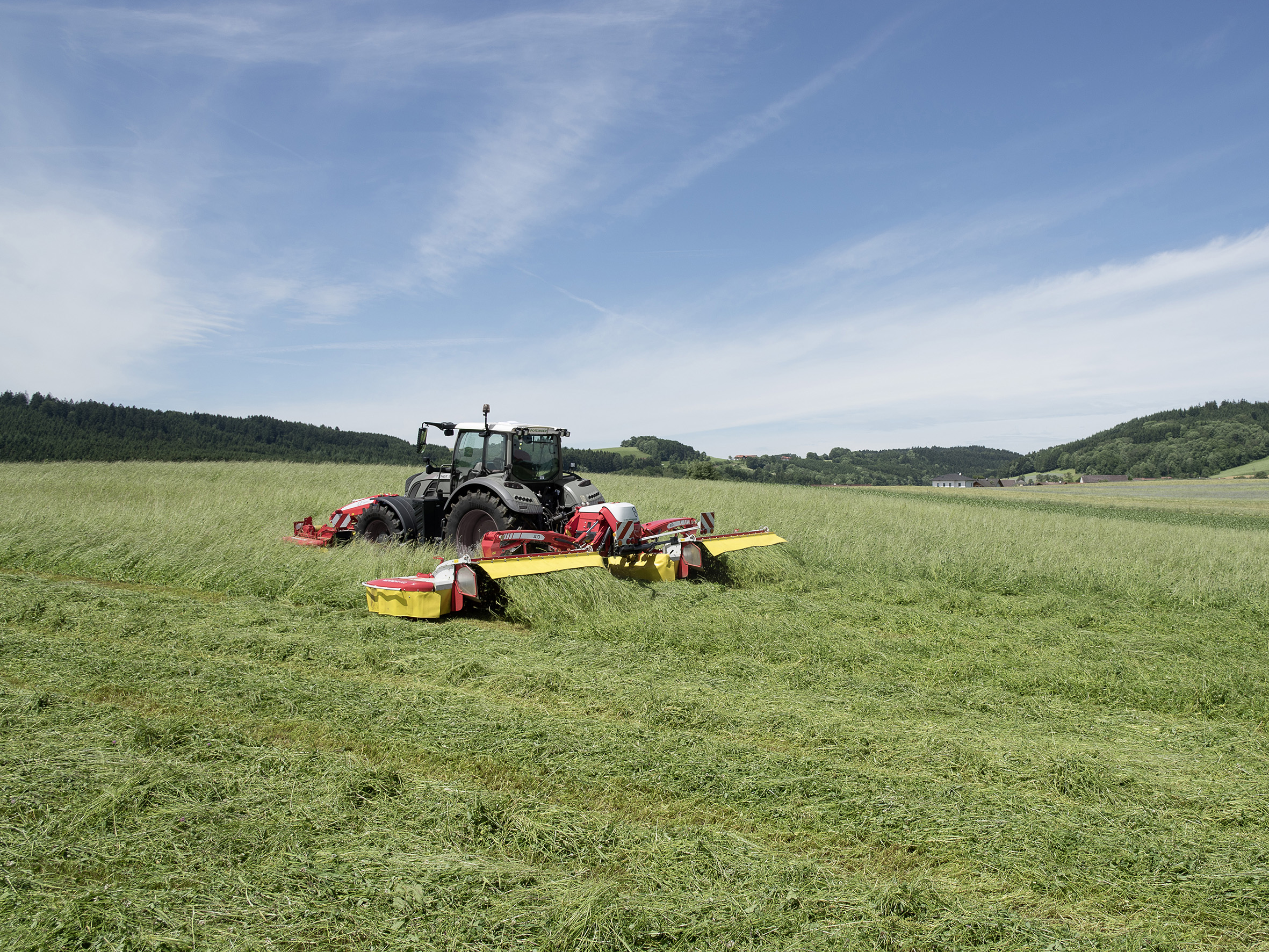

The NOVACAT A10 can be used as a front/rear combination (headstock for 3.0 or 3.5 m front mower) and is extremely versatile: a side shift range of 400 mm on either side ensures ideal overlap and perfect mowing quality. The high ground clearance when raised at the headland of up to 55 cm offers hassle free operation. In addition, the new Y DRIVE driveline and the hydraulic NONSTOP LIFT collision safety device on each side are also unique to this new model.
The mower combination is available either as a plain disc mower with swath formers, with ED tine-type conditioners or alternately with RCB roller-type conditioners. Hydraulic cutter bar weight alleviation and suspension is included on all models.
The NOVACAT A10 has a rugged carrier frame with a quick-hitch compatible Cat. III or Cat. IV linkage. In combination with a 3 m front mower, overall working widths of 8.80 m to 9.56 m are possible. In this case, the central gap between the two mower units is 1.8 m to 2.6 m. Combined with a 3.5 m front mower the overall working width is 9.26 m to 10.02 m. Here the central gap between the two mower units is 2.3 to 3.1 m.

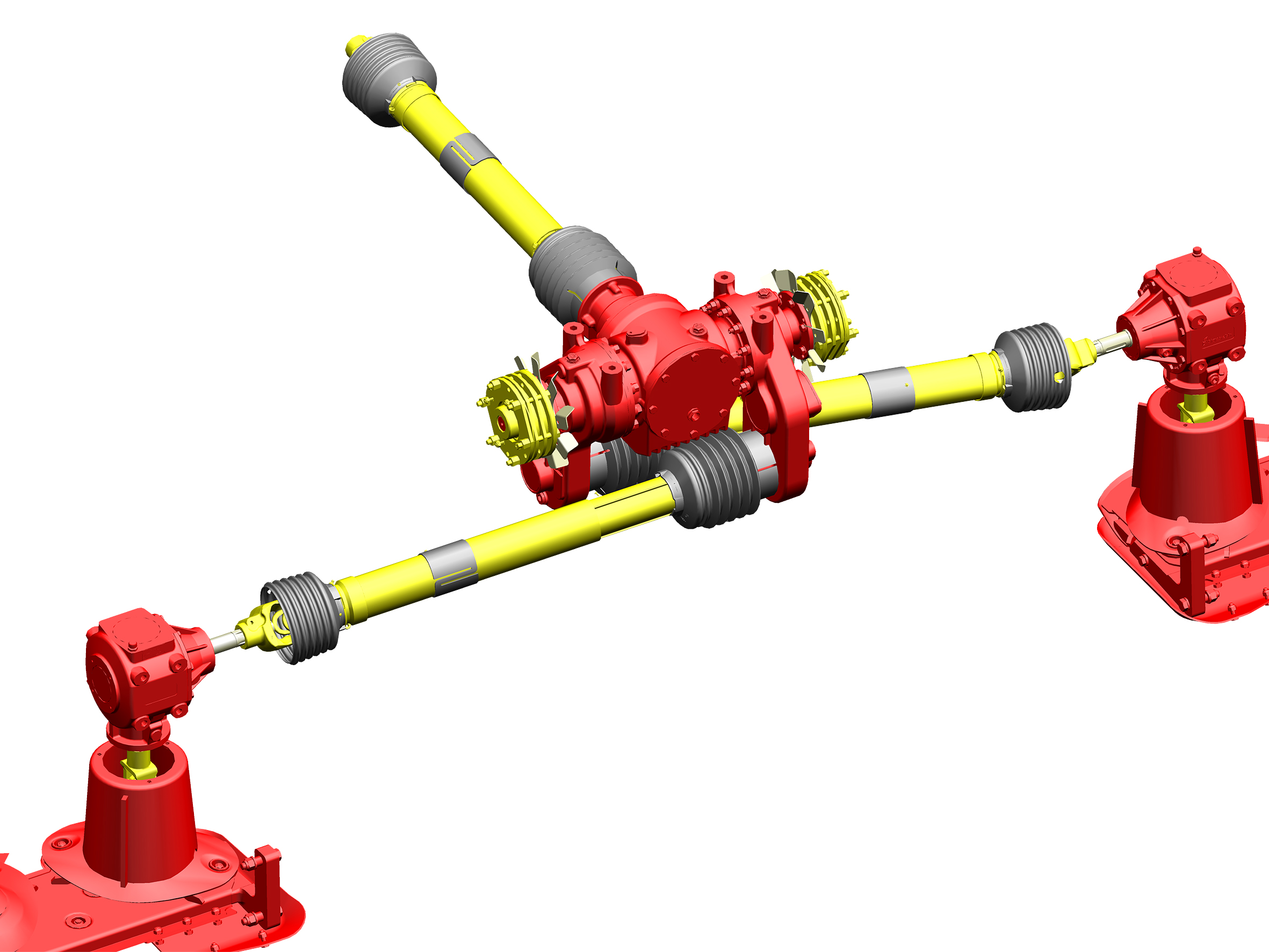

Y DRIVE – New generation driveline
The special Y DRIVE central input gearbox features output shafts on opposing sides. This has the advantage that longer standard PTO shafts can be used with less of an angle. The backlash and vibration free driveline using standard PTO shafts has been made possible by locating the slip clutches next to the gearbox and by optimising the gear ratios. A double universal jointed shaft in the inside mower disc and drum assembly provides a stress-free link between the individual mower gearboxes and the cutter bar.
The result is a smooth running system that offers a higher output, even in tough conditions and when raised in the headland position. This additionally extends service life significantly.
NONSTOP LIFT - new hydraulic collision safety device
NONSTOP LIFT is an innovative technology that protects the cutter bar in the event of striking an obstacle. Fitted to both sides, the collision safety device enables the cutter bar to avoid obstructions efficiently. The unique feature sees the mower frames mounted on gimbals and is hydraulically preloaded by a triangular support arm. The triggering pressure is displayed by a conveniently located pressure gauge and is easily adjusted. When triggered, the mower frame folds backwards on the triangular frame and is simultaneously raised at the front by the gimbals – the result a three-dimensional collision safety system. The mower avoids impact with the obstruction so that damage to the cutter bar is prevented particularly when operating at higher driving speeds.
Proven a thousand fold – the NOVACAT cutter bar
The heart of the mower combination is the NOVACAT cutter bar proven thousands of times in the field with quick-change blade system as standard. Tapered disc surfaces, optimised counter-chop zone and generous overlap of the blade paths ensure perfect crop flow, first-class cutting quality and simultaneous optimum protection of the sward.
Compact during transport, space-saver when parked
For road transport, the mower is hydraulically folded vertically and then locked securely in the transport position. Offering a transport height of 4.0 m, transport width of 2.7 or 3.15 m and a ground clearance of at least 28 cm, the NOVACAT A10 is compact during transport. Because the centre frame is at its lowest point in transport position, there is no risk of damage to any vital driveline components.
The mechanical transport interlock is released hydraulically and comes as standard and as a result no lanyard is required, ensuring maximum convenience. Parking stands are provided so that the NOVACAT A10 can be stored in the raised position to save a great deal of space.
Easy maintenance management using the control terminal
The mower combination is equipped with the SELECT CONTROL terminal as standard (requiring a double-acting remote valve). It allows preselection of the mower units, working width adjustment, control over the folding side guards, the hydraulic transport interlock as well as setting weight alleviation and suspension using shut-off valves.
The POWER CONTROL control terminal is also available as an option. This features Load Sensing compatibility, ISOBUS control of all functions, direct control via the terminal (e.g. front mower, weight alleviation, etc.) as well as control of the working width based on the ISOBUS turning angle signal from the tractor.
Both control terminals have integrated maintenance management functions.
Dependent on the operating time of the mower driveshaft, the control terminal displays which maintenance steps need to be performed on the machine.
The lubrication intervals (greasing points, cylinders, PTO shafts, etc.) are 50 hours, while the interval for oil changes (gearbox and cutter bar) is 250 hours.
First-class cutting quality, reliability, cost effectiveness and extended service life are the trademarks of the NOVACAT A10 mower combinations manufactured by PÖTTINGER.
