The best forage

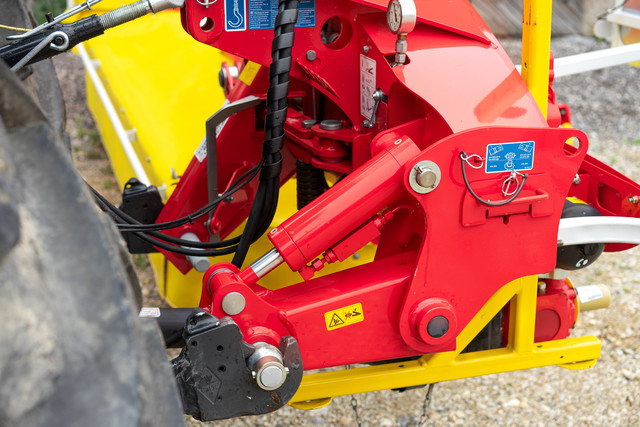

Centre pivot mounting for optimised ground tracking
Perfect ground tracking with low pressure on the ground – that’s the hallmark of our EUROCAT rear mowers with centre pivot mounting.
The EUROCAT rear mounted mowers are available with working widths of 2.70 m / 3.05 m.

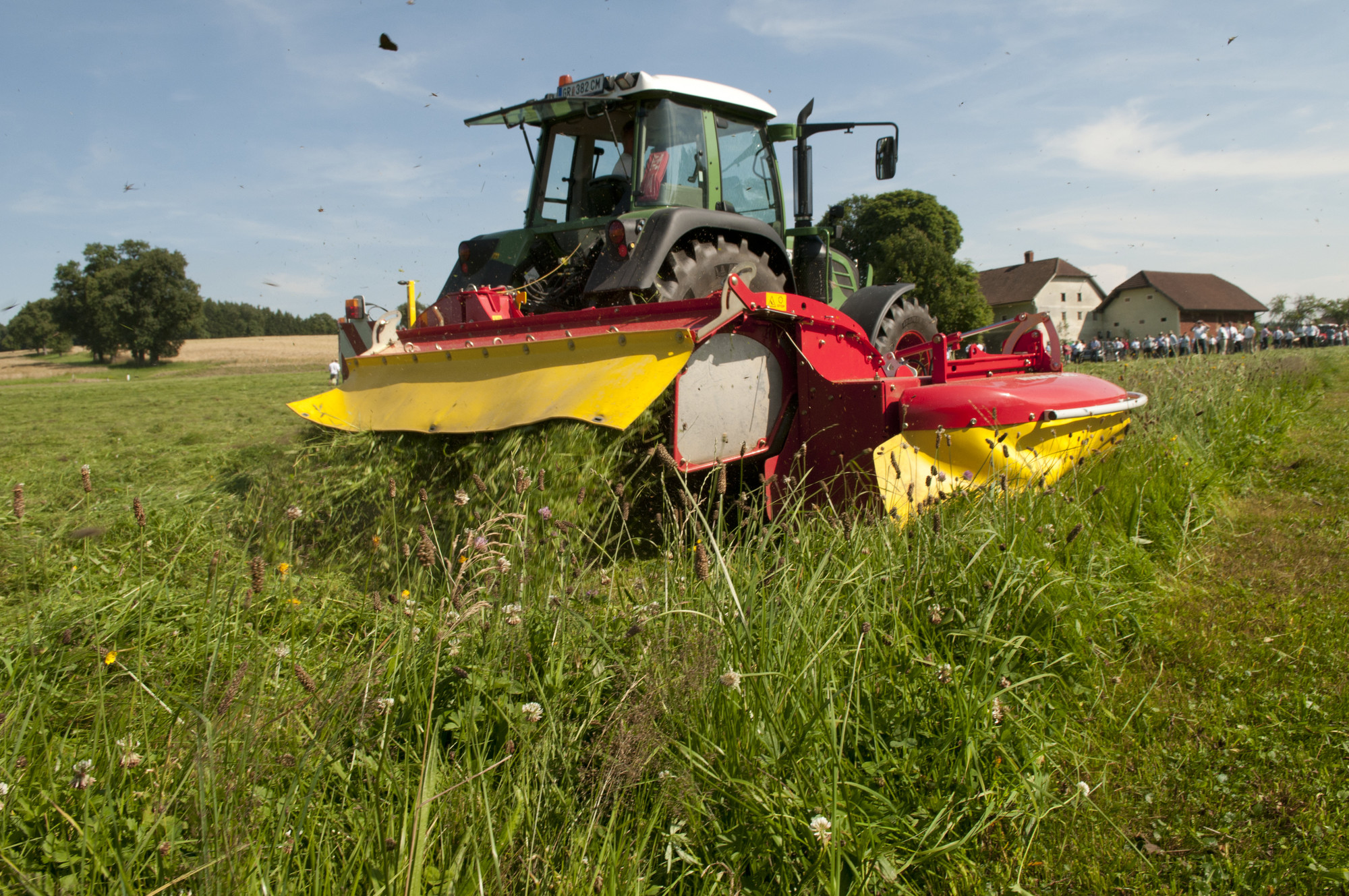

As an option, you can fit an ED tine conditioner to the EUROCAT 272 if required.
Centre pivot mounting for optimised ground tracking
Perfect ground tracking with low pressure on the ground – that’s the hallmark of our EUROCAT rear mowers with centre pivot mounting.
The EUROCAT rear mounted mowers are available with working widths of 2.70 m / 3.05 m.
As an option, you can fit an ED tine conditioner to the EUROCAT 272 if required.
Customer benefits
Technology
Technical data
| EUROCAT 272 | EUROCAT 272 ED | EUROCAT 312 | |||
|---|---|---|---|---|---|
| Configurate | Configurate | Configurate | |||
| Working width | 2,7 m | 2,7 m | 3,05 m | ||
| Mower drums | 4 pcs. | 4 pcs. | 4 pcs. | ||
| PTO Input Speed | 1000 rpm | 1000 rpm | 1000 rpm | ||
| Transport folding | Vertical | Vertical | Vertical | ||
| Mounting | Rear three-point | Rear three-point | Rear three-point | ||
| Mounting category | Cat. 2 Cat. 3 | Cat. 3 Cat. 3 | Cat. 3 Cat. 3 | ||
| Breakaway device | Mechanical breakaway device | Mechanical breakaway device | Mechanical breakaway device | ||
| Weight | 1030 kg | 1290 kg | 1090 kg | ||
| Mower blades | 12 pcs. | 12 pcs. | 12 pcs. | ||
| Power requirement | 70 hp | 70 hp | 80 hp | ||
| Coverage | 2,7 ha/h | 2,7 ha/h | 3,2 ha/h | ||
| Outer track | - | - | - | ||
| Swath width without swath discs | 1,8 m | - | 2,2 m | ||
| Swath width with a pair of swath discs | 1,4 m | - | 1,8 m | ||
| Swath width with two pair of swath discs | 0,9 m | - | 1,4 m | ||
| Swath width with conditioner min | - | 1,2 m | - | ||
| Swath width with conditioner max | - | 1,6 m | - | ||
| Swath discs | without swath discs | - | without swath discs | ||
| Standard Equipment | Standard Equipment | Standard Equipment |
EUROCAT 272
Configurate
| Working width | 2,7 m |
| Mower drums | 4 pcs. |
| PTO Input Speed | 1000 rpm |
| Transport folding | Vertical |
| Mounting | Rear three-point |
| Mounting category | Cat. 2 Cat. 3 |
| Breakaway device | Mechanical breakaway device |
| Weight | 1030 kg |
| Mower blades | 12 pcs. |
| Power requirement | 70 hp |
| Coverage | 2,7 ha/h |
| Outer track | - |
| Swath width without swath discs | 1,8 m |
| Swath width with a pair of swath discs | 1,4 m |
| Swath width with two pair of swath discs | 0,9 m |
| Swath width with conditioner min | - |
| Swath width with conditioner max | - |
| Swath discs | without swath discs |
| Standard Equipment | |
EUROCAT 272 ED
Configurate
| Working width | 2,7 m |
| Mower drums | 4 pcs. |
| PTO Input Speed | 1000 rpm |
| Transport folding | Vertical |
| Mounting | Rear three-point |
| Mounting category | Cat. 3 Cat. 3 |
| Breakaway device | Mechanical breakaway device |
| Weight | 1290 kg |
| Mower blades | 12 pcs. |
| Power requirement | 70 hp |
| Coverage | 2,7 ha/h |
| Outer track | - |
| Swath width without swath discs | - |
| Swath width with a pair of swath discs | - |
| Swath width with two pair of swath discs | - |
| Swath width with conditioner min | 1,2 m |
| Swath width with conditioner max | 1,6 m |
| Swath discs | - |
| Standard Equipment | |
EUROCAT 312
Configurate
| Working width | 3,05 m |
| Mower drums | 4 pcs. |
| PTO Input Speed | 1000 rpm |
| Transport folding | Vertical |
| Mounting | Rear three-point |
| Mounting category | Cat. 3 Cat. 3 |
| Breakaway device | Mechanical breakaway device |
| Weight | 1090 kg |
| Mower blades | 12 pcs. |
| Power requirement | 80 hp |
| Coverage | 3,2 ha/h |
| Outer track | - |
| Swath width without swath discs | 2,2 m |
| Swath width with a pair of swath discs | 1,8 m |
| Swath width with two pair of swath discs | 1,4 m |
| Swath width with conditioner min | - |
| Swath width with conditioner max | - |
| Swath discs | without swath discs |
| Standard Equipment | |
HAYTOOL ASSIST
Match your tedder to the working width of your mower to get the highest utilisation and best work quality from your machines.
The best spreading quality is achieved when the tedder completely covers the swath of mowed grass on each pass. And ideally, the tractor should drive along a forage-free lane. The forage then remains loose on top of the grass stubble, making it an easy target for the tines.
HAYTOOL ASSIST helps you quickly and easily find the right tedder for your mower.
www.mypoettinger.com/haytool-assist
MyPÖTTINGER
- Get valuable information and tips on all PÖTTINGER machines
- Specific information on your PÖTTINGER machines in "My Machines".
- Instruction manuals, spare parts lists, maintenance information, as well as all technical details available online
- Machine-specific documentation for all PÖTTINGER machines built from 1997 onwards available online
www.mypoettinger.com
Videos
NOVACAT/EUROCAT rear mounted disc and drum mowers
Brochures
Image gallery
Quality
We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.
