BOSS 5000 Loader wagon

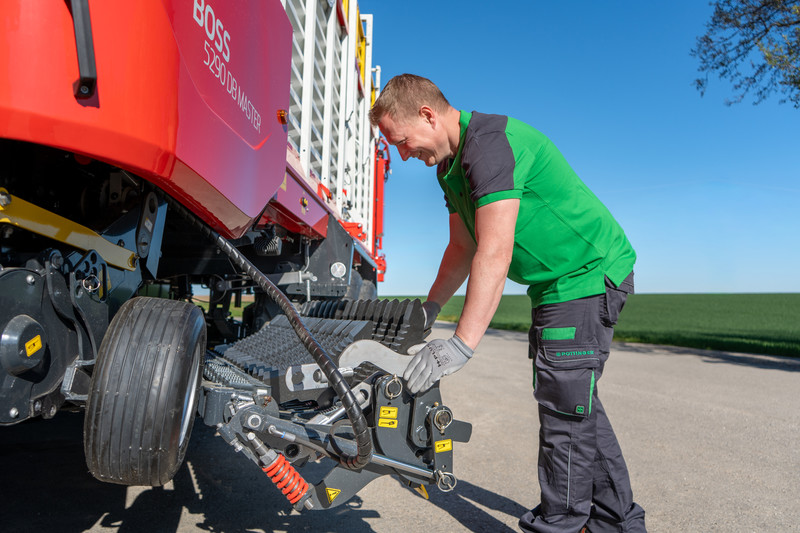

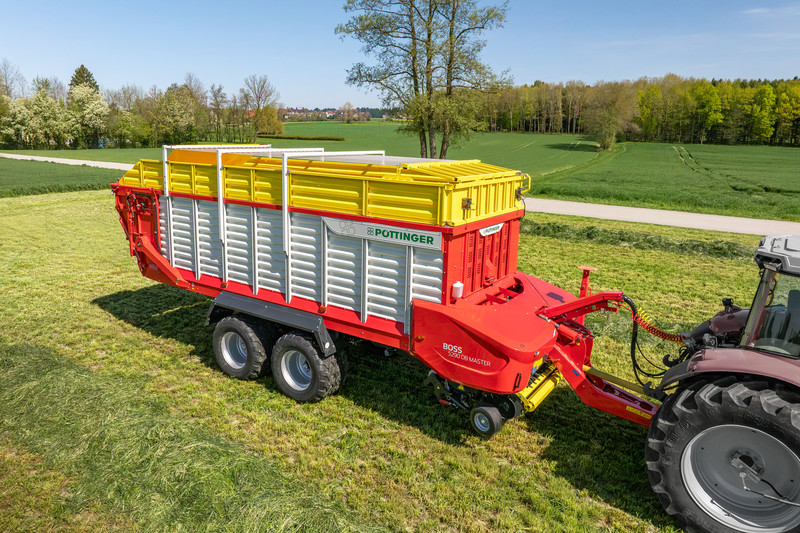

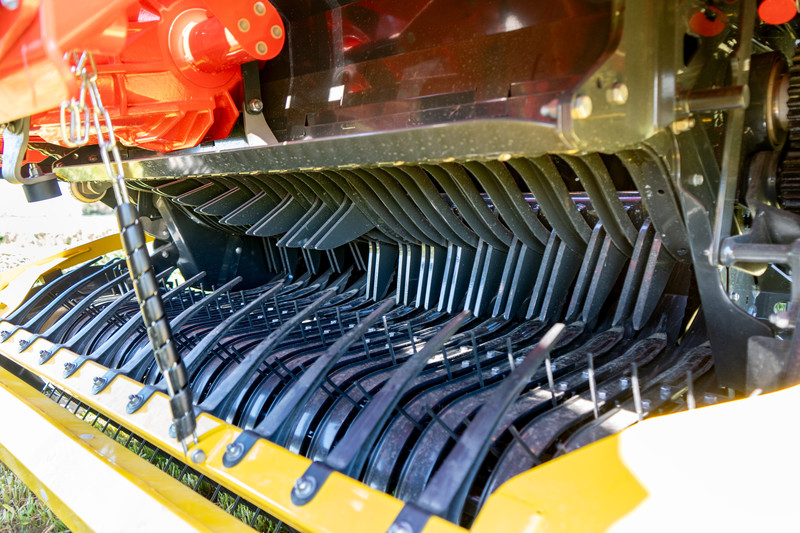

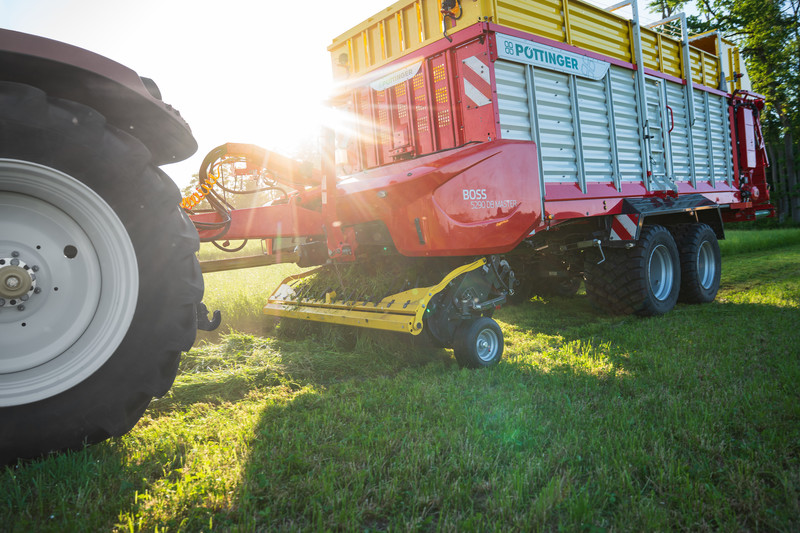

The BOSS 5000 MASTER is equipped with the EVOMATIC loading system and represents high-performance harvesting and maximum forage conservation. The forage is picked up gently without leaving anything behind by the 5 or 6-row pick-up. Next, the forage is passed on to the innovative EVOMATIC loading unit before being chopped into evenly sized slices by the 6, 16 or 31-knife knife bank and transferred to the loading chamber. The choice of equipment options makes the BOSS an all-rounder in grassland harvesting.

Prospekte Brochures

The BOSS 5000 MASTER is equipped with the EVOMATIC loading system and represents high-performance harvesting and maximum forage conservation. The forage is picked up gently without leaving anything behind by the 5 or 6-row pick-up. Next, the forage is passed on to the innovative EVOMATIC loading unit before being chopped into evenly sized slices by the 6, 16 or 31-knife knife bank and transferred to the loading chamber. The choice of equipment options makes the BOSS an all-rounder in grassland harvesting.

Customer benefits



Technology

Technology

Technical data

 BOSS 5290 DB MASTER
BOSS 5300 MASTER
BOSS 5330 MASTER
ConfigurateConfigurateConfigurate
Loading volume (DIN 11741)29 m³30 m³33 m³
Theoretical chopped length45 mm45 mm45 mm
Number of knives max.31 pcs.31 pcs.31 pcs.
Pick-up recording width1,8 m1,8 m1,8 m
Pick-up outside width2,43 m2,43 m2,43 m
Length9,54 m9,1 m9,1 m
Width2,53 m2,5 m2,5 m
Height with 17" tyres3,26 - 3,56 m3,26 - 3,56 m3,54 - 3,75 m
Height with 22.5" tyres large (+ 120 mm)3,38 - 3,68 m3,38 - 3,68 m3,66 - 3,87 m
Height with dry forage extension folded down with 17" tyres (-630 mm)2,94 m2,94 m-
Height with dry forage extension folded down with 22.5" tyres (-630 mm)3,06 m3,06 m-
Number of scraper floor chains4 pcs.4 pcs.4 pcs.
Scraper floor motor (standard)1-speed 1-speed 1-speed
Scraper floor motor (option)2-speed 2-speed 2-speed
Length loading area and width6,11 x 2,2 m6,36 x 2,2 m6,36 x 2,2 m
Track width1,85 m1,85 m1,85 m
Weight of basic version5700 kg5300 kg5500 kg
ChassisTandem axle Tandem axle Tandem axle
Permissible laden weight---
Permissible laden weight (standard)15000 kg15000 kg15000 kg
Permissible laden weight max.15500 kg15500 kg15500 kg
Standard EquipmentStandard EquipmentStandard Equipment
BOSS 5290 DB MASTER
Configurate
Loading volume (DIN 11741)29 m³
Theoretical chopped length45 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Pick-up outside width2,43 m
Length9,54 m
Width2,53 m
Height with 17" tyres3,26 - 3,56 m
Height with 22.5" tyres large (+ 120 mm)3,38 - 3,68 m
Height with dry forage extension folded down with 17" tyres (-630 mm)2,94 m
Height with dry forage extension folded down with 22.5" tyres (-630 mm)3,06 m
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area and width6,11 x 2,2 m
Track width1,85 m
Weight of basic version5700 kg
ChassisTandem axle
Permissible laden weight-
Permissible laden weight (standard)15000 kg
Permissible laden weight max.15500 kg
Standard Equipment
BOSS 5300 MASTER
Configurate
Loading volume (DIN 11741)30 m³
Theoretical chopped length45 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Pick-up outside width2,43 m
Length9,1 m
Width2,5 m
Height with 17" tyres3,26 - 3,56 m
Height with 22.5" tyres large (+ 120 mm)3,38 - 3,68 m
Height with dry forage extension folded down with 17" tyres (-630 mm)2,94 m
Height with dry forage extension folded down with 22.5" tyres (-630 mm)3,06 m
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area and width6,36 x 2,2 m
Track width1,85 m
Weight of basic version5300 kg
ChassisTandem axle
Permissible laden weight-
Permissible laden weight (standard)15000 kg
Permissible laden weight max.15500 kg
Standard Equipment
BOSS 5330 MASTER
Configurate
Loading volume (DIN 11741)33 m³
Theoretical chopped length45 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Pick-up outside width2,43 m
Length9,1 m
Width2,5 m
Height with 17" tyres3,54 - 3,75 m
Height with 22.5" tyres large (+ 120 mm)3,66 - 3,87 m
Height with dry forage extension folded down with 17" tyres (-630 mm)-
Height with dry forage extension folded down with 22.5" tyres (-630 mm)-
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area and width6,36 x 2,2 m
Track width1,85 m
Weight of basic version5500 kg
ChassisTandem axle
Permissible laden weight-
Permissible laden weight (standard)15000 kg
Permissible laden weight max.15500 kg
Standard Equipment
 BOSS 5390 DF MASTER
BOSS 5450 DF MASTER
ConfigurateConfigurate
Loading volume (DIN 11741)39 m³45 m³
Theoretical chopped length210 mm210 mm
Number of knives max.6 pcs.6 pcs.
Pick-up recording width2,1 m2,1 m
Pick-up outside width2,78 m2,78 m
Length10,51 m10,79 m
Width2,5 m2,51 m
Height with 17" tyres3,54 - 3,75 m3,77 - 3,98 m
Height with 22.5" tyres large (+ 120 mm)3,66 - 3,87 m3,89 - 4 m
Height with dry forage extension folded down with 22.5" tyres (-630 mm)--
Number of scraper floor chains4 pcs.4 pcs.
Scraper floor motor (standard)1-speed 1-speed
Scraper floor motor (option)2-speed 2-speed
Length loading area and width7,73 x 2,2 m7,73 x 2,2 m
Track width1,85 m1,85 m
Weight of basic version6200 kg6650 kg
ChassisTandem axle Tandem axle
Permissible laden weight--
Permissible laden weight (standard)15000 kg15000 kg
Permissible laden weight max.15500 kg18500 kg
Standard EquipmentStandard Equipment
BOSS 5390 DF MASTER
Configurate
Loading volume (DIN 11741)39 m³
Theoretical chopped length210 mm
Number of knives max.6 pcs.
Pick-up recording width2,1 m
Pick-up outside width2,78 m
Length10,51 m
Width2,5 m
Height with 17" tyres3,54 - 3,75 m
Height with 22.5" tyres large (+ 120 mm)3,66 - 3,87 m
Height with dry forage extension folded down with 22.5" tyres (-630 mm)-
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area and width7,73 x 2,2 m
Track width1,85 m
Weight of basic version6200 kg
ChassisTandem axle
Permissible laden weight-
Permissible laden weight (standard)15000 kg
Permissible laden weight max.15500 kg
Standard Equipment
BOSS 5450 DF MASTER
Configurate
Loading volume (DIN 11741)45 m³
Theoretical chopped length210 mm
Number of knives max.6 pcs.
Pick-up recording width2,1 m
Pick-up outside width2,78 m
Length10,79 m
Width2,51 m
Height with 17" tyres3,77 - 3,98 m
Height with 22.5" tyres large (+ 120 mm)3,89 - 4 m
Height with dry forage extension folded down with 22.5" tyres (-630 mm)-
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area and width7,73 x 2,2 m
Track width1,85 m
Weight of basic version6650 kg
ChassisTandem axle
Permissible laden weight-
Permissible laden weight (standard)15000 kg
Permissible laden weight max.18500 kg
Standard Equipment
