FARO Rotary loader wagons



With the FARO series, we meet your demand for high performance rotor technology for medium sized tractors. The rotor with dual tines is especially suitable for handling hay.

With the FARO series, we meet your demand for high performance rotor technology for medium sized tractors. The rotor with dual tines is especially suitable for handling hay.


Customer benefits



Technology

Technology

Technical data

 FARO 3510 LFARO 3510 DFARO 4010 LFARO 4010 D
Length7,78 m8,25 m8,46 m8,93 m
Width2,42 m2,42 m2,42 m2,42 m
Height with 17" tyres3,56 m3,56 m3,56 m3,56 m
Height with 22.5" tyres--3,68 m3,68 m

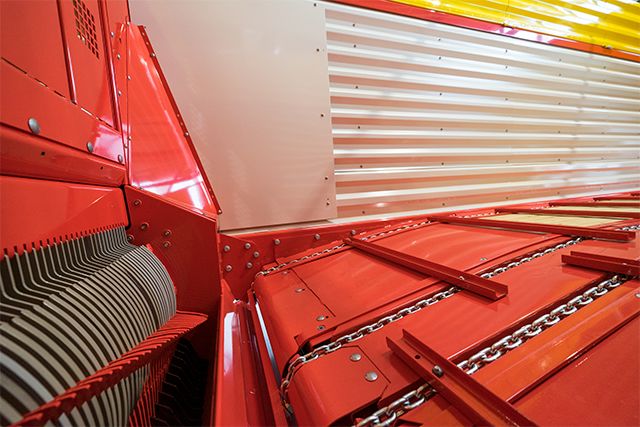

Number of scraper floor chains4 pcs.4 pcs.4 pcs.4 pcs.
Scraper floor motor (standard)1-speed 1-speed 1-speed 1-speed
Scraper floor motor (option)2-speed 2-speed 2-speed 2-speed
Length loading area (Width 2,1)5 m4,75 m5,68 m5,43 m
Loading volume (DIN 11741)24 m³23 m³27 m³26 m³
Number of knives max.31 pcs.31 pcs.31 pcs.31 pcs.
Theoretical chopped length45 mm45 mm45 mm45 mm
Pick-up recording width1,85 m1,85 m1,85 m1,85 m
Track width1,85 m1,85 m1,85 m1,85 m
Weight of basic version5550 kg5950 kg5650 kg6050 kg

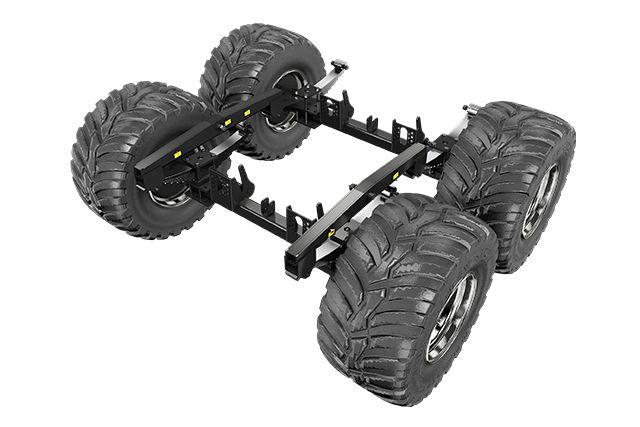

ChassisTandem axle Tandem axle Tandem axle Tandem axle
Permissible laden weight (standard)12500 kg12500 kg12500 kg12500 kg
Permissible laden weight max.15000 kg15000 kg18000 kg18000 kg
Tandem-axle, 25/40 kph12500 kg12500 kg12500 kg12500 kg
Tandem-axle, 30/40 kph*12500 kg12500 kg12500 kg12500 kg
Tandem-axle, 30/40 kph* max.15000 kg15000 kg18000 kg18000 kg
Note: *EU-2015/68, only with dual line brake system----
FARO 3510 L
Length7,78 m
Width2,42 m
Height with 17" tyres3,56 m
Height with 22.5" tyres-
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)5 m
Loading volume (DIN 11741)24 m³
Number of knives max.31 pcs.
Theoretical chopped length45 mm
Pick-up recording width1,85 m
Track width1,85 m
Weight of basic version5550 kg
ChassisTandem axle
Permissible laden weight (standard)12500 kg
Permissible laden weight max.15000 kg
Tandem-axle, 25/40 kph12500 kg
Tandem-axle, 30/40 kph*12500 kg
Tandem-axle, 30/40 kph* max.15000 kg
Note: *EU-2015/68, only with dual line brake system-
FARO 3510 D
Length8,25 m
Width2,42 m
Height with 17" tyres3,56 m
Height with 22.5" tyres-
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)4,75 m
Loading volume (DIN 11741)23 m³
Number of knives max.31 pcs.
Theoretical chopped length45 mm
Pick-up recording width1,85 m
Track width1,85 m
Weight of basic version5950 kg
ChassisTandem axle
Permissible laden weight (standard)12500 kg
Permissible laden weight max.15000 kg
Tandem-axle, 25/40 kph12500 kg
Tandem-axle, 30/40 kph*12500 kg
Tandem-axle, 30/40 kph* max.15000 kg
Note: *EU-2015/68, only with dual line brake system-
FARO 4010 L
Length8,46 m
Width2,42 m
Height with 17" tyres3,56 m
Height with 22.5" tyres3,68 m
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)5,68 m
Loading volume (DIN 11741)27 m³
Number of knives max.31 pcs.
Theoretical chopped length45 mm
Pick-up recording width1,85 m
Track width1,85 m
Weight of basic version5650 kg
ChassisTandem axle
Permissible laden weight (standard)12500 kg
Permissible laden weight max.18000 kg
Tandem-axle, 25/40 kph12500 kg
Tandem-axle, 30/40 kph*12500 kg
Tandem-axle, 30/40 kph* max.18000 kg
Note: *EU-2015/68, only with dual line brake system-
FARO 4010 D
Length8,93 m
Width2,42 m
Height with 17" tyres3,56 m
Height with 22.5" tyres3,68 m
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)5,43 m
Loading volume (DIN 11741)26 m³
Number of knives max.31 pcs.
Theoretical chopped length45 mm
Pick-up recording width1,85 m
Track width1,85 m
Weight of basic version6050 kg
ChassisTandem axle
Permissible laden weight (standard)12500 kg
Permissible laden weight max.18000 kg
Tandem-axle, 25/40 kph12500 kg
Tandem-axle, 30/40 kph*12500 kg
Tandem-axle, 30/40 kph* max.18000 kg
Note: *EU-2015/68, only with dual line brake system-
 FARO 4510 LFARO 4510 DFARO 5010 LFARO 5010 D
Length9,14 m9,61 m9,14 m9,61 m
Width2,42 m2,42 m2,42 m2,42 m
Height with 17" tyres3,56 m3,56 m3,76 m3,76 m
Height with 22.5" tyres3,68 m3,68 m3,88 m3,88 m
Number of scraper floor chains4 pcs.4 pcs.4 pcs.4 pcs.
Scraper floor motor (standard)1-speed 1-speed 1-speed 1-speed
Scraper floor motor (option)2-speed 2-speed 2-speed 2-speed
Length loading area (Width 2,1)6,36 m6,11 m6,36 m6,11 m
Loading volume (DIN 11741)30 m³29 m³33 m³32 m³
Number of knives max.31 pcs.31 pcs.31 pcs.31 pcs.
Theoretical chopped length45 mm45 mm45 mm45 mm
Pick-up recording width1,85 m1,85 m1,85 m1,85 m
Track width1,85 m1,85 m1,85 m1,85 m
Weight of basic version5800 kg6200 kg5850 kg6350 kg
ChassisTandem axle Tandem axle Tandem axle Tandem axle
Permissible laden weight (standard)15000 kg15000 kg15000 kg15000 kg
Permissible laden weight max.18000 kg18000 kg18000 kg18000 kg
Tandem-axle, 25/40 kph15000 kg15000 kg15000 kg15000 kg
Tandem-axle, 30/40 kph*15000 kg15000 kg15000 kg15000 kg
Tandem-axle, 30/40 kph* max.18000 kg18000 kg18000 kg18000 kg
Note: *EU-2015/68, only with dual line brake system----
FARO 4510 L
Length9,14 m
Width2,42 m
Height with 17" tyres3,56 m
Height with 22.5" tyres3,68 m
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)6,36 m
Loading volume (DIN 11741)30 m³
Number of knives max.31 pcs.
Theoretical chopped length45 mm
Pick-up recording width1,85 m
Track width1,85 m
Weight of basic version5800 kg
ChassisTandem axle
Permissible laden weight (standard)15000 kg
Permissible laden weight max.18000 kg
Tandem-axle, 25/40 kph15000 kg
Tandem-axle, 30/40 kph*15000 kg
Tandem-axle, 30/40 kph* max.18000 kg
Note: *EU-2015/68, only with dual line brake system-
FARO 4510 D
Length9,61 m
Width2,42 m
Height with 17" tyres3,56 m
Height with 22.5" tyres3,68 m
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)6,11 m
Loading volume (DIN 11741)29 m³
Number of knives max.31 pcs.
Theoretical chopped length45 mm
Pick-up recording width1,85 m
Track width1,85 m
Weight of basic version6200 kg
ChassisTandem axle
Permissible laden weight (standard)15000 kg
Permissible laden weight max.18000 kg
Tandem-axle, 25/40 kph15000 kg
Tandem-axle, 30/40 kph*15000 kg
Tandem-axle, 30/40 kph* max.18000 kg
Note: *EU-2015/68, only with dual line brake system-
FARO 5010 L
Length9,14 m
Width2,42 m
Height with 17" tyres3,76 m
Height with 22.5" tyres3,88 m
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)6,36 m
Loading volume (DIN 11741)33 m³
Number of knives max.31 pcs.
Theoretical chopped length45 mm
Pick-up recording width1,85 m
Track width1,85 m
Weight of basic version5850 kg
ChassisTandem axle
Permissible laden weight (standard)15000 kg
Permissible laden weight max.18000 kg
Tandem-axle, 25/40 kph15000 kg
Tandem-axle, 30/40 kph*15000 kg
Tandem-axle, 30/40 kph* max.18000 kg
Note: *EU-2015/68, only with dual line brake system-

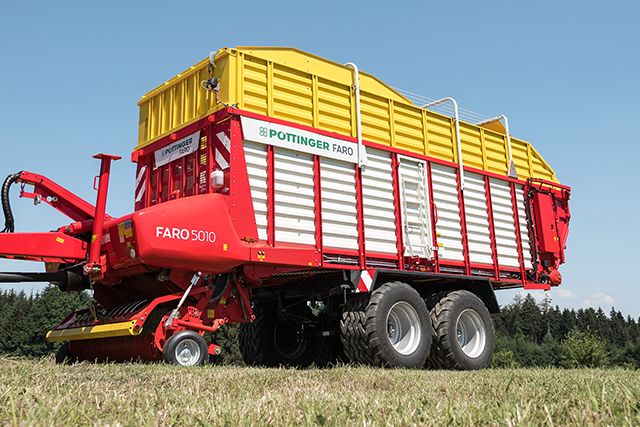

FARO 5010 D
Length9,61 m
Width2,42 m
Height with 17" tyres3,76 m
Height with 22.5" tyres3,88 m
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)6,11 m
Loading volume (DIN 11741)32 m³
Number of knives max.31 pcs.
Theoretical chopped length45 mm
Pick-up recording width1,85 m
Track width1,85 m
Weight of basic version6350 kg
ChassisTandem axle
Permissible laden weight (standard)15000 kg
Permissible laden weight max.18000 kg
Tandem-axle, 25/40 kph15000 kg
Tandem-axle, 30/40 kph*15000 kg
Tandem-axle, 30/40 kph* max.18000 kg
Note: *EU-2015/68, only with dual line brake system-
 FARO 8010 L DRY FORAGEFARO 10010 L DRY FORAGE
Length10,79 m11,99 m
Width2,55 m2,55 m
Height with 17" tyres3,98 m-
Height with 22.5" tyres4 m4 m
Number of scraper floor chains4 pcs.4 pcs.
Scraper floor motor (standard)1-speed 1-speed
Scraper floor motor (option)2-speed 2-speed
Length loading area (Width 2,1)7,73 m9,14 m
Loading volume (DIN 11741)48 m³52 m³
Number of knives max.11 pcs.11 pcs.
Theoretical chopped length135 mm135 mm
Pick-up recording width1,85 m1,85 m
Track width1,85 m1,95 m
Weight of basic version6550 kg7700 kg
ChassisTandem axle Tandem axle
Permissible laden weight (standard)15000 kg16000 kg
Permissible laden weight max.16000 kg16000 kg
Tandem-axle, 25/40 kph15000 kg16000 kg
Tandem-axle, 30/40 kph*15000 kg16000 kg
Tandem-axle, 30/40 kph* max.16000 kg16000 kg
Note: *EU-2015/68, only with dual line brake system--

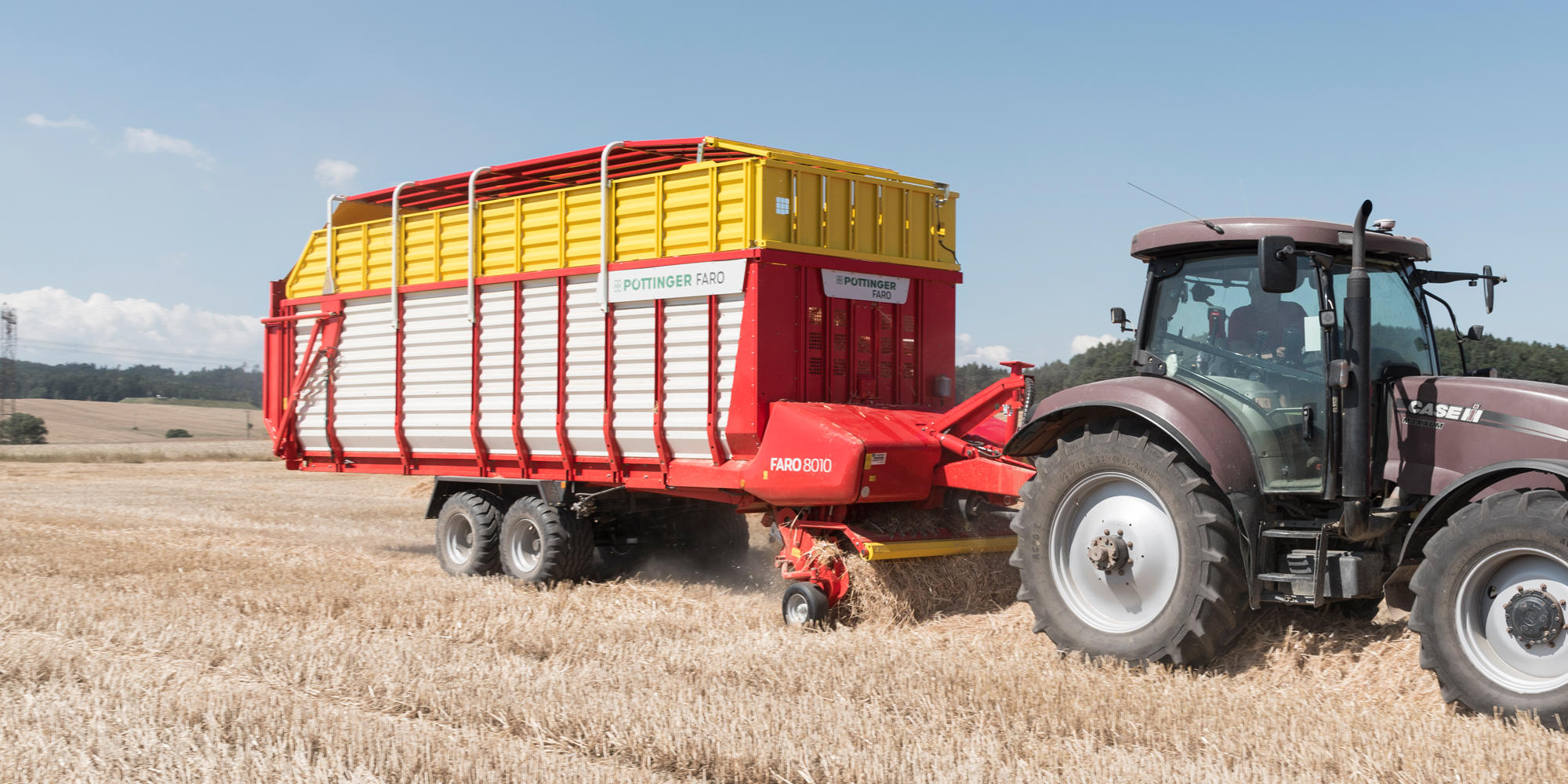

FARO 8010 L DRY FORAGE
Length10,79 m
Width2,55 m
Height with 17" tyres3,98 m
Height with 22.5" tyres4 m
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)7,73 m
Loading volume (DIN 11741)48 m³
Number of knives max.11 pcs.
Theoretical chopped length135 mm
Pick-up recording width1,85 m
Track width1,85 m
Weight of basic version6550 kg
ChassisTandem axle
Permissible laden weight (standard)15000 kg
Permissible laden weight max.16000 kg
Tandem-axle, 25/40 kph15000 kg
Tandem-axle, 30/40 kph*15000 kg
Tandem-axle, 30/40 kph* max.16000 kg
Note: *EU-2015/68, only with dual line brake system-
FARO 10010 L DRY FORAGE
Length11,99 m
Width2,55 m
Height with 17" tyres-
Height with 22.5" tyres4 m
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)9,14 m
Loading volume (DIN 11741)52 m³
Number of knives max.11 pcs.
Theoretical chopped length135 mm
Pick-up recording width1,85 m
Track width1,95 m
Weight of basic version7700 kg
ChassisTandem axle
Permissible laden weight (standard)16000 kg
Permissible laden weight max.16000 kg
Tandem-axle, 25/40 kph16000 kg
Tandem-axle, 30/40 kph*16000 kg
Tandem-axle, 30/40 kph* max.16000 kg
Note: *EU-2015/68, only with dual line brake system-


MyPÖTTINGER

MyPÖTTINGER


  • Get valuable information and tips on all PÖTTINGER machines
  • Specific information on your PÖTTINGER machines in "My Machines".
  • Instruction manuals, spare parts lists, maintenance information, as well as all technical details available online
  • Machine-specific documentation for all PÖTTINGER machines built from 1997 onwards available online

www.mypoettinger.com


Medien

Media

Videos


Best forage

PÖTTINGER FARO / FARO COMBILINE / EUROPROFI COMBILINE loader wagons

Pöttinger loader wagons

Image gallery

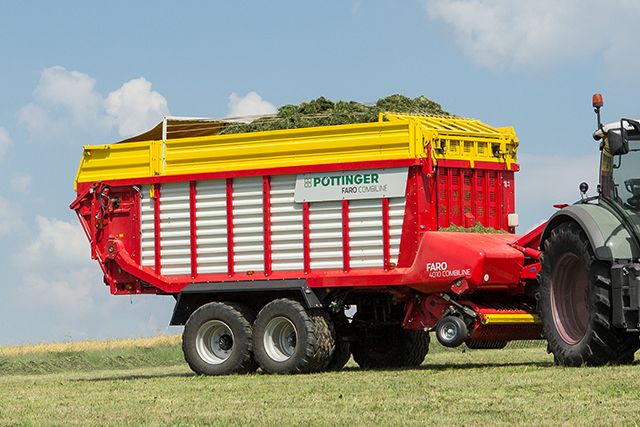

FARO 4010 L COMBILINE
FARO 4010 L COMBILINE
FARO 4010 L COMBILINE
FARO 4010 L COMBILINE
FARO 4010 L COMBILINE
FARO 4010 L COMBILINE
Qualität

Newsmessages

The new JUMBO 8000 chops much shorter

The new JUMBO 8000 chops much shorter

01.07.2022

High-performance loader wagon goes one step further
JUMBO 7000 is FARM MACHINE 2022

JUMBO 7000 is FARM MACHINE 2022

04.03.2022

PÖTTINGER receives award for new loader wagon

EUROPROFI COMBILINE with optimised front panel

EUROPROFI COMBILINE with optimised front panel

17.02.2022



Qualität

Quality

We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.

Login Partner Portal

Request user | Forgot Password?

Start Remote Support

We use cookies and tracking technologies


User-friendliness is important to us, which is why we are constantly developing the offers and online services available on our website. We would like to show content and advertising you are interested in. Continuing to browse the website means that cookies will be used. Cookies are only used in relation to personalised Google marketing products if you give your full consent ("Agree to all"). You can also customise the settings using the checkboxes provided.

Certain web technologies and cookies help to make this website easily accessible and user friendly. This covers essential basic functionalities, such as navigating the website, the way it is displayed in your browser and requesting your consent. This website will not work without the web technologies and cookies mentioned above.

Purpose of cookie Duration
Accept-Cookie Saves information if the "Accept cookies" banner was accepted or not. 6 Months
Country (layer) and language (lang) Saves the country and language selected by the user. 6 Months
More Info

We are constantly striving to improve the user-friendliness and performance of our website. That is why we use analysis technologies (including cookies), which monitor and evaluate anonymously which contents of our website are used and how often they are accessed.

Purpose of cookie Duration
Google Analytics Analysis of how the website is used (see below). 6 Months
More Info

We use web technologies (including cookies) provided by several partner companies to ensure we show you relevant content on our website and social media channels. This means that the content displayed is customised and displayed according to the way you use our website.

Purpose of cookie Duration
YouTube We link to YouTube videos from our website and use the extended data protection provided by YouTube. YouTube does not save any information about visitors to this website, unless you watch a video.Find out more here:https://support.google.com/youtube/answer/171780?hl=dehttps://www.google.de/intl/de/policies/privacy/We do not have any control over YouTube cookies, but you can block these cookies in your browser settings. 6 Months
More Info
More Info
Save
Select all
Save
Select all
Loading...
