GRANO

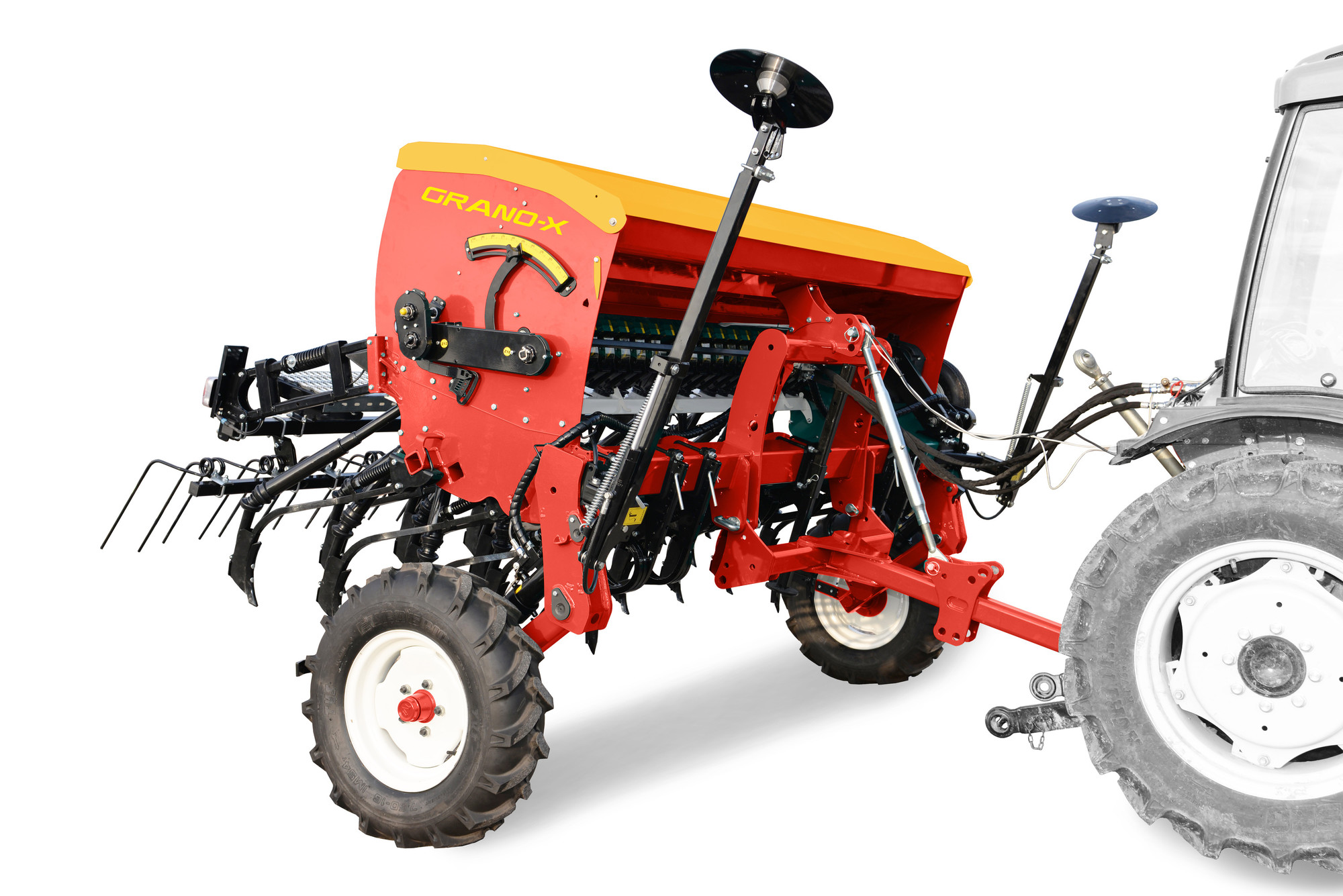

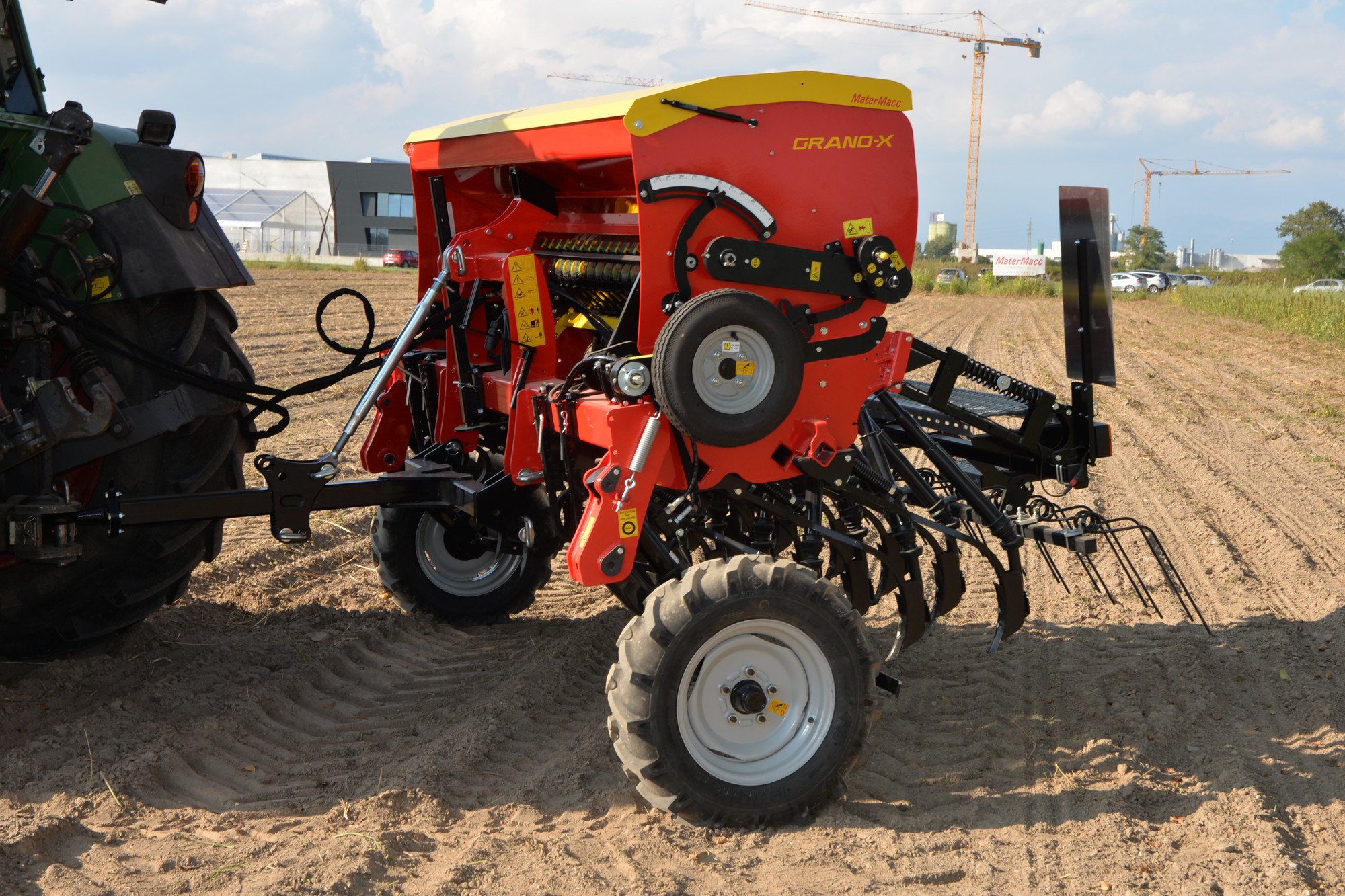

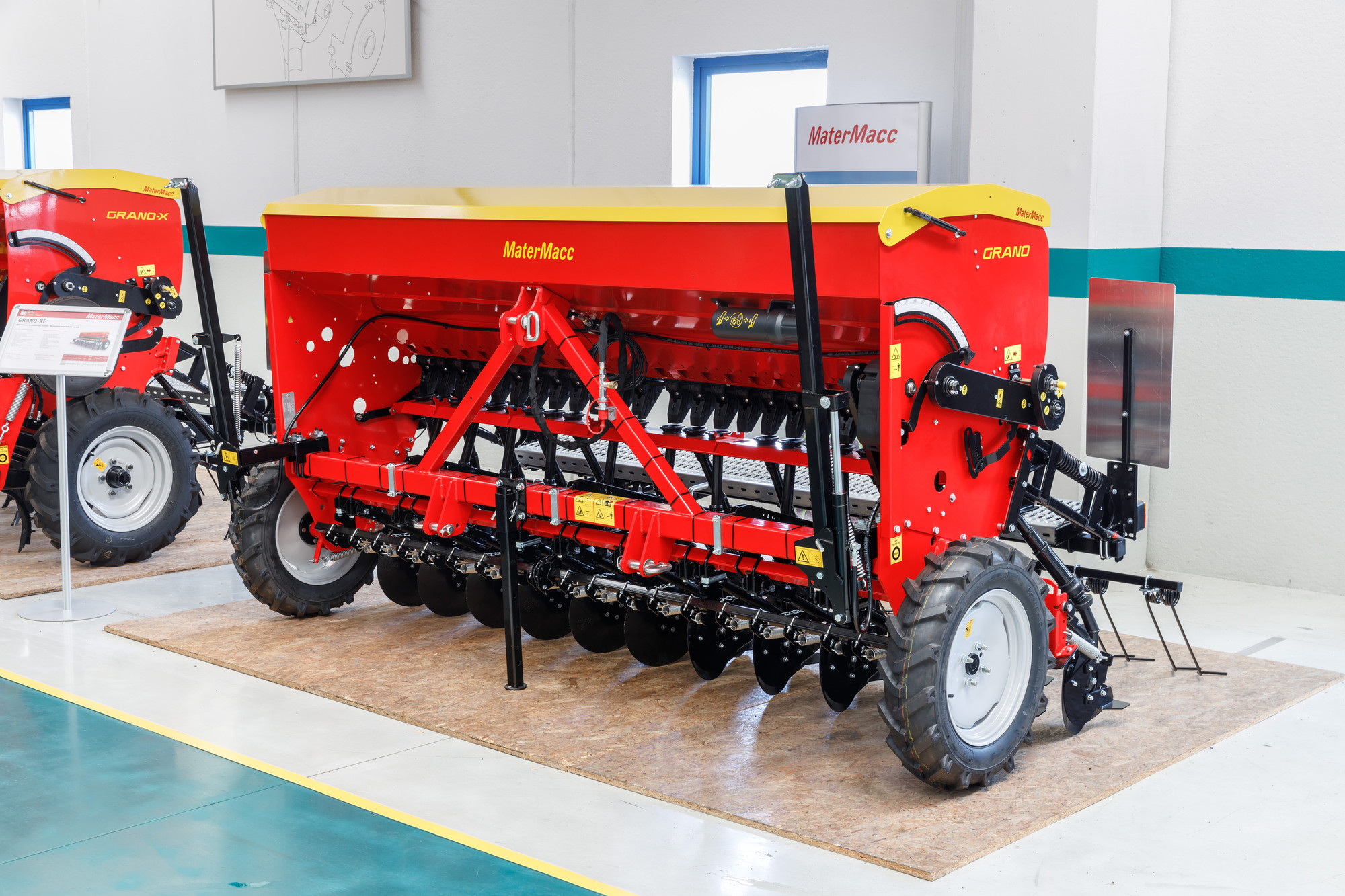

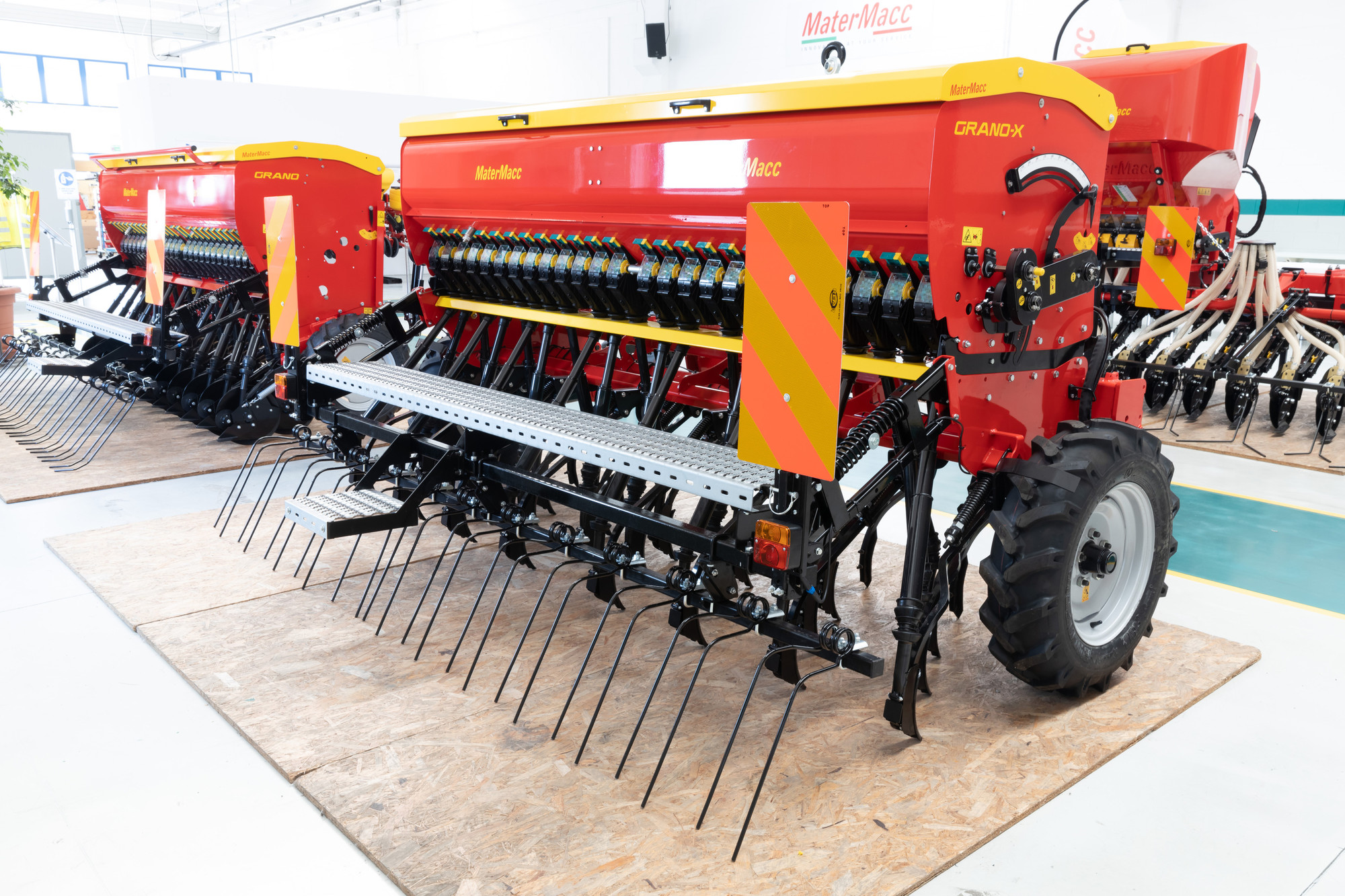

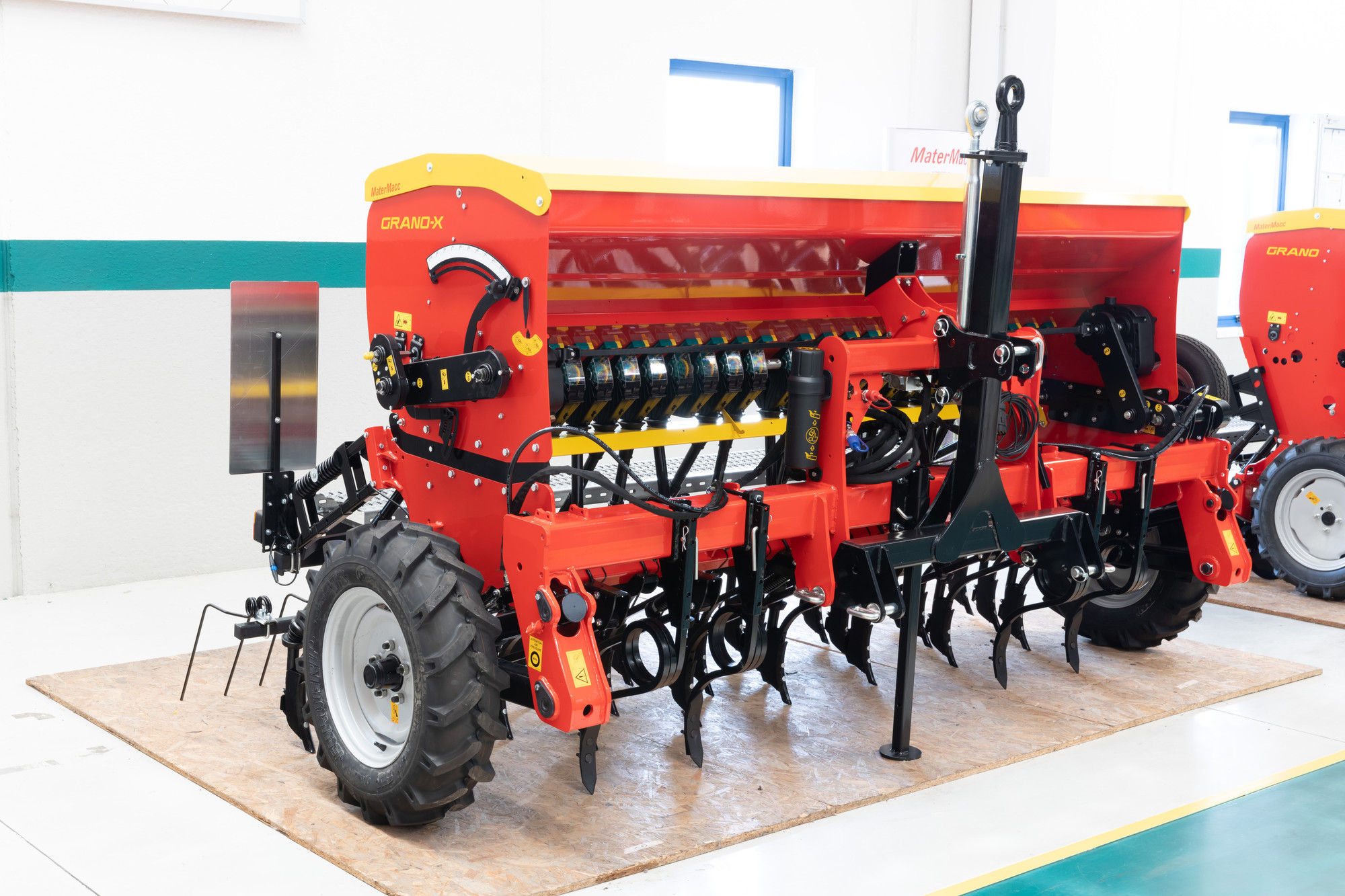

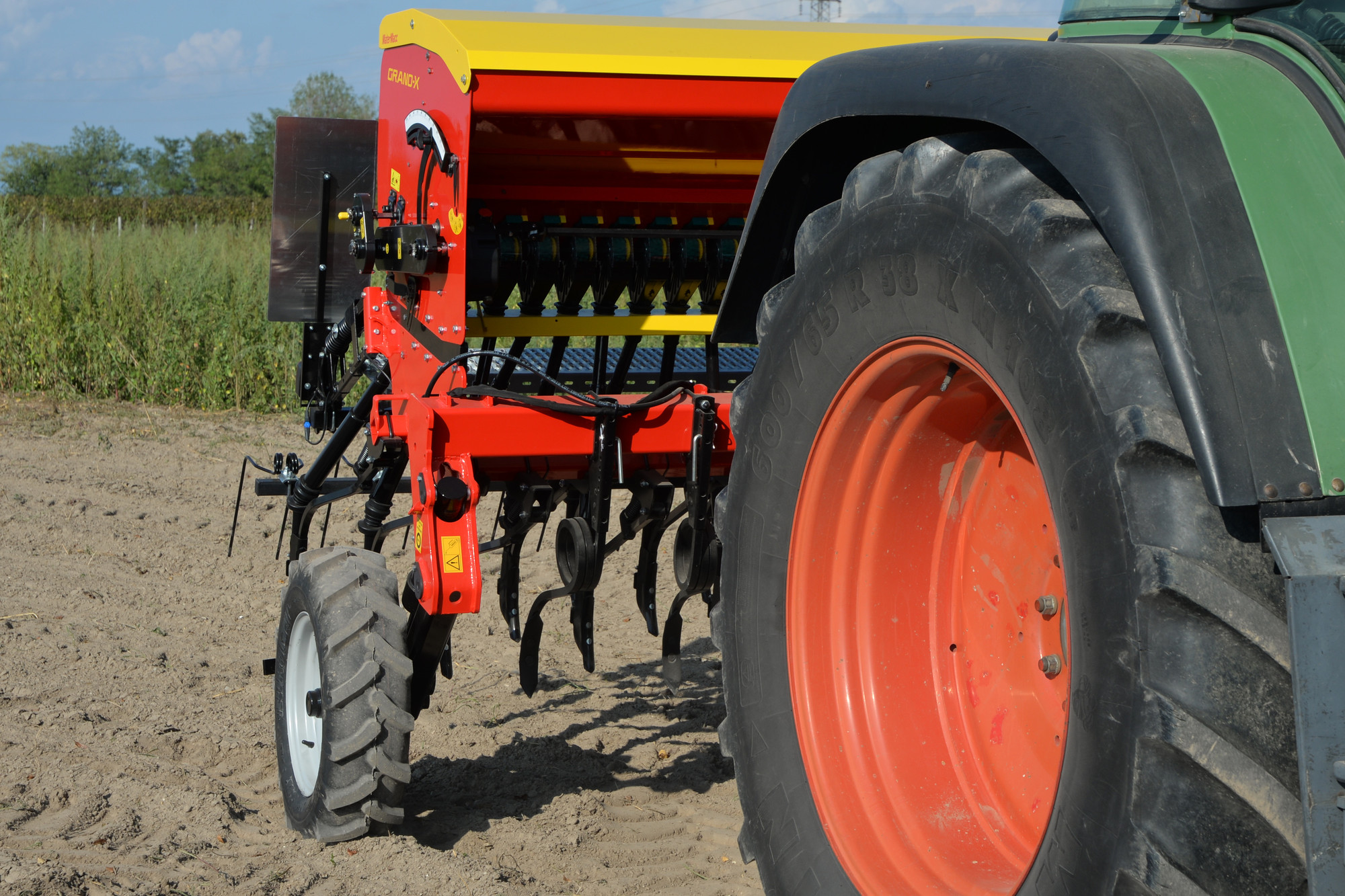

In-line mechanical seed-drill for cereals, canola, soybeans, alfalfa, and other forage crops on minimally tilled land. Compact, maneuverable seed-drill available with an effective working width of 3 m. Featuring a sturdy structure suitable for absorbing stress and depth adjustment monitored by the support trolley in manual or hydraulic mode.

Prospekte Brochures

In-line mechanical seed-drill for cereals, canola, soybeans, alfalfa, and other forage crops on minimally tilled land. Compact, maneuverable seed-drill available with an effective working width of 3 m. Featuring a sturdy structure suitable for absorbing stress and depth adjustment monitored by the support trolley in manual or hydraulic mode.

Technical data

 GRANO 300 (19) SDCGRANO 300 (21) SDCGRANO 300 (23) SDCGRANO 300 (25) SDCGRANO 300 (19) FERTI SDC
Number of rows19 pcs.21 pcs.23 pcs.25 pcs.19 pcs.
Row spacing15,8 cm14,3 cm13,0 cm12,0 cm15,8 cm
Transport width320 cm320 cm320 cm320 cm320 cm
Working width320 cm320 cm320 cm320 cm320 cm
Minimum power50 hp70 hp70 hp70 hp60 hp
Weight625 kg640 kg655 kg670 kg675 kg
Seed hopper volume750 l750 l750 l750 l420 l
 GRANO 300 (21) FERTI SDCGRANO 300 (23) FERTI SDCGRANO 300 (25) FERTI SDCGRANO-X 300 (20) FERTI SCGRANO-X 300 (21) FERTI SC
Number of rows21 pcs.23 pcs.25 pcs.20 pcs.21 pcs.
Row spacing14,3 cm13,0 cm12,0 cm14,9 cm14,2 cm
Transport width320 cm320 cm320 cm320 cm320 cm
Working width320 cm320 cm320 cm320 cm320 cm
Minimum power80 hp80 hp80 hp70 hp70 hp
Weight690 kg705 kg720 kg940 kg950 kg
Seed hopper volume420 l420 l420 l705 l705 l
Fertiliser hopper volume345 l345 l345 l--
 GRANO-X 300 (23) FERTI SCGRANO-X 300 (25) FERTI SCGRANO-X 300 (20) FERTI SDCGRANO-X 300 (21) FERTI SDCGRANO-XF 300 (20) SC
Number of rows23 pcs.25 pcs.20 pcs.21 pcs.20 pcs.
Row spacing12,9 cm11,8 cm14,5 cm13,8 cm14,9 cm
Transport width320 cm320 cm320 cm320 cm320 cm
Working width320 cm320 cm320 cm320 cm320 cm
Minimum power90 hp90 hp80 hp80 hp80 hp
Weight965 kg980 kg1.075 kg1.090 kg940 kg
Seed hopper volume705 l705 l705 l705 l390 l
Fertiliser hopper volume----315 l
 GRANO-XF 300 (21) SCGRANO-XF 300 (23) SCGRANO-XF 300 (25) SCGRANO-XF 300 (20) FERTI SDCGRANO-XF 300 (21) FERTI SDC
Number of rows21 pcs.23 pcs.25 pcs.20 pcs.21 pcs.
Row spacing14,2 cm12,9 cm11,8 cm14,5 cm13,8 cm
Transport width320 cm320 cm320 cm320 cm320 cm
Working width320 cm320 cm320 cm320 cm320 cm
Minimum power80 hp100 hp100 hp90 hp90 hp
Weight950 kg965 kg980 kg1.075 kg1.090 kg
Seed hopper volume390 l390 l390 l390 l390 l
Fertiliser hopper volume315 l315 l315 l315 l315 l
GRANO 300 (19) SDC
Number of rows19 pcs.
Row spacing15,8 cm
Transport width320 cm
Working width320 cm
Minimum power50 hp
Weight625 kg
Seed hopper volume750 l
GRANO 300 (21) SDC
Number of rows21 pcs.
Row spacing14,3 cm
Transport width320 cm
Working width320 cm
Minimum power70 hp
Weight640 kg
Seed hopper volume750 l
GRANO 300 (23) SDC
Number of rows23 pcs.
Row spacing13,0 cm
Transport width320 cm
Working width320 cm
Minimum power70 hp
Weight655 kg
Seed hopper volume750 l
GRANO 300 (25) SDC
Number of rows25 pcs.
Row spacing12,0 cm
Transport width320 cm
Working width320 cm
Minimum power70 hp
Weight670 kg
Seed hopper volume750 l
GRANO 300 (19) FERTI SDC
Number of rows19 pcs.
Row spacing15,8 cm
Transport width320 cm
Working width320 cm
Minimum power60 hp
Weight675 kg
Seed hopper volume420 l
Fertiliser hopper volume345 l
GRANO 300 (21) FERTI SDC
Number of rows21 pcs.
Row spacing14,3 cm
Transport width320 cm
Working width320 cm
Minimum power80 hp
Weight690 kg
Seed hopper volume420 l
Fertiliser hopper volume345 l
GRANO 300 (23) FERTI SDC
Number of rows23 pcs.
Row spacing13,0 cm
Transport width320 cm
Working width320 cm
Minimum power80 hp
Weight705 kg
Seed hopper volume420 l
Fertiliser hopper volume345 l
GRANO 300 (25) FERTI SDC
Number of rows25 pcs.
Row spacing12,0 cm
Transport width320 cm
Working width320 cm
Minimum power80 hp
Weight720 kg
Seed hopper volume420 l
Fertiliser hopper volume345 l
GRANO-X 300 (20) FERTI SC
Number of rows20 pcs.
Row spacing14,9 cm
Transport width320 cm
Working width320 cm
Minimum power70 hp
Weight940 kg
Seed hopper volume705 l
Fertiliser hopper volume-
GRANO-X 300 (21) FERTI SC
Number of rows21 pcs.
Row spacing14,2 cm
Transport width320 cm
Working width320 cm
Minimum power70 hp
Weight950 kg
Seed hopper volume705 l
Fertiliser hopper volume-
GRANO-X 300 (23) FERTI SC
Number of rows23 pcs.
Row spacing12,9 cm
Transport width320 cm
Working width320 cm
Minimum power90 hp
Weight965 kg
Seed hopper volume705 l
Fertiliser hopper volume-
GRANO-X 300 (25) FERTI SC
Number of rows25 pcs.
Row spacing11,8 cm
Transport width320 cm
Working width320 cm
Minimum power90 hp
Weight980 kg
Seed hopper volume705 l
Fertiliser hopper volume-
GRANO-X 300 (20) FERTI SDC
Number of rows20 pcs.
Row spacing14,5 cm
Transport width320 cm
Working width320 cm
Minimum power80 hp
Weight1.075 kg
Seed hopper volume705 l
Fertiliser hopper volume-
GRANO-X 300 (21) FERTI SDC
Number of rows21 pcs.
Row spacing13,8 cm
Transport width320 cm
Working width320 cm
Minimum power80 hp
Weight1.090 kg
Seed hopper volume705 l
Fertiliser hopper volume-
GRANO-XF 300 (20) SC
Number of rows20 pcs.
Row spacing14,9 cm
Transport width320 cm
Working width320 cm
Minimum power80 hp
Weight940 kg
Seed hopper volume390 l
Fertiliser hopper volume315 l
GRANO-XF 300 (21) SC
Number of rows21 pcs.
Row spacing14,2 cm
Transport width320 cm
Working width320 cm
Minimum power80 hp
Weight950 kg
Seed hopper volume390 l
Fertiliser hopper volume315 l
GRANO-XF 300 (23) SC
Number of rows23 pcs.
Row spacing12,9 cm
Transport width320 cm
Working width320 cm
Minimum power100 hp
Weight965 kg
Seed hopper volume390 l
Fertiliser hopper volume315 l
GRANO-XF 300 (25) SC
Number of rows25 pcs.
Row spacing11,8 cm
Transport width320 cm
Working width320 cm
Minimum power100 hp
Weight980 kg
Seed hopper volume390 l
Fertiliser hopper volume315 l
GRANO-XF 300 (20) FERTI SDC
Number of rows20 pcs.
Row spacing14,5 cm
Transport width320 cm
Working width320 cm
Minimum power90 hp
Weight1.075 kg
Seed hopper volume390 l
Fertiliser hopper volume315 l
GRANO-XF 300 (21) FERTI SDC
Number of rows21 pcs.
Row spacing13,8 cm
Transport width320 cm
Working width320 cm
Minimum power90 hp
Weight1.090 kg
Seed hopper volume390 l
Fertiliser hopper volume315 l
