The perfect flow

The new IMPRESS 3000 series are professional class round balers. Thanks to the innovative crop flow, the IMPRESS delivers the highest capacity, with maximum forage conservation and the lowest power requirement.

The baling chamber is suitable for all crops in all operating conditions. By using up to 32 knives, you can achieve the best chopping quality right up to the edge of the bale. The unique EASY MOVE knife bank, which can be pulled out from the side, gives you a whole new experience of changing knives on a round baler.

Reliability

Farmers and contractors have to be able to count on the reliability of their machinery. Any equipment downtime can quickly cause major costs.

The IMPRESS FC / VC PRO are designed for reliability. The controlled floating pick-up collects all the crop cleanly, even in difficult terrain, and transfers it to the rotor. This conveys it overhead, tangentially into the baling chamber. A reliable bale start is always guaranteed, even when using all 32 knives. The bale is bound reliably with net or binding film.

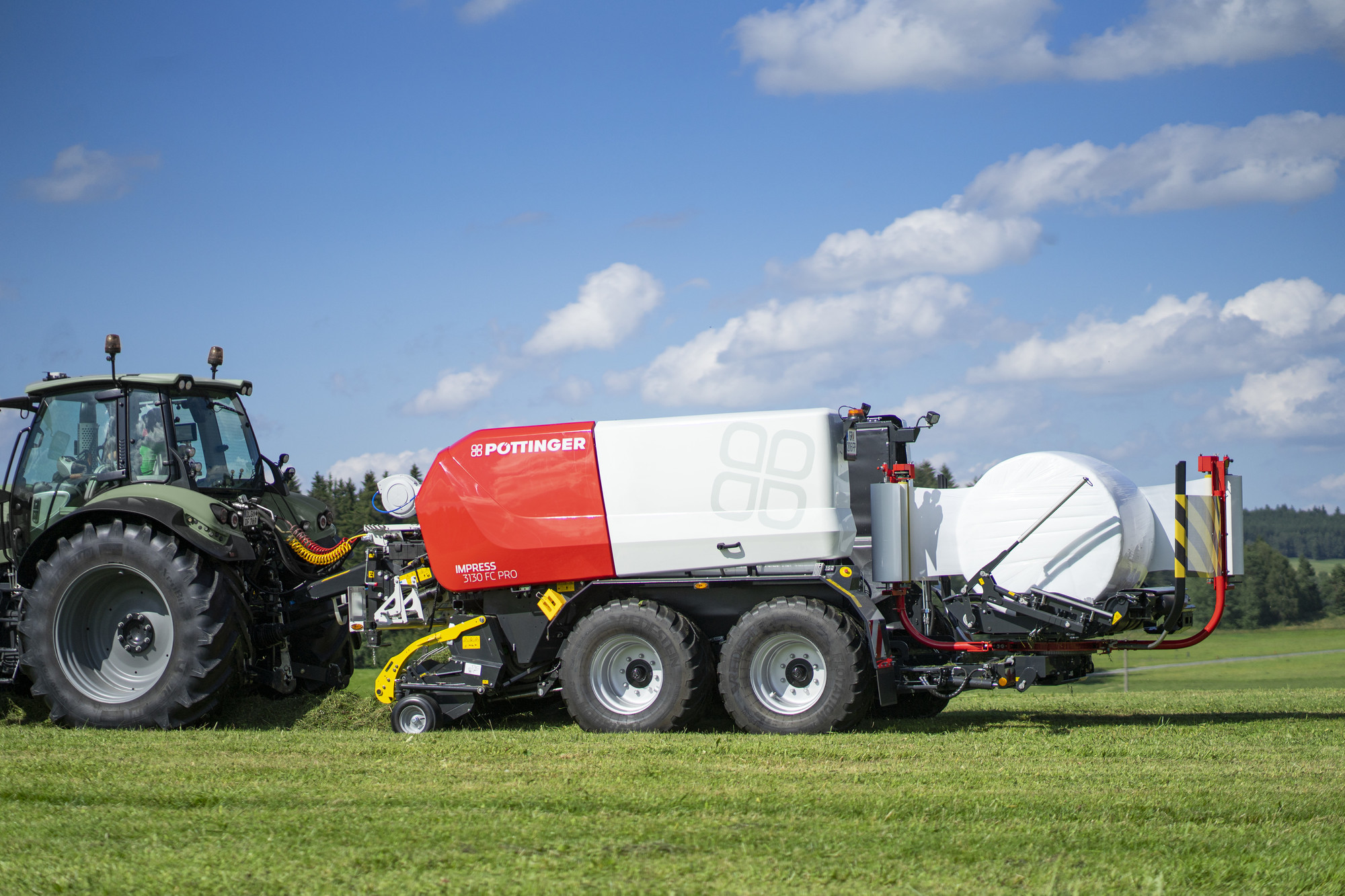

The baler & wrapper combination ensures reliable bale transfer even when working on steep inclines.

The perfect flow

The new IMPRESS 3000 series are professional class round balers. Thanks to the innovative crop flow, the IMPRESS delivers the highest capacity, with maximum forage conservation and the lowest power requirement.

The baling chamber is suitable for all crops in all operating conditions. By using up to 32 knives, you can achieve the best chopping quality right up to the edge of the bale. The unique EASY MOVE knife bank, which can be pulled out from the side, gives you a whole new experience of changing knives on a round baler.

Reliability

Farmers and contractors have to be able to count on the reliability of their machinery. Any equipment downtime can quickly cause major costs.

The IMPRESS FC / VC PRO are designed for reliability. The controlled floating pick-up collects all the crop cleanly, even in difficult terrain, and transfers it to the rotor. This conveys it overhead, tangentially into the baling chamber. A reliable bale start is always guaranteed, even when using all 32 knives. The bale is bound reliably with net or binding film.

The baler & wrapper combination ensures reliable bale transfer even when working on steep inclines.



Technology

Technical data

 IMPRESS 3130 FC PRO
Bale diameter1,3 m
Knife spacing36 mm
Number of knives max.32 pcs.
Pick-up width (DIN 11220)2,3 m
winder diameter1,25
Bale width1,2 m
Power requirement130 hp
Hydraulic power required60 l/min at 180 bar
PTO speed1000 rpm
Number of tine rows5 pcs.
Length7,24 m
Width2,89 m
Height2,55 m
Tyres520/55 R 22,5" - Outer width 2,91 m
Weight of basic version7540 kg
IMPRESS 3130 FC PRO
Bale diameter1,3 m
Knife spacing36 mm
Number of knives max.32 pcs.
Pick-up width (DIN 11220)2,3 m
winder diameter1,25
Bale width1,2 m
Power requirement130 hp
Hydraulic power required60 l/min at 180 bar
PTO speed1000 rpm
Number of tine rows5 pcs.
Length7,24 m
Width2,89 m
Height2,55 m
Tyres520/55 R 22,5" - Outer width 2,91 m
Weight of basic version7540 kg


MY POETTINGER

MyPÖTTINGER


  • Get valuable information and tips on all PÖTTINGER machines
  • Specific information on your PÖTTINGER machines in "My Machines".
  • Instruction manuals, spare parts lists, maintenance information, as well as all technical details available online
  • Machine-specific documentation for all PÖTTINGER machines built from 1997 onwards available online

www.mypoettinger.com


Medien

Videos

3D animations

Quality
Quality
We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.
