Convenience and efficiency for soil and seed
PÖTTINGER offers you a comprehensive range of intelligent solutions for tillage and drilling that make your everyday work easier and more efficient.
SEED COMPLETE
Your complete package for optimised agriculture
With SEED COMPLETE, PÖTTINGER offers a tool for your success by optimising the management of your farming operations. SEED COMPLETE is a package of intelligent smart farming solutions including a communication unit offered for our VITASEM, AEROSEM and TERRASEM seed drills.
SECTION CONTROL and VARIABLE RATE CONTROL are available as standard equipment.
SEED COMPLETE
Your advantages with SEED COMPLETE:
Stress free operation for the driver with the seed drill switching on and off automatically.
Increases efficiency and improves the cost effectiveness of the farm: Saves resources
Avoids overlaps in wedge-shaped fields when sowing and fertilising.
Takes into account the differences in soil quality and yield potential within a field during drilling.
SECTION CONTROL
SECTION CONTROL
SECTION CONTROL refers to the automatic switching of whole or partial working widths of the implement. SECTION CONTROL is a convenient, efficient and resource-saving solution for headlands and for awkwardly shaped fields.
SECTION CONTROL makes sure that you have tidy ends at the headland for one final perimeter pass. By avoiding unwanted overlaps, you save resources, avoid crop growth rate differences, and prevent inconsistent crop densities, reducing the threat of disease, pests, and weeds. Another advantage is that first the inside of the field and then the headland can be worked on.
VARIABLE RATE CONTROL
VARIABLE RATE CONTROL

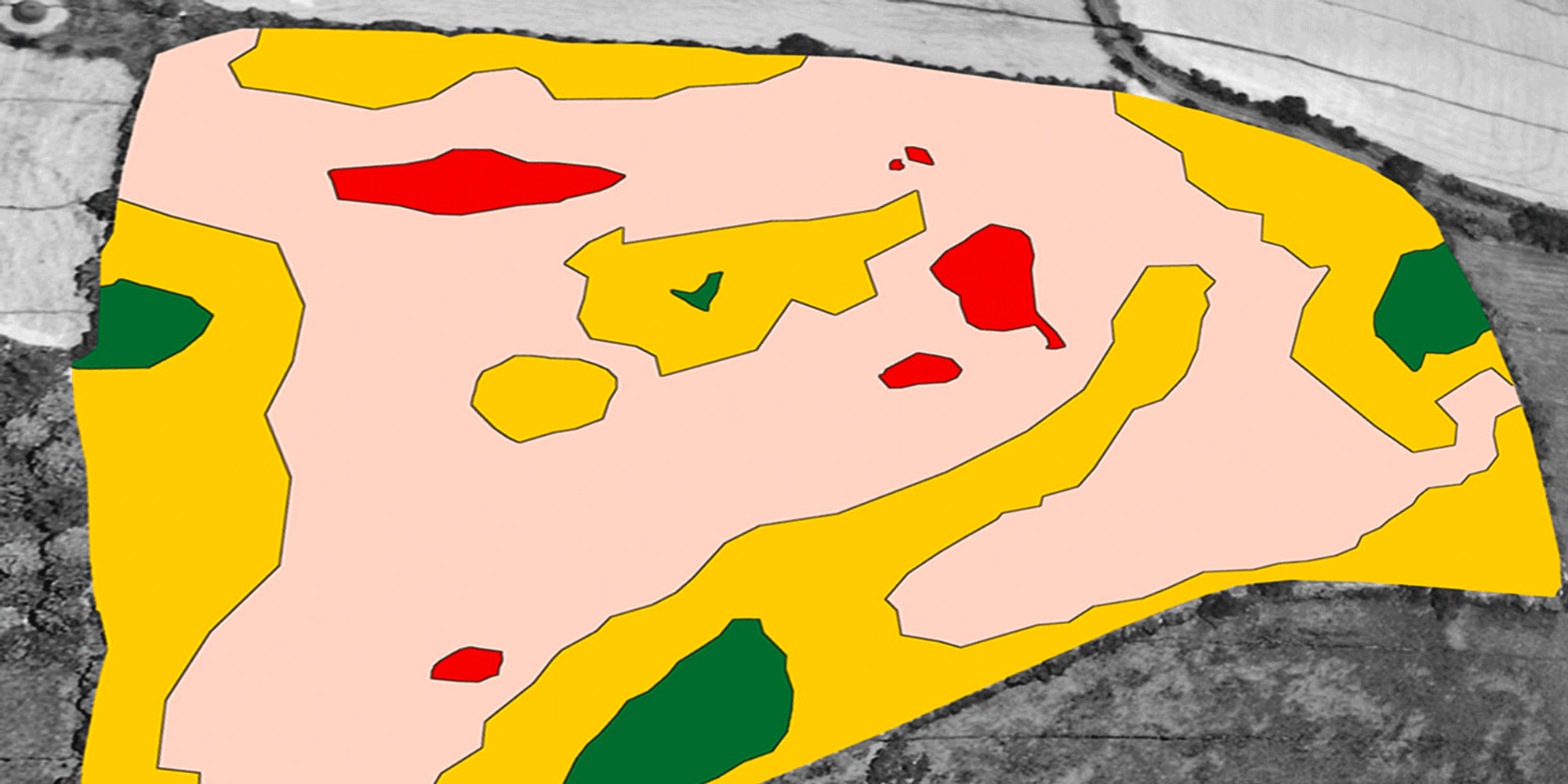

VARIABLE RATE CONTROL offers site specific application of seed/fertiliser taking the site soil conditions into consideration. The basis for this is an application map, which you create on the farm PC before starting work in the field. An FMIS (Farm Management and Information System), of which there are now various providers, will help you. An application map provides information on the application rates adapted to the soil conditions, which are marked in different colour zones. When creating application maps, you can draw on your own experience with the respective field, as well as soil samples, satellite data, etc.
IDS
The intelligent distributor head
The intelligent distributor head
IDS - flexibility that pays dividends
The unique IDS system (Intelligent Distribution System) controls all outlets via the bus system. This opens up completely new capabilities in seed row and tramline switching. With IDS, there are no limits to the freedom you have when working. IDS is perfect for contractors and machinery rings.
It is easy to set the tramlines at the terminal - there is no need to change the hoses.
Choose any of the following:
Tramline widths
Track widths
Special tramline switching
Dual tramline systems
Half-width shut-off
The intelligent heart of the system

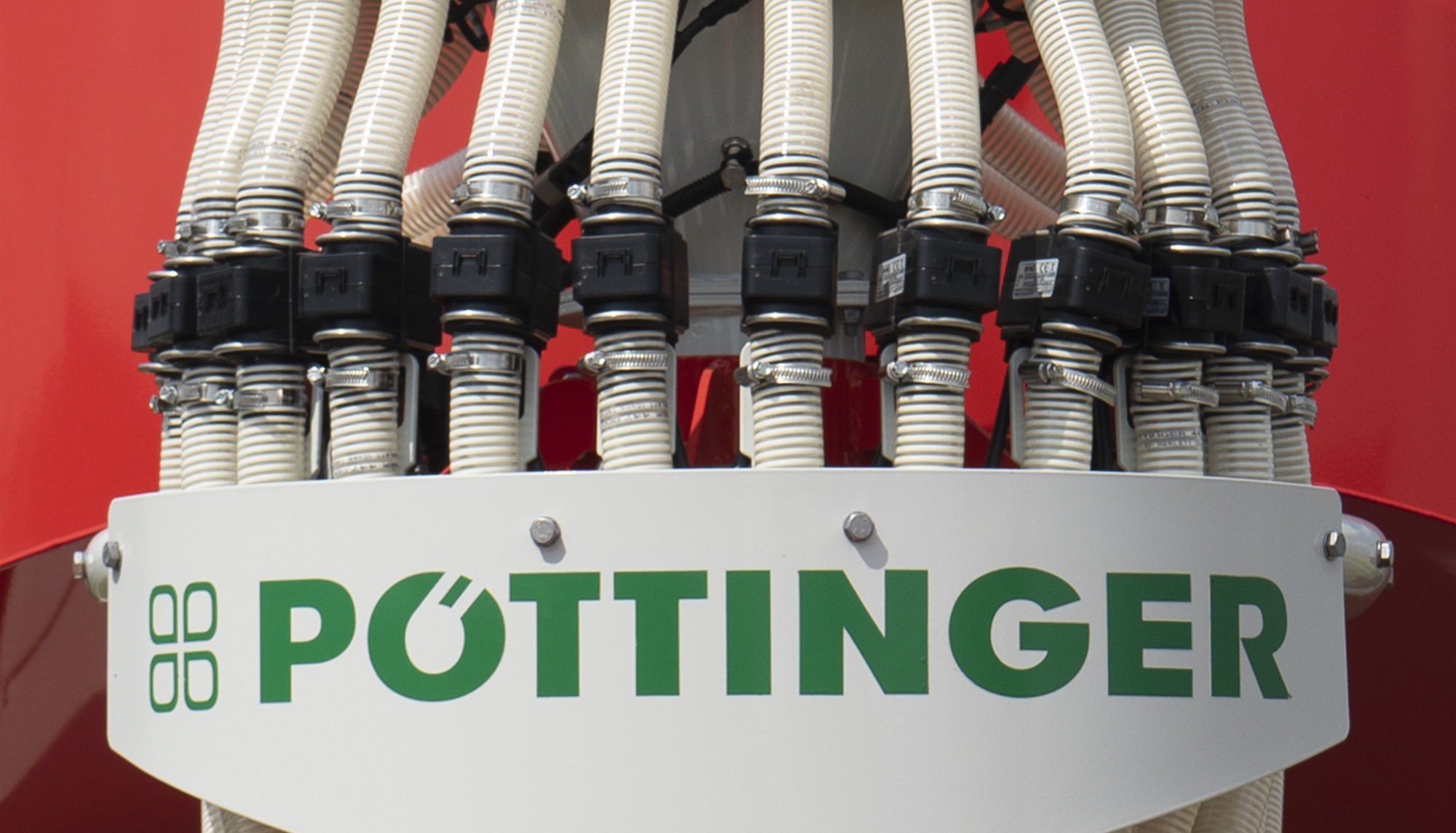

The IDS distributor head ensures uniform crop growth by maintaining a completely consistent seed count in all coulter pipes.
Reliable and straightforward: Tramline switching
Tramline switching
Tramline switching is performed electronically using actuator motors. Straighforward setting and monitoring functions using the terminal.
Seed flow sensors
For convenience and reliability
Seed flow sensors
Convenient seed flow monitoring on all PÖTTINGER pneumatic seed drills. Each coulter pipe is fitted with a sensor which checks the seed flow. The sensor sensitivity can be adjusted in three stages depending on the seed material (fine, normal, large).
Seed flow monitoring is displayed on each terminal, on the POWER CONTROL, EXPERT 75, CCI 1200 and on the ISOBUS tractor terminal. In the event of a blockade, the driver receives a message about the current status. If a coulter pipe becomes blocked, the row number is displayed directly on the terminal.
Additional convenience is provided by the LED lights mounted directly on the sensor on each coulter pipe. This allows the driver to immediately detect the clogged seed line even when the seed drill is dusty or at night.
PCS
Precision drill technology
All-in-one for pure flexibility

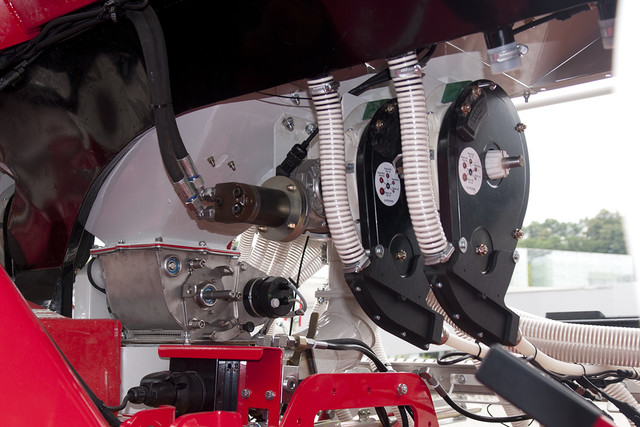

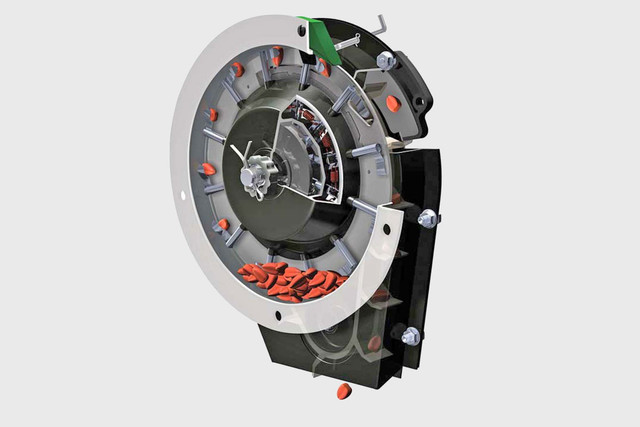

PCS (Precision Combi Seeding) integrates precision seed drilling technology into a pneumatic seed drill, offering another option to dedicated single seed drills. This means more flexibility and more economically operation.
PCS (Precision Combi Seeding)
A seed drill for 4 applications
Cereal
Maize without fertiliser
Maize with fertiliser
Maize with companion crop
Your advantages with PCS
Reduction in investment costs by combining pneumatic seed drill with single seed drill
Multiple uses for machine combination
No separate precision seed drill required
Independence from contractor
Reduction in fixed operating costs per hectare
Expansion to range of applications - high flexibility
PCS
Improves the environment and energy situation
Minimises erosion by leaving behind a surface without marks
Grass seed erosion protection drilled simultaneously in a single pass
Fewer passes
One-pass maize planting
More efficient and saves more fuel
Higher productivity
Dressing dust goes directly into the furrow and is covered immediately

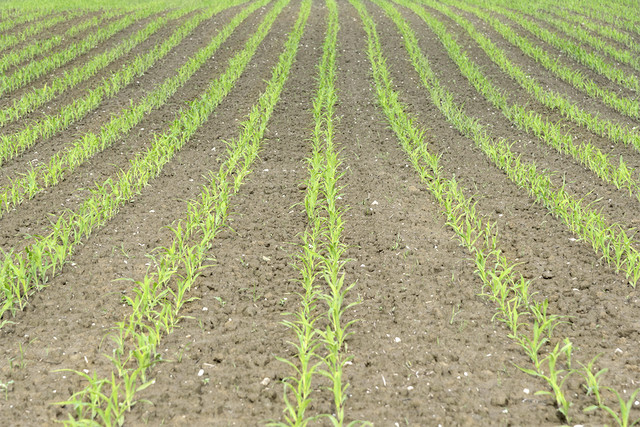

DUPLEX SEED
Drilling maize in double rows
DUPLEX SEED
Intelligent maize drilling in double rows DUPLEX SEED
If your AEROSEM is equipped with PCS, you can also sow maize in double rows: With 12.5 cm spacing within the double row, double grain spacing and 75 cm double row spacing. This intelligent configuration has numerous advantages:
Performance increase when sowing a higher driving speed
Maize in twin rows gives the plant perfect growing conditions
Up to 30% more space between each seed - more light - more nutrients - increased photosynthesis
Up to 70% larger area per plant - more water - improved root penetration - less competition between plants
DUPLEX SEED for more cost effectiveness
Reduces the risk of erosion
Better shade on the ground - fast row integration
Up to 5.5% increase in yield with silage maize
Up to 5.5% increase in yield with corn maize
Camera supported seedbed preparation
Camera supported seedbed preparation
Your way to the best working results
Best quality tilth and optimum preparation of the seedbed are key to successful seed germination and growth. The seedbed should ideally be as coarse as possible and as fine as necessary. In practice, it is a challenge to select the right tillage intensity of the soil to match each crop. The main issue is to avoid ponding and crusting on silty soils. That is because cultivating the soil too finely leads to erosion, making it easier for fine soil particles to be washed away. However, eroded soil is valuable capital that the farmer then loses.
Real-time measurement
Perfect seedbed thanks to real-time measurement

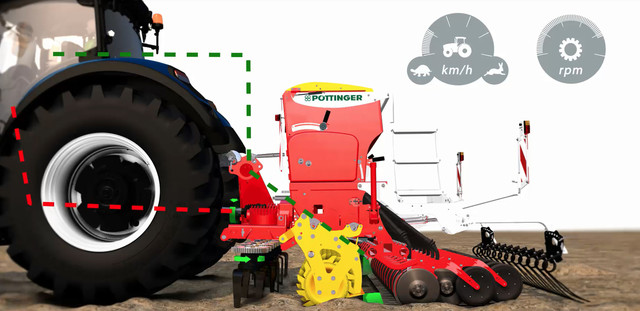

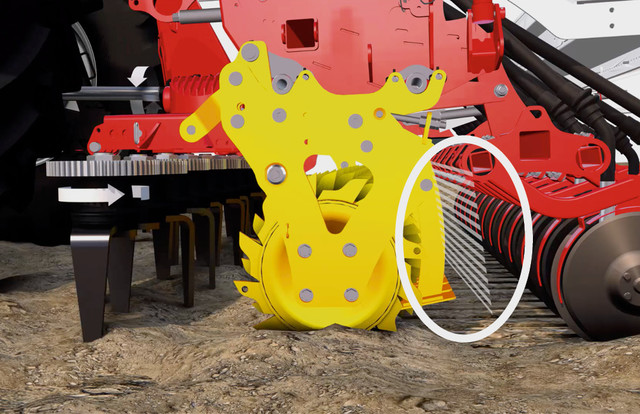

The award-winning camera assisted seedbed preparation development by POTTINGER, focusses precisely on this issue. The aim is to enable consistent seedbed preparation and seed placement depending on the condition of the soil. The system measures in real time the surface roughness of the soil using images from a camera mounted between the power harrow and the seed drill that detects depth differences. The PTO speed and driving speed of the tractor are regulated as a function of the roughness values detected (only in connection with CNH tractors (Class III)). The unit therefore controls the tractor automatically to adapt to changing soil conditions. The working results are an optimised seedbed with uniform tilth across the entire field.
Your advantages with camera supported seedbed preparation
Optimum soil structure - exact depth placement - ideal germination conditions - rapid emergence - stress-resistant plants for plant protection applications
Minimises proportion of fine soil: Erosion reduction
Less driver fatigue: Fully automated work sequence, no visual check of the seedbed necessary any more
Optimisation of diesel consumption: No more manual adjustment of rotor speed and driving speed required
Night work is also possible because the system does not rely on daylight
Possible to create a surface roughness map of the field: Useful for subsequent processes
Profiline
Convenient operation from the tractor seat
Profiline

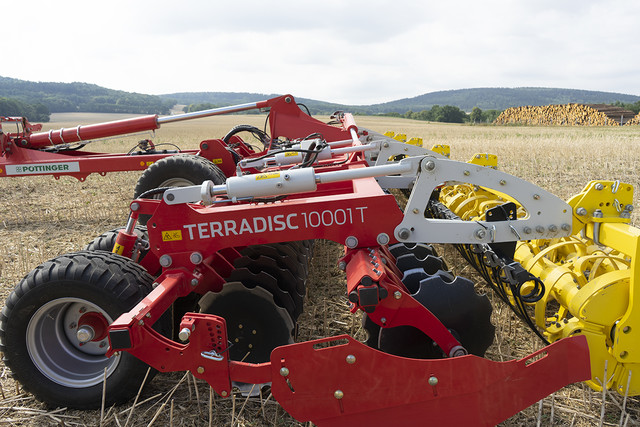

Profit from the equipment options and operate your 8 or 10 metre wide TERRADISC machine without leaving the cab.
The Profiline version machines are set up and controlled using the ISOBUS control system. This is fully hydraulic and can be operated using the EXPERT 75 terminal or the monitor in the tractor. You can control all the settings from the tractor seat.
Operated at the press of a button
Operated at the press of a button
Fold the disc harrow at the press of a button
Hydraulic depth adjustment - varying the working depth from 5 to 15 cm
Pressure adjustment of the frame sections for consistent ground tracking
Pressure adaptation of the shock absorber for smooth operation
Inclination adjustment - no side pull
Adjustment of the working depth when disc diameters decrease
Load sensing system for perfect ground tracking and ensuring a long service life for your tractor's hydraulic components
Headland sequence - lift and lower at the push of a button or using the tractor's control system via a joystick
More advantages thanks to Profiline
All cylinders are equipped with position sensors so that parameters such as pre-tension pressure and exact working depth are displayed on the screen.
A hectare counter and operating hours counter with memory enable exact documentation of each job.
