Twin rotor rakes with side swath delivery with transport chassis

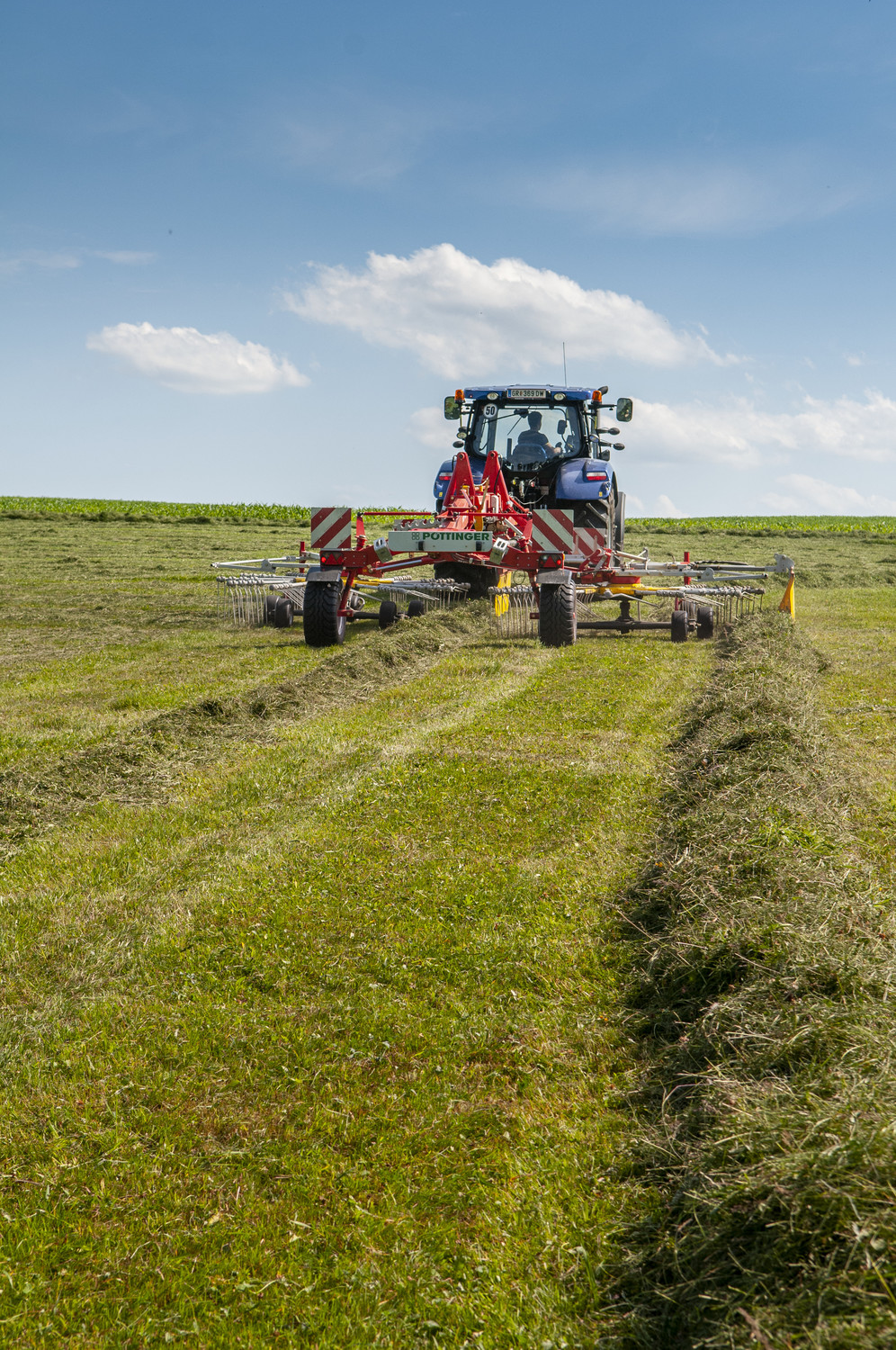

TOP side rakes are your reliable partners in forage harvesting. Depending on the harvesting strategy, the swaths can either be placed separately, or two swaths can be placed together to double the forage volume. Depending on the model, a dual swath function is also available.

TOP side rakes are your reliable partners in forage harvesting. Depending on the harvesting strategy, the swaths can either be placed separately, or two swaths can be placed together to double the forage volume. Depending on the model, a dual swath function is also available.

Customer benefits



Technology

Technology

Technical data

 TOP 652TOP 662TOP VT 6820 STOP VT 7620 S
Working width6,4 m 6,55 m 6,8 m 7,6 m
Swath width1 m1 - 1,8 m0,8 - 1,5 m0,8 - 1,5 m
Rotor diameter-3,07 m3,3 m3,7 m
Tine arms per rotor-12 pcs.13 pcs.13 pcs.
Working width dual-swath function-7,3 m7,6 m8,6 cm
Working width adjustmentFixed width Fixed width Fixed width Fixed width
Rotor diameter front / rear3 / 3,15 ---
Transport width2,95 / m2,55 / 2,9 m2,9 / m2,9 / m
Transport height3,95 m3,99 m3,99 m3,99 m
Transport length7,9 m8,1 m8,7 m9,35 m
Transport length----
Parking height without tine arms removed3,95 m3,99 m3,99 m3,99 m
Parking height with tine arms removed *3,43 m3,99 m3,6 m3,6 m
Tine arms per rotor rear / front12 / 10 ---
Removable tine carrier arms per rotor12 / 10 12 13 13
Tines per tine arm4 pcs.4 pcs.4 pcs.4 pcs.
Rotor unitTOPTECH PLUS TOPTECH PLUS TOPTECH PLUS TOPTECH PLUS
PTO Input Speed540 rpm540 rpm540 rpm540 rpm
Weight2000 kg1990 kg2400 kg2700 kg
Power requirement60 hp60 hp75 hp75 hp
MountingTrailed Trailed Trailed Trailed
Tyres - chassis260/70-15,3 260/70-15,3 340/55-16 340/55-16
Swath placement in direction of travelLeft Right Right Right
Height adjustment systemCrank handle adjuster Crank handle adjuster Crank handle adjuster Crank handle adjuster
AxleTandem axle 3-wheel chassis 5-wheel chassis incl, tandem axles 5-wheel chassis incl, tandem axles
Rotor tyres (standard)16 x 6,5-8 16 x 6,5-8 16 x 6,5-8 16 x 6,5-8
Jockey wheelsMULTITAST jockey wheel Inner jockey wheels on all rotors Inner jockey wheels on all rotors Inner jockey wheels on all rotors
Wide-angle PTO shaft optionalWide-angle PTO shaft on one end Wide-angle PTO shaft on one end Wide-angle PTO shaft on one end Wide-angle PTO shaft on one end
TOP 652
Working width6,4 m
Swath width1 m
Rotor diameter-
Tine arms per rotor-
Working width dual-swath function-
Working width adjustmentFixed width
Rotor diameter front / rear3 / 3,15
Transport width2,95 / m
Transport height3,95 m
Transport length7,9 m
Transport length-
Parking height without tine arms removed3,95 m
Parking height with tine arms removed *3,43 m
Tine arms per rotor rear / front12 / 10
Removable tine carrier arms per rotor12 / 10
Tines per tine arm4 pcs.
Rotor unitTOPTECH PLUS
PTO Input Speed540 rpm
Weight2000 kg
Power requirement60 hp
MountingTrailed
Tyres - chassis260/70-15,3
Swath placement in direction of travelLeft
Height adjustment systemCrank handle adjuster
AxleTandem axle
Rotor tyres (standard)16 x 6,5-8
Jockey wheelsMULTITAST jockey wheel
Wide-angle PTO shaft optionalWide-angle PTO shaft on one end
TOP 662
Working width6,55 m
Swath width1 - 1,8 m
Rotor diameter3,07 m
Tine arms per rotor12 pcs.
Working width dual-swath function7,3 m
Working width adjustmentFixed width
Rotor diameter front / rear-
Transport width2,55 / 2,9 m
Transport height3,99 m
Transport length8,1 m
Transport length-
Parking height without tine arms removed3,99 m
Parking height with tine arms removed *3,99 m
Tine arms per rotor rear / front-
Removable tine carrier arms per rotor12
Tines per tine arm4 pcs.
Rotor unitTOPTECH PLUS
PTO Input Speed540 rpm
Weight1990 kg
Power requirement60 hp
MountingTrailed
Tyres - chassis260/70-15,3
Swath placement in direction of travelRight
Height adjustment systemCrank handle adjuster
Axle3-wheel chassis
Rotor tyres (standard)16 x 6,5-8
Jockey wheelsInner jockey wheels on all rotors
Wide-angle PTO shaft optionalWide-angle PTO shaft on one end
TOP VT 6820 S
Working width6,8 m
Swath width0,8 - 1,5 m
Rotor diameter3,3 m
Tine arms per rotor13 pcs.
Working width dual-swath function7,6 m
Working width adjustmentFixed width
Rotor diameter front / rear-
Transport width2,9 / m
Transport height3,99 m
Transport length8,7 m
Transport length-
Parking height without tine arms removed3,99 m
Parking height with tine arms removed *3,6 m
Tine arms per rotor rear / front-
Removable tine carrier arms per rotor13
Tines per tine arm4 pcs.
Rotor unitTOPTECH PLUS
PTO Input Speed540 rpm
Weight2400 kg
Power requirement75 hp
MountingTrailed
Tyres - chassis340/55-16
Swath placement in direction of travelRight
Height adjustment systemCrank handle adjuster
Axle5-wheel chassis incl, tandem axles
Rotor tyres (standard)16 x 6,5-8
Jockey wheelsInner jockey wheels on all rotors
Wide-angle PTO shaft optionalWide-angle PTO shaft on one end
TOP VT 7620 S
Working width7,6 m
Swath width0,8 - 1,5 m
Rotor diameter3,7 m
Tine arms per rotor13 pcs.
Working width dual-swath function8,6 cm
Working width adjustmentFixed width
Rotor diameter front / rear-
Transport width2,9 / m
Transport height3,99 m
Transport length9,35 m
Transport length-
Parking height without tine arms removed3,99 m
Parking height with tine arms removed *3,6 m
Tine arms per rotor rear / front-
Removable tine carrier arms per rotor13
Tines per tine arm4 pcs.
Rotor unitTOPTECH PLUS
PTO Input Speed540 rpm
Weight2700 kg
Power requirement75 hp
MountingTrailed
Tyres - chassis340/55-16
Swath placement in direction of travelRight
Height adjustment systemCrank handle adjuster
Axle5-wheel chassis incl, tandem axles
Rotor tyres (standard)16 x 6,5-8
Jockey wheelsInner jockey wheels on all rotors
Wide-angle PTO shaft optionalWide-angle PTO shaft on one end
