The best soil

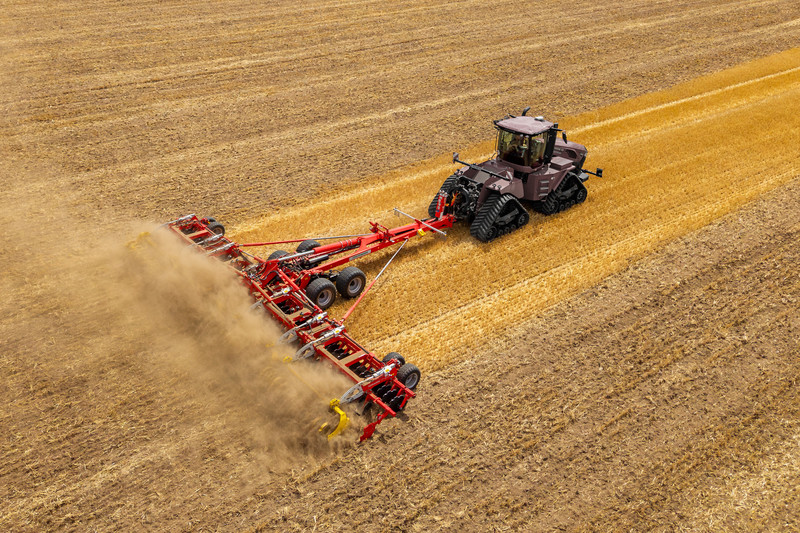

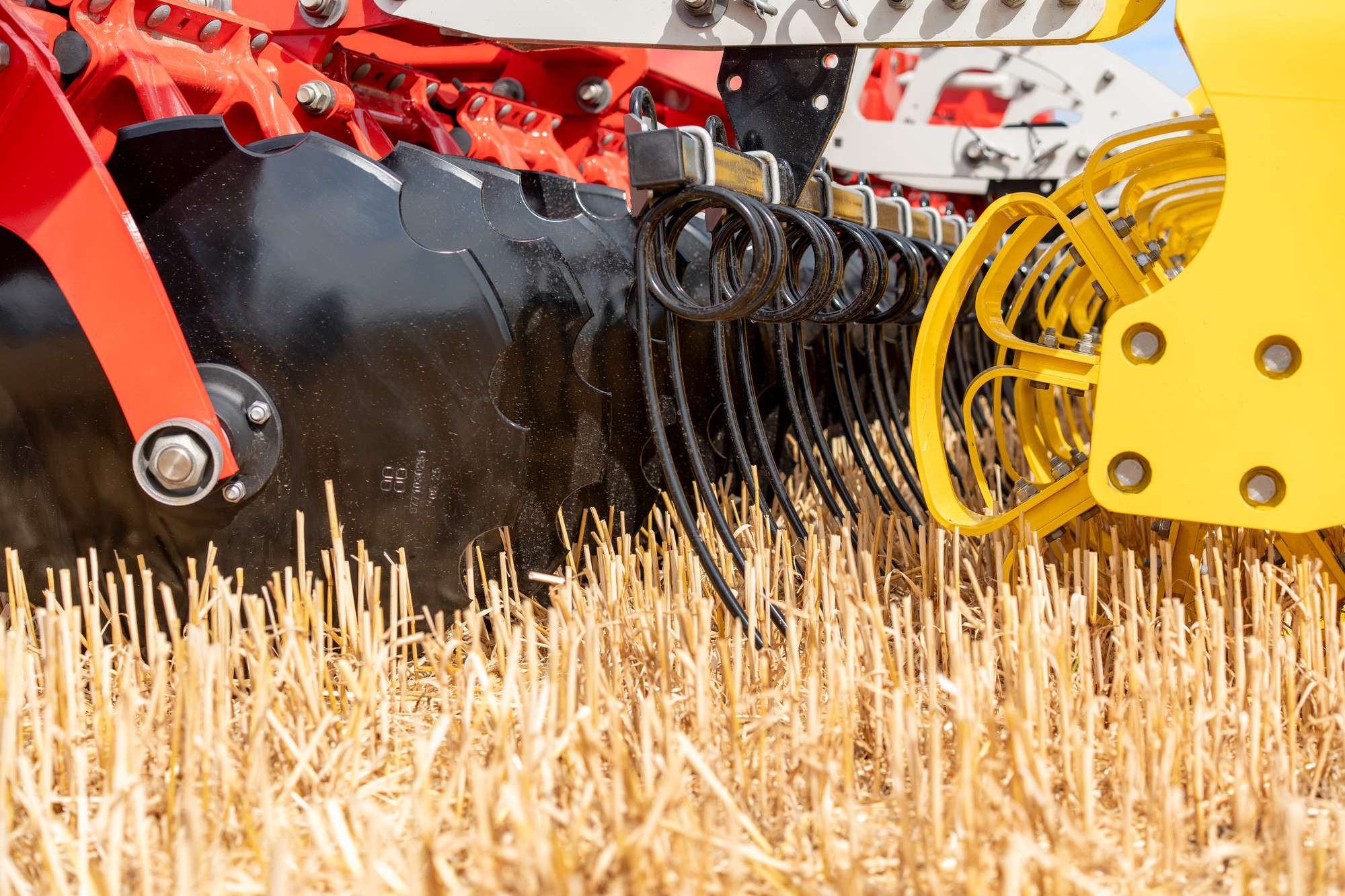

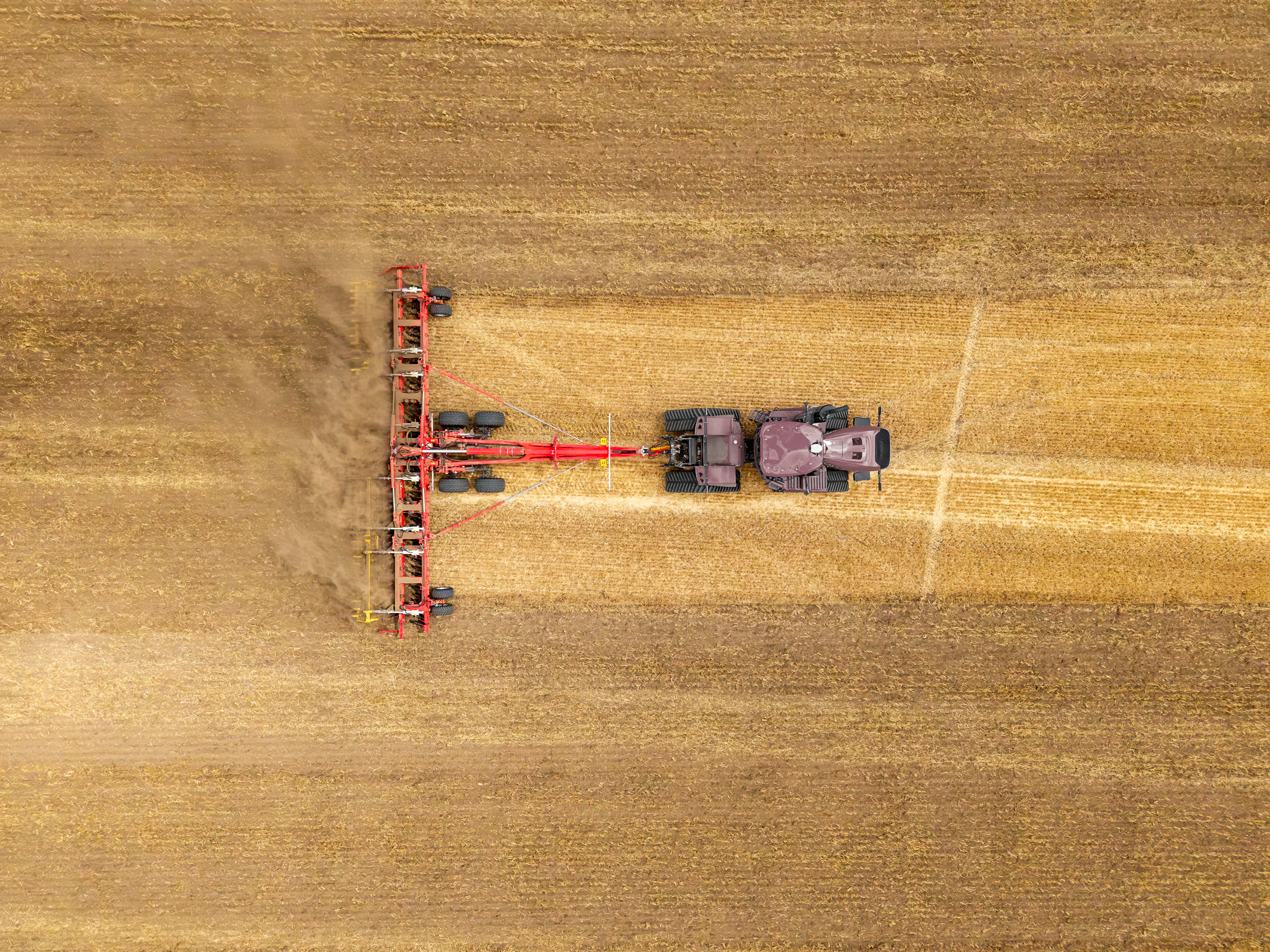

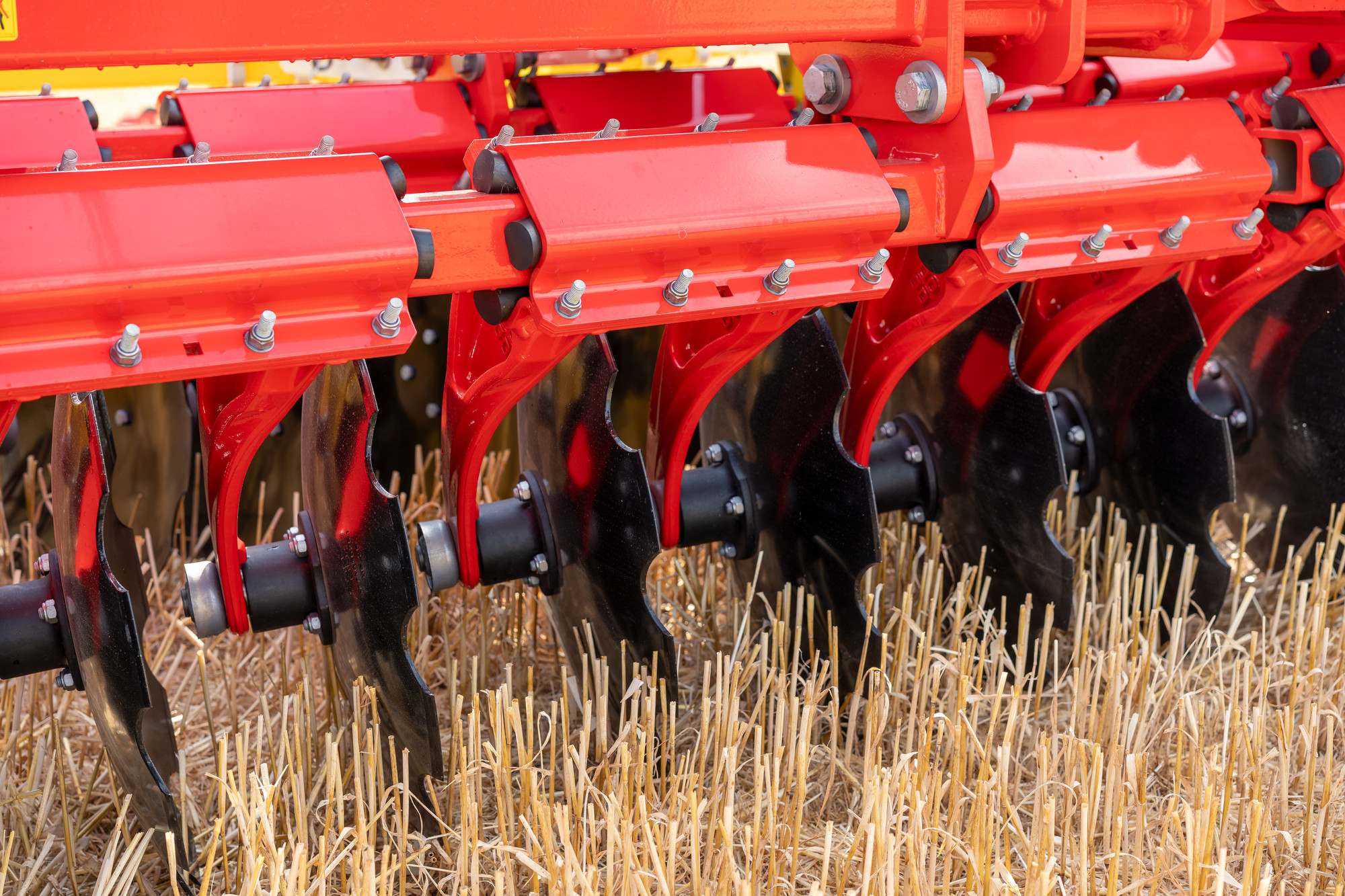

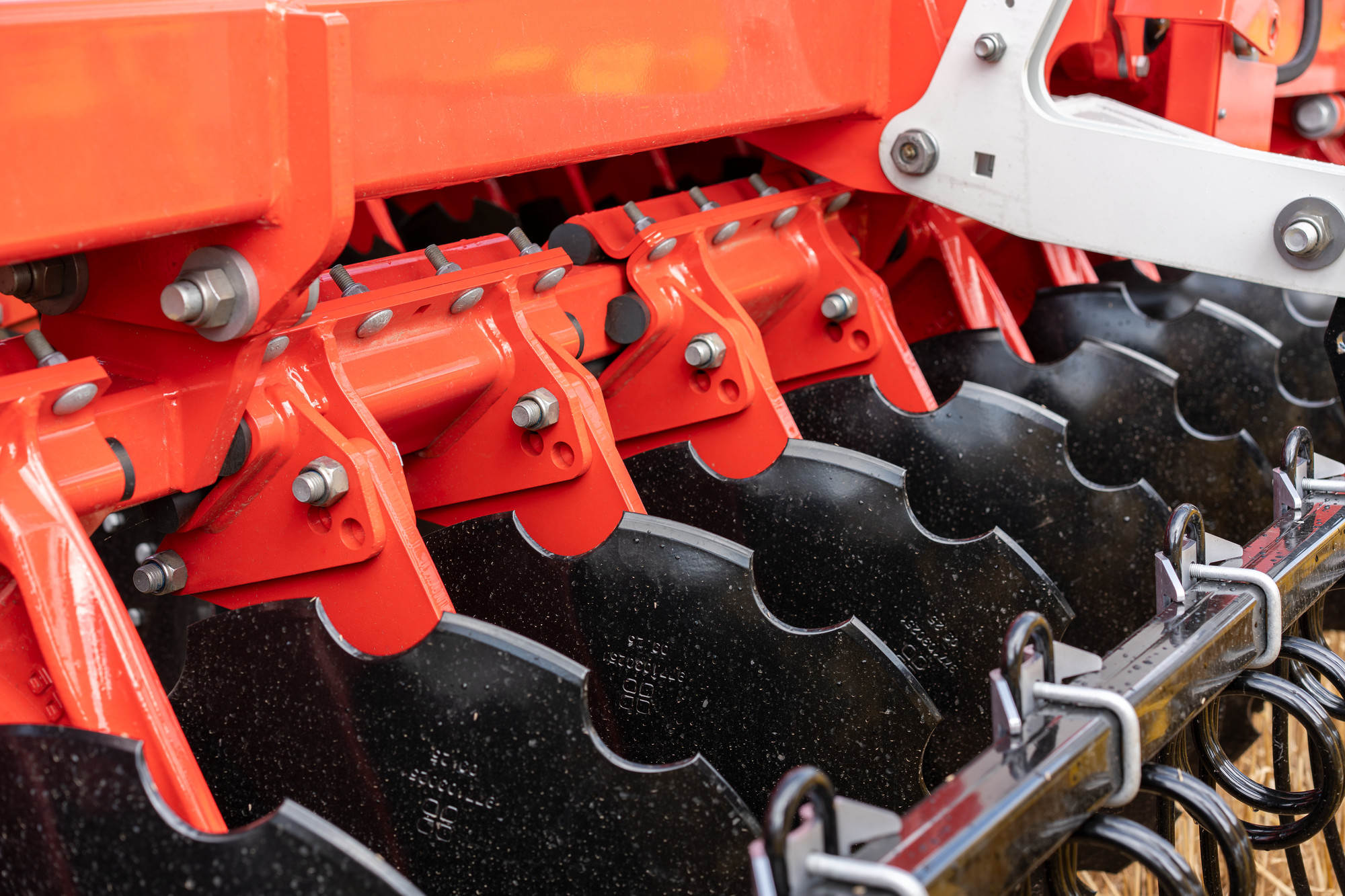

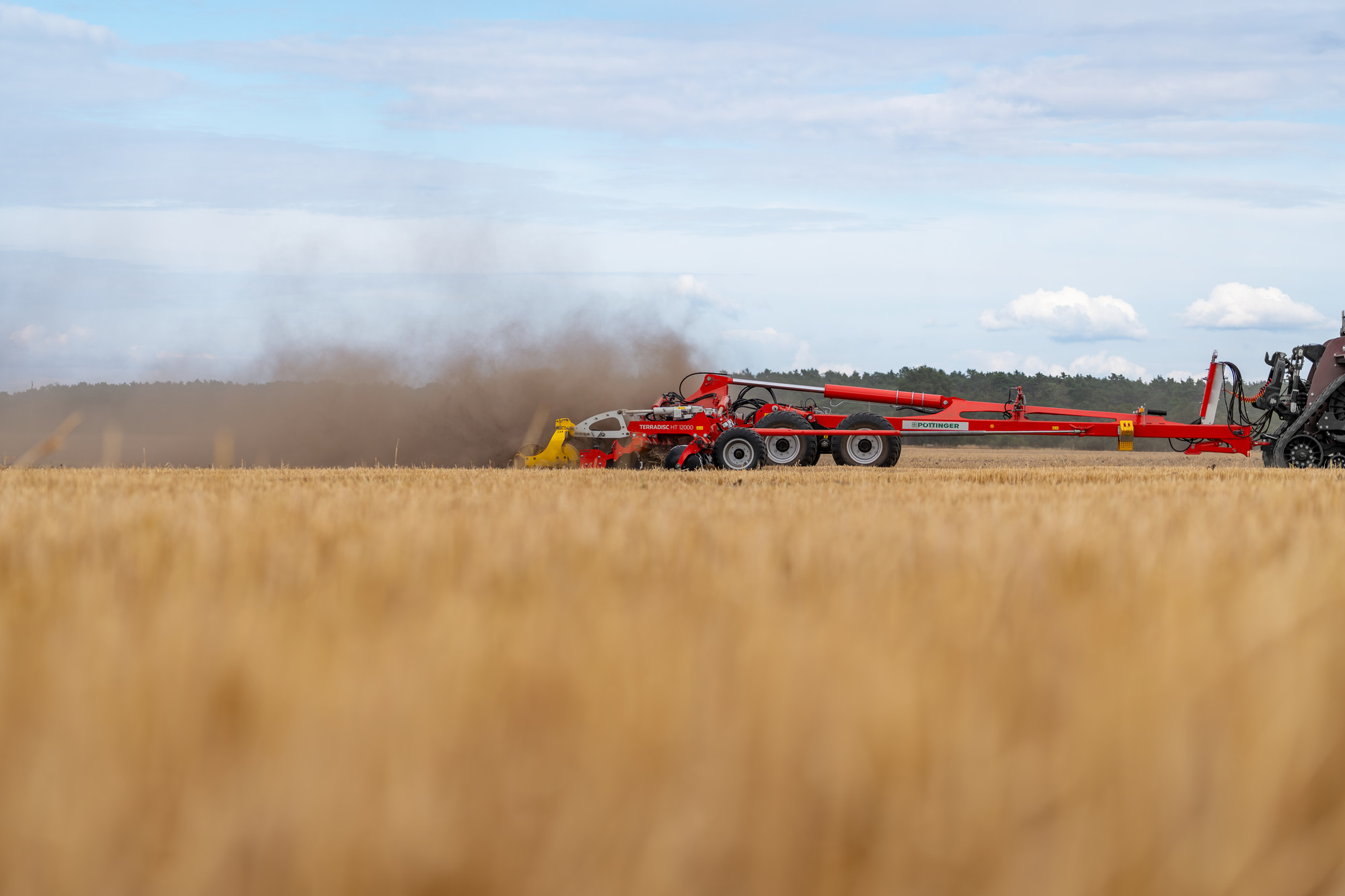

The TERRADISC compact disc harrows have been developed primarily for stubble cultivation and seedbed preparation to a depth of between 5 and 15 cm. The compact design and aggressive angle of the 580 mm discs ensure reliable soil entry and intensive incorporation of harvest residues. The trailed, horizontally folding TERRADISC T and TERRADISC HT compact disc harrows impress with working widths of up to 12.5 m and operating speeds of up to 18 kph for maximum output.
The TERRADISC compact disc harrows have been developed primarily for stubble cultivation and seedbed preparation to a depth of between 5 and 15 cm. The compact design and aggressive angle of the 580 mm discs ensure reliable soil entry and intensive incorporation of harvest residues. The trailed, horizontally folding TERRADISC T and TERRADISC HT compact disc harrows impress with working widths of up to 12.5 m and operating speeds of up to 18 kph for maximum output.
Customer benefits
Technology
Technical data
| TERRADISC 8001 T | TERRADISC 10001 T | ||||
|---|---|---|---|---|---|
| Working width | 26'2.96'' (8 m) | 32'9.7'' (10 m) | |||
| Disc diameter | 1'10.83'' (58 cm) | 1'10.83'' (58 cm) | |||
| Under frame clearance | 2'5.53'' (75 cm) | 2'5.53'' (75 cm) | |||
| Power requirement | 270 hp | 350 hp | |||
| Number of discs | 64 pcs. | 80 pcs. | |||
| Spacing | 4.92'' (12,5 cm) | 4.92'' (12,5 cm) | |||
| Gang spacing | 2'11.43'' (90 cm) | 2'11.43'' (90 cm) | |||
| Transport width | 9'10.11'' (3 m) | 9'10.11'' (3 m) | |||
| Weight of basic version | 17857 lbs (8100 kg) | 22046 lbs (10000 kg) | |||
| Weight cage roller Ø 660 mm | 2866 lbs (1300 kg) | 3307 lbs (1500 kg) | |||
| Weight pack ring roller Ø 550 mm | 3924 lbs (1780 kg) | 4652 lbs (2110 kg) | |||
| Weight rubber packer roller Ø 590 mm | 3307 lbs (1500 kg) | 3968 lbs (1800 kg) | |||
| Weight tandem CONOROLL Ø 560 mm | 4542 lbs (2060 kg) | 5401 lbs (2450 kg) | |||
| Weight tandem U-profile roller 600 mm Ø | 4453 lbs (2020 kg) | 5159 lbs (2340 kg) |
TERRADISC 8001 T
| Working width | 26'2.96'' (8 m) |
| Disc diameter | 1'10.83'' (58 cm) |
| Under frame clearance | 2'5.53'' (75 cm) |
| Power requirement | 270 hp |
| Number of discs | 64 pcs. |
| Spacing | 4.92'' (12,5 cm) |
| Gang spacing | 2'11.43'' (90 cm) |
| Transport width | 9'10.11'' (3 m) |
| Weight of basic version | 17857 lbs (8100 kg) |
| Weight cage roller Ø 660 mm | 2866 lbs (1300 kg) |
| Weight pack ring roller Ø 550 mm | 3924 lbs (1780 kg) |
| Weight rubber packer roller Ø 590 mm | 3307 lbs (1500 kg) |
| Weight tandem CONOROLL Ø 560 mm | 4542 lbs (2060 kg) |
| Weight tandem U-profile roller 600 mm Ø | 4453 lbs (2020 kg) |

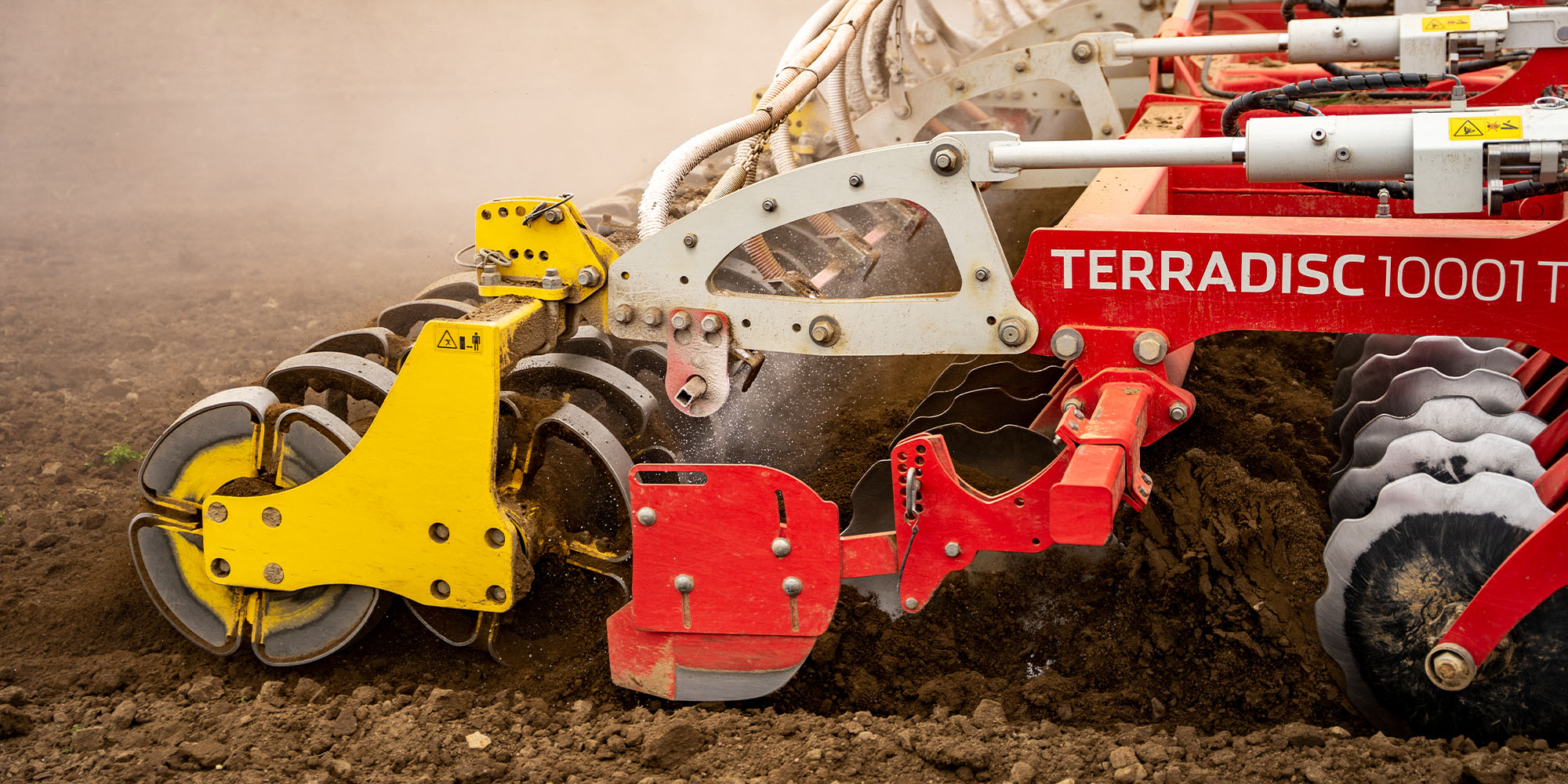

TERRADISC 10001 T
| Working width | 32'9.7'' (10 m) |
| Disc diameter | 1'10.83'' (58 cm) |
| Under frame clearance | 2'5.53'' (75 cm) |
| Power requirement | 350 hp |
| Number of discs | 80 pcs. |
| Spacing | 4.92'' (12,5 cm) |
| Gang spacing | 2'11.43'' (90 cm) |
| Transport width | 9'10.11'' (3 m) |
| Weight of basic version | 22046 lbs (10000 kg) |
| Weight cage roller Ø 660 mm | 3307 lbs (1500 kg) |
| Weight pack ring roller Ø 550 mm | 4652 lbs (2110 kg) |
| Weight rubber packer roller Ø 590 mm | 3968 lbs (1800 kg) |
| Weight tandem CONOROLL Ø 560 mm | 5401 lbs (2450 kg) |
| Weight tandem U-profile roller 600 mm Ø | 5159 lbs (2340 kg) |

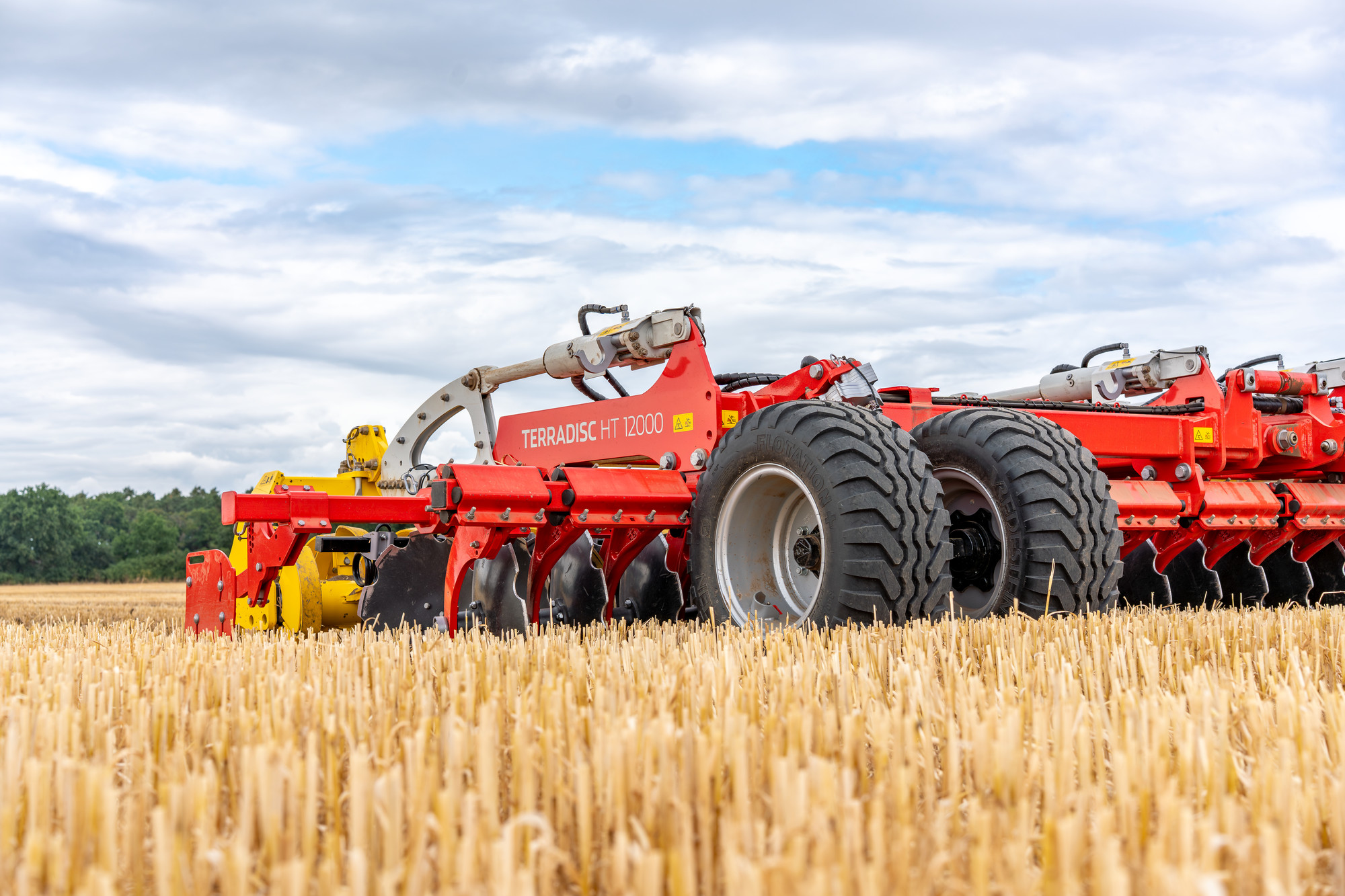

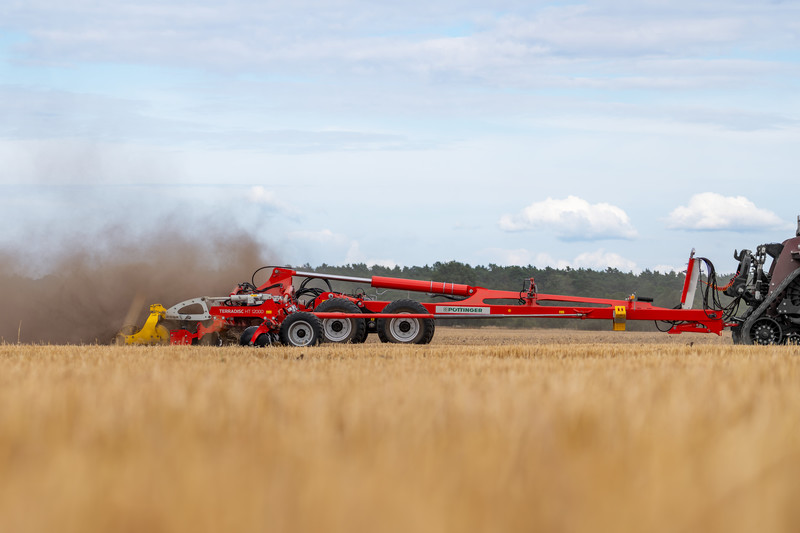

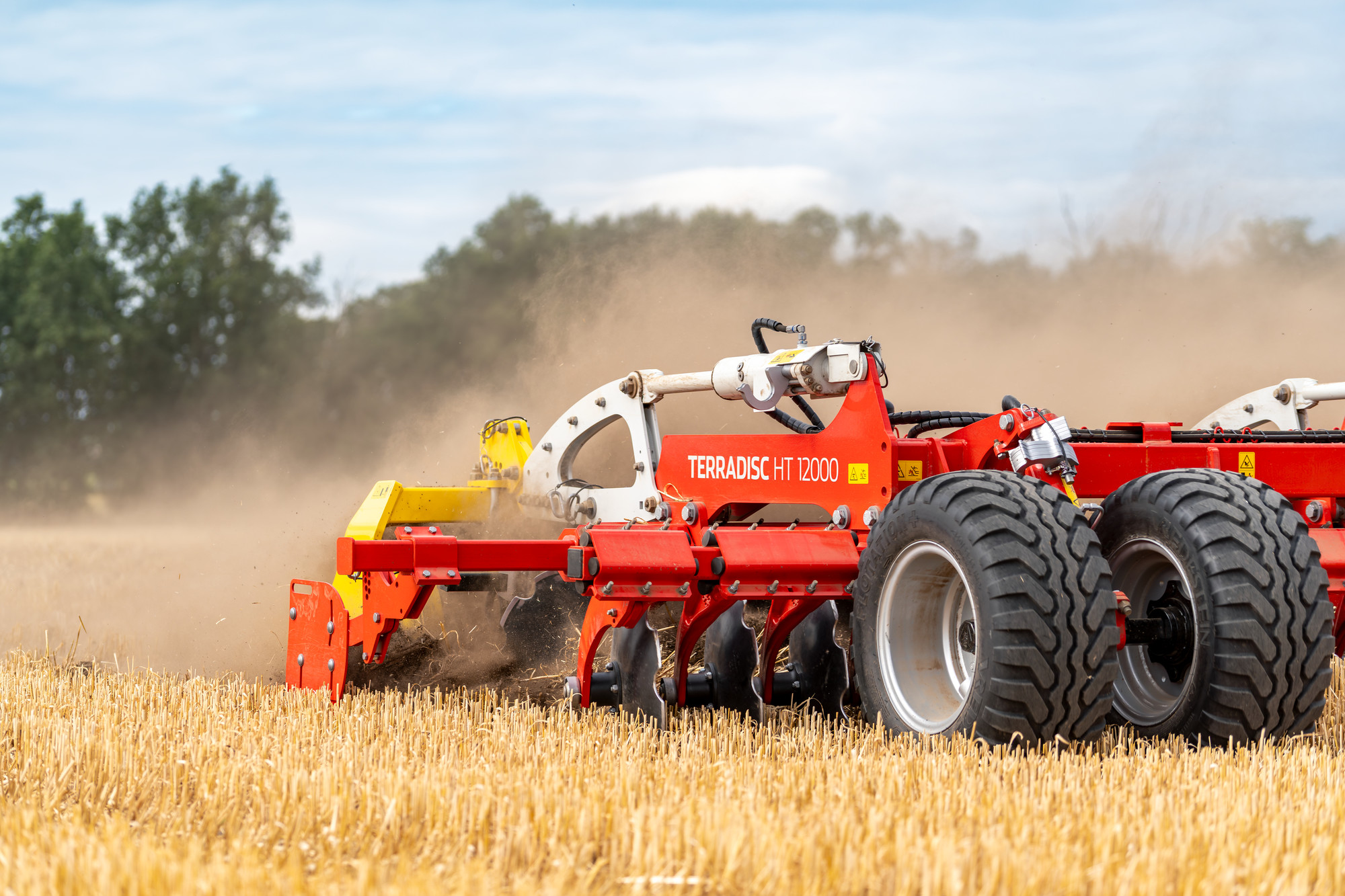

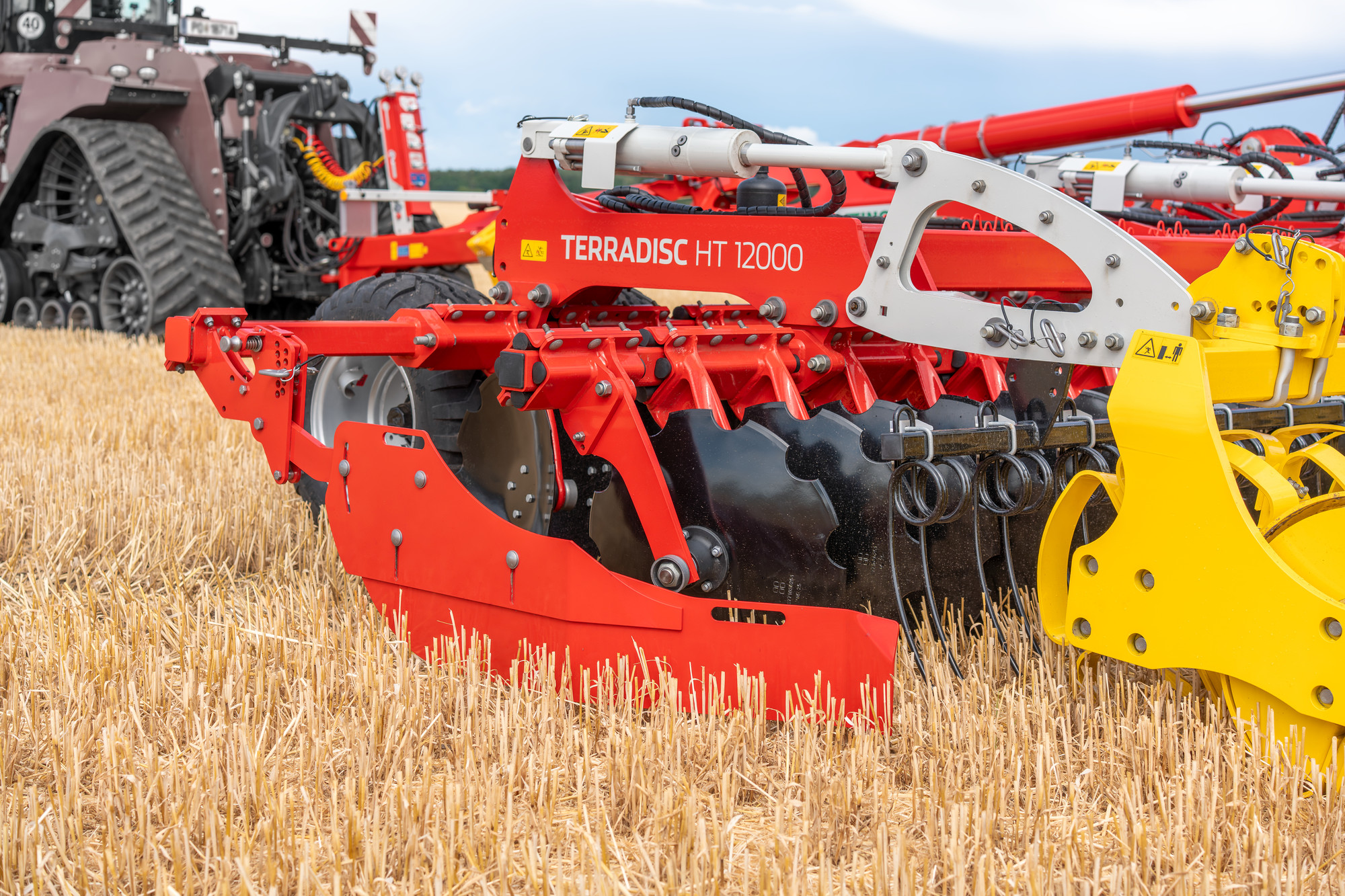

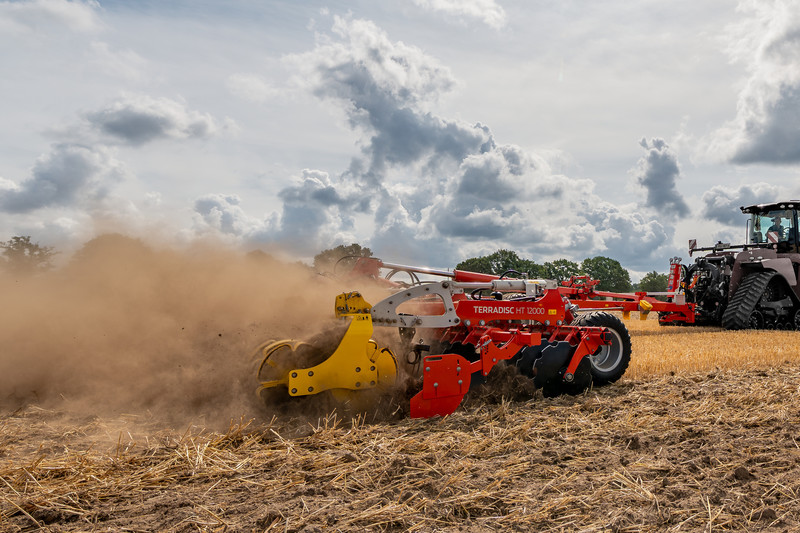

TERRADISC HT 12000 | |||||
|---|---|---|---|---|---|
| Working width | 41'0.12'' (12,5 m) | ||||
| Disc diameter | 1'10.83'' (58 cm) | ||||
| Under frame clearance | 2'5.53'' (75 cm) | ||||
| Power requirement | 450 hp | ||||
| Number of discs | 100 pcs. | ||||
| Spacing | 4.92'' (12,5 cm) | ||||
| Gang spacing | 2'11.43'' (90 cm) | ||||
| Transport width | 9'10.11'' (3 m) | ||||
| Weight of basic version | 24251 lbs (11000 kg) | ||||
| Weight cage roller Ø 660 mm | 3748 lbs (1700 kg) | ||||
| Weight pack ring roller Ø 550 mm | 5247 lbs (2380 kg) | ||||
| Weight rubber packer roller Ø 590 mm | 4938 lbs (2240 kg) | ||||
| Weight tandem CONOROLL Ø 560 mm | 6041 lbs (2740 kg) | ||||
| Weight tandem U-profile roller 600 mm Ø | 6041 lbs (2740 kg) |
TERRADISC HT 12000
| Working width | 41'0.12'' (12,5 m) |
| Disc diameter | 1'10.83'' (58 cm) |
| Under frame clearance | 2'5.53'' (75 cm) |
| Power requirement | 450 hp |
| Number of discs | 100 pcs. |
| Spacing | 4.92'' (12,5 cm) |
| Gang spacing | 2'11.43'' (90 cm) |
| Transport width | 9'10.11'' (3 m) |
| Weight of basic version | 24251 lbs (11000 kg) |
| Weight cage roller Ø 660 mm | 3748 lbs (1700 kg) |
| Weight pack ring roller Ø 550 mm | 5247 lbs (2380 kg) |
| Weight rubber packer roller Ø 590 mm | 4938 lbs (2240 kg) |
| Weight tandem CONOROLL Ø 560 mm | 6041 lbs (2740 kg) |
| Weight tandem U-profile roller 600 mm Ø | 6041 lbs (2740 kg) |
