Perfect soil penetration
Customer benefits
Technology
Technical data
| TERRADISC 8001 T | TERRADISC 10001 T | ||||
|---|---|---|---|---|---|
| Working width | 8 m | 10 m | |||
| Number of discs | 64 pcs. | 80 pcs. | |||
| Disc diameter | 58 cm | 58 cm | |||
| Spacing | 12,5 cm | 12,5 cm | |||
| Gang spacing | 90 cm | 90 cm | |||
| Under frame clearance | 75 cm | 75 cm | |||
| Power requirement | 270 hp | 350 hp | |||

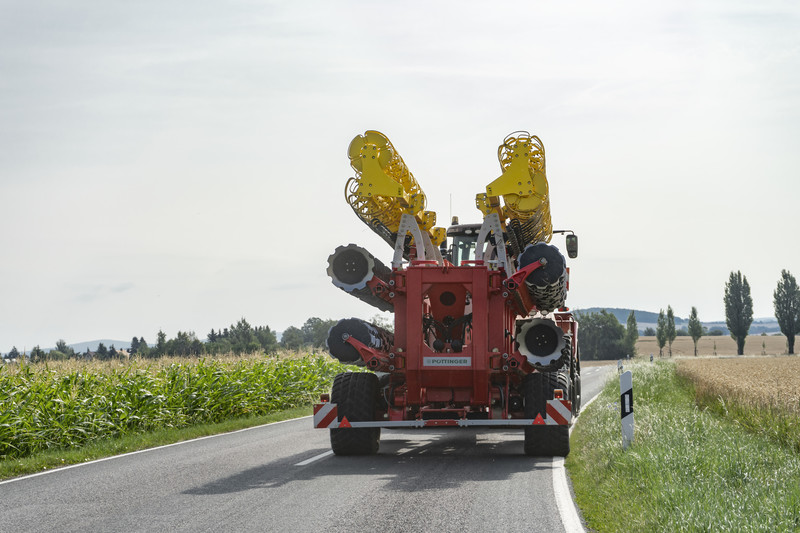

| Transport width | 3 m | 3 m | |||
| Weight of basic version | 8100 kg | 10000 kg | |||
| Weight cage roller Ø 660 mm | 1300 kg | 1500 kg | |||
| Weight pack ring roller Ø 550 mm | 1780 kg | 2110 kg | |||
| Weight rubber packer roller Ø 590 mm | 1500 kg | 1800 kg | |||
| Weight Tandem CONOROLL Ø 560 mm | 2060 kg | 2450 kg | |||
| Weight tandem U-profile roller 600 mm Ø | 2020 kg | 2340 kg |

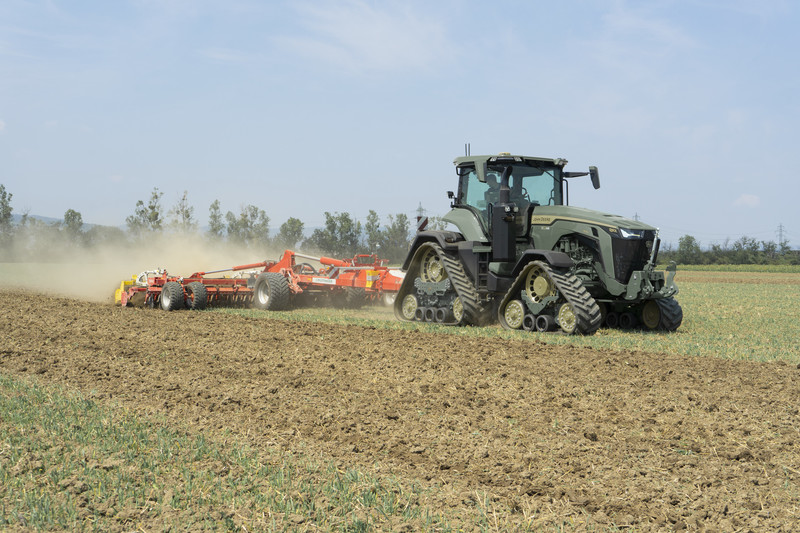

TERRADISC 8001 T
| Working width | 8 m |
| Number of discs | 64 pcs. |
| Disc diameter | 58 cm |
| Spacing | 12,5 cm |
| Gang spacing | 90 cm |
| Under frame clearance | 75 cm |
| Power requirement | 270 hp |
| Transport width | 3 m |
| Weight of basic version | 8100 kg |
| Weight cage roller Ø 660 mm | 1300 kg |
| Weight pack ring roller Ø 550 mm | 1780 kg |
| Weight rubber packer roller Ø 590 mm | 1500 kg |
| Weight Tandem CONOROLL Ø 560 mm | 2060 kg |
| Weight tandem U-profile roller 600 mm Ø | 2020 kg |

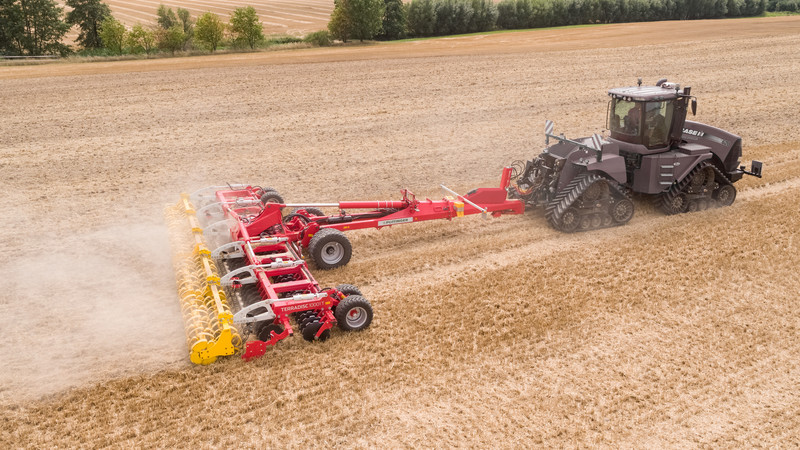

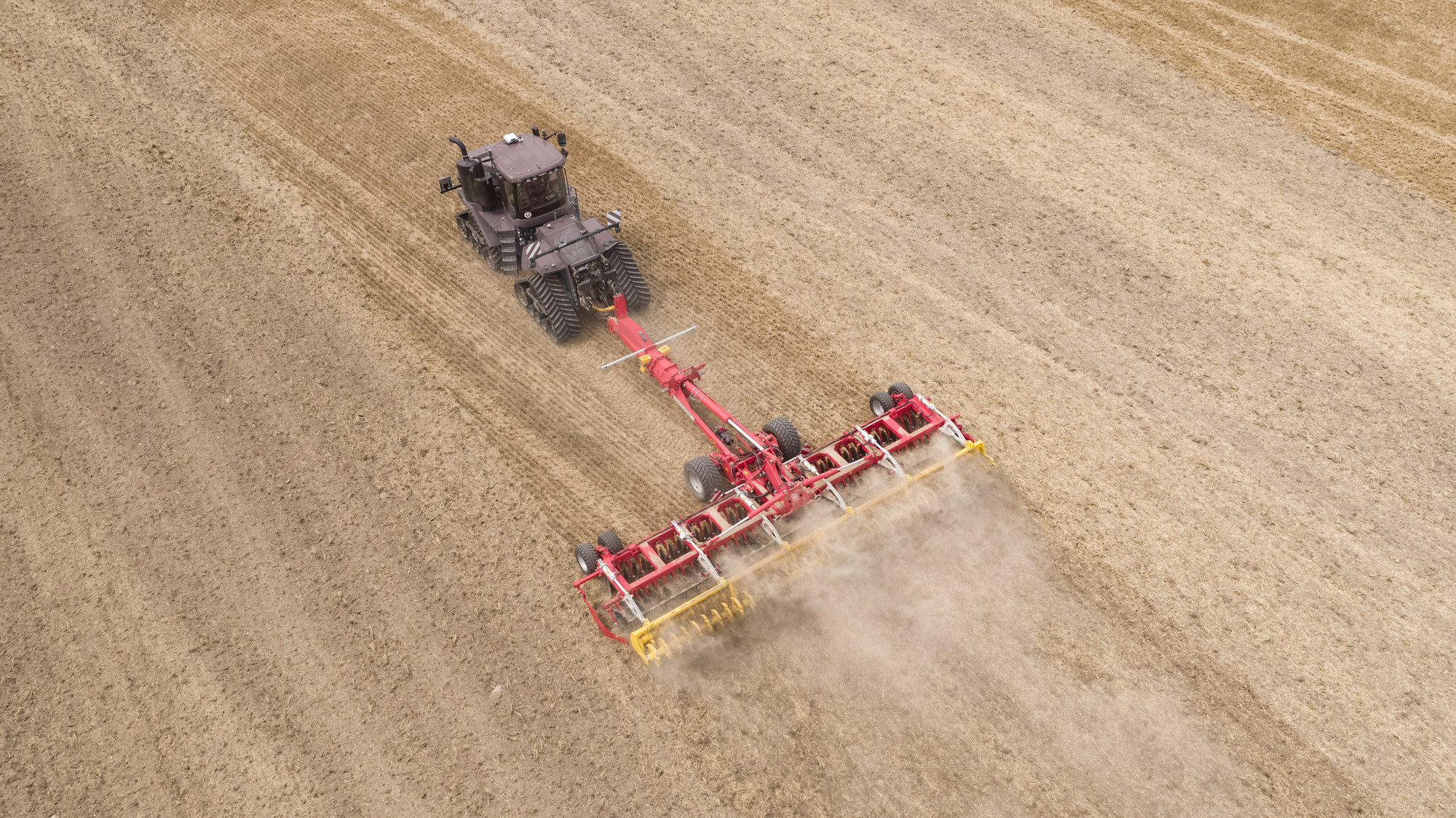

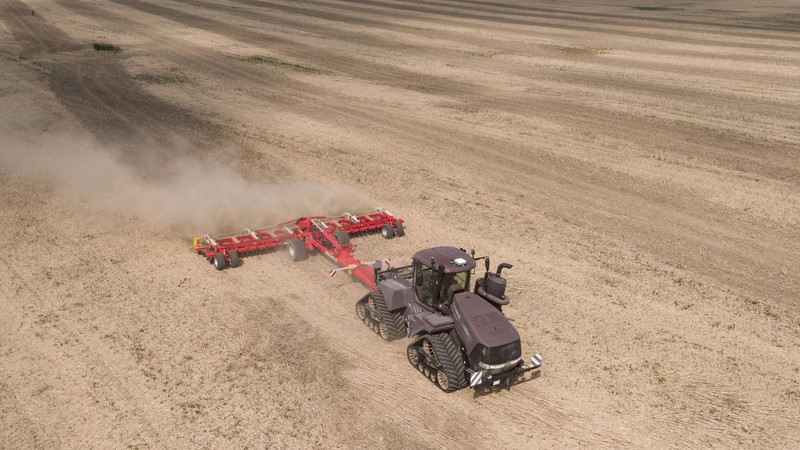

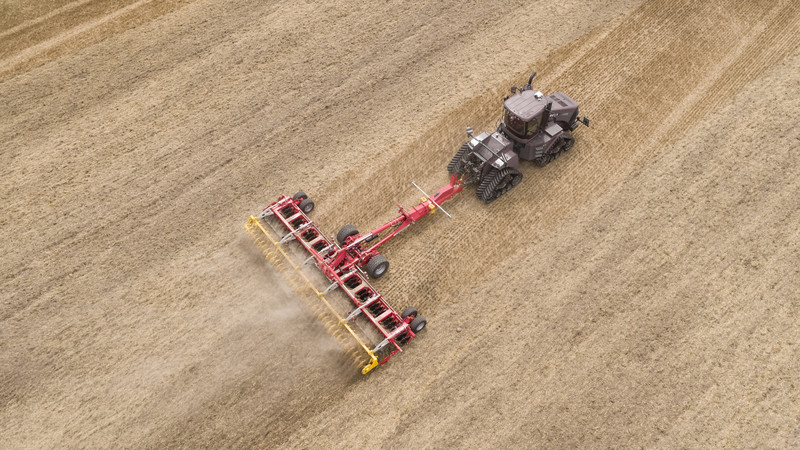

TERRADISC 10001 T
| Working width | 10 m |
| Number of discs | 80 pcs. |
| Disc diameter | 58 cm |
| Spacing | 12,5 cm |
| Gang spacing | 90 cm |
| Under frame clearance | 75 cm |
| Power requirement | 350 hp |
| Transport width | 3 m |
| Weight of basic version | 10000 kg |
| Weight cage roller Ø 660 mm | 1500 kg |
| Weight pack ring roller Ø 550 mm | 2110 kg |
| Weight rubber packer roller Ø 590 mm | 1800 kg |
| Weight Tandem CONOROLL Ø 560 mm | 2450 kg |
| Weight tandem U-profile roller 600 mm Ø | 2340 kg |
MyPÖTTINGER
- Get valuable information and tips on all PÖTTINGER machines
- Specific information on your PÖTTINGER machines in "My Machines".
- Instruction manuals, spare parts lists, maintenance information, as well as all technical details available online
- Machine-specific documentation for all PÖTTINGER machines built from 1997 onwards available online
www.mypoettinger.com
Videos
TERRADISC disc harrows - TWIN ARM, tough and reliable

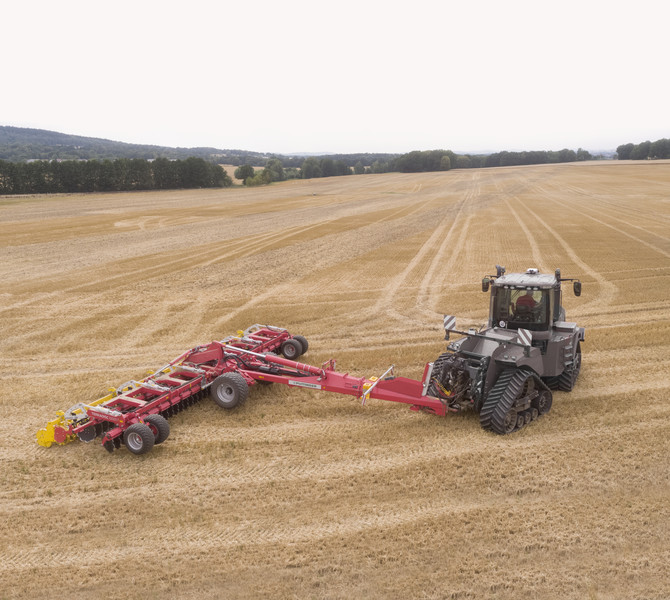

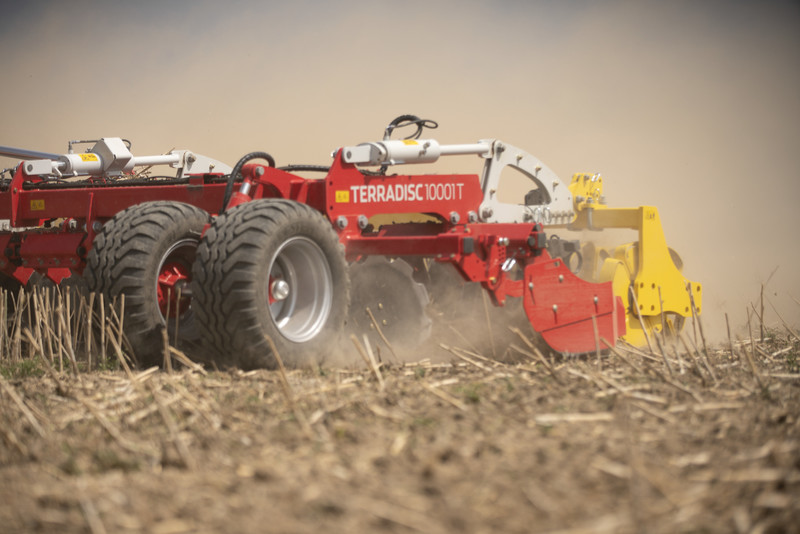

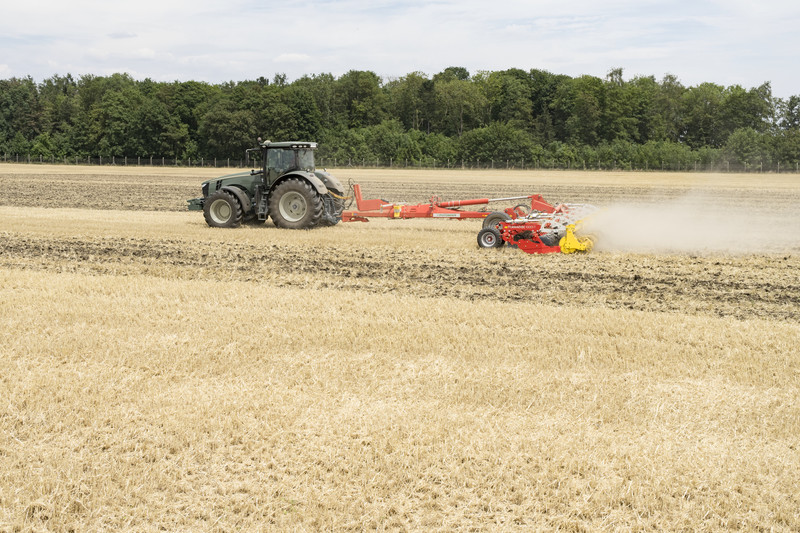

PÖTTINGER TERRADISC 10001 T
Brochures
Image gallery
Quality
We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.
