The LION C folding models enable perfect attachment to the tractor with movable lower linkage arm
- Compact design, folding frames are mounted directly on rotor beam
- The power harrow can be parked in an upright position to save the maximum amount of space
- Optional temperature monitoring and hydraulic depth adjustment (in combination with PÖTTINGER AEROSEM F front hopper models) allows for increased reliability and convenience.
The LION C folding models enable perfect attachment to the tractor with movable lower linkage arm
- Compact design, folding frames are mounted directly on rotor beam
- The power harrow can be parked in an upright position to save the maximum amount of space
- Optional temperature monitoring and hydraulic depth adjustment (in combination with PÖTTINGER AEROSEM F front hopper models) allows for increased reliability and convenience.
Customer benefits

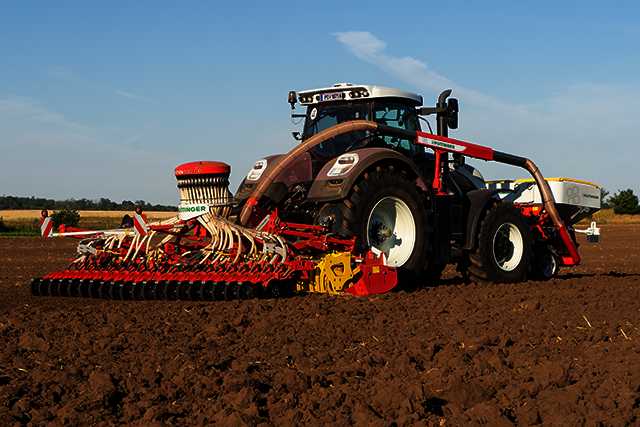

Maximum flexibility
Maximum flexibility
Versatility
The LION 103 C Series in combination with the new AEROSEM FDD offers the highest level of versatility.
The coupling system for attaching the coulter rail to the power harrow features a simple catch hook solution with lock pin that allows the system to be fitted in a few minutes. This extends the range of applications considerably, since attachment and removal is easier and quicker than on all comparable machines.
All adjustments such as working depth of the tines and the levelling board are easy to operate from the side of the machine. This means the machine can be adapted to work in different soil conditions within a few minutes.
Flexibility for all conditions
PÖTTINGER offers you tailor-made systems for every type of soil and every size of operation. Setting up for different soil conditions must be quick and straightforward. The LION power harrow is the right choice for you.
High performance combined with flexibility
The LION 103 C convinces both in solo and combined use. In combination with the AEROSEM FDD, the short design of the machine becomes even more important. Thanks to the quick attachment and removal of the coulter rail, the LION is ready to be used on its own in no time at all.
Compact design
Shorter, stronger and more compact: the new LION development objectives were clearly defined. All these characteristics were incorporated by engineering an integrated folding frame.
To make work easier for you
To make work easier for you
Integrated folding frame
The rotor beam mounting on the LION 103 C series has been completely revised. The folding frame integrated into the rotor beam results in a 35 cm shorter design compared to the models in the previous series and its nearest competitors. This makes it possible to move the weight of the machine and its rear roller closer to the rear axle of the tractor. Positioning the centre of gravity closer to the tractor means better front axle loading.
At the same time we have increased the gap between the bearings on the rotor beam hinge points to improve the durability of the robust folding frame.
Working depth adjustment
The working depth is set for each frame section using swing clips and without the need for tools. Adjustment is easy and is accessible from the side of each folding section. The correct position is achieved by moving an integrated push rod with a scale that is easy to read.
Adjusting the levelling board
The 8-hole matrix and ratchet wrench supplied are used to fine-tune the position of the levelling board. This means that when the working depth of the power harrow is changed the levelling board is adjusted automatically as well.
Integrated folding cylinder
Thanks to the integrated folding cylinders being located under the headstock, the LION 103 models offer an unrestricted view of the entire machine. In the working position the cylinders are completely retracted and therefore protected from dust and dirt.
Parking position
The machine can be parked in the unfolded position without additional supports because there are no central tines.
It is also possible to park the machine when folded. In combination with a seed drill it is recommended the machine is parked in the unfolded position (simply detach the coulter arms).
The best working results
The best working results
The heart of the machine - the rotor gearbox unit
An extended service life is only possible thanks to precision machining and strong connections. At PÖTTINGER this level of high quality goes without saying.
Thick-walled gear sump made of fine-grained steel allows smooth running and a resistant to twisting
Large gears directly above the bearings for a secure seat on the rotor shaft
Bearing housing welded to the central brace and bottom of trough. An exact spacing between each rotor is guaranteed as a result.
Tapered roller bearings with robust, single-piece bearing housing
Integrated tine carriers
The tines on the LION power harrow guarantee effective cultivation for intensive loosening and uniform tilth.
15 mm thick tempered tines attached centrally by just two bolts; this allows for ease of maintenance
Bolts and lynch pin are protected from soil and from working loose
The lower bearings are located as close as possible to the tine carrier.
The upper and lower bearings are spaced as far apart as possible to reduce load and minimise stress
Stones cannot become trapped
Harvest residues do not wrap around the tines
Perfect interaction between tines and levelling board
The rear levelling board is standard and is set automatically with the depth of the rear roller; no readjustment is necessary.
Maximum strength
The high strength gear trough provides the gearbox with excellent stability.
Durability thanks to:
Large dimension gears
50 mm diameter rotor shafts
Robust tapered roller bearings and wide bearing spacing
Precision in every detail
The bearing housings are welded into the box section with the central brace before being machined on the CNC machining centre.
This sequence ensures exact axle spacing between each rotor: This is the guarantee for extremely smooth running and a long service life.
DURASTAR tines: coated and proven in the field
Up to 60 % longer service life thanks to special coating
15-mm and 18-mm-thick reversible tines
Excellent retention of shape
Consistent work quality
The best working results
Each section of the machine can adapt optimally to the ground contours thanks to vertical travel of up to 20 cm. A pressure accumulator system ensures the correct ground pressure, which is distributed evenly over the entire width of the machine. Optimum seedbed preparation is ensured even in the most difficult conditions.
More reliability in the field
More reliability in the field
Kit you can rely on
LION power harrows guarantee extremely smooth operation and high strength. These machines operate reliably even in the hardest endurance conditions and heaviest soils.
Proven technology
The tapered roller bearings in PÖTTINGER power harrows have been proving their strength and reliability for more than 25 years. Nowadays this technology is widely used in every type of vehicle: trucks, cars and in the construction industry.
Generously dimensioned central gearbox
The PTO input speed from the tractor goes out to the two external gearboxes without changing the transmission ratio. This ensures that the power transmitted to the external gearboxes arrives without loss of torque. Reliability is enhanced as a result.
Reliable operation in all conditions
Reduction to a rotor speed of 342 rpm does not take place until the external gearbox.
Protected by a cam-type clutch, the LION 103 C series delivers impressive reliability and is approved for all PTO shaft speeds.
Road transport
With a transport width of just 2.55 metres, enhanced safety is also provided on the road. This is done by selecting the transport setting on the working depth indicator scale.
Reinforced track eradicator tines
Equipped with overload protection of up to 180 kg and tungsten carbide points, the new track eradicator tines deliver the best working results.
Up to three track eradicators per tractor track are available as an option. These can be shifted into position along the tube profile and the working depth easily adjusted by means of lock pins.
For tractors up to 320 hp
For tractors up to 320 hp
A new performance class
With the new folding LION 103 C series PÖTTINGER extends its power harrow range up to 320 hp.
Technical and practical requirements
The top priority in seedbed preparation is the creation of optimum germination and growth conditions to ensure rapid and uniform plant emergence. The LION 103 C PÖTTINGER achieves this by using 4 rotors per metre of working width and tines that are 300 mm long and 15 mm thick.
Compact design
Thanks to the compact construction and excellent field of vision is provided even with large working widths. This has been made possible by installing the folding cylinders in the headstock.
Following additional changes to the setting systems, the machine now features a perfect layout.
Generously dimensioned central gearbox
The PTO input speed from the tractor goes out to the two external gearboxes without changing the transmission ratio. This ensures that the power transmitted to the external gearboxes arrives without loss of torque. Reliability is enhanced as a result.
The right roller for all soil types
The right roller for all soil types
Your tailor made solution
Whether used in medium or high moisture soil, light or heavy soil conditions, PÖTTINGER offers you tailor-made roller solutions.
The scrapers can be adjusted individually by rotating the scraper tube. They can simply be pivoted away for cleaning. The coated scraper plates are reversible, which leads to a longer service life.
Tooth-packer roller
This all-rounder is suitable for all types of soil. The roller leaves behind a perfectly consolidated seedbed with loose, fine soil at seed level.
This ensures no clods can be lifted away, even in wet conditions, and a perfect capillary structure remains intact for optimum germination.
They can simply be pivoted away for cleaning. The hardened scraper plates are reversible for double the service life.
Diameter: 500 mm and 550 mm
Coated scrapers are standard
Pack ring roller
Ideal for stony, damp conditions and heavy organic residues. Harvest residues remain on the surface of the soil and protect the soil against drying.
The roller produces a corrugated consolidation effect to promote drainage and allow the soil to breathe.
Diameter: 550 mm
8 rings per metre of working width for 12.5 cm row spacing
Coated scrapers are standard
Prism packer roller
This roller handles all operating conditions, including stony ground and larger quantities of harvest residues.
Consolidating in strips, it promotes drainage and breathability of the soil in the area between the rings, which has been subject to less precompaction.
Prism rings spaced at 12.5 cm
Diameter: 500 and 600 mm
Coated scrapers are standard
Technical data
LION 403 C | LION 503 C | ||||
|---|---|---|---|---|---|
| Working width | 4 m | 5 m | |||
| Rotor | 16 pcs. | 20 pcs. | |||
| PTO Input Speed | 1000 rpm | 1000 rpm | |||
| Rotor speed | 342 rpm | 342 rpm | |||
| Tine dimensions | 15 x 330 mm | 15 x 330 mm | |||
| Power requirement | 150 - 320 hp | 150 - 320 hp | |||
| Transport width | 2,55 m | 2,55 m |
LION 403 C
| LION 403 C | |
|---|---|
| Working width | 4 m |
| Rotor | 16 pcs. |
| PTO Input Speed | 1000 rpm |
| Rotor speed | 342 rpm |
| Tine dimensions | 15 x 330 mm |
| Power requirement | 150 - 320 hp |
| Transport width | 2,55 m |
LION 503 C
| LION 503 C | |
|---|---|
| Working width | 5 m |
| Rotor | 20 pcs. |
| PTO Input Speed | 1000 rpm |
| Rotor speed | 342 rpm |
| Tine dimensions | 15 x 330 mm |
| Power requirement | 150 - 320 hp |
| Transport width | 2,55 m |
