FARO Rotary loader wagons



With the FARO series, we meet your demand for high performance rotor technology for medium sized tractors. The rotor with dual tines is especially suitable for handling hay.

With the FARO series, we meet your demand for high performance rotor technology for medium sized tractors. The rotor with dual tines is especially suitable for handling hay.

Customer benefits



Technology

Technology

Technical data

 FARO 3510 LFARO 3510 DFARO 4010 LFARO 4010 D
Loading volume (DIN 11741)6340 gal (24 m³)6076 gal (23 m³)7133 gal (27 m³)6868 gal (26 m³)
Theoretical chopped length2'' (45 mm)2'' (45 mm)2'' (45 mm)2'' (45 mm)
Number of knives max.31 pcs.31 pcs.31 pcs.31 pcs.
Pick-up recording width6'1'' (1,85 m)6'1'' (1,85 m)6'1'' (1,85 m)6'1'' (1,85 m)
Length25'6'' (7,78 m)27'1'' (8,25 m)27'9'' (8,46 m)29'4'' (8,93 m)
Width7'11'' (2,42 m)7'11'' (2,42 m)7'11'' (2,42 m)7'11'' (2,42 m)
Height with 17" tires11'8'' (3,56 m)11'8'' (3,56 m)11'8'' (3,56 m)11'8'' (3,56 m)
Height with 22.5" tires--12'1'' (3,68 m)12'1'' (3,68 m)
Number of scraper floor chains4 pcs.4 pcs.4 pcs.4 pcs.
Scraper floor motor (standard)1-speed 1-speed 1-speed 1-speed
Scraper floor motor (option)2-speed 2-speed 2-speed 2-speed
Length loading area (Width 2,1)16'5'' (5 m)15'7'' (4,75 m)18'8'' (5,68 m)17'10'' (5,43 m)
Track width6'1'' (1,85 m)6'1'' (1,85 m)6'1'' (1,85 m)6'1'' (1,85 m)
Weight of basic version12236 lbs (5550 kg)13117 lbs (5950 kg)12456 lbs (5650 kg)13338 lbs (6050 kg)
ChassisTandem axle Tandem axle Tandem axle Tandem axle
Permissible laden weight (standard)27558 lbs (12500 kg)27558 lbs (12500 kg)27558 lbs (12500 kg)27558 lbs (12500 kg)
Permissible laden weight max.33069 lbs (15000 kg)33069 lbs (15000 kg)39683 lbs (18000 kg)39683 lbs (18000 kg)
Tandem-axle, 25/40 kph27558 lbs (12500 kg)27558 lbs (12500 kg)27558 lbs (12500 kg)27558 lbs (12500 kg)
27558 lbs (12500 kg)27558 lbs (12500 kg)27558 lbs (12500 kg)27558 lbs (12500 kg)
Tandem-axle, 30/40 kph* max.33069 lbs (15000 kg)33069 lbs (15000 kg)39683 lbs (18000 kg)39683 lbs (18000 kg)
Note: *EU-2015/68, only with dual line brake system----
FARO 3510 L
Loading volume (DIN 11741)6340 gal (24 m³)
Theoretical chopped length2'' (45 mm)
Number of knives max.31 pcs.
Pick-up recording width6'1'' (1,85 m)
Length25'6'' (7,78 m)
Width7'11'' (2,42 m)
Height with 17" tires11'8'' (3,56 m)
Height with 22.5" tires-
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)16'5'' (5 m)
Track width6'1'' (1,85 m)
Weight of basic version12236 lbs (5550 kg)
ChassisTandem axle
Permissible laden weight (standard)27558 lbs (12500 kg)
Permissible laden weight max.33069 lbs (15000 kg)
Tandem-axle, 25/40 kph27558 lbs (12500 kg)
27558 lbs (12500 kg)
Tandem-axle, 30/40 kph* max.33069 lbs (15000 kg)
Note: *EU-2015/68, only with dual line brake system-
FARO 3510 D
Loading volume (DIN 11741)6076 gal (23 m³)
Theoretical chopped length2'' (45 mm)
Number of knives max.31 pcs.
Pick-up recording width6'1'' (1,85 m)
Length27'1'' (8,25 m)
Width7'11'' (2,42 m)
Height with 17" tires11'8'' (3,56 m)
Height with 22.5" tires-
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)15'7'' (4,75 m)
Track width6'1'' (1,85 m)
Weight of basic version13117 lbs (5950 kg)
ChassisTandem axle
Permissible laden weight (standard)27558 lbs (12500 kg)
Permissible laden weight max.33069 lbs (15000 kg)
Tandem-axle, 25/40 kph27558 lbs (12500 kg)
27558 lbs (12500 kg)
Tandem-axle, 30/40 kph* max.33069 lbs (15000 kg)
Note: *EU-2015/68, only with dual line brake system-
FARO 4010 L
Loading volume (DIN 11741)7133 gal (27 m³)
Theoretical chopped length2'' (45 mm)
Number of knives max.31 pcs.
Pick-up recording width6'1'' (1,85 m)
Length27'9'' (8,46 m)
Width7'11'' (2,42 m)
Height with 17" tires11'8'' (3,56 m)
Height with 22.5" tires12'1'' (3,68 m)
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)18'8'' (5,68 m)
Track width6'1'' (1,85 m)
Weight of basic version12456 lbs (5650 kg)
ChassisTandem axle
Permissible laden weight (standard)27558 lbs (12500 kg)
Permissible laden weight max.39683 lbs (18000 kg)
Tandem-axle, 25/40 kph27558 lbs (12500 kg)
27558 lbs (12500 kg)
Tandem-axle, 30/40 kph* max.39683 lbs (18000 kg)
Note: *EU-2015/68, only with dual line brake system-
FARO 4010 D
Loading volume (DIN 11741)6868 gal (26 m³)
Theoretical chopped length2'' (45 mm)
Number of knives max.31 pcs.
Pick-up recording width6'1'' (1,85 m)
Length29'4'' (8,93 m)
Width7'11'' (2,42 m)
Height with 17" tires11'8'' (3,56 m)
Height with 22.5" tires12'1'' (3,68 m)
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)17'10'' (5,43 m)
Track width6'1'' (1,85 m)
Weight of basic version13338 lbs (6050 kg)
ChassisTandem axle
Permissible laden weight (standard)27558 lbs (12500 kg)
Permissible laden weight max.39683 lbs (18000 kg)
Tandem-axle, 25/40 kph27558 lbs (12500 kg)
27558 lbs (12500 kg)
Tandem-axle, 30/40 kph* max.39683 lbs (18000 kg)
Note: *EU-2015/68, only with dual line brake system-
 FARO 4510 LFARO 4510 DFARO 5010 LFARO 5010 D
Loading volume (DIN 11741)7925 gal (30 m³)7661 gal (29 m³)8718 gal (33 m³)8454 gal (32 m³)
Theoretical chopped length2'' (45 mm)2'' (45 mm)2'' (45 mm)2'' (45 mm)
Number of knives max.31 pcs.31 pcs.31 pcs.31 pcs.
Pick-up recording width6'1'' (1,85 m)6'1'' (1,85 m)6'1'' (1,85 m)6'1'' (1,85 m)
Length30' (9,14 m)31'6'' (9,61 m)30' (9,14 m)31'6'' (9,61 m)
Width7'11'' (2,42 m)7'11'' (2,42 m)7'11'' (2,42 m)7'11'' (2,42 m)
Height with 17" tires11'8'' (3,56 m)11'8'' (3,56 m)12'4'' (3,76 m)12'4'' (3,76 m)
Height with 22.5" tires12'1'' (3,68 m)12'1'' (3,68 m)12'9'' (3,88 m)12'9'' (3,88 m)
Number of scraper floor chains4 pcs.4 pcs.4 pcs.4 pcs.
Scraper floor motor (standard)1-speed 1-speed 1-speed 1-speed
Scraper floor motor (option)2-speed 2-speed 2-speed 2-speed
Length loading area (Width 2,1)20'10'' (6,36 m)20'1'' (6,11 m)20'10'' (6,36 m)20'1'' (6,11 m)
Track width6'1'' (1,85 m)6'1'' (1,85 m)6'1'' (1,85 m)6'1'' (1,85 m)
Weight of basic version12787 lbs (5800 kg)13669 lbs (6200 kg)12897 lbs (5850 kg)13999 lbs (6350 kg)
ChassisTandem axle Tandem axle Tandem axle Tandem axle
Permissible laden weight (standard)33069 lbs (15000 kg)33069 lbs (15000 kg)33069 lbs (15000 kg)33069 lbs (15000 kg)
Permissible laden weight max.39683 lbs (18000 kg)39683 lbs (18000 kg)39683 lbs (18000 kg)39683 lbs (18000 kg)
Tandem-axle, 25/40 kph33069 lbs (15000 kg)33069 lbs (15000 kg)33069 lbs (15000 kg)33069 lbs (15000 kg)
33069 lbs (15000 kg)33069 lbs (15000 kg)33069 lbs (15000 kg)33069 lbs (15000 kg)
Tandem-axle, 30/40 kph* max.39683 lbs (18000 kg)39683 lbs (18000 kg)39683 lbs (18000 kg)39683 lbs (18000 kg)
Note: *EU-2015/68, only with dual line brake system----

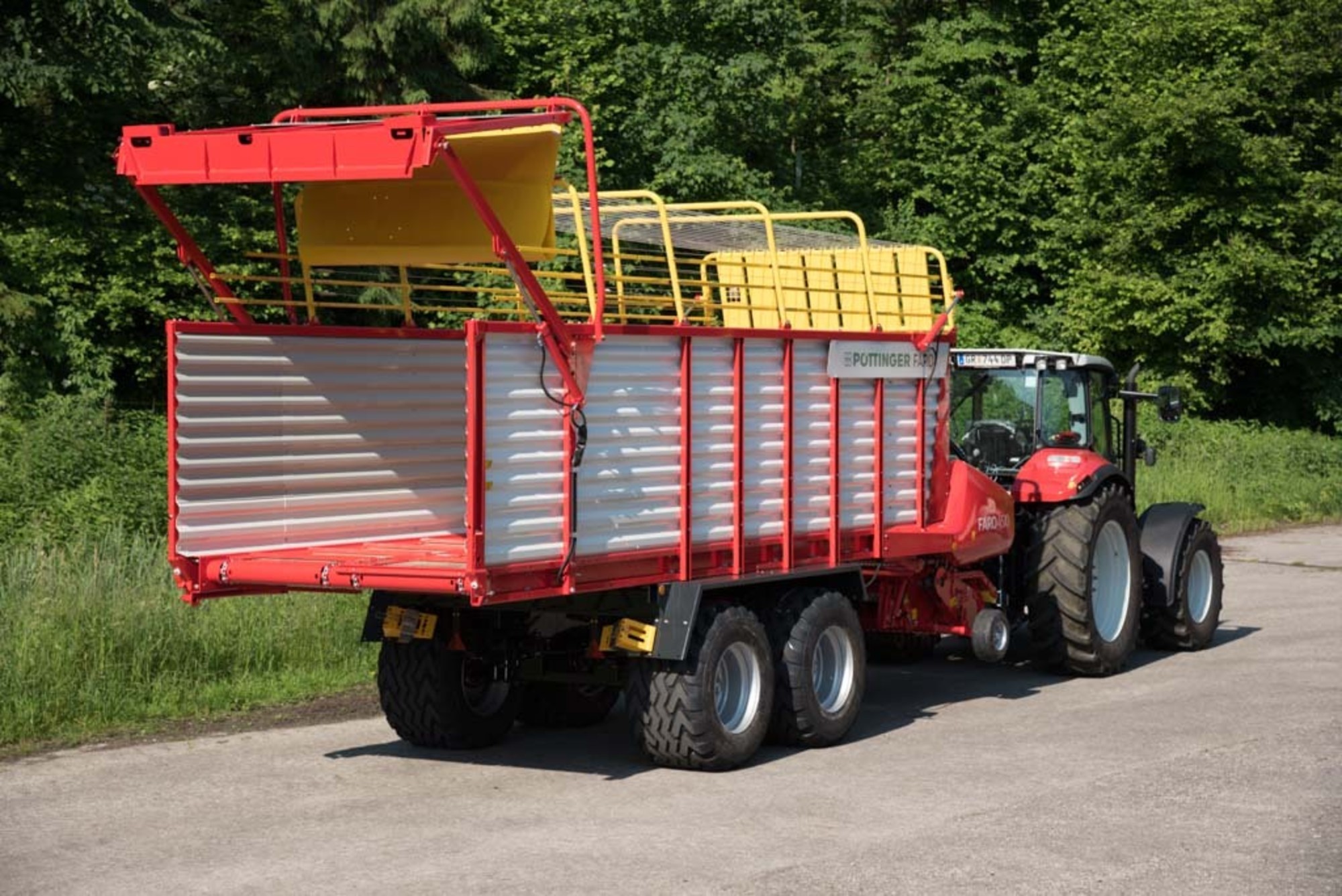

FARO 4510 L
Loading volume (DIN 11741)7925 gal (30 m³)
Theoretical chopped length2'' (45 mm)
Number of knives max.31 pcs.
Pick-up recording width6'1'' (1,85 m)
Length30' (9,14 m)
Width7'11'' (2,42 m)
Height with 17" tires11'8'' (3,56 m)
Height with 22.5" tires12'1'' (3,68 m)
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)20'10'' (6,36 m)
Track width6'1'' (1,85 m)
Weight of basic version12787 lbs (5800 kg)
ChassisTandem axle
Permissible laden weight (standard)33069 lbs (15000 kg)
Permissible laden weight max.39683 lbs (18000 kg)
Tandem-axle, 25/40 kph33069 lbs (15000 kg)
33069 lbs (15000 kg)
Tandem-axle, 30/40 kph* max.39683 lbs (18000 kg)
Note: *EU-2015/68, only with dual line brake system-
FARO 4510 D
Loading volume (DIN 11741)7661 gal (29 m³)
Theoretical chopped length2'' (45 mm)
Number of knives max.31 pcs.
Pick-up recording width6'1'' (1,85 m)
Length31'6'' (9,61 m)
Width7'11'' (2,42 m)
Height with 17" tires11'8'' (3,56 m)
Height with 22.5" tires12'1'' (3,68 m)
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)20'1'' (6,11 m)
Track width6'1'' (1,85 m)
Weight of basic version13669 lbs (6200 kg)
ChassisTandem axle
Permissible laden weight (standard)33069 lbs (15000 kg)
Permissible laden weight max.39683 lbs (18000 kg)
Tandem-axle, 25/40 kph33069 lbs (15000 kg)
33069 lbs (15000 kg)
Tandem-axle, 30/40 kph* max.39683 lbs (18000 kg)
Note: *EU-2015/68, only with dual line brake system-
FARO 5010 L
Loading volume (DIN 11741)8718 gal (33 m³)
Theoretical chopped length2'' (45 mm)
Number of knives max.31 pcs.
Pick-up recording width6'1'' (1,85 m)
Length30' (9,14 m)
Width7'11'' (2,42 m)
Height with 17" tires12'4'' (3,76 m)
Height with 22.5" tires12'9'' (3,88 m)
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)20'10'' (6,36 m)
Track width6'1'' (1,85 m)
Weight of basic version12897 lbs (5850 kg)
ChassisTandem axle
Permissible laden weight (standard)33069 lbs (15000 kg)
Permissible laden weight max.39683 lbs (18000 kg)
Tandem-axle, 25/40 kph33069 lbs (15000 kg)
33069 lbs (15000 kg)
Tandem-axle, 30/40 kph* max.39683 lbs (18000 kg)
Note: *EU-2015/68, only with dual line brake system-
FARO 5010 D
Loading volume (DIN 11741)8454 gal (32 m³)
Theoretical chopped length2'' (45 mm)
Number of knives max.31 pcs.
Pick-up recording width6'1'' (1,85 m)
Length31'6'' (9,61 m)
Width7'11'' (2,42 m)
Height with 17" tires12'4'' (3,76 m)
Height with 22.5" tires12'9'' (3,88 m)
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)20'1'' (6,11 m)
Track width6'1'' (1,85 m)
Weight of basic version13999 lbs (6350 kg)
ChassisTandem axle
Permissible laden weight (standard)33069 lbs (15000 kg)
Permissible laden weight max.39683 lbs (18000 kg)
Tandem-axle, 25/40 kph33069 lbs (15000 kg)
33069 lbs (15000 kg)
Tandem-axle, 30/40 kph* max.39683 lbs (18000 kg)
Note: *EU-2015/68, only with dual line brake system-
 FARO 6300 LFARO 8000 LFARO 8010 L DRY FORAGEFARO 10010 L DRY FORAGE
Loading volume (DIN 11741)10171 gal (38,5 m³)12152 gal (46 m³)12680 gal (48 m³)13737 gal (52 m³)
Theoretical chopped length5'' (135 mm)5'' (135 mm)5'' (135 mm)5'' (135 mm)
Number of knives max.11 pcs.11 pcs.11 pcs.11 pcs.
Pick-up recording width6'1'' (1850 mm)6'1'' (1850 mm)6'1'' (1,85 m)6'1'' (1,85 m)
Length34'5'' (10500 mm)35'5'' (10790 mm)35'5'' (10,79 m)39'4'' (11,99 m)
Width7'11'' (2420 mm)8'2'' (2500 mm)8'4'' (2,55 m)8'4'' (2,55 m)
Height with 17" tires12'4'' (3760 mm)13'1'' (3980 mm)13'1'' (3,98 m)-
Height with 22.5" tires12'9'' (3880 mm)13'5'' (4100 mm)13'1'' (4 m)13'1'' (4 m)
Number of scraper floor chains4 pcs.4 pcs.4 pcs.4 pcs.
Scraper floor motor (standard)1-speed 1-speed 1-speed 1-speed
Scraper floor motor (option)2-speed 2-speed 2-speed 2-speed
Length loading area (Width 2,1)25'4'' (7730 mm)25'4'' (7730 mm)25'4'' (7,73 m)30' (9,14 m)
Track width6'1'' (1850 mm)6'1'' (1850 mm)6'1'' (1,85 m)6'5'' (1,95 m)
Weight of basic version12897 lbs (5850 kg)13228 lbs (6000 kg)14440 lbs (6550 kg)16976 lbs (7700 kg)
ChassisTandem axle Tandem axle Tandem axle Tandem axle
Permissible laden weight (standard)33069 lbs (15000 kg)33069 lbs (15000 kg)33069 lbs (15000 kg)35274 lbs (16000 kg)
Permissible laden weight max.33069 lbs (15000 kg)33069 lbs (15000 kg)35274 lbs (16000 kg)35274 lbs (16000 kg)
Tandem-axle, 25/40 kph--33069 lbs (15000 kg)35274 lbs (16000 kg)
--33069 lbs (15000 kg)35274 lbs (16000 kg)
Tandem-axle, 30/40 kph* max.--35274 lbs (16000 kg)35274 lbs (16000 kg)
Note: *EU-2015/68, only with dual line brake system----
FARO 6300 L
Loading volume (DIN 11741)10171 gal (38,5 m³)
Theoretical chopped length5'' (135 mm)
Number of knives max.11 pcs.
Pick-up recording width6'1'' (1850 mm)
Length34'5'' (10500 mm)
Width7'11'' (2420 mm)
Height with 17" tires12'4'' (3760 mm)
Height with 22.5" tires12'9'' (3880 mm)
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)25'4'' (7730 mm)
Track width6'1'' (1850 mm)
Weight of basic version12897 lbs (5850 kg)
ChassisTandem axle
Permissible laden weight (standard)33069 lbs (15000 kg)
Permissible laden weight max.33069 lbs (15000 kg)
Tandem-axle, 25/40 kph-
-
Tandem-axle, 30/40 kph* max.-
Note: *EU-2015/68, only with dual line brake system-
FARO 8000 L
Loading volume (DIN 11741)12152 gal (46 m³)
Theoretical chopped length5'' (135 mm)
Number of knives max.11 pcs.
Pick-up recording width6'1'' (1850 mm)
Length35'5'' (10790 mm)
Width8'2'' (2500 mm)
Height with 17" tires13'1'' (3980 mm)
Height with 22.5" tires13'5'' (4100 mm)
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)25'4'' (7730 mm)
Track width6'1'' (1850 mm)
Weight of basic version13228 lbs (6000 kg)
ChassisTandem axle
Permissible laden weight (standard)33069 lbs (15000 kg)
Permissible laden weight max.33069 lbs (15000 kg)
Tandem-axle, 25/40 kph-
-
Tandem-axle, 30/40 kph* max.-
Note: *EU-2015/68, only with dual line brake system-

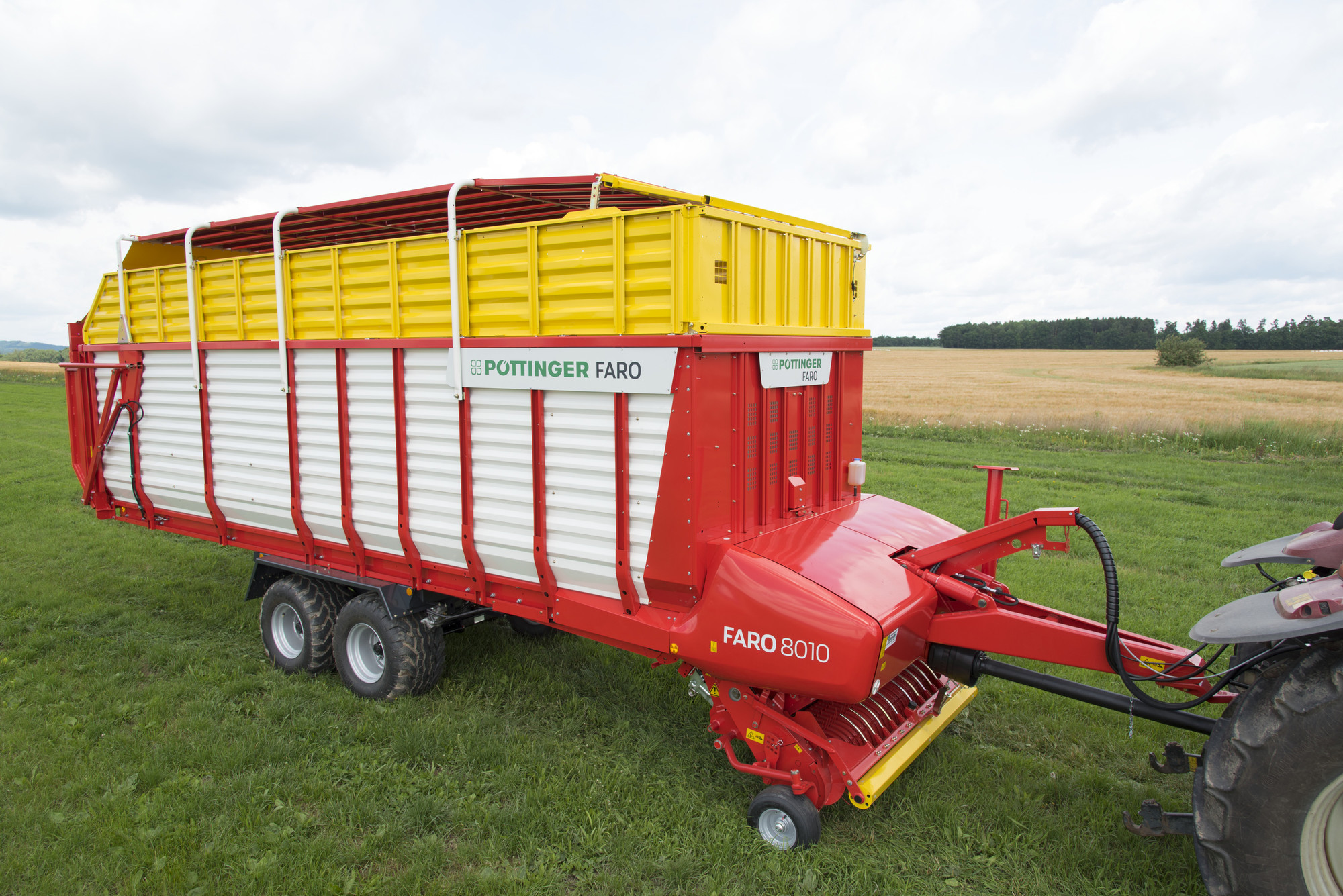

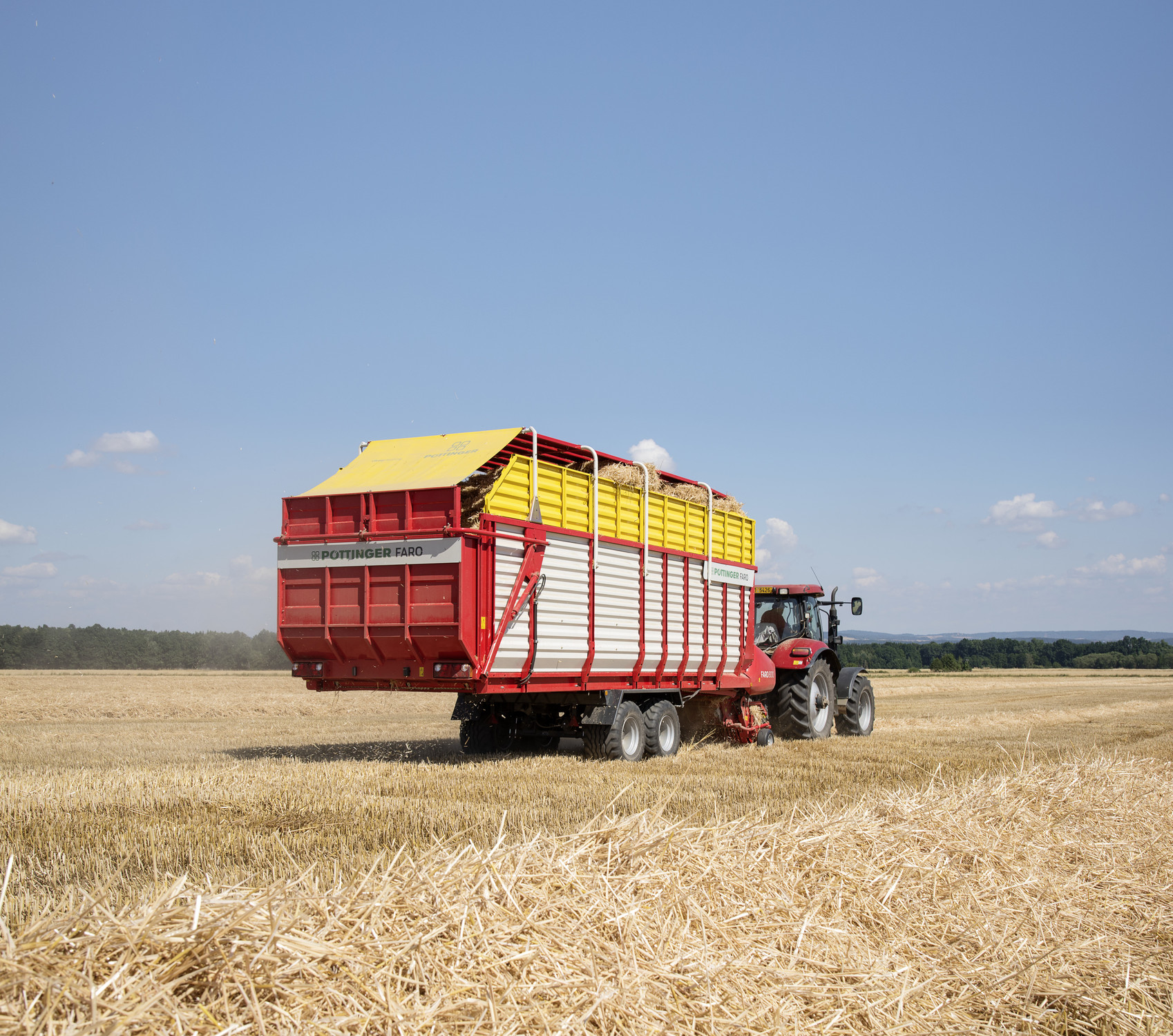

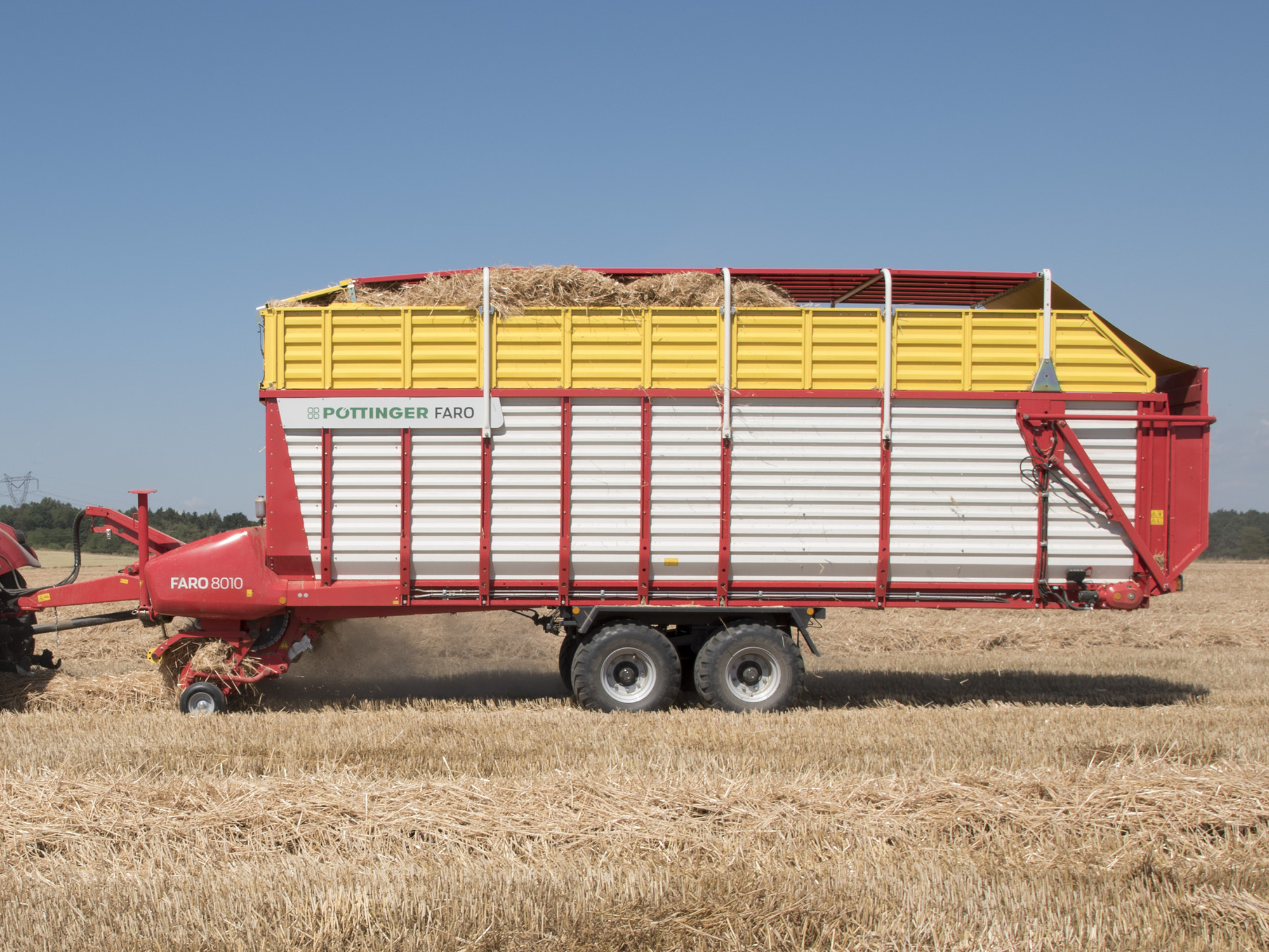

FARO 8010 L DRY FORAGE
Loading volume (DIN 11741)12680 gal (48 m³)
Theoretical chopped length5'' (135 mm)
Number of knives max.11 pcs.
Pick-up recording width6'1'' (1,85 m)
Length35'5'' (10,79 m)
Width8'4'' (2,55 m)
Height with 17" tires13'1'' (3,98 m)
Height with 22.5" tires13'1'' (4 m)
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)25'4'' (7,73 m)
Track width6'1'' (1,85 m)
Weight of basic version14440 lbs (6550 kg)
ChassisTandem axle
Permissible laden weight (standard)33069 lbs (15000 kg)
Permissible laden weight max.35274 lbs (16000 kg)
Tandem-axle, 25/40 kph33069 lbs (15000 kg)
33069 lbs (15000 kg)
Tandem-axle, 30/40 kph* max.35274 lbs (16000 kg)
Note: *EU-2015/68, only with dual line brake system-
FARO 10010 L DRY FORAGE
Loading volume (DIN 11741)13737 gal (52 m³)
Theoretical chopped length5'' (135 mm)
Number of knives max.11 pcs.
Pick-up recording width6'1'' (1,85 m)
Length39'4'' (11,99 m)
Width8'4'' (2,55 m)
Height with 17" tires-
Height with 22.5" tires13'1'' (4 m)
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)30' (9,14 m)
Track width6'5'' (1,95 m)
Weight of basic version16976 lbs (7700 kg)
ChassisTandem axle
Permissible laden weight (standard)35274 lbs (16000 kg)
Permissible laden weight max.35274 lbs (16000 kg)
Tandem-axle, 25/40 kph35274 lbs (16000 kg)
35274 lbs (16000 kg)
Tandem-axle, 30/40 kph* max.35274 lbs (16000 kg)
Note: *EU-2015/68, only with dual line brake system-


MY POETTINGER

MyPÖTTINGER


  • Get valuable information and tips on all PÖTTINGER machines
  • Specific information on your PÖTTINGER machines in "My Machines".
  • Instruction manuals, spare parts lists, maintenance information, as well as all technical details available online
  • Machine-specific documentation for all PÖTTINGER machines built from 1997 onwards available online

www.mypoettinger.com


Medien

Media

Videos

Best forage
Best forage
PÖTTINGER FARO / FARO COMBILINE / EUROPROFI COMBILINE loader wagons
PÖTTINGER FARO / FARO COMBILINE / EUROPROFI COMBILINE loader wagons
Pöttinger loader wagons
Pöttinger loader wagons

Image gallery

Quality
Quality
We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.

Login Partner Portal

Request user | Forgot Password?

Start Remote Support

We use cookies and tracking technologies


User-friendliness is important to us, which is why we are constantly developing the offers and online services available on our website. We would like to show content and advertising you are interested in. Continuing to browse the website means that cookies will be used. Cookies are only used in relation to personalised Google marketing products if you give your full consent ("Agree to all"). You can also customise the settings using the checkboxes provided.

Certain web technologies and cookies help to make this website easily accessible and user friendly. This covers essential basic functionalities, such as navigating the website, the way it is displayed in your browser and requesting your consent. This website will not work without the web technologies and cookies mentioned above.

Purpose of cookie

Duration

Accept-Cookie

Saves information if the "Accept cookies" banner was accepted or not.

6 Months

Country (layer) and language (lang)

Saves the country and language selected by the user.

6 Months

More Info

We are constantly striving to improve the user-friendliness and performance of our website. That is why we use analysis technologies (including cookies), which monitor and evaluate anonymously which contents of our website are used and how often they are accessed.

Purpose of cookie

Duration

Google Analytics

Analysis of how the website is used (see below).

6 Months

More Info

We use web technologies (including cookies) provided by several partner companies to ensure we show you relevant content on our website and social media channels. This means that the content displayed is customised and displayed according to the way you use our website.

Purpose of cookie

Duration

YouTube

We link to YouTube videos from our website and use the extended data protection provided by YouTube. YouTube does not save any information about visitors to this website, unless you watch a video.Find out more here:https://support.google.com/youtube/answer/171780?hl=dehttps://www.google.de/intl/de/policies/privacy/We do not have any control over YouTube cookies, but you can block these cookies in your browser settings.

6 Months

More Info
More Info
Save
Select all
Save
Select all
Loading...
