130 to 220 PS - 25 to 32 m³ volume

130 to 220 PS - 25 to 32 m³ volume

Brochures

Videos


Technical data

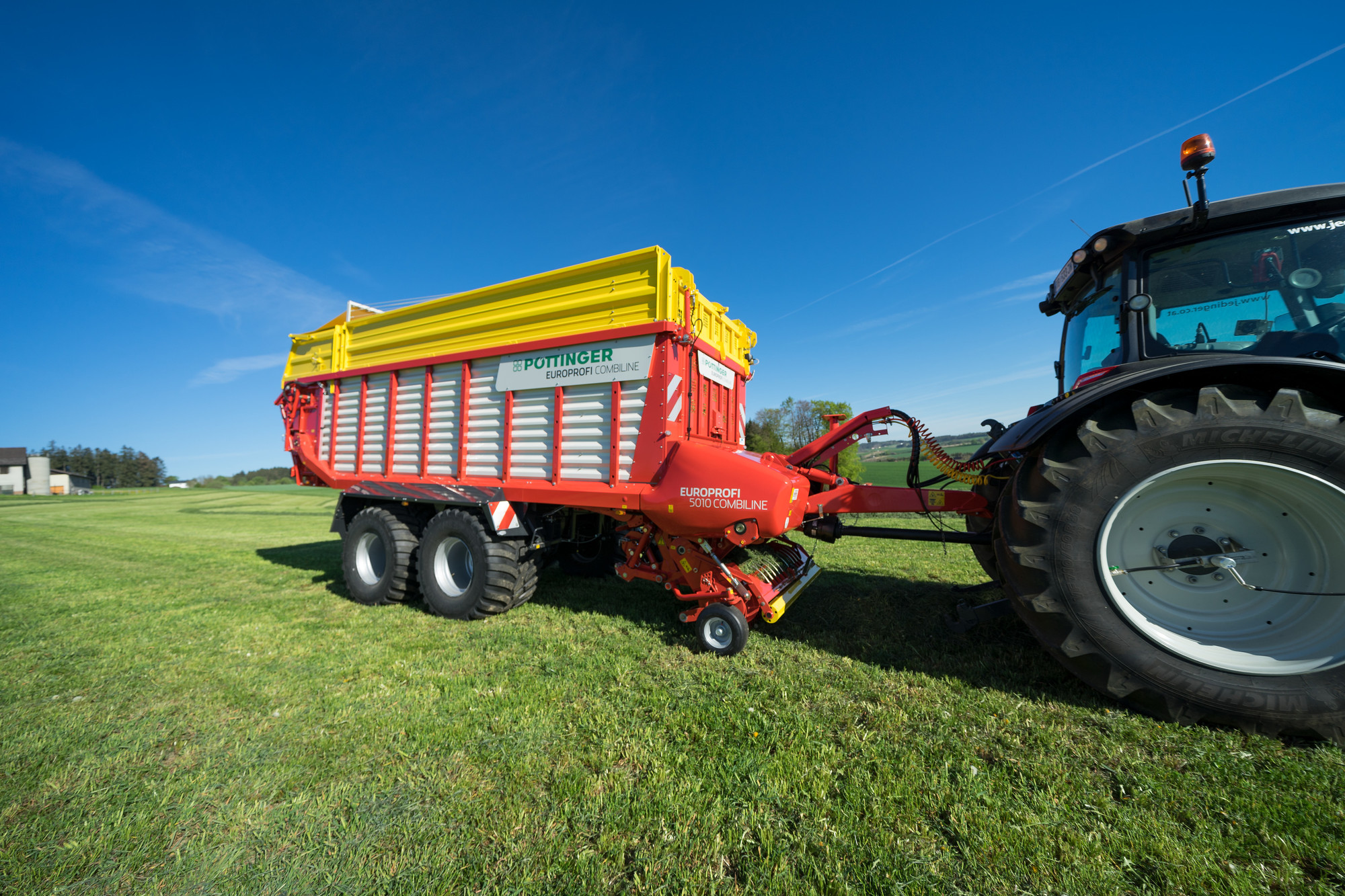

 EUROPROFI 5010 L COMBILINEEUROPROFI 5010 D COMBILINE
Length9,12 m9,61 m
Width2,67 m2,67 m
Height3,55 m3,55 m

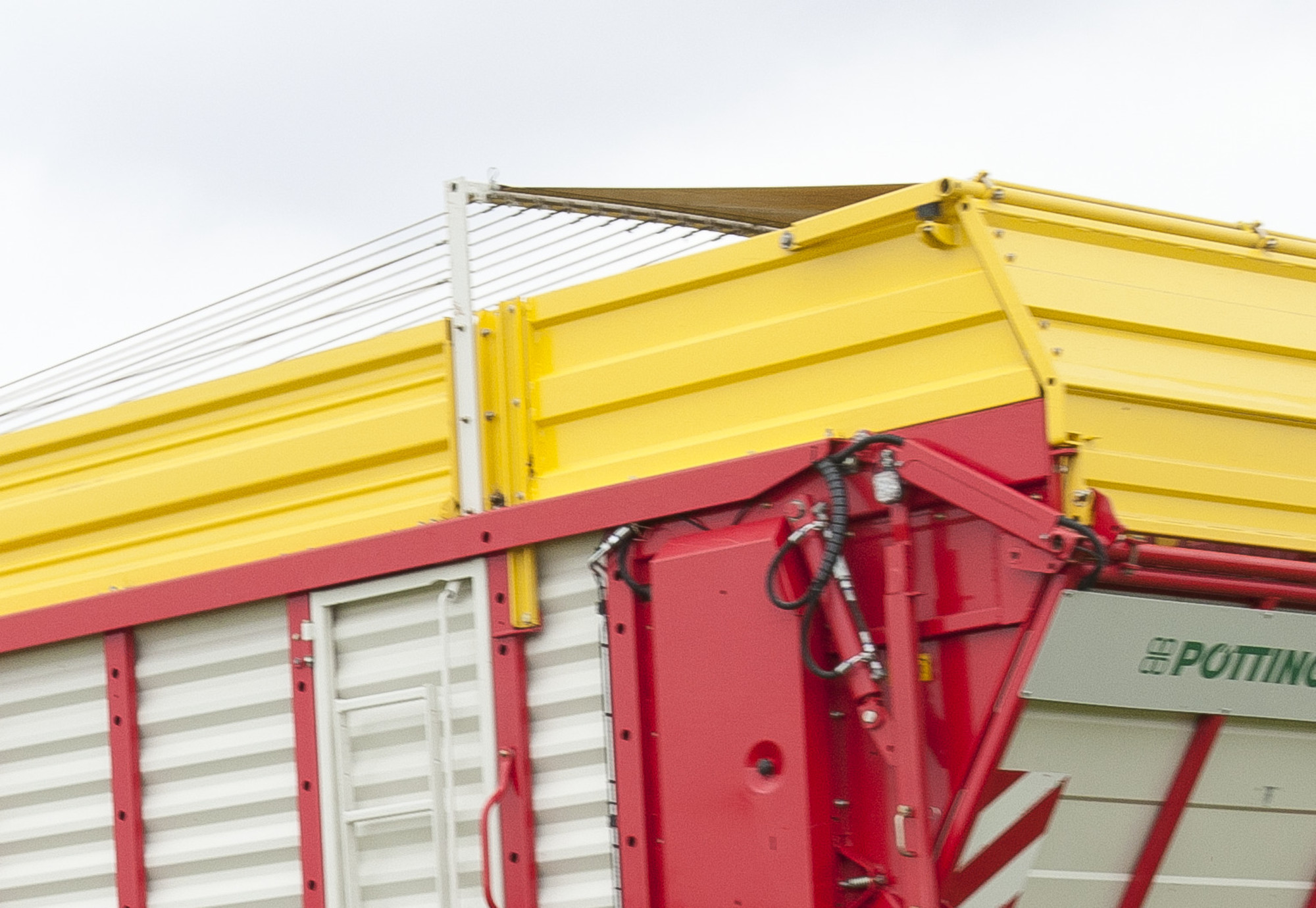

Height with ropes for roof+ 325 mm + 325 mm
Number of scraper floor chains4 pcs.4 pcs.
Scraper floor motor (standard)1-speed 1-speed
Scraper floor motor (option)2-speed 2-speed
Length loading area (Width 2,1)6,36 m6,1 m
Loading volume with medium compression50 m³50 m³
Loading volume (DIN 11741)29 m³28 m³

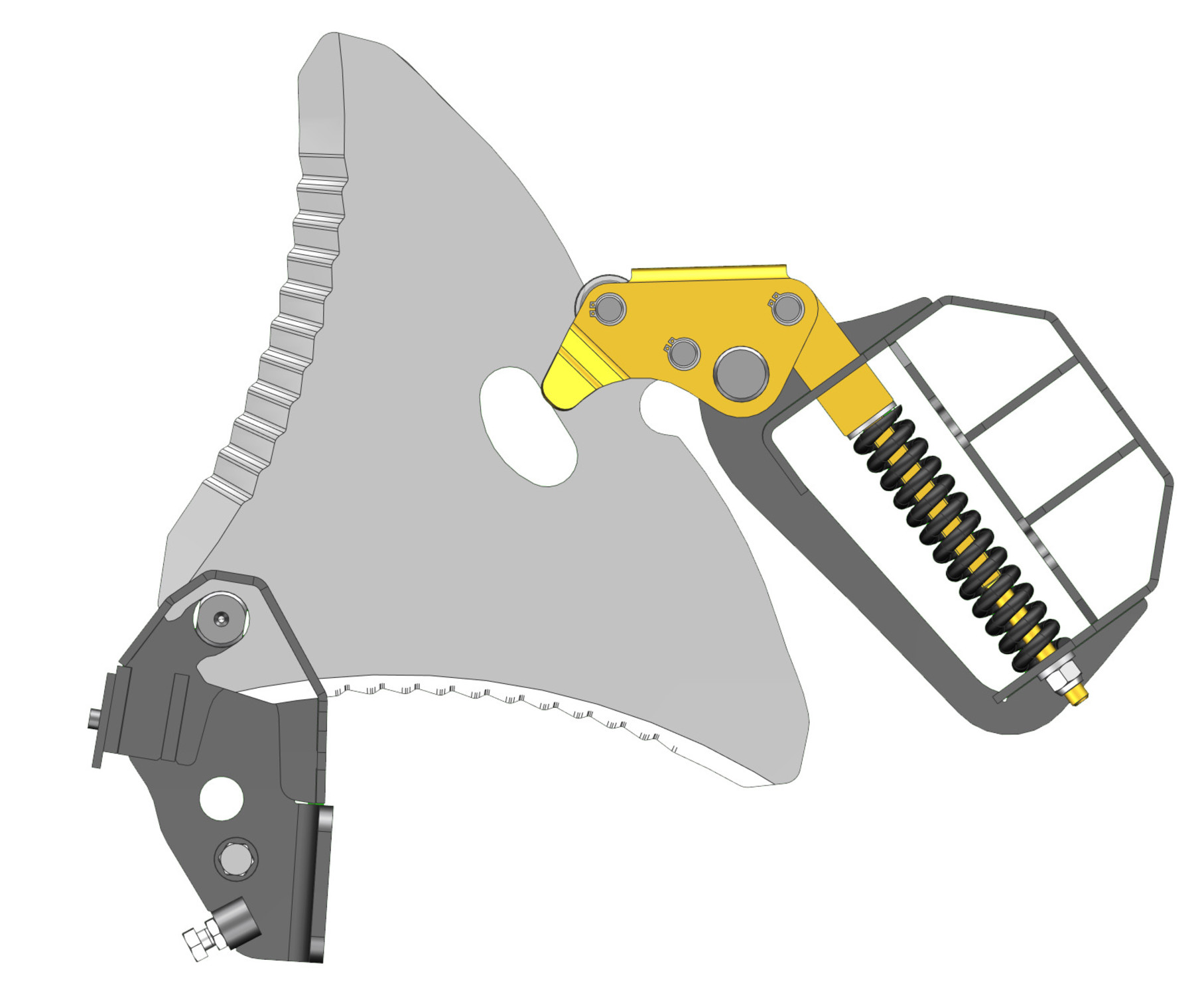

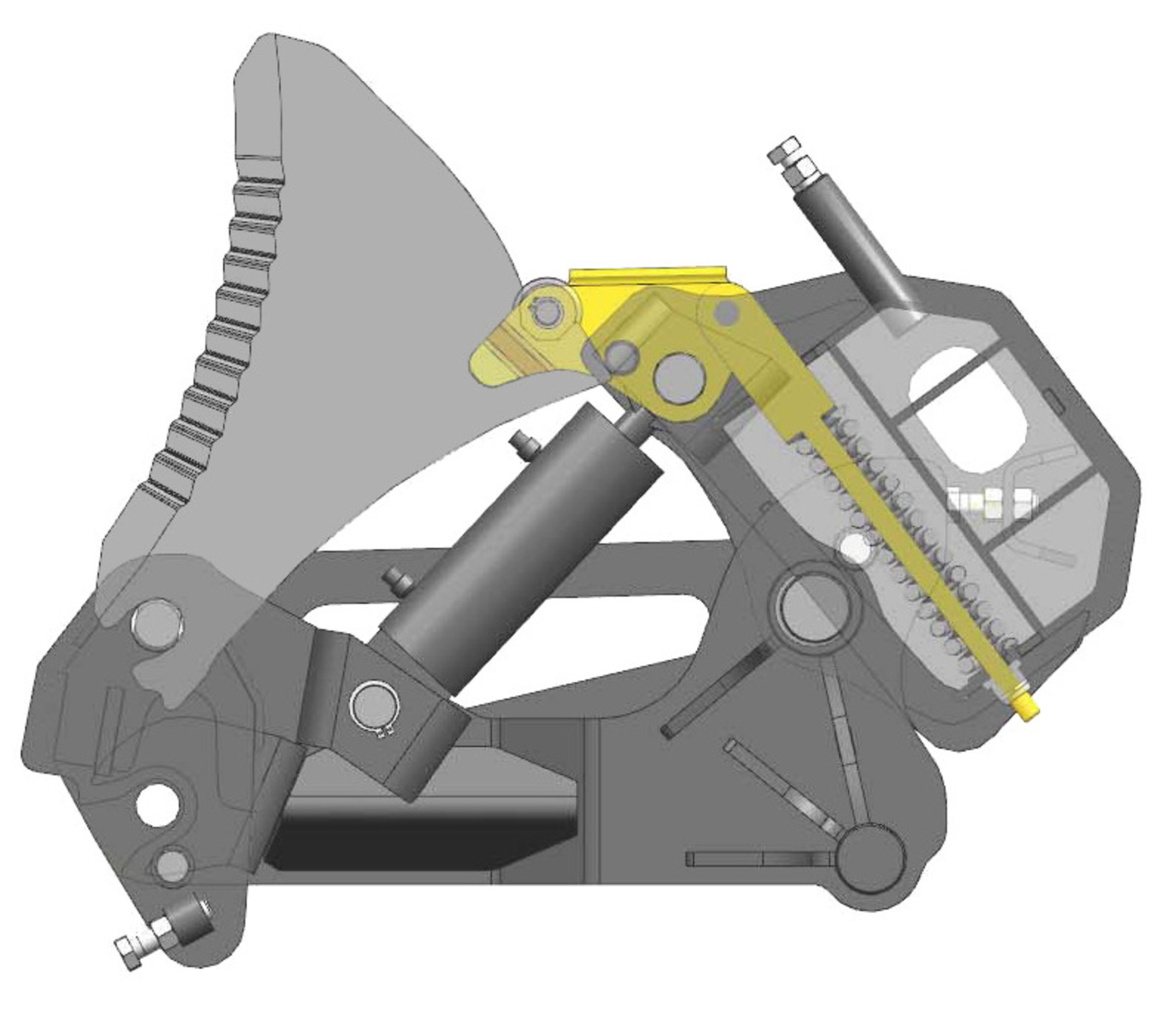

Number of knives max.35 pcs.35 pcs.
Theoretical chopped length39 mm39 mm
Pick-up recording width1,85 m1,85 m
Track width1,95 m1,95 m
Weight of basic version7150 kg7650 kg
ChassisTandem axle Tandem axle
Permissible laden weight (standard)18000 kg18000 kg
Permissible laden weight max.21000 kg21000 kg
Tandem-axle, 25/40 kph18000 kg18000 kg
Tandem-axle, 30/40 kph*18000 kg18000 kg
Tandem-axle, 30/40 kph* max.21000 kg21000 kg
Note: *EU-2015/68, only with dual line brake system--

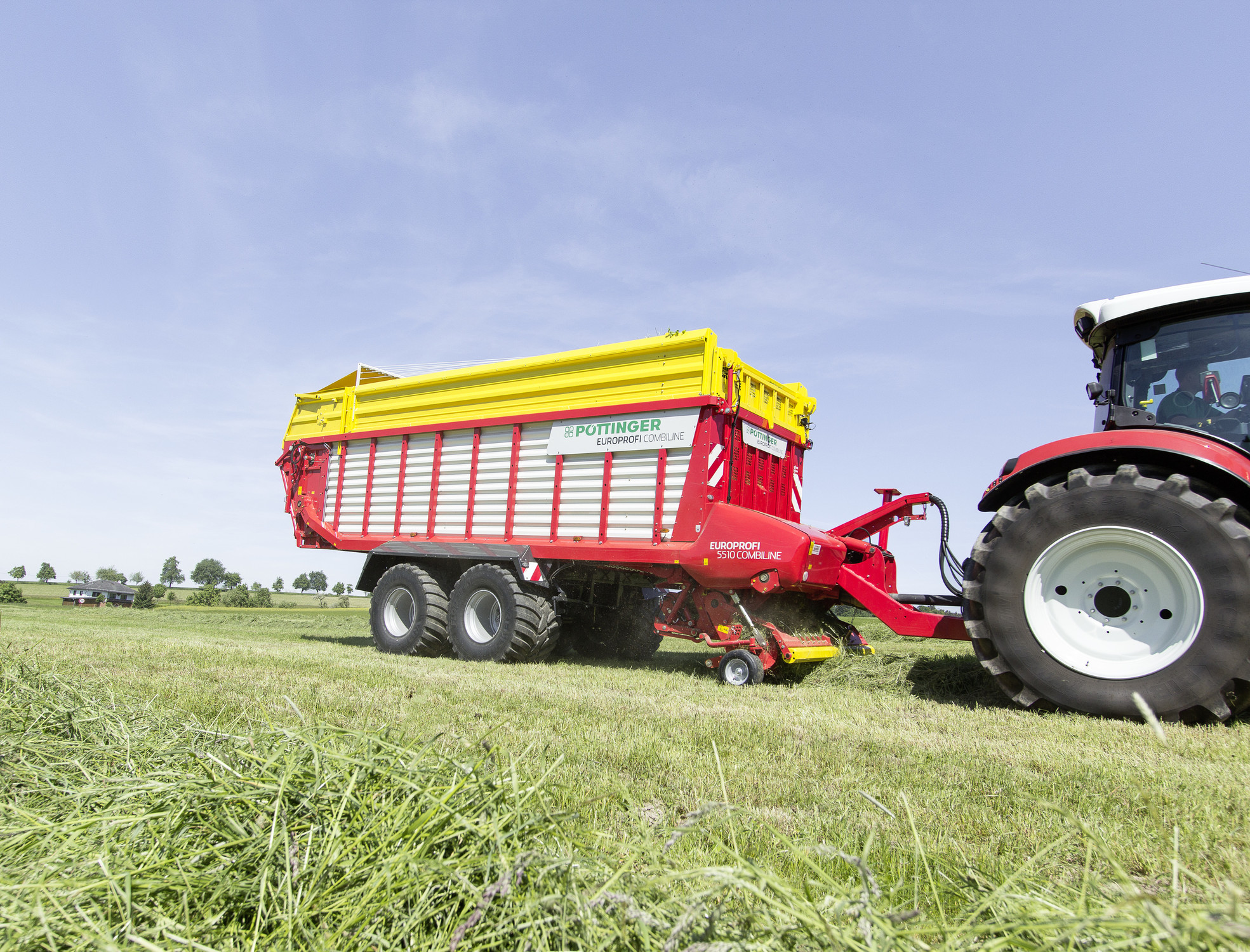

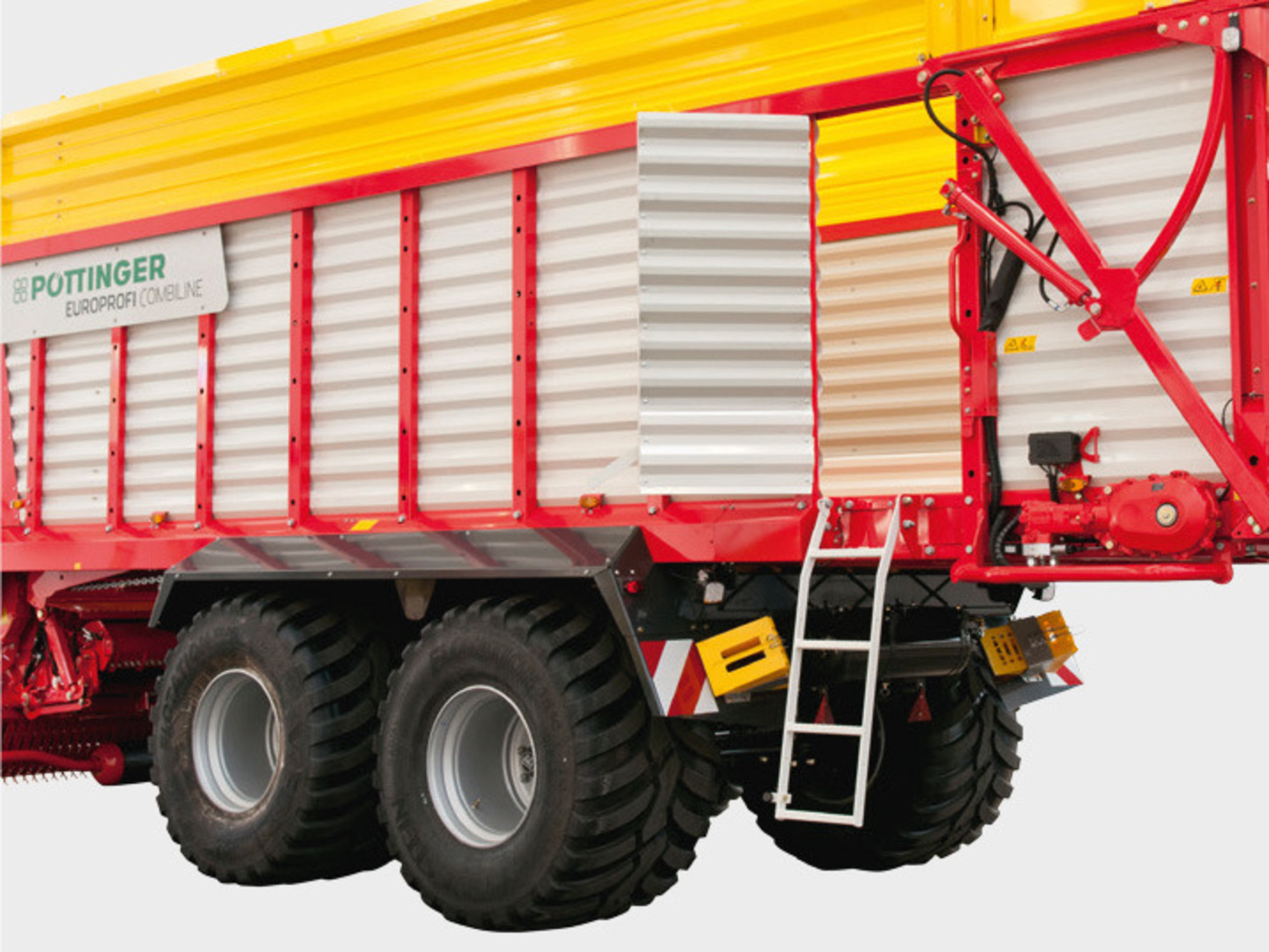

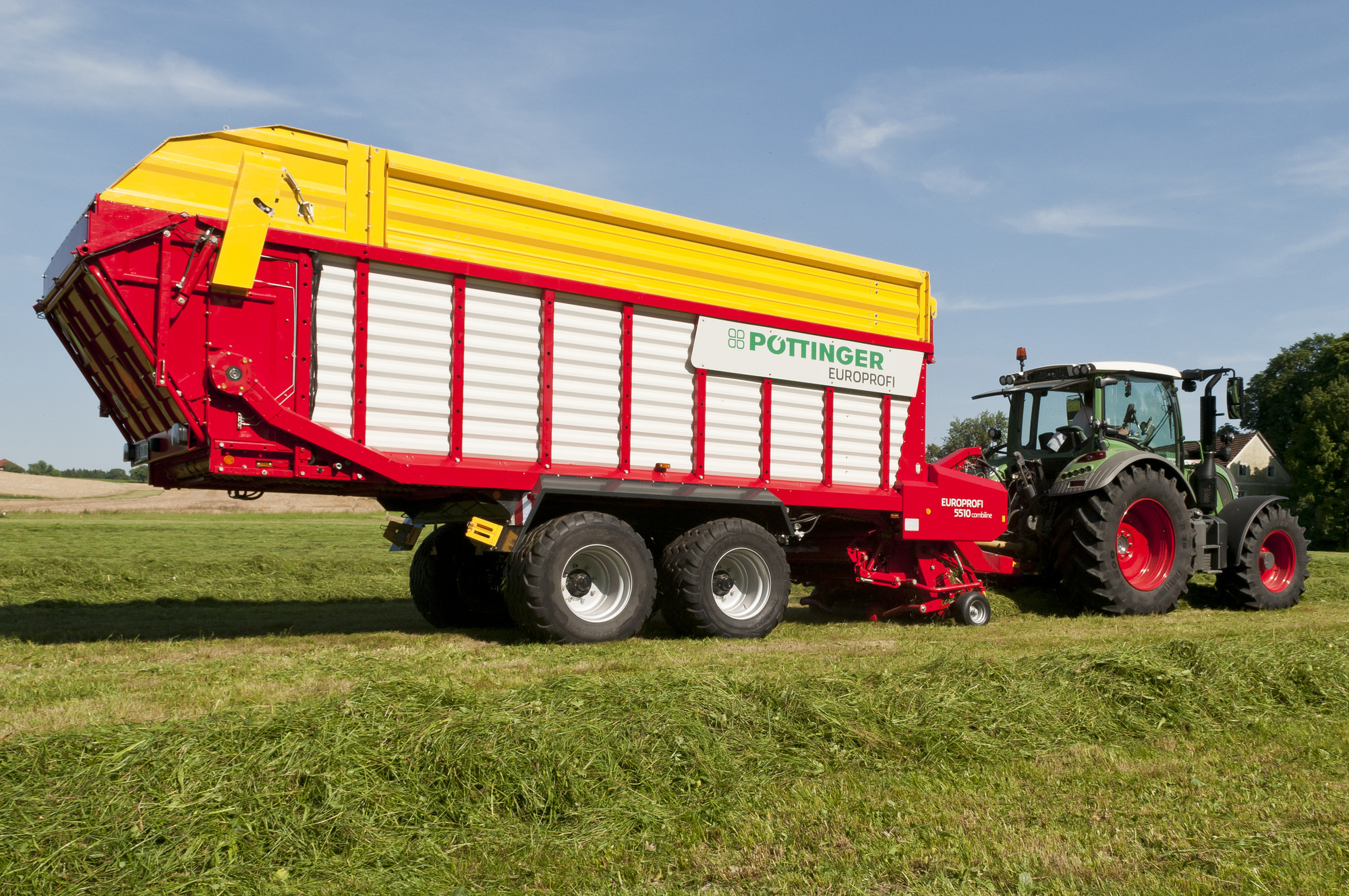

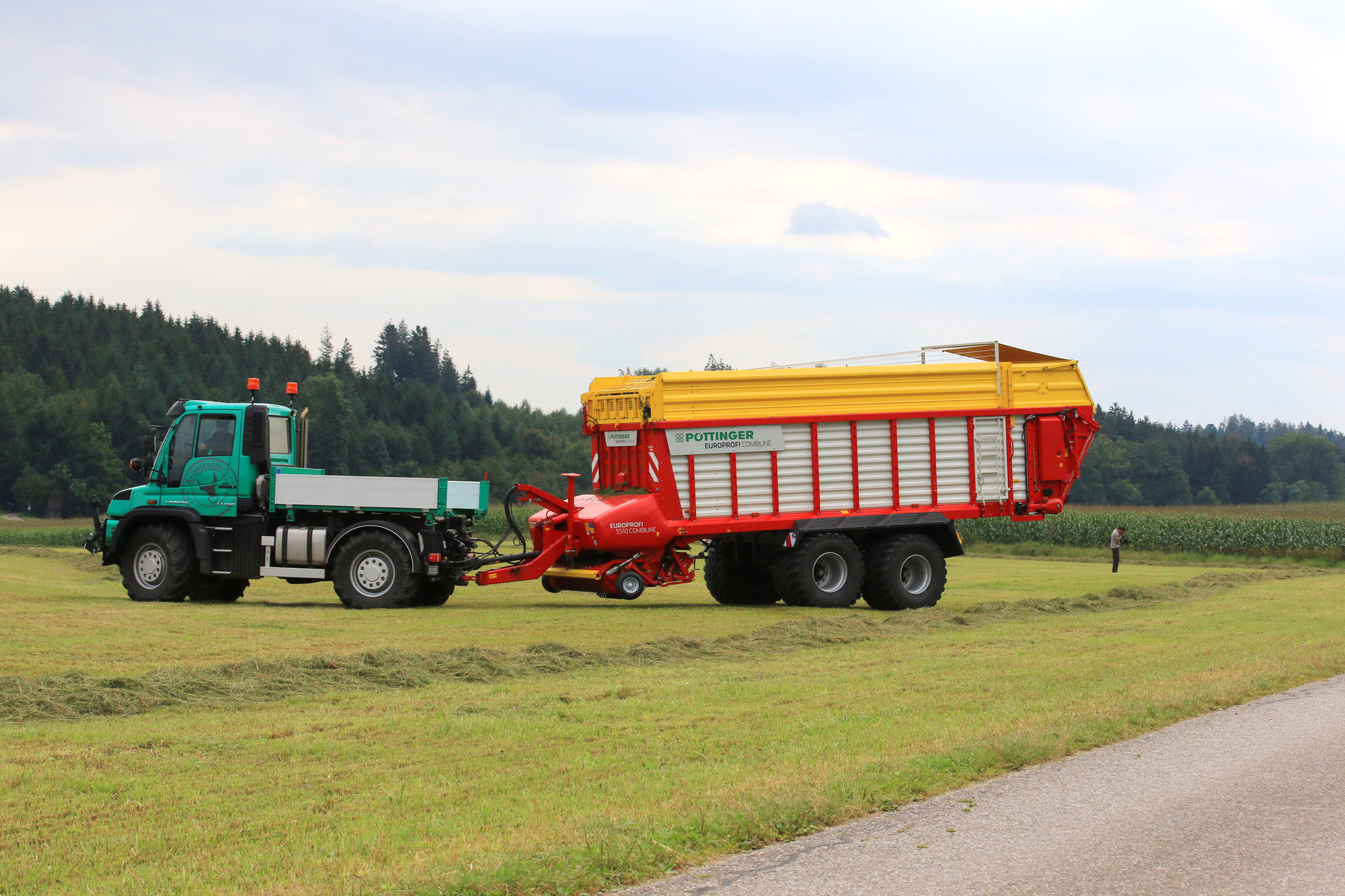

 EUROPROFI 5510 L COMBILINEEUROPROFI 5510 D COMBILINE
Length9,81 m10,28 m
Width2,67 m2,67 m
Height3,55 m3,55 m
Height with ropes for roof+ 325 mm + 325 mm
Number of scraper floor chains4 pcs.4 pcs.
Scraper floor motor (standard)2-speed 2-speed
Length loading area (Width 2,1)7,04 m6,79 m
Loading volume with medium compression55 m³55 m³
Loading volume (DIN 11741)32 m³31 m³
Number of knives max.35 pcs.35 pcs.
Theoretical chopped length39 mm39 mm
Pick-up recording width1,85 m1,85 m
Track width1,95 m1,95 m
Weight of basic version7350 kg7850 kg
ChassisTandem axle Tandem axle
Permissible laden weight (standard)18000 kg18000 kg
Permissible laden weight max.21000 kg21000 kg
Tandem-axle, 25/40 kph18000 kg18000 kg
Tandem-axle, 30/40 kph*18000 kg18000 kg
Tandem-axle, 30/40 kph* max.21000 kg21000 kg
Note: *EU-2015/68, only with dual line brake system--
Medien

Videos

Image gallery

Qualität


Qualität

Quality

We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.
