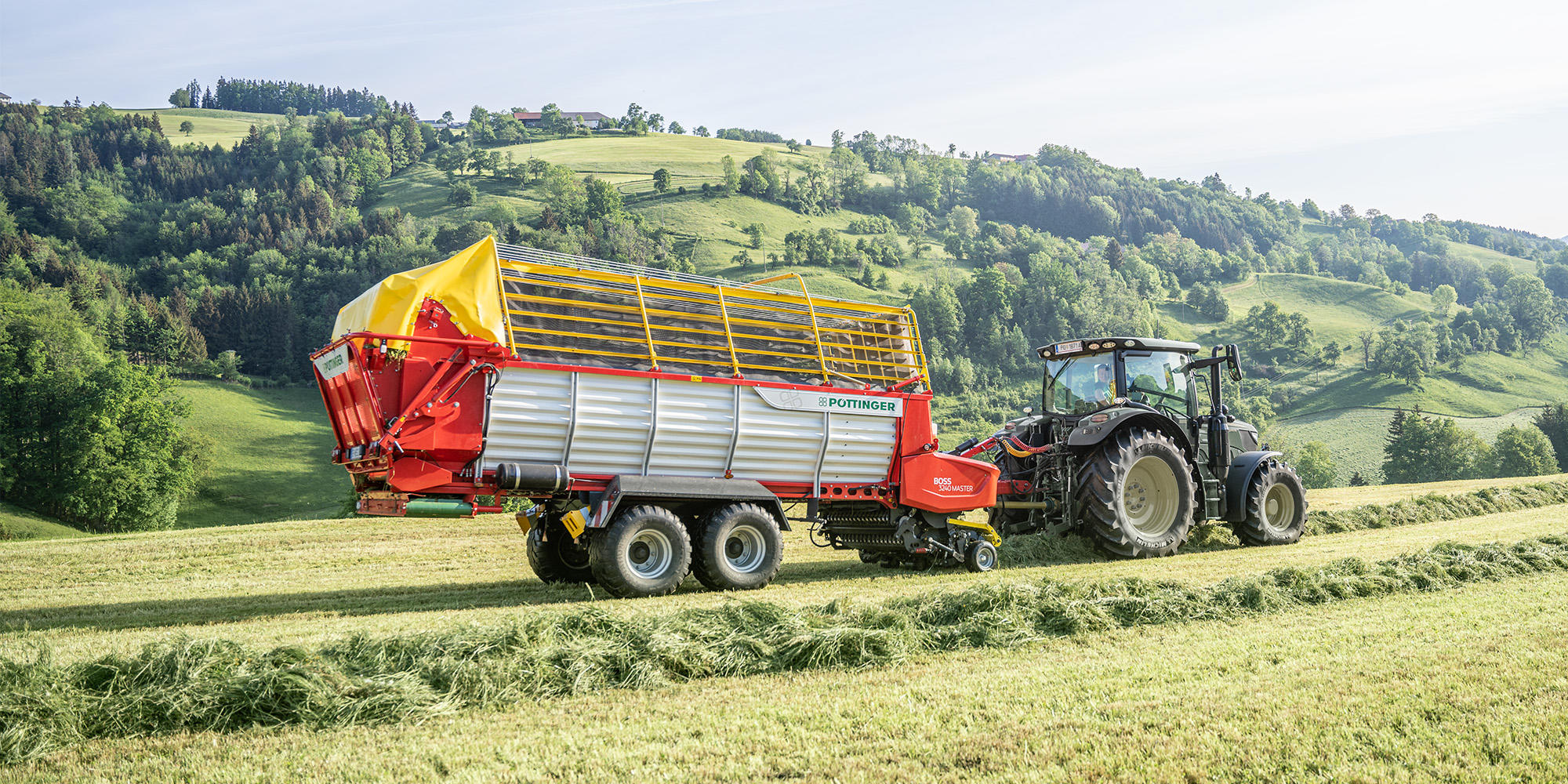

BOSS 3000 Loader wagon



The BOSS 3000 series sets the new standard in loader wagons for farms in hilly regions such as the foothills of the Alps. Optimum forage conservation, higher load capacities, maximum versatility, minimum maintenance requirements and many new smart options that were previously only available on larger loader wagons, are now also on board the BOSS 3000.

Prospekte Brochures

The BOSS 3000 series sets the new standard in loader wagons for farms in hilly regions such as the foothills of the Alps. Optimum forage conservation, higher load capacities, maximum versatility, minimum maintenance requirements and many new smart options that were previously only available on larger loader wagons, are now also on board the BOSS 3000.

Customer benefits



Technology

Technology

Technical data

 BOSS 3190BOSS 3190 LPBOSS 3210BOSS 3210 LPBOSS 3240
Loading volume (DIN 11741)18,7 m³18,7 m³21,3 m³21,3 m³23,9 m³
Theoretical chopped length43 mm43 mm43 mm43 mm43 mm
Number of knives max.31 pcs.31 pcs.31 pcs.31 pcs.31 pcs.
Pick-up recording width1,8 m1,8 m1,8 m1,8 m1,8 m
Length7,45 m7,45 m8,07 m8,07 m8,69 m
Width2,36 m2,58 m2,36 m2,58 m2,36 m
Height3,26 m3,07 m3,26 m3,07 m3,26 m
Height with opened tailgate3,49 m3,31 m3,49 m3,31 m3,49 m

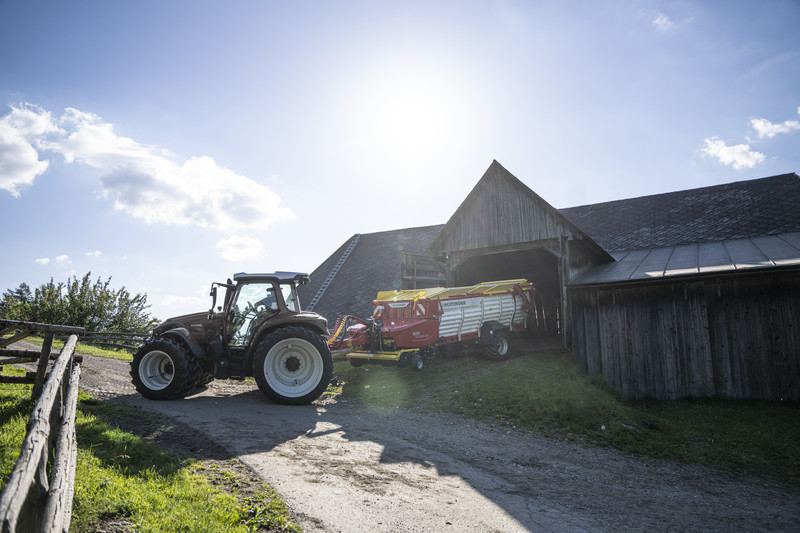

Height folded down2,39 m2,21 m2,39 m2,21 m2,39 m
Number of scraper floor chains2 pcs.2 pcs.2 pcs.2 pcs.2 pcs.
Length loading area (Width 1,56)4,59 m4,59 m5,21 m5,21 m5,83 m
Track width1,85 m2,09 m1,85 m2,09 m1,85 m
Weight of basic version2825 kg2825 kg2950 kg2950 kg3750 kg
ChassisSingle axle Single axle Single axle Single axle Tandem axle
Single axle, 10 kph8000 kg8000 kg8000 kg8000 kg8000 kg
Single-axle, 25/40* kph, brakes8000 kg8000 kg8000 kg8000 kg8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg10500 kg10500 kg10500 kg10500 kg
Tandem-axle, 30/40 kph*10500 kg10500 kg10500 kg10500 kg10500 kg
Note: *EU-2015/68, only with dual line brake system-----
 BOSS 3240 LP
Loading volume (DIN 11741)23,9 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,69 m
Width2,69 m
Height3,07 m
Height with opened tailgate3,31 m
Height folded down2,21 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,83 m
Track width2,2 m
Weight of basic version3750 kg
ChassisTandem axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
BOSS 3190
Loading volume (DIN 11741)18,7 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length7,45 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)4,59 m
Track width1,85 m
Weight of basic version2825 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
BOSS 3190 LP
Loading volume (DIN 11741)18,7 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length7,45 m
Width2,58 m
Height3,07 m
Height with opened tailgate3,31 m
Height folded down2,21 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)4,59 m
Track width2,09 m
Weight of basic version2825 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
BOSS 3210
Loading volume (DIN 11741)21,3 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,07 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,21 m
Track width1,85 m
Weight of basic version2950 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
BOSS 3210 LP
Loading volume (DIN 11741)21,3 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,07 m
Width2,58 m
Height3,07 m
Height with opened tailgate3,31 m
Height folded down2,21 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,21 m
Track width2,09 m
Weight of basic version2950 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
BOSS 3240
Loading volume (DIN 11741)23,9 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,69 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,83 m
Track width1,85 m
Weight of basic version3750 kg
ChassisTandem axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
BOSS 3240 LP
Loading volume (DIN 11741)23,9 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,69 m
Width2,69 m
Height3,07 m
Height with opened tailgate3,31 m
Height folded down2,21 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,83 m
Track width2,2 m
Weight of basic version3750 kg
ChassisTandem axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-

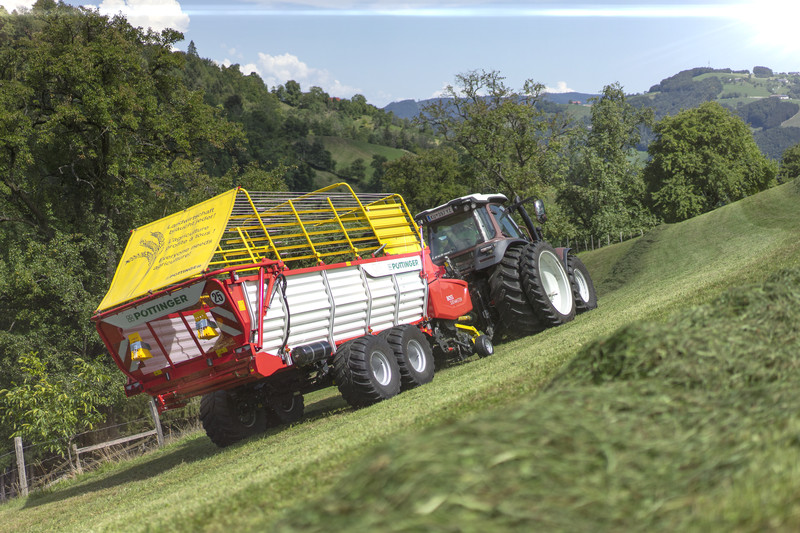

 BOSS 3190 LP MASTERBOSS 3190 MASTERBOSS 3210 DB MASTERBOSS 3210 LP MASTERBOSS 3210 MASTER
Loading volume (DIN 11741)18,7 m³18,7 m³20,5 m³21,3 m³21,3 m³
Theoretical chopped length43 mm43 mm43 mm43 mm43 mm
Number of knives max.31 pcs.31 pcs.31 pcs.31 pcs.31 pcs.
Pick-up recording width1,8 m1,8 m1,8 m1,8 m1,8 m
Length7,45 m7,45 m8,07 m8,07 m8,07 m
Width2,58 m2,36 m2,36 m2,58 m2,36 m
Height3,07 m3,26 m3,26 m3,07 m3,26 m
Height with opened tailgate3,31 m3,49 m3,49 m3,31 m3,49 m
Height folded down2,21 m2,39 m2,39 m2,21 m2,39 m
Number of scraper floor chains2 pcs.2 pcs.2 pcs.2 pcs.2 pcs.
Length loading area (Width 1,56)4,59 m4,59 m5,21 m5,21 m5,21 m
Track width2,09 m1,85 m1,85 m2,09 m1,85 m
Weight of basic version2825 kg2825 kg3450 kg2950 kg2950 kg
ChassisSingle axle Single axle Single axle Single axle Single axle
Single axle, 10 kph8000 kg8000 kg8000 kg8000 kg8000 kg
Single-axle, 25/40* kph, brakes8000 kg8000 kg8000 kg8000 kg8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg10500 kg10500 kg10500 kg10500 kg
Tandem-axle, 30/40 kph*10500 kg10500 kg10500 kg10500 kg10500 kg
Note: *EU-2015/68, only with dual line brake system-----

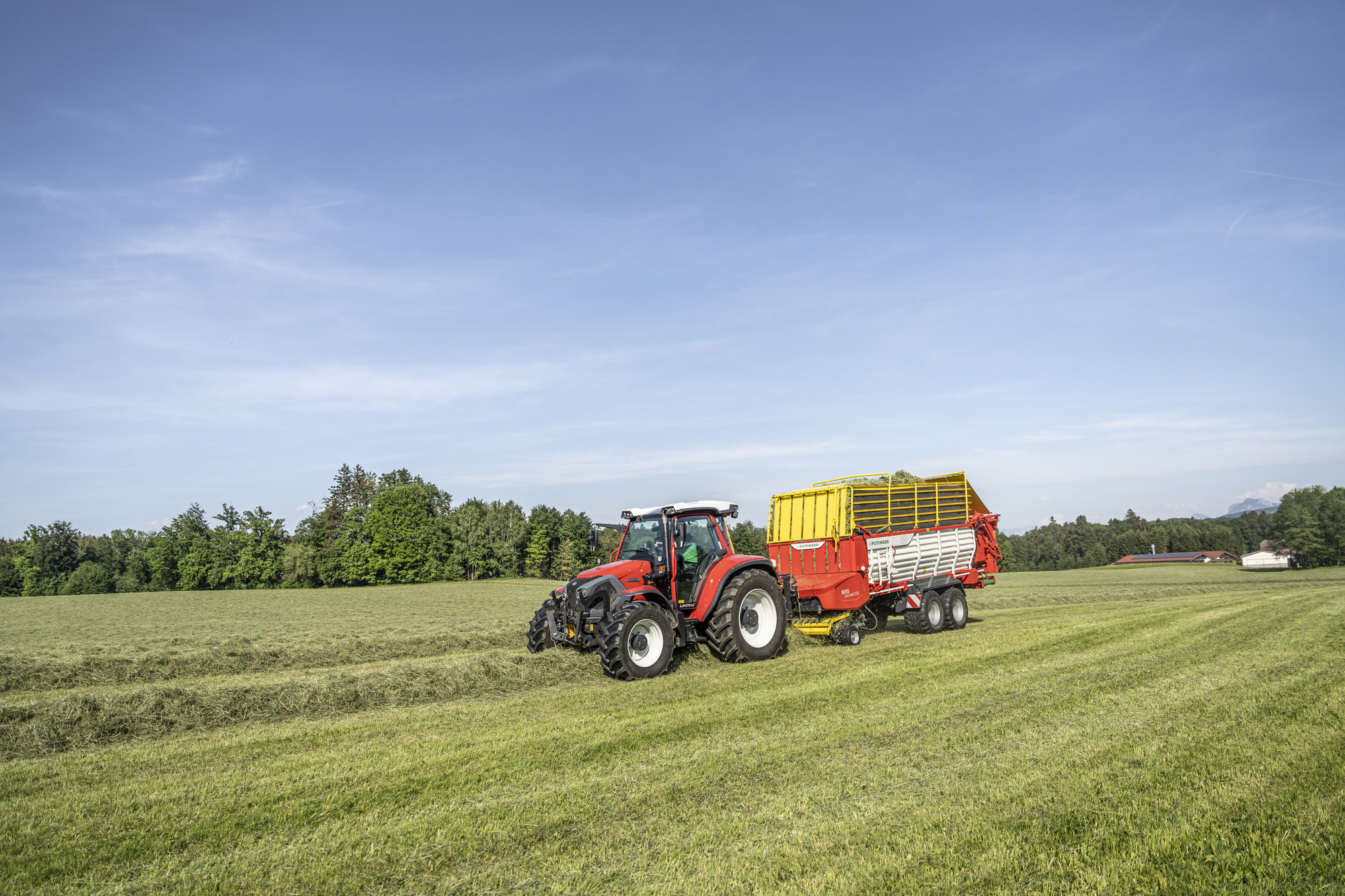

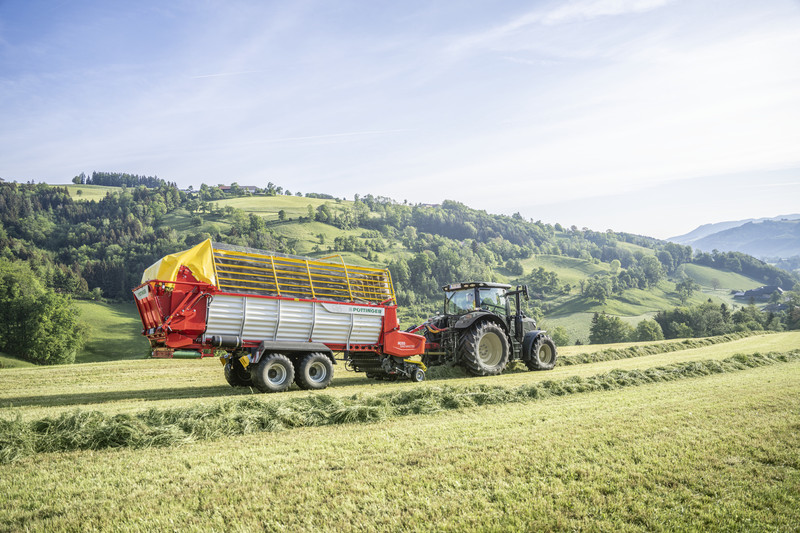

 BOSS 3240 DB MASTERBOSS 3240 LP MASTERBOSS 3240 MASTERBOSS 3270 MASTER
Loading volume (DIN 11741)23,1 m³23,9 m³23,9 m³26,5 m³
Theoretical chopped length43 mm43 mm43 mm172 mm
Number of knives max.31 pcs.31 pcs.31 pcs.6 pcs.
Pick-up recording width1,8 m1,8 m1,8 m1,8 m
Length8,69 m8,69 m8,69 m9,31 m
Width2,36 m2,69 m2,36 m2,36 m
Height3,26 m3,07 m3,26 m3,26 m
Height with opened tailgate3,49 m3,31 m3,49 m3,49 m
Height folded down2,39 m2,21 m2,39 m2,39 m
Number of scraper floor chains2 pcs.2 pcs.2 pcs.2 pcs.
Length loading area (Width 1,56)5,83 m5,83 m5,83 m6,45 m
Track width1,85 m2,2 m1,85 m1,85 m
Weight of basic version4250 kg3750 kg3750 kg4100 kg
ChassisTandem axle Tandem axle Tandem axle Tandem axle
Single axle, 10 kph-8000 kg8000 kg-
Single-axle, 25/40* kph, brakes-8000 kg8000 kg-
Tandem-axle, 25/40 kph, brakes10500 kg10500 kg10500 kg10500 kg
Tandem-axle, 30/40 kph*10500 kg10500 kg10500 kg10500 kg
Note: *EU-2015/68, only with dual line brake system----
BOSS 3190 LP MASTER
Loading volume (DIN 11741)18,7 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length7,45 m
Width2,58 m
Height3,07 m
Height with opened tailgate3,31 m
Height folded down2,21 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)4,59 m
Track width2,09 m
Weight of basic version2825 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-

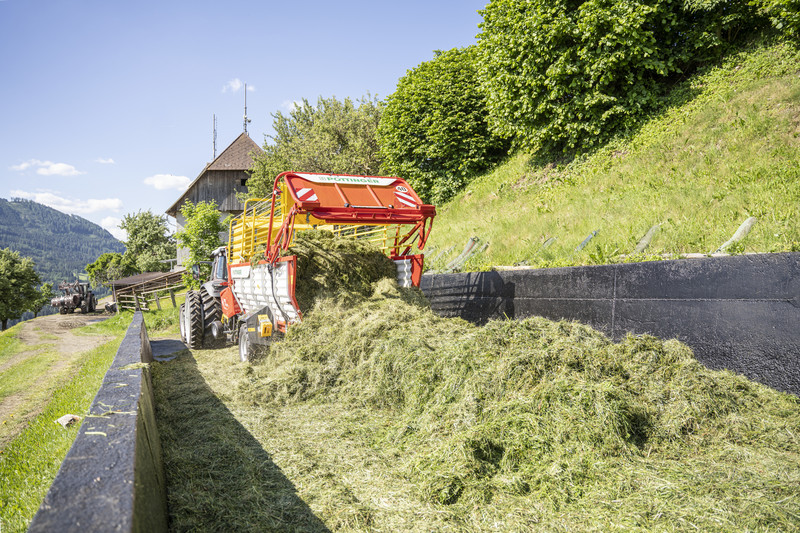

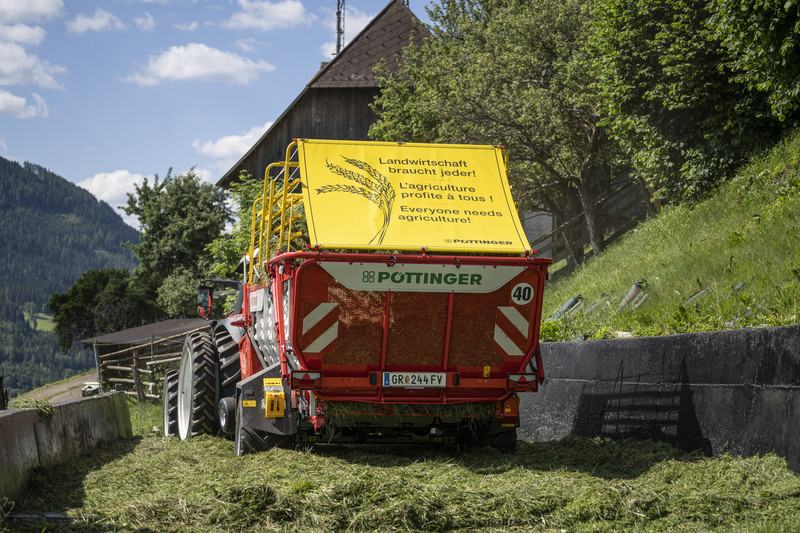

BOSS 3190 MASTER
Loading volume (DIN 11741)18,7 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length7,45 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)4,59 m
Track width1,85 m
Weight of basic version2825 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
BOSS 3210 DB MASTER
Loading volume (DIN 11741)20,5 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,07 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,21 m
Track width1,85 m
Weight of basic version3450 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
BOSS 3210 LP MASTER
Loading volume (DIN 11741)21,3 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,07 m
Width2,58 m
Height3,07 m
Height with opened tailgate3,31 m
Height folded down2,21 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,21 m
Track width2,09 m
Weight of basic version2950 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
BOSS 3210 MASTER
Loading volume (DIN 11741)21,3 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,07 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,21 m
Track width1,85 m
Weight of basic version2950 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
BOSS 3240 DB MASTER
Loading volume (DIN 11741)23,1 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,69 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,83 m
Track width1,85 m
Weight of basic version4250 kg
ChassisTandem axle
Single axle, 10 kph-
Single-axle, 25/40* kph, brakes-
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
BOSS 3240 LP MASTER
Loading volume (DIN 11741)23,9 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,69 m
Width2,69 m
Height3,07 m
Height with opened tailgate3,31 m
Height folded down2,21 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,83 m
Track width2,2 m
Weight of basic version3750 kg
ChassisTandem axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-

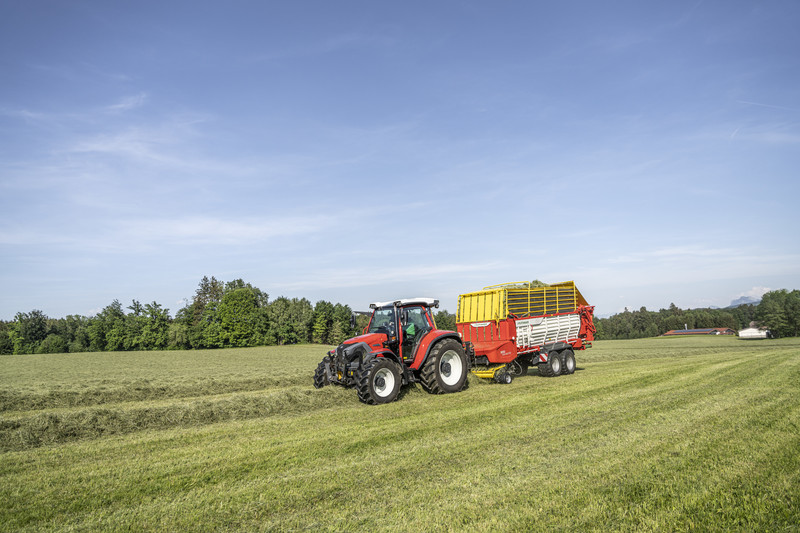

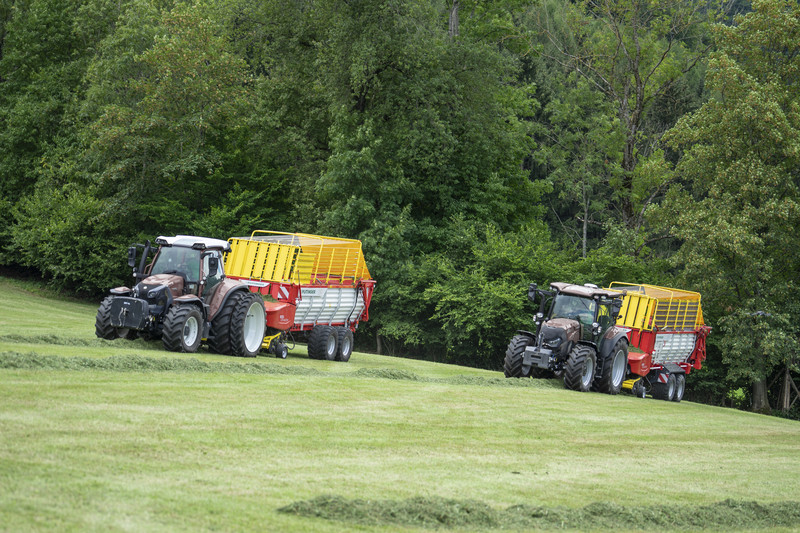

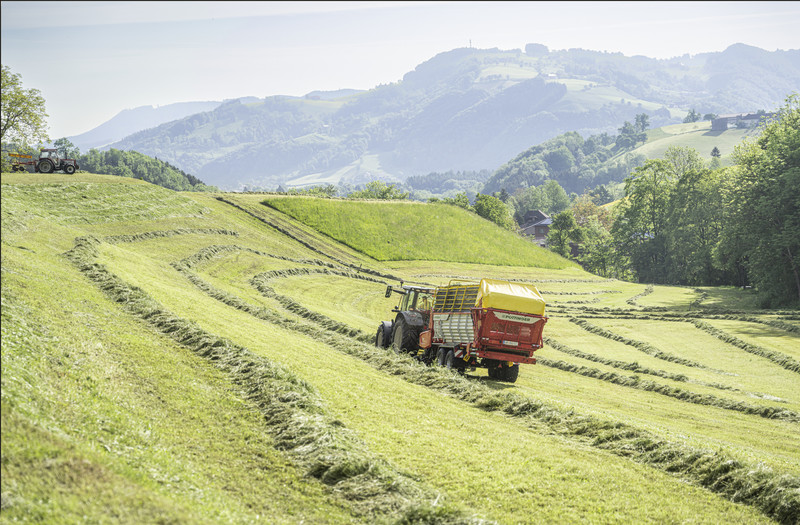

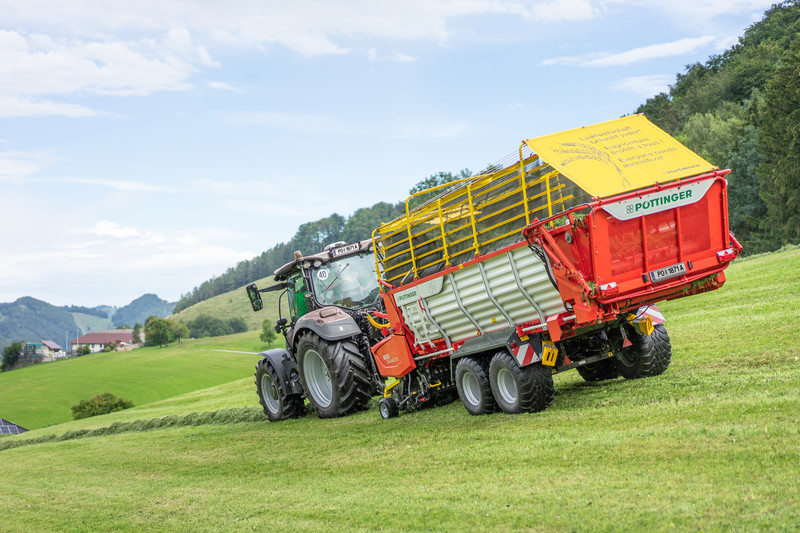

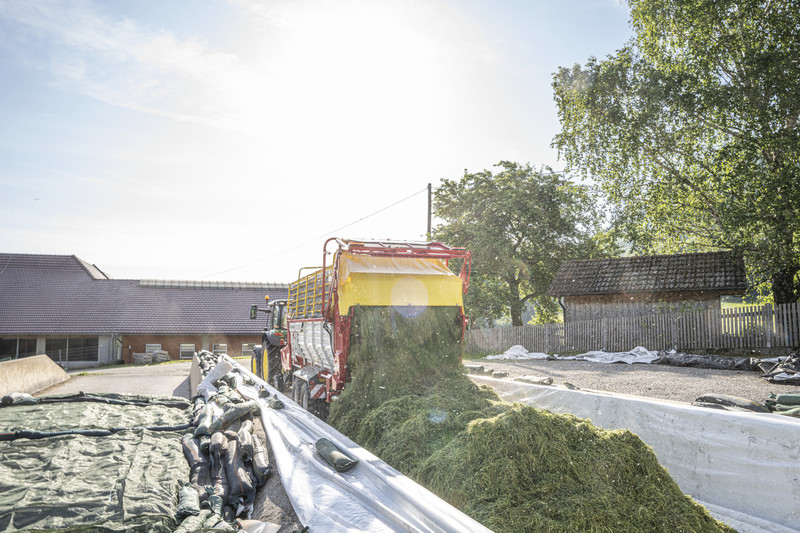

BOSS 3240 MASTER
Loading volume (DIN 11741)23,9 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,69 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,83 m
Track width1,85 m
Weight of basic version3750 kg
ChassisTandem axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-

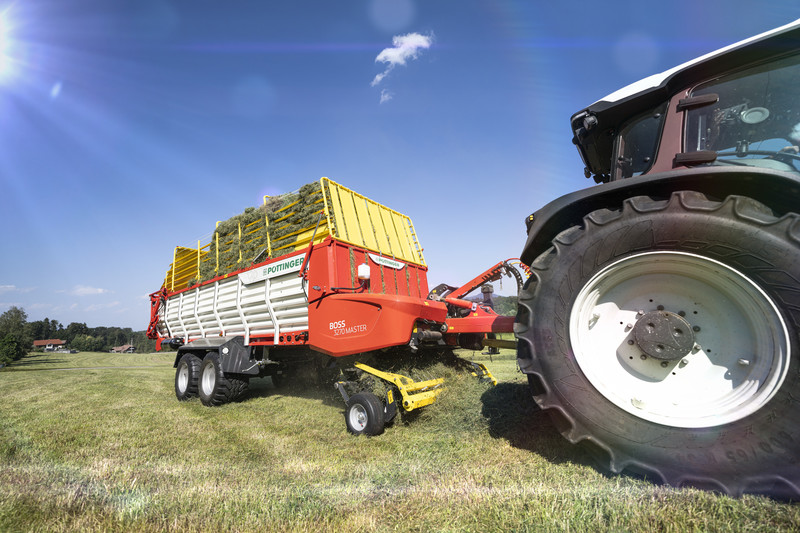

BOSS 3270 MASTER
Loading volume (DIN 11741)26,5 m³
Theoretical chopped length172 mm
Number of knives max.6 pcs.
Pick-up recording width1,8 m
Length9,31 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)6,45 m
Track width1,85 m
Weight of basic version4100 kg
ChassisTandem axle
Single axle, 10 kph-
Single-axle, 25/40* kph, brakes-
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-


MY POETTINGER

MyPÖTTINGER


  • Get valuable information and tips on all PÖTTINGER machines
  • Specific information on your PÖTTINGER machines in "My Machines".
  • Instruction manuals, spare parts lists, maintenance information, as well as all technical details available online
  • Machine-specific documentation for all PÖTTINGER machines built from 1997 onwards available online

www.mypoettinger.com


Medien

Media

Quality
Quality
We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.

Login Partner Portal

Request user | Forgot Password?

Start Remote Support

We use cookies and tracking technologies


User-friendliness is important to us, which is why we are constantly developing the offers and online services available on our website. We would like to show content and advertising you are interested in. Continuing to browse the website means that cookies will be used. Cookies are only used in relation to personalised Google marketing products if you give your full consent ("Agree to all"). You can also customise the settings using the checkboxes provided.

Certain web technologies and cookies help to make this website easily accessible and user friendly. This covers essential basic functionalities, such as navigating the website, the way it is displayed in your browser and requesting your consent. This website will not work without the web technologies and cookies mentioned above.

Purpose of cookie

Duration

Accept-Cookie

Saves information if the "Accept cookies" banner was accepted or not.

6 Months

Country (layer) and language (lang)

Saves the country and language selected by the user.

6 Months

More Info

We are constantly striving to improve the user-friendliness and performance of our website. That is why we use analysis technologies (including cookies), which monitor and evaluate anonymously which contents of our website are used and how often they are accessed.

Purpose of cookie

Duration

Google Analytics

Analysis of how the website is used (see below).

6 Months

More Info

We use web technologies (including cookies) provided by several partner companies to ensure we show you relevant content on our website and social media channels. This means that the content displayed is customised and displayed according to the way you use our website.

Purpose of cookie

Duration

YouTube

We link to YouTube videos from our website and use the extended data protection provided by YouTube. YouTube does not save any information about visitors to this website, unless you watch a video.Find out more here:https://support.google.com/youtube/answer/171780?hl=dehttps://www.google.de/intl/de/policies/privacy/We do not have any control over YouTube cookies, but you can block these cookies in your browser settings.

6 Months

More Info
More Info
Save
Select all
Save
Select all
Loading...
