BOSS 3000 Loader wagon



The BOSS 3000 series sets the new standard in loader wagons for farms in hilly regions such as the foothills of the Alps. With a 170 mm freedom of movement on the pick-up, clean and tidy collection on bumpy terrain is ensured. These loader wagons ensure optimum forage conservation and offer a choice of two different loading systems: The SUPERMATIC loading unit on BOSS models features tine conveyors that handle the forage particularly smoothly and gently and has a low power requirement. The EVOMATIC loading unit on the BOSS MASTER has fixed, low-maintenance conveyor elements and is extremely powerful. BOSS 3000 series loader wagons deliver higher throughput capacities, maximum versatility, and minimum maintenance requirements.

Prospekte Brochures

The BOSS 3000 series sets the new standard in loader wagons for farms in hilly regions such as the foothills of the Alps. With a 170 mm freedom of movement on the pick-up, clean and tidy collection on bumpy terrain is ensured. These loader wagons ensure optimum forage conservation and offer a choice of two different loading systems: The SUPERMATIC loading unit on BOSS models features tine conveyors that handle the forage particularly smoothly and gently and has a low power requirement. The EVOMATIC loading unit on the BOSS MASTER has fixed, low-maintenance conveyor elements and is extremely powerful. BOSS 3000 series loader wagons deliver higher throughput capacities, maximum versatility, and minimum maintenance requirements.

Customer benefits



Technology

Technology

Technical data

 BOSS 3190BOSS 3190 LPBOSS 3210BOSS 3210 LPBOSS 3240
ConfigurateConfigurateConfigurateConfigurateConfigurate
Loading volume (DIN 11741)18,7 m³18,7 m³21,3 m³21,3 m³23,9 m³
Theoretical chopped length43 mm43 mm43 mm43 mm43 mm
Number of knives max.31 pcs.31 pcs.31 pcs.31 pcs.31 pcs.
Pick-up recording width1,8 m1,8 m1,8 m1,8 m1,8 m
Length7,45 m7,45 m8,07 m8,07 m8,69 m
Width2,36 m2,58 m2,36 m2,58 m2,36 m
Height3,26 m3,07 m3,26 m3,07 m3,26 m
Height with opened tailgate3,49 m3,31 m3,49 m3,31 m3,49 m
Height folded down2,39 m2,21 m2,39 m2,21 m2,39 m
Number of scraper floor chains2 pcs.2 pcs.2 pcs.2 pcs.2 pcs.
Length loading area (Width 1,56)4,59 m4,59 m5,21 m5,21 m5,83 m
Track width1,85 m2,09 m1,85 m2,09 m1,85 m
Weight of basic version2825 kg2825 kg2950 kg2950 kg3750 kg
ChassisSingle axle Single axle Single axle Single axle Tandem axle
Single axle, 10 kph8000 kg8000 kg8000 kg8000 kg8000 kg
Single-axle, 25/40* kph, brakes8000 kg8000 kg8000 kg8000 kg8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg10500 kg10500 kg10500 kg10500 kg
Tandem-axle, 30/40 kph*10500 kg10500 kg10500 kg10500 kg10500 kg
Note: *EU-2015/68, only with dual line brake system-----
Standard EquipmentStandard EquipmentStandard EquipmentStandard EquipmentStandard Equipment
 BOSS 3240 LP
Configurate
Loading volume (DIN 11741)23,9 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,69 m
Width2,69 m
Height3,07 m
Height with opened tailgate3,31 m
Height folded down2,21 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,83 m
Track width2,2 m
Weight of basic version3750 kg
ChassisTandem axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
Standard Equipment
BOSS 3190
Configurate
Loading volume (DIN 11741)18,7 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length7,45 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)4,59 m
Track width1,85 m
Weight of basic version2825 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
Standard Equipment
BOSS 3190 LP
Configurate
Loading volume (DIN 11741)18,7 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length7,45 m
Width2,58 m
Height3,07 m
Height with opened tailgate3,31 m
Height folded down2,21 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)4,59 m
Track width2,09 m
Weight of basic version2825 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
Standard Equipment
BOSS 3210
Configurate
Loading volume (DIN 11741)21,3 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,07 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,21 m
Track width1,85 m
Weight of basic version2950 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
Standard Equipment
BOSS 3210 LP
Configurate
Loading volume (DIN 11741)21,3 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,07 m
Width2,58 m
Height3,07 m
Height with opened tailgate3,31 m
Height folded down2,21 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,21 m
Track width2,09 m
Weight of basic version2950 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
Standard Equipment
BOSS 3240
Configurate
Loading volume (DIN 11741)23,9 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,69 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,83 m
Track width1,85 m
Weight of basic version3750 kg
ChassisTandem axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
Standard Equipment
BOSS 3240 LP
Configurate
Loading volume (DIN 11741)23,9 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,69 m
Width2,69 m
Height3,07 m
Height with opened tailgate3,31 m
Height folded down2,21 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,83 m
Track width2,2 m
Weight of basic version3750 kg
ChassisTandem axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
Standard Equipment
 BOSS 3190 LP MASTERBOSS 3190 MASTERBOSS 3210 DB MASTERBOSS 3210 LP MASTERBOSS 3210 MASTER
ConfigurateConfigurateConfigurateConfigurateConfigurate
Loading volume (DIN 11741)18,7 m³18,7 m³20,5 m³21,3 m³21,3 m³
Theoretical chopped length43 mm43 mm43 mm43 mm43 mm
Number of knives max.31 pcs.31 pcs.31 pcs.31 pcs.31 pcs.
Pick-up recording width1,8 m1,8 m1,8 m1,8 m1,8 m
Length7,45 m7,45 m8,07 m8,07 m8,07 m
Width2,58 m2,36 m2,36 m2,58 m2,36 m
Height3,07 m3,26 m3,26 m3,07 m3,26 m
Height with opened tailgate3,31 m3,49 m3,49 m3,31 m3,49 m
Height folded down2,21 m2,39 m2,39 m2,21 m2,39 m
Number of scraper floor chains2 pcs.2 pcs.2 pcs.2 pcs.2 pcs.
Length loading area (Width 1,56)4,59 m4,59 m5,21 m5,21 m5,21 m
Track width2,09 m1,85 m1,85 m2,09 m1,85 m
Weight of basic version2825 kg2825 kg3450 kg2950 kg2950 kg
ChassisSingle axle Single axle Single axle Single axle Single axle
Single axle, 10 kph8000 kg8000 kg8000 kg8000 kg8000 kg
Single-axle, 25/40* kph, brakes8000 kg8000 kg8000 kg8000 kg8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg10500 kg10500 kg10500 kg10500 kg
Tandem-axle, 30/40 kph*10500 kg10500 kg10500 kg10500 kg10500 kg
Note: *EU-2015/68, only with dual line brake system-----
Standard EquipmentStandard EquipmentStandard EquipmentStandard EquipmentStandard Equipment

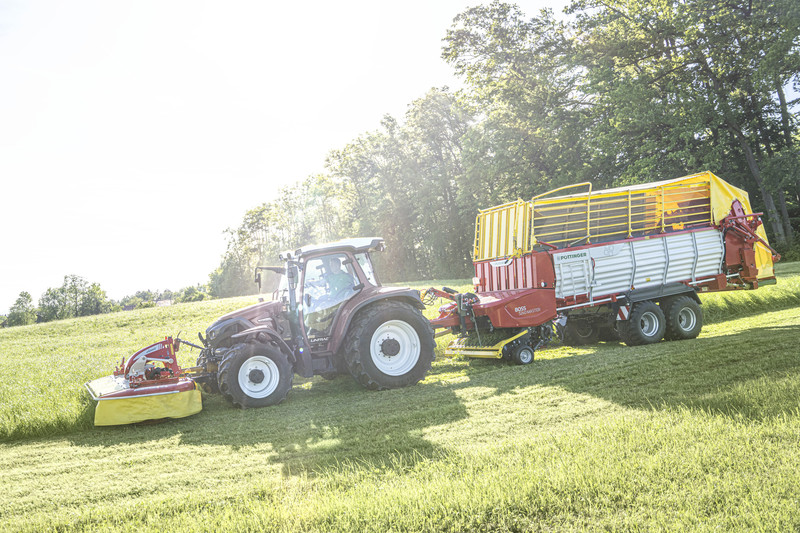

 BOSS 3240 DB MASTERBOSS 3240 LP MASTERBOSS 3240 MASTERBOSS 3270 MASTER
ConfigurateConfigurateConfigurateConfigurate
Loading volume (DIN 11741)23,1 m³23,9 m³23,9 m³26,5 m³
Theoretical chopped length43 mm43 mm43 mm172 mm
Number of knives max.31 pcs.31 pcs.31 pcs.6 pcs.
Pick-up recording width1,8 m1,8 m1,8 m1,8 m
Length8,69 m8,69 m8,69 m9,31 m
Width2,36 m2,69 m2,36 m2,36 m
Height3,26 m3,07 m3,26 m3,26 m
Height with opened tailgate3,49 m3,31 m3,49 m3,49 m
Height folded down2,39 m2,21 m2,39 m2,39 m
Number of scraper floor chains2 pcs.2 pcs.2 pcs.2 pcs.
Length loading area (Width 1,56)5,83 m5,83 m5,83 m6,45 m
Track width1,85 m2,2 m1,85 m1,85 m
Weight of basic version4250 kg3750 kg3750 kg4100 kg
ChassisTandem axle Tandem axle Tandem axle Tandem axle
Single axle, 10 kph-8000 kg8000 kg-
Single-axle, 25/40* kph, brakes-8000 kg8000 kg-
Tandem-axle, 25/40 kph, brakes10500 kg10500 kg10500 kg10500 kg
Tandem-axle, 30/40 kph*10500 kg10500 kg10500 kg10500 kg
Note: *EU-2015/68, only with dual line brake system----
Standard EquipmentStandard EquipmentStandard EquipmentStandard Equipment
BOSS 3190 LP MASTER
Configurate
Loading volume (DIN 11741)18,7 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length7,45 m
Width2,58 m
Height3,07 m
Height with opened tailgate3,31 m
Height folded down2,21 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)4,59 m
Track width2,09 m
Weight of basic version2825 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
Standard Equipment
BOSS 3190 MASTER
Configurate
Loading volume (DIN 11741)18,7 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length7,45 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)4,59 m
Track width1,85 m
Weight of basic version2825 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
Standard Equipment
BOSS 3210 DB MASTER
Configurate
Loading volume (DIN 11741)20,5 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,07 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,21 m
Track width1,85 m
Weight of basic version3450 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
Standard Equipment
BOSS 3210 LP MASTER
Configurate
Loading volume (DIN 11741)21,3 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,07 m
Width2,58 m
Height3,07 m
Height with opened tailgate3,31 m
Height folded down2,21 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,21 m
Track width2,09 m
Weight of basic version2950 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
Standard Equipment
BOSS 3210 MASTER
Configurate
Loading volume (DIN 11741)21,3 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,07 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,21 m
Track width1,85 m
Weight of basic version2950 kg
ChassisSingle axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
Standard Equipment
BOSS 3240 DB MASTER
Configurate
Loading volume (DIN 11741)23,1 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,69 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,83 m
Track width1,85 m
Weight of basic version4250 kg
ChassisTandem axle
Single axle, 10 kph-
Single-axle, 25/40* kph, brakes-
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
Standard Equipment
BOSS 3240 LP MASTER
Configurate
Loading volume (DIN 11741)23,9 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,69 m
Width2,69 m
Height3,07 m
Height with opened tailgate3,31 m
Height folded down2,21 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,83 m
Track width2,2 m
Weight of basic version3750 kg
ChassisTandem axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
Standard Equipment
BOSS 3240 MASTER
Configurate
Loading volume (DIN 11741)23,9 m³
Theoretical chopped length43 mm
Number of knives max.31 pcs.
Pick-up recording width1,8 m
Length8,69 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)5,83 m
Track width1,85 m
Weight of basic version3750 kg
ChassisTandem axle
Single axle, 10 kph8000 kg
Single-axle, 25/40* kph, brakes8000 kg
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
Standard Equipment
BOSS 3270 MASTER
Configurate
Loading volume (DIN 11741)26,5 m³
Theoretical chopped length172 mm
Number of knives max.6 pcs.
Pick-up recording width1,8 m
Length9,31 m
Width2,36 m
Height3,26 m
Height with opened tailgate3,49 m
Height folded down2,39 m
Number of scraper floor chains2 pcs.
Length loading area (Width 1,56)6,45 m
Track width1,85 m
Weight of basic version4100 kg
ChassisTandem axle
Single axle, 10 kph-
Single-axle, 25/40* kph, brakes-
Tandem-axle, 25/40 kph, brakes10500 kg
Tandem-axle, 30/40 kph*10500 kg
Note: *EU-2015/68, only with dual line brake system-
Standard Equipment


MY POETTINGER

MyPÖTTINGER


  • Get valuable information and tips on all PÖTTINGER machines
  • Specific information on your PÖTTINGER machines in "My Machines".
  • Instruction manuals, spare parts lists, maintenance information, as well as all technical details available online
  • Machine-specific documentation for all PÖTTINGER machines built from 1997 onwards available online

www.mypoettinger.com


Medien

Media

Quality
Quality
We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.

Login Partner Portal

Request user | Forgot Password?

Start Remote Support
