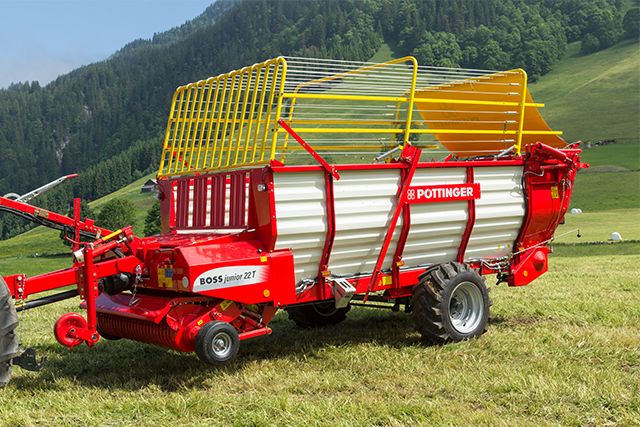

Especially lightweight low-profile loader wagon for compact tractors. These low-profile wagons have 11.5 m3 3 or 14.25 m33 DIN volumes and up to 12 knives.
Technical data
| BOSS JUNIOR 17 T | BOSS JUNIOR 22 T | ||||
|---|---|---|---|---|---|
| Length | 5,67 m | 6,35 m | |||
| Width | 2,41 m | 2,41 m | |||
| Height | 2,73 m | 2,73 m | |||
| Height with opened tailgate | 2,77 m | 2,77 m | |||
| Height folded down | 2,02 m | 2,02 m | |||
| Number of scraper floor chains | 2 pcs. | 2 pcs. | |||
| Length loading area (Width 1,5) | 3,02 m | 3,7 m | |||
| Loading volume (DIN 11741) | 11,5 m³ | 14,25 m³ | |||
| Number of knives max. | 12 pcs. | 12 pcs. | |||
| Theoretical chopped length | 120 mm | 120 mm | |||
| Pick-up recording width | 1,55 m | 1,55 m | |||
| Track width | 2,02 m | 2,02 m | |||
| Weight of basic version | 1650 kg | 1750 kg | |||
| Chassis | Single axle | Single axle | |||
| Single-axle, 10/25 kph | 4000 kg | 4000 kg | |||
| Single-axle, 25 kph, brakes | 4000 kg | 4000 kg | |||
| Single-axle, 30 kph* | 4000 kg | 4000 kg | |||
| Note: *EU-2015/68, only with dual line brake system | - | - |
BOSS JUNIOR 17 T
| Length | 5,67 m |
| Width | 2,41 m |
| Height | 2,73 m |
| Height with opened tailgate | 2,77 m |
| Height folded down | 2,02 m |
| Number of scraper floor chains | 2 pcs. |
| Length loading area (Width 1,5) | 3,02 m |
| Loading volume (DIN 11741) | 11,5 m³ |
| Number of knives max. | 12 pcs. |
| Theoretical chopped length | 120 mm |
| Pick-up recording width | 1,55 m |
| Track width | 2,02 m |
| Weight of basic version | 1650 kg |
| Chassis | Single axle |
| Single-axle, 10/25 kph | 4000 kg |
| Single-axle, 25 kph, brakes | 4000 kg |
| Single-axle, 30 kph* | 4000 kg |
| Note: *EU-2015/68, only with dual line brake system | - |
BOSS JUNIOR 22 T
| Length | 6,35 m |
| Width | 2,41 m |
| Height | 2,73 m |
| Height with opened tailgate | 2,77 m |
| Height folded down | 2,02 m |
| Number of scraper floor chains | 2 pcs. |
| Length loading area (Width 1,5) | 3,7 m |
| Loading volume (DIN 11741) | 14,25 m³ |
| Number of knives max. | 12 pcs. |
| Theoretical chopped length | 120 mm |
| Pick-up recording width | 1,55 m |
| Track width | 2,02 m |
| Weight of basic version | 1750 kg |
| Chassis | Single axle |
| Single-axle, 10/25 kph | 4000 kg |
| Single-axle, 25 kph, brakes | 4000 kg |
| Single-axle, 30 kph* | 4000 kg |
| Note: *EU-2015/68, only with dual line brake system | - |
