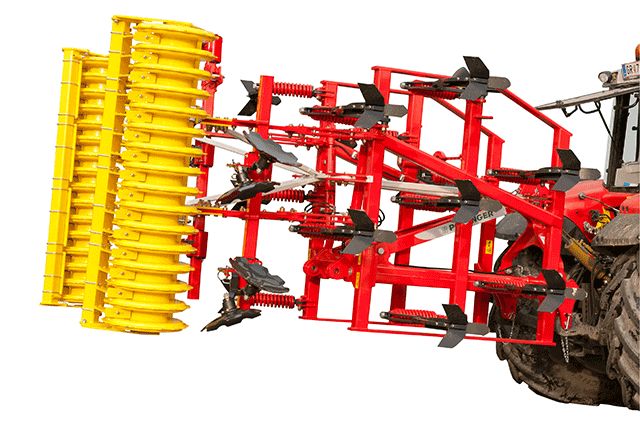

SYNKRO 3-row mounted stubble cultivators



You can use our SYNKRO three-gang stubble cultivators for shallow and deep tillage. A central adjustment system allows you to adjust the working depth quickly and easily.

Video abspielen Videos Prospekte Brochures

You can use our SYNKRO three-gang stubble cultivators for shallow and deep tillage. A central adjustment system allows you to adjust the working depth quickly and easily.

Customer benefits



Technology

Technology

Technical data

 SYNKRO 3030SYNKRO 3030 NOVASYNKRO 3530SYNKRO 3530 NOVA
Working width3 m3 m3,5 m3,5 m
Spacing270 mm270 mm285 mm285 mm
Under frame clearance85 cm85 cm85 cm85 cm
Power requirement110 hp110 hp130 hp130 hp
Tines11 pcs.11 pcs.12 pcs.12 pcs.
Row spacing75 cm75 cm75 cm75 cm

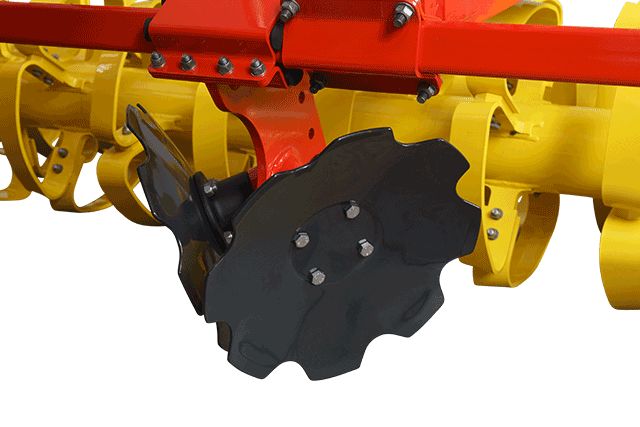

Levelling discs6 pcs.6 pcs.7 pcs.7 pcs.

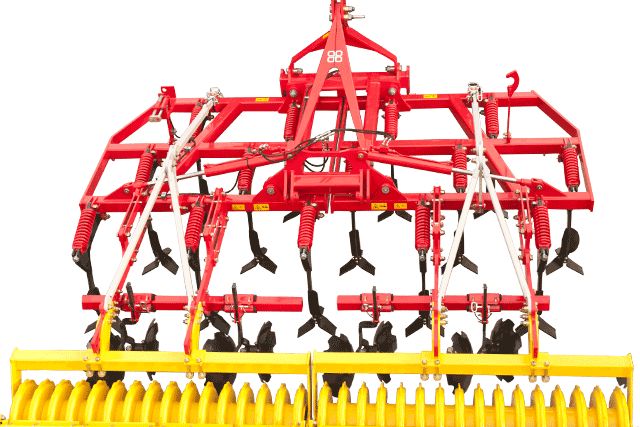

Beam dimensions100 x 100 mm100 x 100 mm100 x 100 mm100 x 100 mm

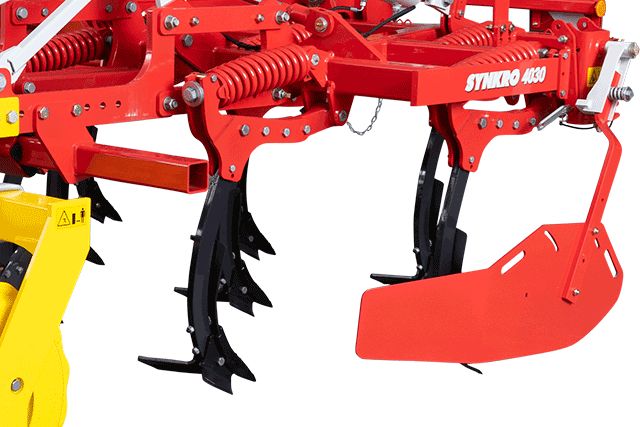

Triggering pressure of stone protection system-550 kg-550 kg
Clearance height-25 cm-25 cm
Transport width3 m3 m3,5 m3,5 m
Weight of basic version1020 kg1390 kg1160 kg1540 kg
Weight cage roller Ø 540 mm325 kg325 kg--
Weight cage roller Ø 660 mm425 kg425 kg--
Weight double cage roller 540/420 mm520 kg520 kg--
Weight Rotopack roller400 kg400 kg--
Weight knife ring roller Ø 540 mm420 kg420 kg470 kg470 kg
Weight pack ring roller Ø 550 mm595 kg595 kg710 kg710 kg

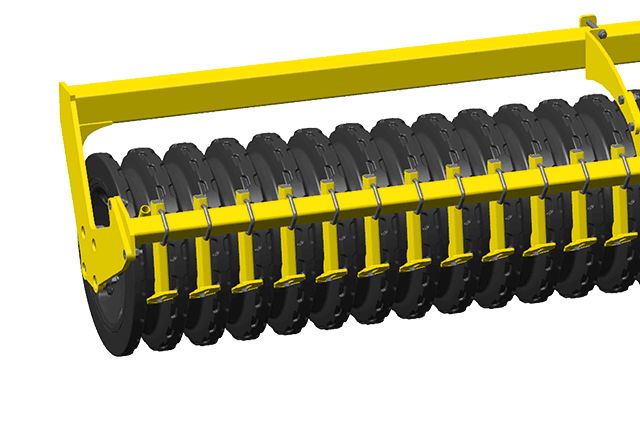

Weight rubber packer roller Ø 590 mm560 kg560 kg--
Weight CONOROLL Ø 540 mm430 kg430 kg510 kg510 kg
Weight tandem CONOROLL Ø 560 mm685 kg685 kg855 kg855 kg
Weight tandem U-profile roller 600 mm Ø----
SYNKRO 3030
Working width3 m
Spacing270 mm
Under frame clearance85 cm
Power requirement110 hp
Tines11 pcs.
Row spacing75 cm
Levelling discs6 pcs.
Beam dimensions100 x 100 mm
Triggering pressure of stone protection system-
Clearance height-
Transport width3 m
Weight of basic version1020 kg
Weight cage roller Ø 540 mm325 kg
Weight cage roller Ø 660 mm425 kg
Weight double cage roller 540/420 mm520 kg
Weight Rotopack roller400 kg
Weight knife ring roller Ø 540 mm420 kg
Weight pack ring roller Ø 550 mm595 kg
Weight rubber packer roller Ø 590 mm560 kg
Weight CONOROLL Ø 540 mm430 kg
Weight tandem CONOROLL Ø 560 mm685 kg
Weight tandem U-profile roller 600 mm Ø-
SYNKRO 3030 NOVA
Working width3 m
Spacing270 mm
Under frame clearance85 cm
Power requirement110 hp
Tines11 pcs.
Row spacing75 cm
Levelling discs6 pcs.
Beam dimensions100 x 100 mm
Triggering pressure of stone protection system550 kg
Clearance height25 cm
Transport width3 m
Weight of basic version1390 kg
Weight cage roller Ø 540 mm325 kg
Weight cage roller Ø 660 mm425 kg
Weight double cage roller 540/420 mm520 kg
Weight Rotopack roller400 kg
Weight knife ring roller Ø 540 mm420 kg
Weight pack ring roller Ø 550 mm595 kg
Weight rubber packer roller Ø 590 mm560 kg
Weight CONOROLL Ø 540 mm430 kg
Weight tandem CONOROLL Ø 560 mm685 kg
Weight tandem U-profile roller 600 mm Ø-
SYNKRO 3530
Working width3,5 m
Spacing285 mm
Under frame clearance85 cm
Power requirement130 hp
Tines12 pcs.
Row spacing75 cm
Levelling discs7 pcs.
Beam dimensions100 x 100 mm
Triggering pressure of stone protection system-
Clearance height-
Transport width3,5 m
Weight of basic version1160 kg
Weight cage roller Ø 540 mm-
Weight cage roller Ø 660 mm-
Weight double cage roller 540/420 mm-
Weight Rotopack roller-
Weight knife ring roller Ø 540 mm470 kg
Weight pack ring roller Ø 550 mm710 kg
Weight rubber packer roller Ø 590 mm-
Weight CONOROLL Ø 540 mm510 kg
Weight tandem CONOROLL Ø 560 mm855 kg
Weight tandem U-profile roller 600 mm Ø-
SYNKRO 3530 NOVA
Working width3,5 m
Spacing285 mm
Under frame clearance85 cm
Power requirement130 hp
Tines12 pcs.
Row spacing75 cm
Levelling discs7 pcs.
Beam dimensions100 x 100 mm
Triggering pressure of stone protection system550 kg
Clearance height25 cm
Transport width3,5 m
Weight of basic version1540 kg
Weight cage roller Ø 540 mm-
Weight cage roller Ø 660 mm-
Weight double cage roller 540/420 mm-
Weight Rotopack roller-
Weight knife ring roller Ø 540 mm470 kg
Weight pack ring roller Ø 550 mm710 kg
Weight rubber packer roller Ø 590 mm-
Weight CONOROLL Ø 540 mm510 kg
Weight tandem CONOROLL Ø 560 mm855 kg
Weight tandem U-profile roller 600 mm Ø-
 SYNKRO 4030 KSYNKRO 4030 K NOVASYNKRO 5030 KSYNKRO 5030 K NOVA
Working width4 m4 m5 m5 m
Spacing280 mm280 mm280 mm280 mm
Under frame clearance85 cm85 cm85 cm85 cm
Power requirement150 hp150 hp180 hp180 hp
Tines14 pcs.14 pcs.18 pcs.18 pcs.
Row spacing75 cm75 cm75 cm75 cm
Levelling discs8 pcs.8 pcs.11 pcs.11 pcs.
Beam dimensions100 x 100 mm100 x 100 mm100 x 100 mm100 x 100 mm
Triggering pressure of stone protection system-550 kg-550 kg
Clearance height-32 cm-32 cm
Transport width3 m3 m3 m3 m
Weight of basic version1825 kg2355 kg2490 kg3080 kg
Weight cage roller Ø 540 mm480 kg480 kg619 kg619 kg
Weight cage roller Ø 660 mm610 kg610 kg766 kg766 kg
Weight double cage roller 540/420 mm760 kg760 kg880 kg880 kg
Weight knife ring roller Ø 540 mm610 kg610 kg720 kg720 kg
Weight pack ring roller Ø 550 mm820 kg820 kg1010 kg1010 kg
Weight rubber packer roller Ø 590 mm--1000 kg1000 kg
Weight CONOROLL Ø 540 mm620 kg620 kg740 kg740 kg
Weight tandem CONOROLL Ø 560 mm950 kg950 kg1160 kg1160 kg
Weight tandem U-profile roller 600 mm Ø----
SYNKRO 4030 K
Working width4 m
Spacing280 mm
Under frame clearance85 cm
Power requirement150 hp
Tines14 pcs.
Row spacing75 cm
Levelling discs8 pcs.
Beam dimensions100 x 100 mm
Triggering pressure of stone protection system-
Clearance height-
Transport width3 m
Weight of basic version1825 kg
Weight cage roller Ø 540 mm480 kg
Weight cage roller Ø 660 mm610 kg
Weight double cage roller 540/420 mm760 kg
Weight knife ring roller Ø 540 mm610 kg
Weight pack ring roller Ø 550 mm820 kg
Weight rubber packer roller Ø 590 mm-
Weight CONOROLL Ø 540 mm620 kg
Weight tandem CONOROLL Ø 560 mm950 kg
Weight tandem U-profile roller 600 mm Ø-
SYNKRO 4030 K NOVA
Working width4 m
Spacing280 mm
Under frame clearance85 cm
Power requirement150 hp
Tines14 pcs.
Row spacing75 cm
Levelling discs8 pcs.
Beam dimensions100 x 100 mm
Triggering pressure of stone protection system550 kg
Clearance height32 cm
Transport width3 m
Weight of basic version2355 kg
Weight cage roller Ø 540 mm480 kg
Weight cage roller Ø 660 mm610 kg
Weight double cage roller 540/420 mm760 kg
Weight knife ring roller Ø 540 mm610 kg
Weight pack ring roller Ø 550 mm820 kg
Weight rubber packer roller Ø 590 mm-
Weight CONOROLL Ø 540 mm620 kg
Weight tandem CONOROLL Ø 560 mm950 kg
Weight tandem U-profile roller 600 mm Ø-
SYNKRO 5030 K
Working width5 m
Spacing280 mm
Under frame clearance85 cm
Power requirement180 hp
Tines18 pcs.
Row spacing75 cm
Levelling discs11 pcs.
Beam dimensions100 x 100 mm
Triggering pressure of stone protection system-
Clearance height-
Transport width3 m
Weight of basic version2490 kg
Weight cage roller Ø 540 mm619 kg
Weight cage roller Ø 660 mm766 kg
Weight double cage roller 540/420 mm880 kg
Weight knife ring roller Ø 540 mm720 kg
Weight pack ring roller Ø 550 mm1010 kg
Weight rubber packer roller Ø 590 mm1000 kg
Weight CONOROLL Ø 540 mm740 kg
Weight tandem CONOROLL Ø 560 mm1160 kg
Weight tandem U-profile roller 600 mm Ø-
SYNKRO 5030 K NOVA
Working width5 m
Spacing280 mm
Under frame clearance85 cm
Power requirement180 hp
Tines18 pcs.
Row spacing75 cm
Levelling discs11 pcs.
Beam dimensions100 x 100 mm
Triggering pressure of stone protection system550 kg
Clearance height32 cm
Transport width3 m
Weight of basic version3080 kg
Weight cage roller Ø 540 mm619 kg
Weight cage roller Ø 660 mm766 kg
Weight double cage roller 540/420 mm880 kg
Weight knife ring roller Ø 540 mm720 kg
Weight pack ring roller Ø 550 mm1010 kg
Weight rubber packer roller Ø 590 mm1000 kg
Weight CONOROLL Ø 540 mm740 kg
Weight tandem CONOROLL Ø 560 mm1160 kg
Weight tandem U-profile roller 600 mm Ø-


MY POETTINGER

MyPÖTTINGER


  • Get valuable information and tips on all PÖTTINGER machines
  • Specific information on your PÖTTINGER machines in "My Machines".
  • Instruction manuals, spare parts lists, maintenance information, as well as all technical details available online
  • Machine-specific documentation for all PÖTTINGER machines built from 1997 onwards available online

www.mypoettinger.com


Medien

Media

Videos

Farmer Kathi Huber working with the SYNKRO 4030 K mounted stubble cultivator
Farmer Kathi Huber working with the SYNKRO 4030 K mounted stubble cultivator

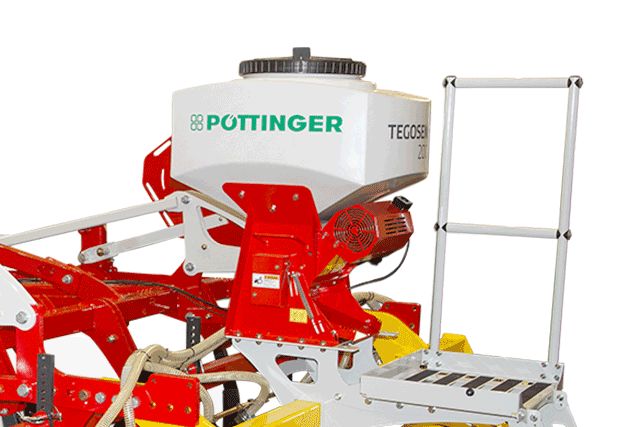

PÖTTINGER TEGOSEM catch crop sowing system [en]
