The best soil

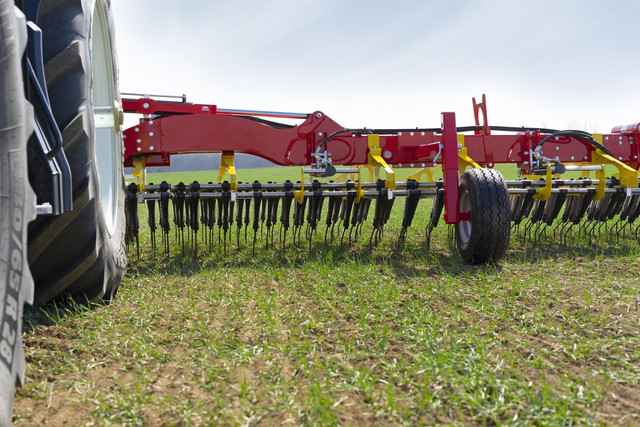

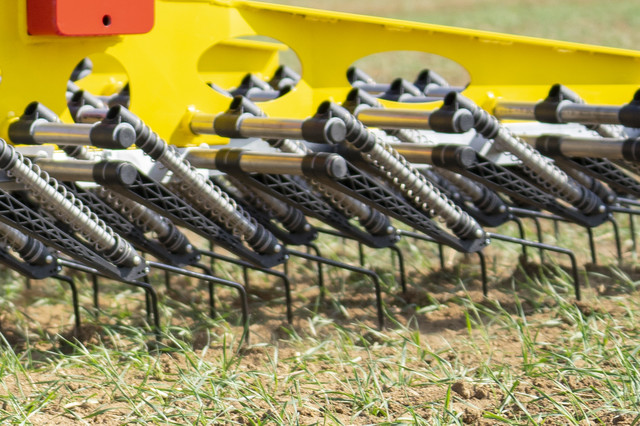

The new TINECARE V MASTER precision tine harrow combines the best working results with the highest productivity. In addition to its intuitive design of a compression spring tine system and large jockey wheels, the machine has a high-strength frame with optimum weight distribution. This combination ensures consistently high quality working results right up to the outermost tine. A working width of 12 m enables maximum output for the highest operating efficiency.
The new TINECARE V MASTER precision tine harrow combines the best working results with the highest productivity. In addition to its intuitive design of a compression spring tine system and large jockey wheels, the machine has a high-strength frame with optimum weight distribution. This combination ensures consistently high quality working results right up to the outermost tine. A working width of 12 m enables maximum output for the highest operating efficiency.
TINECARE V 12050 MASTER![]() | |||||
---|---|---|---|---|---|
Working width | 12 m | ||||
Spacing | 30 mm | ||||
Tine pressure adjustment range | 0,5 - 6 | ||||
Power requirement | 120 hp | ||||
Transport width | 2,95 m | ||||
Transport height | 4 m | ||||
Transport length | 3,05 m | ||||
Frame dimension | 120 x 180 mm | ||||
Clearance under tine frame | 590 mm | ||||
Number of rows | 6 pcs. | ||||
Gang spacing | 360 mm | ||||
Number of tines | 400 pcs. | ||||
Number of jockey wheels at the front | 4 pcs. | ||||
Jockey wheel dimension | 18,5 x 8,5 - 8 grooved profile |
Working width | 12 m |
Spacing | 30 mm |
Tine pressure adjustment range | 0,5 - 6 |
Power requirement | 120 hp |
Transport width | 2,95 m |
Transport height | 4 m |
Transport length | 3,05 m |
Frame dimension | 120 x 180 mm |
Clearance under tine frame | 590 mm |
Number of rows | 6 pcs. |
Gang spacing | 360 mm |
Number of tines | 400 pcs. |
Number of jockey wheels at the front | 4 pcs. |
Jockey wheel dimension | 18,5 x 8,5 - 8 grooved profile |
