Reliability
The perfect flow
The IMPRESS FC / VC PRO are designed for reliability. The controlled floating pick-up collects all the crop cleanly, even in difficult terrain, and transfers it to the rotor. This conveys it overhead, tangentially into the baling chamber. A reliable bale start is always guaranteed, even when using all 32 knives. The bale is bound reliably with net or binding film.

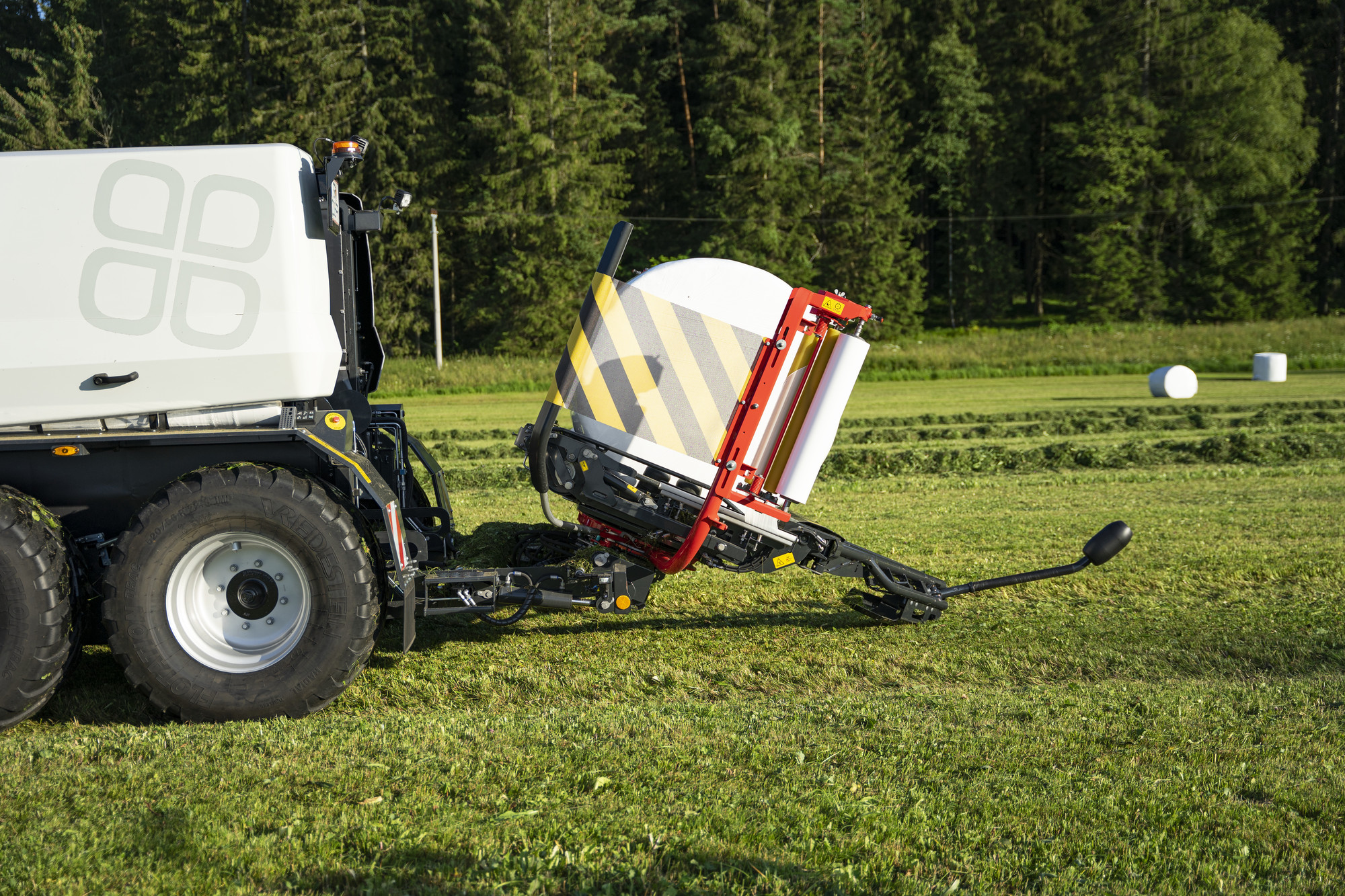

The baler & wrapper combination ensures reliable bale transfer even when working on steep inclines.
The perfect flow
The IMPRESS FC / VC PRO are designed for reliability. The controlled floating pick-up collects all the crop cleanly, even in difficult terrain, and transfers it to the rotor. This conveys it overhead, tangentially into the baling chamber. A reliable bale start is always guaranteed, even when using all 32 knives. The bale is bound reliably with net or binding film.
The baler & wrapper combination ensures reliable bale transfer even when working on steep inclines.
Customer benefits
Technology
Technical data
| IMPRESS 3160 VC PRO | IMPRESS 3190 VC PRO | ||||
|---|---|---|---|---|---|
| Configurate | Configurate | ||||
| Bale diameter | 0,8 - 1,55 | 0,9 - 1,85 | |||
| Pick-up width (DIN 11220) | 2,3 m | 2,3 m | |||
| Number of tine rows | 5 pcs. | 5 pcs. | |||
| PTO speed | 1000 rpm | 1000 rpm | |||
| winder diameter | 1,1 - 1,5 | 1,1 - 1,5 | |||
| Bale width | 1,2 m | 1,2 m | |||
| Power requirement | 130 HP | 150 HP | |||
| Hydraulic power required | 60 l/min at 180 bar | 60 l/min at 180 bar | |||
| Number of knives max. | 32 pcs. | 32 pcs. | |||
| Knife spacing | 36 mm | 36 mm | |||
| Length | 7,24 m | 7,24 m | |||
| Width | 2,89 m | 2,89 m | |||
| Height | 2,83 m | 3,1 m | |||
| Tyres | 520/55 R 22,5" - Outer width 2,91 m | 520/55 R 22,5" - Outer width 2,91 m | |||
| Weight of basic version | 7700 kg | 7900 kg |
IMPRESS 3160 VC PRO
| Bale diameter | 0,8 - 1,55 |
| Pick-up width (DIN 11220) | 2,3 m |
| Number of tine rows | 5 pcs. |
| PTO speed | 1000 rpm |
| winder diameter | 1,1 - 1,5 |
| Bale width | 1,2 m |
| Power requirement | 130 HP |
| Hydraulic power required | 60 l/min at 180 bar |
| Number of knives max. | 32 pcs. |
| Knife spacing | 36 mm |
| Length | 7,24 m |
| Width | 2,89 m |
| Height | 2,83 m |
| Tyres | 520/55 R 22,5" - Outer width 2,91 m |
| Weight of basic version | 7700 kg |
IMPRESS 3190 VC PRO
| Bale diameter | 0,9 - 1,85 |
| Pick-up width (DIN 11220) | 2,3 m |
| Number of tine rows | 5 pcs. |
| PTO speed | 1000 rpm |
| winder diameter | 1,1 - 1,5 |
| Bale width | 1,2 m |
| Power requirement | 150 HP |
| Hydraulic power required | 60 l/min at 180 bar |
| Number of knives max. | 32 pcs. |
| Knife spacing | 36 mm |
| Length | 7,24 m |
| Width | 2,89 m |
| Height | 3,1 m |
| Tyres | 520/55 R 22,5" - Outer width 2,91 m |
| Weight of basic version | 7900 kg |
Compatible products
MyPÖTTINGER
- Get valuable information and tips on all PÖTTINGER machines
- Specific information on your PÖTTINGER machines in "My Machines".
- Instruction manuals, spare parts lists, maintenance information, as well as all technical details available online
- Machine-specific documentation for all PÖTTINGER machines built from 1997 onwards available online
www.mypoettinger.com
Videos
LIQUIDO F silage additive tank - highlights
The new LIQUIDO F silage additive tank - Teaser
Reliability with IMPRESS round baler
Farmer and contractor Willie John Kehoe shows IMPRESS 3160 VC in action
Binding on the IMPRESS round baler
Maximum versatility with the IMPRESS round baler
Chopping system on the IMPRESS round baler
IMPRESS baler & wrapper combinations - Your advantages
![PÖTTINGER - IMPRESS 3000 - The perfect flow [EN]](https://i1.ytimg.com/vi/KyZ16qgHha4/mqdefault.jpg "PÖTTINGER - IMPRESS 3000 - The perfect flow [EN]")
PÖTTINGER - IMPRESS 3000 - The perfect flow [EN]
![PÖTTINGER - IMPRESS FC / VC - Changing the wrap [EN]](https://i1.ytimg.com/vi/SLopBGaETGg/mqdefault.jpg "PÖTTINGER - IMPRESS FC / VC - Changing the wrap [EN]")
PÖTTINGER - IMPRESS FC / VC - Changing the wrap [EN]
![PÖTTINGER - IMPRESS Round baler with pull-out FLEXCUT knife bank [en]](https://i1.ytimg.com/vi/Yn-Z9Dsjc48/mqdefault.jpg "PÖTTINGER - IMPRESS Round baler with pull-out FLEXCUT knife bank [en]")
PÖTTINGER - IMPRESS Round baler with pull-out FLEXCUT knife bank [en]
Brochures
3D animations
Image gallery
Quality
We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.
