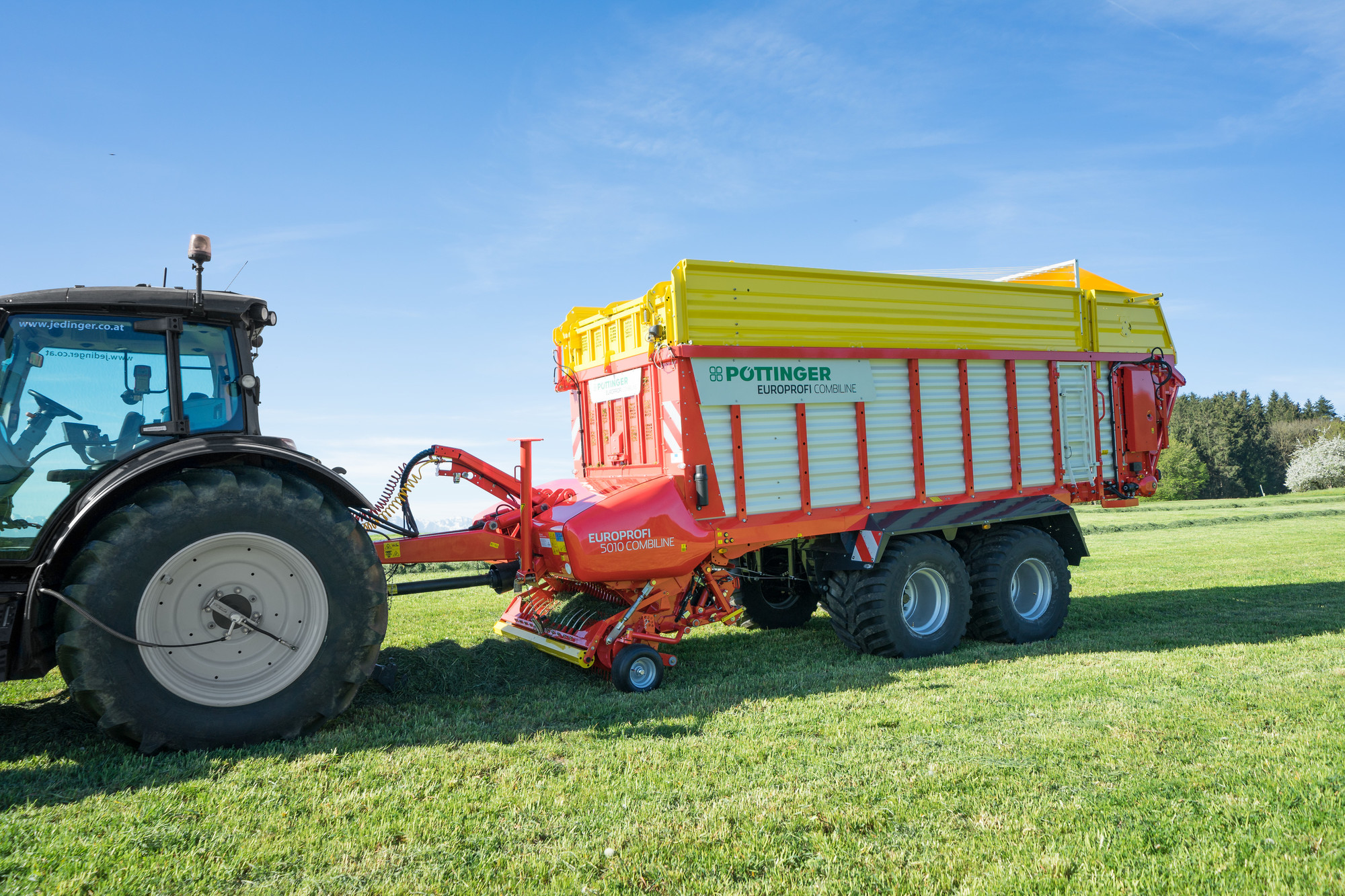

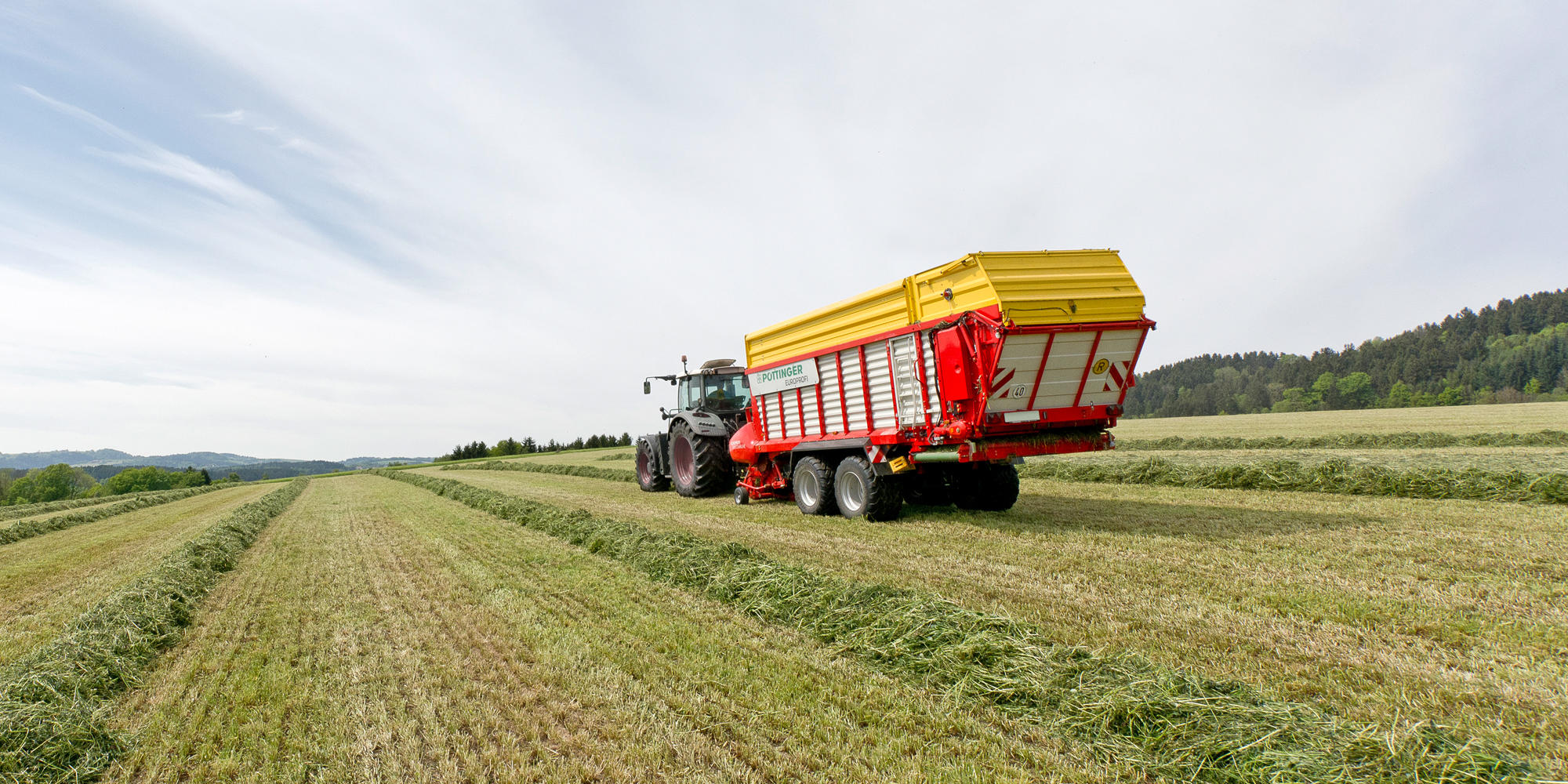

EUROPROFI COMBILINE Combined rotor loader wagon



Our EUROPROFI series has stood for easy operation, performance and convenience in harvesting for more than 20 years. Even higher performance, able to handle a variety of tasks and delivering a chopped length of 39 mm - our customers really like this wagon concept.

Our EUROPROFI series has stood for easy operation, performance and convenience in harvesting for more than 20 years. Even higher performance, able to handle a variety of tasks and delivering a chopped length of 39 mm - our customers really like this wagon concept.

Customer benefits



Technology

Technology

Technical data

 EUROPROFI 4510 L COMBILINEEUROPROFI 4510 D COMBILINE
Loading volume (DIN 11741)26 m³25 m³
Theoretical cutting length39 mm39 mm
Number of knives max.35 pcs.35 pcs.
Pick-up recording width1,85 m1,85 m
Length8,44 m8,92 m
Width2,51 m2,51 m
Height3,55 m3,55 m
Height with ropes for roof+ 325 mm + 325 mm
Number of scraper floor chains4 pcs.4 pcs.
Scraper floor motor (standard)1-speed 1-speed
Scraper floor motor (option)2-speed 2-speed
Length loading area (Width 2,1)5,68 m5,42 m
Loading volume with medium compression45 m³45 m³
Track width1,95 m1,95 m
Weight of basic version6650 kg7150 kg
ChassisTandem axle Tandem axle
Permissible laden weight (standard)15000 kg15000 kg
Permissible laden weight max.18000 kg18000 kg
Tandem-axle, 25/40 kph15000 kg15000 kg
Tandem-axle, 30/40 kph*15000 kg15000 kg
Tandem-axle, 30/40 kph* max.18000 kg18000 kg
Note: *EU-2015/68, only with dual line brake system--
EUROPROFI 4510 L COMBILINE
Loading volume (DIN 11741)26 m³
Theoretical cutting length39 mm
Number of knives max.35 pcs.
Pick-up recording width1,85 m
Length8,44 m
Width2,51 m
Height3,55 m
Height with ropes for roof+ 325 mm
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)5,68 m
Loading volume with medium compression45 m³
Track width1,95 m
Weight of basic version6650 kg
ChassisTandem axle
Permissible laden weight (standard)15000 kg
Permissible laden weight max.18000 kg
Tandem-axle, 25/40 kph15000 kg
Tandem-axle, 30/40 kph*15000 kg
Tandem-axle, 30/40 kph* max.18000 kg
Note: *EU-2015/68, only with dual line brake system-
EUROPROFI 4510 D COMBILINE
Loading volume (DIN 11741)25 m³
Theoretical cutting length39 mm
Number of knives max.35 pcs.
Pick-up recording width1,85 m
Length8,92 m
Width2,51 m
Height3,55 m
Height with ropes for roof+ 325 mm
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)5,42 m
Loading volume with medium compression45 m³
Track width1,95 m
Weight of basic version7150 kg
ChassisTandem axle
Permissible laden weight (standard)15000 kg
Permissible laden weight max.18000 kg
Tandem-axle, 25/40 kph15000 kg
Tandem-axle, 30/40 kph*15000 kg
Tandem-axle, 30/40 kph* max.18000 kg
Note: *EU-2015/68, only with dual line brake system-
 EUROPROFI 5010 L COMBILINEEUROPROFI 5010 D COMBILINE
Loading volume (DIN 11741)29 m³28 m³
Theoretical cutting length39 mm39 mm
Number of knives max.35 pcs.35 pcs.
Pick-up recording width1,85 m1,85 m
Length9,12 m9,61 m
Width2,67 m2,67 m
Height3,55 m3,55 m
Height with ropes for roof+ 325 mm + 325 mm
Number of scraper floor chains4 pcs.4 pcs.
Scraper floor motor (standard)1-speed 1-speed
Scraper floor motor (option)2-speed 2-speed
Length loading area (Width 2,1)6,36 m6,1 m
Loading volume with medium compression50 m³50 m³
Track width1,95 m1,95 m
Weight of basic version7150 kg7650 kg
ChassisTandem axle Tandem axle
Permissible laden weight (standard)18000 kg18000 kg
Permissible laden weight max.21000 kg21000 kg
Tandem-axle, 25/40 kph18000 kg18000 kg
Tandem-axle, 30/40 kph*18000 kg18000 kg
Tandem-axle, 30/40 kph* max.21000 kg21000 kg
Note: *EU-2015/68, only with dual line brake system--

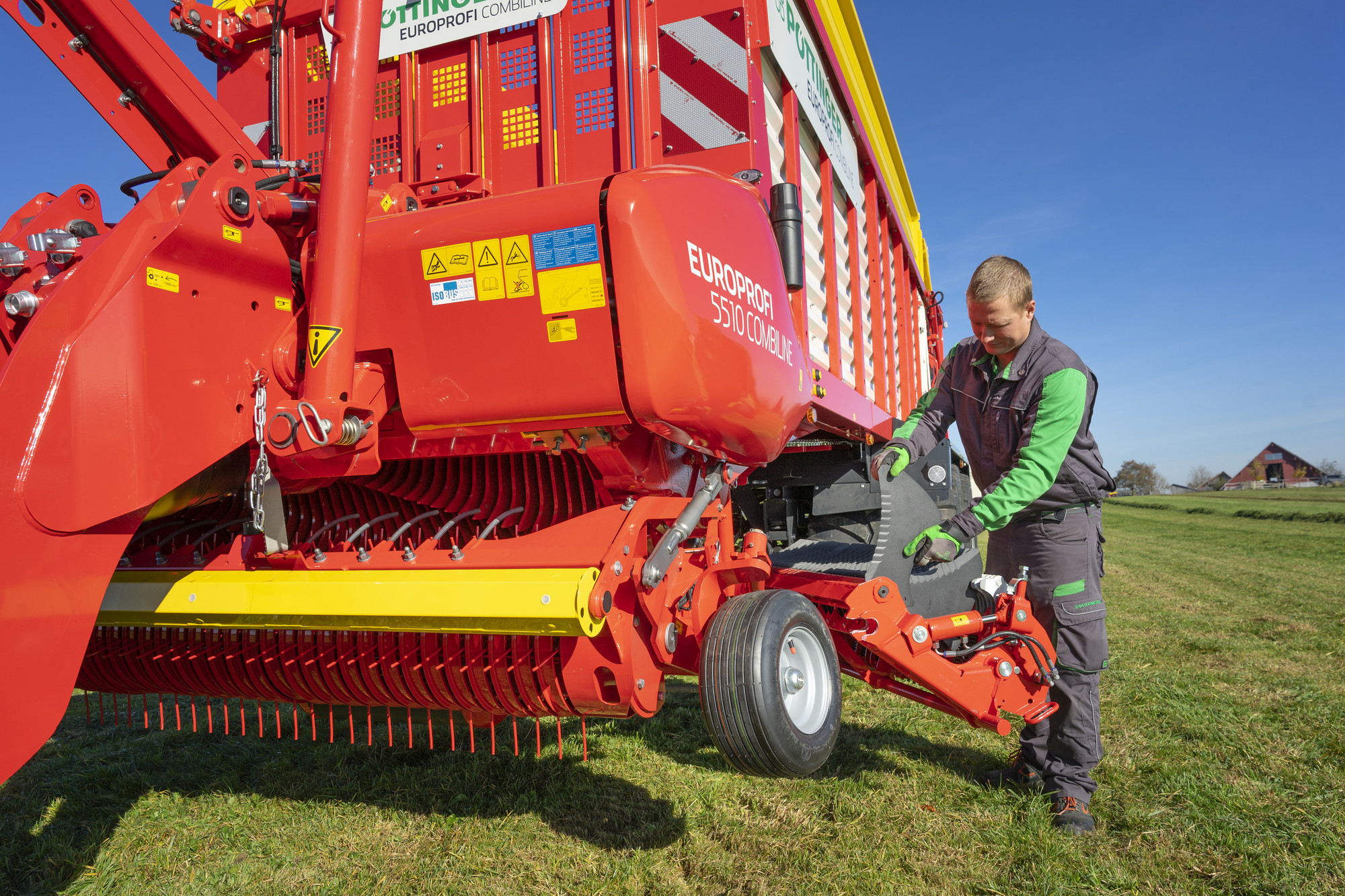

EUROPROFI 5010 L COMBILINE
Loading volume (DIN 11741)29 m³
Theoretical cutting length39 mm
Number of knives max.35 pcs.
Pick-up recording width1,85 m
Length9,12 m
Width2,67 m
Height3,55 m
Height with ropes for roof+ 325 mm
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)6,36 m
Loading volume with medium compression50 m³
Track width1,95 m
Weight of basic version7150 kg
ChassisTandem axle
Permissible laden weight (standard)18000 kg
Permissible laden weight max.21000 kg
Tandem-axle, 25/40 kph18000 kg
Tandem-axle, 30/40 kph*18000 kg
Tandem-axle, 30/40 kph* max.21000 kg
Note: *EU-2015/68, only with dual line brake system-

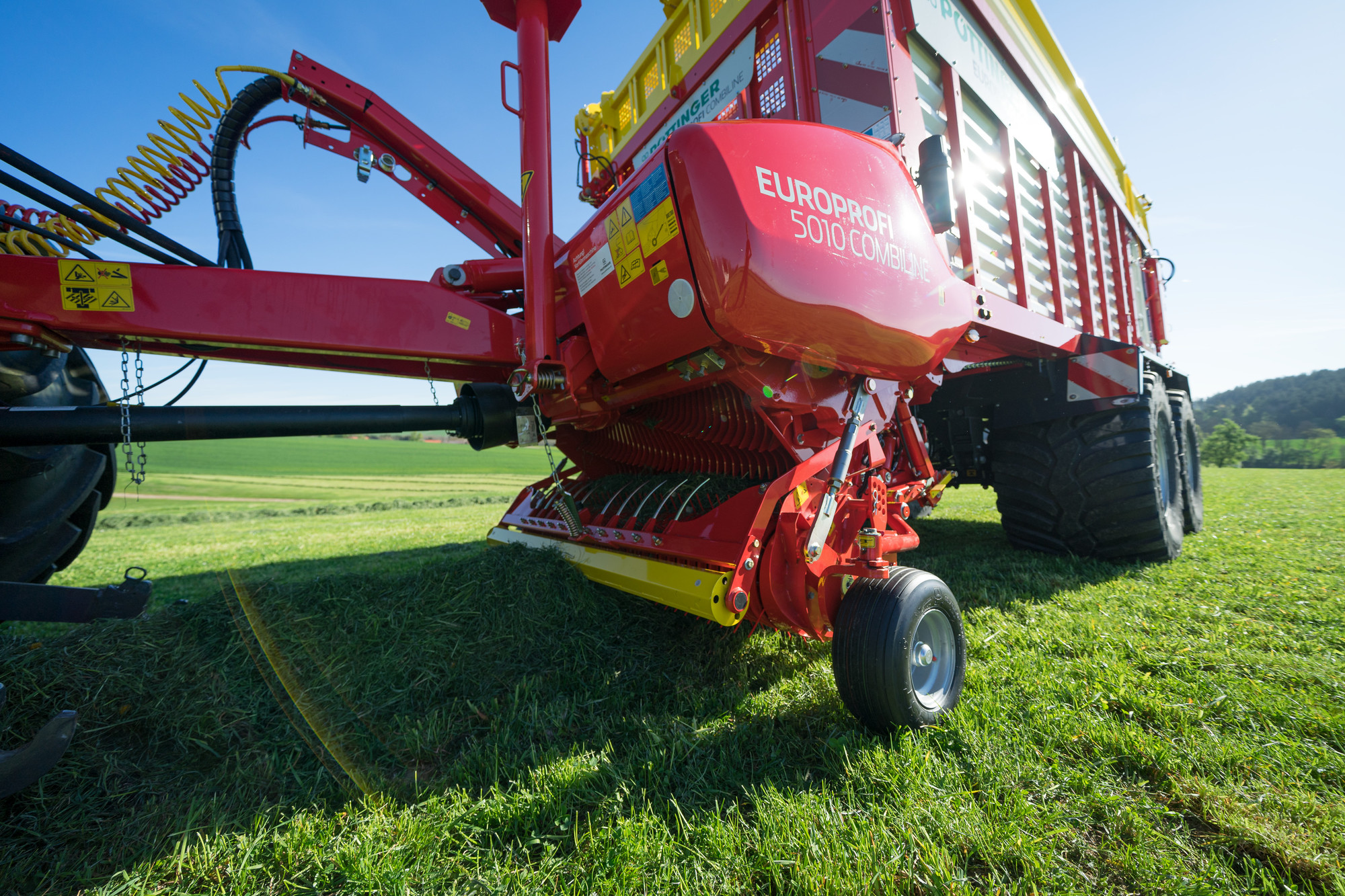

EUROPROFI 5010 D COMBILINE
Loading volume (DIN 11741)28 m³
Theoretical cutting length39 mm
Number of knives max.35 pcs.
Pick-up recording width1,85 m
Length9,61 m
Width2,67 m
Height3,55 m
Height with ropes for roof+ 325 mm
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)1-speed
Scraper floor motor (option)2-speed
Length loading area (Width 2,1)6,1 m
Loading volume with medium compression50 m³
Track width1,95 m
Weight of basic version7650 kg
ChassisTandem axle
Permissible laden weight (standard)18000 kg
Permissible laden weight max.21000 kg
Tandem-axle, 25/40 kph18000 kg
Tandem-axle, 30/40 kph*18000 kg
Tandem-axle, 30/40 kph* max.21000 kg
Note: *EU-2015/68, only with dual line brake system-
 EUROPROFI 5510 L COMBILINEEUROPROFI 5510 D COMBILINE
Loading volume (DIN 11741)32 m³31 m³
Theoretical cutting length39 mm39 mm
Number of knives max.35 pcs.35 pcs.
Pick-up recording width1,85 m1,85 m
Length9,81 m10,28 m
Width2,67 m2,67 m
Height3,55 m3,55 m
Height with ropes for roof+ 325 mm + 325 mm
Number of scraper floor chains4 pcs.4 pcs.
Scraper floor motor (standard)2-speed 2-speed
Length loading area (Width 2,1)7,04 m6,79 m
Loading volume with medium compression55 m³55 m³
Track width1,95 m1,95 m
Weight of basic version7350 kg7850 kg
ChassisTandem axle Tandem axle
Permissible laden weight (standard)18000 kg18000 kg
Permissible laden weight max.21000 kg21000 kg
Tandem-axle, 25/40 kph18000 kg18000 kg
Tandem-axle, 30/40 kph*18000 kg18000 kg
Tandem-axle, 30/40 kph* max.21000 kg21000 kg
Note: *EU-2015/68, only with dual line brake system--
EUROPROFI 5510 L COMBILINE
Loading volume (DIN 11741)32 m³
Theoretical cutting length39 mm
Number of knives max.35 pcs.
Pick-up recording width1,85 m
Length9,81 m
Width2,67 m
Height3,55 m
Height with ropes for roof+ 325 mm
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)2-speed
Length loading area (Width 2,1)7,04 m
Loading volume with medium compression55 m³
Track width1,95 m
Weight of basic version7350 kg
ChassisTandem axle
Permissible laden weight (standard)18000 kg
Permissible laden weight max.21000 kg
Tandem-axle, 25/40 kph18000 kg
Tandem-axle, 30/40 kph*18000 kg
Tandem-axle, 30/40 kph* max.21000 kg
Note: *EU-2015/68, only with dual line brake system-
EUROPROFI 5510 D COMBILINE
Loading volume (DIN 11741)31 m³
Theoretical cutting length39 mm
Number of knives max.35 pcs.
Pick-up recording width1,85 m
Length10,28 m
Width2,67 m
Height3,55 m
Height with ropes for roof+ 325 mm
Number of scraper floor chains4 pcs.
Scraper floor motor (standard)2-speed
Length loading area (Width 2,1)6,79 m
Loading volume with medium compression55 m³
Track width1,95 m
Weight of basic version7850 kg
ChassisTandem axle
Permissible laden weight (standard)18000 kg
Permissible laden weight max.21000 kg
Tandem-axle, 25/40 kph18000 kg
Tandem-axle, 30/40 kph*18000 kg
Tandem-axle, 30/40 kph* max.21000 kg
Note: *EU-2015/68, only with dual line brake system-
