Reliability
The perfect flow

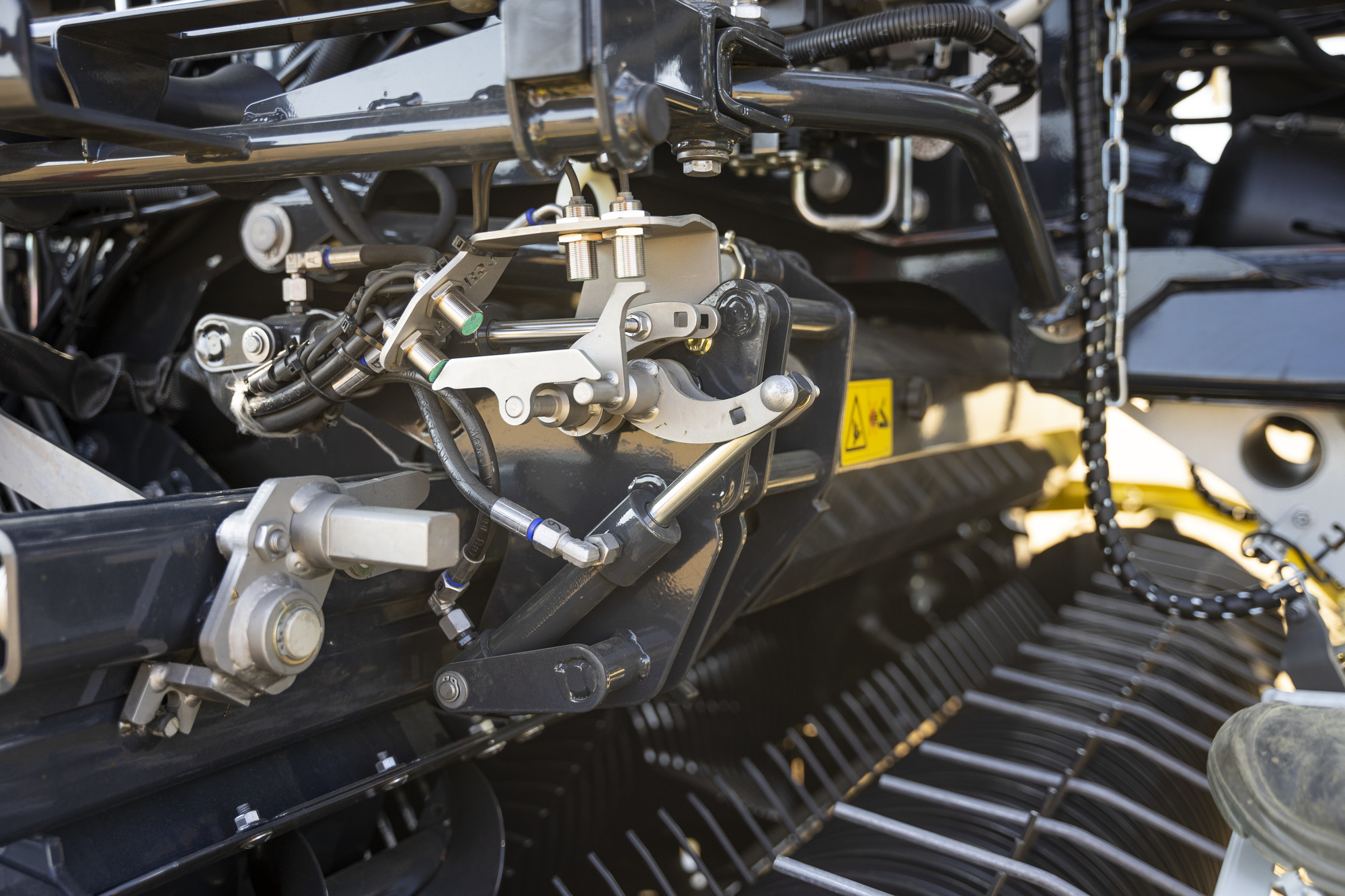

Fixed chamber balers are suitable for all operating conditions, but are particularly well-known for baling silage. Their robust design with 18 compression rollers ensures reliable bale rotation at the highest baling pressures and shortest chop lengths. The PRO achieves 36 mm when using all 32 knives, the MASTER 72 mm with 16 knives.
Solid equipment
All IMPRESS F balers are equipped with a 2.05 m wide, controlled floating pick-up.

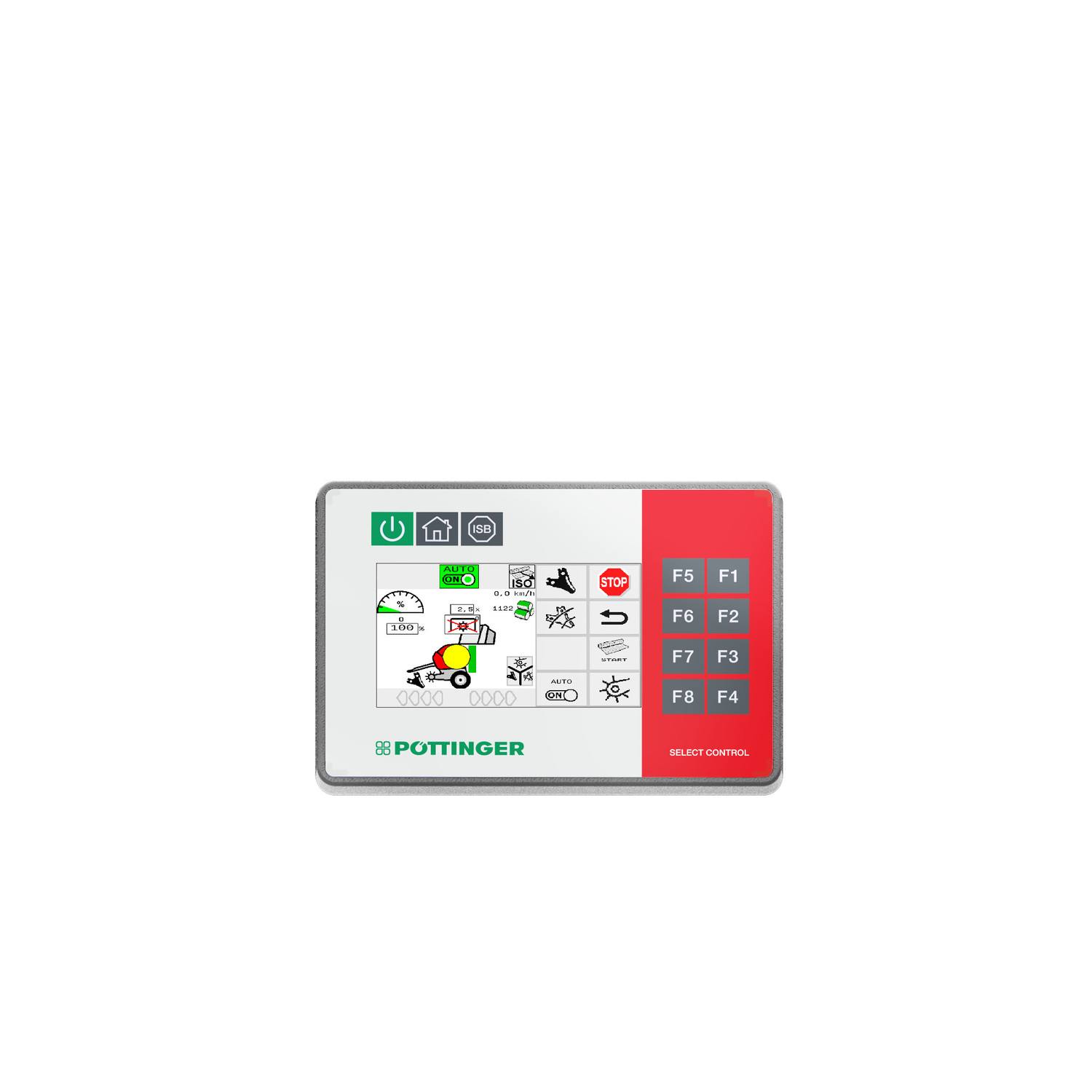

As an option, or as standard on PRO models, there is a 2.30 m pick-up. A movable conveyor floor is also provided as standard for the removal of blockages. The bale density and the net binding can be operated from the control terminal on all fixed chamber models.
The perfect flow
Fixed chamber balers are suitable for all operating conditions, but are particularly well-known for baling silage. Their robust design with 18 compression rollers ensures reliable bale rotation at the highest baling pressures and shortest chop lengths. The PRO achieves 36 mm when using all 32 knives, the MASTER 72 mm with 16 knives.
Solid equipment
All IMPRESS F balers are equipped with a 2.05 m wide, controlled floating pick-up.
As an option, or as standard on PRO models, there is a 2.30 m pick-up. A movable conveyor floor is also provided as standard for the removal of blockages. The bale density and the net binding can be operated from the control terminal on all fixed chamber models.
Customer benefits
Technology
Technical data
| IMPRESS 3130 F MASTER | |||||
|---|---|---|---|---|---|
| Bale diameter | 1,3 m | ||||
| Knife spacing | 72 mm | ||||
| Number of knives max. | 16 pcs. | ||||
| Pick-up width (DIN 11220) | 2,05 m | ||||
| Bale width | 1,2 m | ||||
| Power requirement | 80 HP | ||||
| PTO speed | 540 rpm | ||||
| Length | 4,66 m | ||||
| Width | 2,62 m | ||||
| Height | 2,55 m | ||||
| Tyres | 380/55-17 | ||||
| Weight of basic version | 4600 kg |
IMPRESS 3130 F MASTER
| Bale diameter | 1,3 m |
| Knife spacing | 72 mm |
| Number of knives max. | 16 pcs. |
| Pick-up width (DIN 11220) | 2,05 m |
| Bale width | 1,2 m |
| Power requirement | 80 HP |
| PTO speed | 540 rpm |
| Length | 4,66 m |
| Width | 2,62 m |
| Height | 2,55 m |
| Tyres | 380/55-17 |
| Weight of basic version | 4600 kg |
| IMPRESS 3130 F PRO | |||||
|---|---|---|---|---|---|
| Bale diameter | 1,3 m | ||||
| Knife spacing | 36 mm | ||||
| Number of knives max. | 32 pcs. | ||||
| Pick-up width (DIN 11220) | 2,3 m | ||||
| Bale width | 1,2 m | ||||
| Power requirement | 100 HP | ||||
| PTO speed | 1000 rpm | ||||
| Length | 4,66 m | ||||
| Width | 2,83 m | ||||
| Height | 2,55 m | ||||
| Tyres | 500/50-17 | ||||
| Weight of basic version | 4850 kg |
IMPRESS 3130 F PRO
| Bale diameter | 1,3 m |
| Knife spacing | 36 mm |
| Number of knives max. | 32 pcs. |
| Pick-up width (DIN 11220) | 2,3 m |
| Bale width | 1,2 m |
| Power requirement | 100 HP |
| PTO speed | 1000 rpm |
| Length | 4,66 m |
| Width | 2,83 m |
| Height | 2,55 m |
| Tyres | 500/50-17 |
| Weight of basic version | 4850 kg |
