Centre pivot mounting for optimised ground tracking

Minimum ground pressure and perfect ground tracking – guaranteed by our NOVACAT rear mowers with centre pivot mounting.

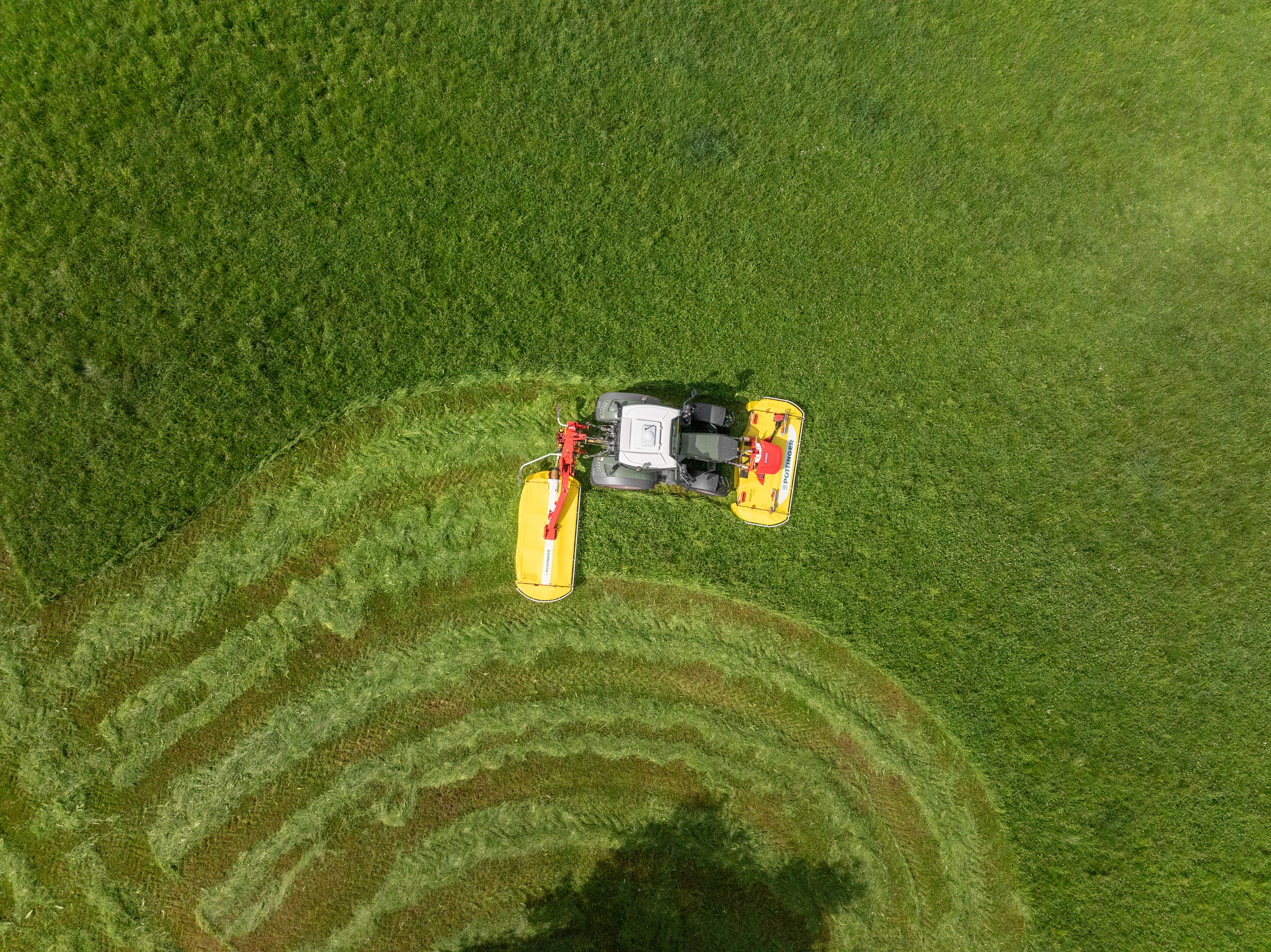

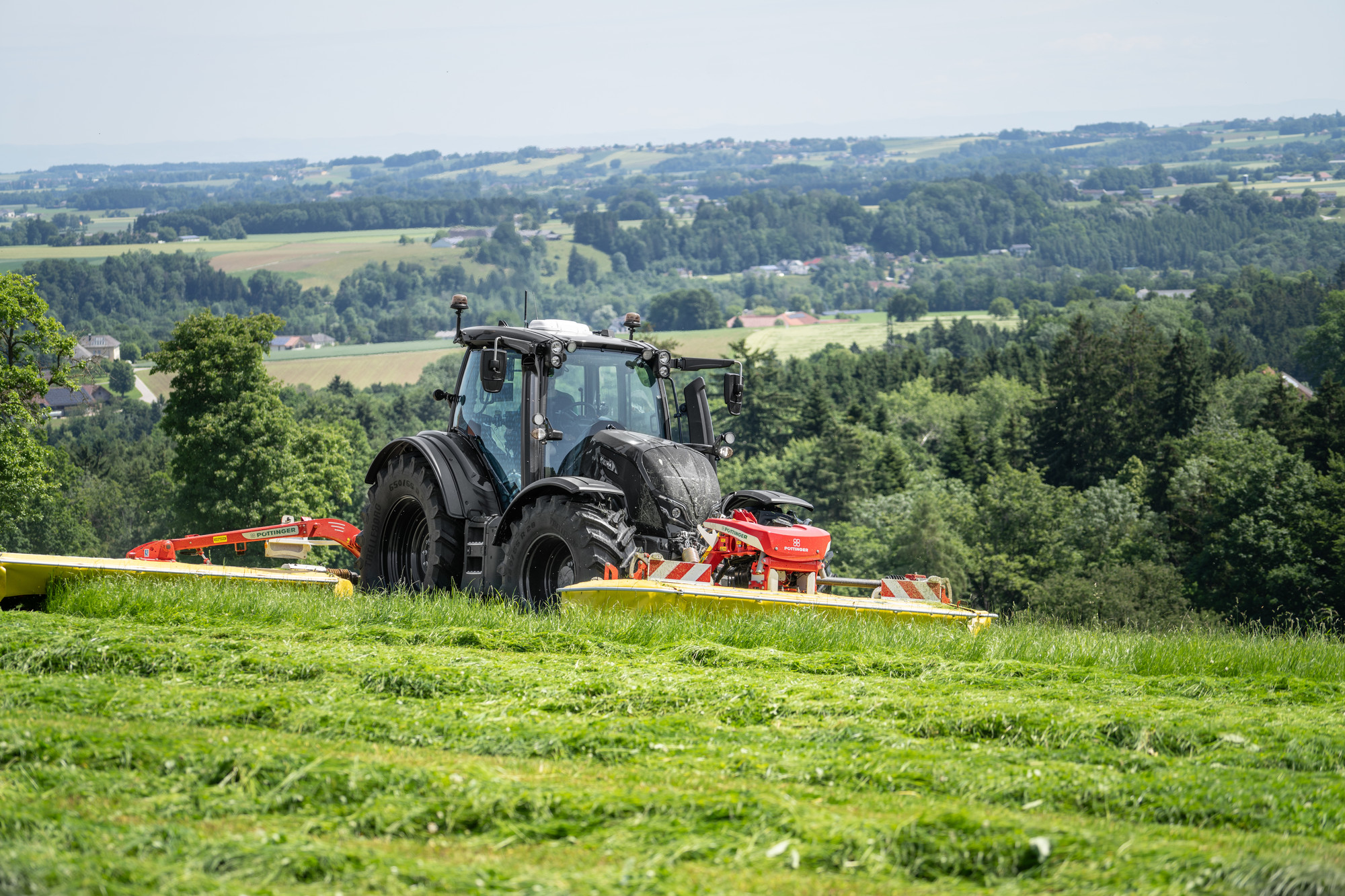

The NOVACAT rear mowers are available with working widths of 2.62 m / 3.04 m / 3.46 m / 3.88 m / 4.30 m.

These mowers can be equipped with swathing discs or a conditioner to meet your individual requirements. The NOVACAT 402 ED with a working width of 3.88 metres is the largest rear-mounted mower with conditioner on the market.

Depending on the working width, the NOVACAT rear mowers are available with a vertical or horizontal transport position.

Centre pivot mounting for optimised ground tracking

Minimum ground pressure and perfect ground tracking – guaranteed by our NOVACAT rear mowers with centre pivot mounting.

The NOVACAT rear mowers are available with working widths of 2.62 m / 3.04 m / 3.46 m / 3.88 m / 4.30 m.

These mowers can be equipped with swathing discs or a conditioner to meet your individual requirements. The NOVACAT 402 ED with a working width of 3.88 metres is the largest rear-mounted mower with conditioner on the market.

Depending on the working width, the NOVACAT rear mowers are available with a vertical or horizontal transport position.




Technology

Technical data

 NOVACAT 262NOVACAT 262 EDNOVACAT 262 RCBNOVACAT 302NOVACAT 302 ED
MountingRear three-point Rear three-point Rear three-point Rear three-point Rear three-point
Mounting categoryCat. II / 2 Cat. II / 2 Cat. II / 2 Cat. II / 2 Cat. III / 2
Breakaway deviceMechanical breakaway device Mechanical breakaway device Mechanical breakaway device Mechanical breakaway device Mechanical breakaway device
Weight910 kg1160 kg1230 kg930 kg1260 kg
Working width2,62 m2,62 m2,62 m3,04 m3,04 m
Transport height3,6 m3,6 m3,6 m3,8 m3,8 m
PTO Input Speed1000 rpm1000 rpm1000 rpm1000 rpm1000 rpm
Mower discs6 pcs.6 pcs.6 pcs.7 pcs.7 pcs.
Mower blades12 pcs.12 pcs.12 pcs.14 pcs.14 pcs.
Power requirement60 HP70 HP70 HP70 HP80 HP
Hectares/acres per hour2,6 ha/h2,6 ha/h2,6 ha/h3 ha/h3 ha/h
Outer track-----
Wear skids4 pcs.4 pcs.4 pcs.5 pcs.5 pcs.
High-cut skids4 pcs.4 pcs.4 pcs.5 pcs.5 pcs.
High-cut skids inside / outside1 pcs.1 pcs.1 pcs.1 pcs.1 pcs.
Swath width without swath discs1,7 m--2,1 m-
Swath width with a pair of swath discs1,4 m--1,7 m-
Swath width with two pair of swath discs1,1 m--1,3 m-
Swath width with conditioner min-1,2 m1,4 m-1,9 m
Swath width with conditioner max-1,7 m2 m-2,7 m
Swath forming/conditionerSwath discs Steel tine conditioner Roller type conditioner RCB Swath discs Steel tine conditioner
Swath discsOuter swath disc standard --Outer swath disc standard -
 NOVACAT 302 RCBNOVACAT 352 V
MountingRear three-point Rear three-point
Mounting categoryCat. III / 2 Cat. III / 2
Breakaway deviceMechanical breakaway device Mechanical breakaway device
Weight1330 kg1030 kg
Working width3,04 m3,46 m
Transport height3,8 m3,99 m
PTO Input Speed1000 rpm1000 rpm
Mower discs7 pcs.8 pcs.
Mower blades14 pcs.16 pcs.
Power requirement80 HP80 HP
Hectares/acres per hour3 ha/h3,4 ha/h
Outer track--
Wear skids5 pcs.6 pcs.
High-cut skids5 pcs.6 pcs.
High-cut skids inside / outside1 pcs.1 pcs.
Swath width without swath discs-2,5 m
Swath width with a pair of swath discs-2,1 m
Swath width with two pair of swath discs-1,7 m
Swath width with conditioner min1,7 m-
Swath width with conditioner max2,5 m-
Swath forming/conditionerRoller type conditioner RCB Swath discs
Swath discs-Outer swath disc standard
NOVACAT 262
 NOVACAT 262
MountingRear three-point
Mounting categoryCat. II / 2
Breakaway deviceMechanical breakaway device
Weight910 kg
Working width2,62 m
Transport height3,6 m
PTO Input Speed1000 rpm
Mower discs6 pcs.
Mower blades12 pcs.
Power requirement60 HP
Hectares/acres per hour2,6 ha/h
Outer track-
Wear skids4 pcs.
High-cut skids4 pcs.
High-cut skids inside / outside1 pcs.
Swath width without swath discs1,7 m
Swath width with a pair of swath discs1,4 m
Swath width with two pair of swath discs1,1 m
Swath width with conditioner min-
Swath width with conditioner max-
Swath forming/conditionerSwath discs
Swath discsOuter swath disc standard
NOVACAT 262 ED
 NOVACAT 262 ED
MountingRear three-point
Mounting categoryCat. II / 2
Breakaway deviceMechanical breakaway device
Weight1160 kg
Working width2,62 m
Transport height3,6 m
PTO Input Speed1000 rpm
Mower discs6 pcs.
Mower blades12 pcs.
Power requirement70 HP
Hectares/acres per hour2,6 ha/h
Outer track-
Wear skids4 pcs.
High-cut skids4 pcs.
High-cut skids inside / outside1 pcs.
Swath width without swath discs-
Swath width with a pair of swath discs-
Swath width with two pair of swath discs-
Swath width with conditioner min1,2 m
Swath width with conditioner max1,7 m
Swath forming/conditionerSteel tine conditioner
Swath discs-
NOVACAT 262 RCB
 NOVACAT 262 RCB
MountingRear three-point
Mounting categoryCat. II / 2
Breakaway deviceMechanical breakaway device
Weight1230 kg
Working width2,62 m
Transport height3,6 m
PTO Input Speed1000 rpm
Mower discs6 pcs.
Mower blades12 pcs.
Power requirement70 HP
Hectares/acres per hour2,6 ha/h
Outer track-
Wear skids4 pcs.
High-cut skids4 pcs.
High-cut skids inside / outside1 pcs.
Swath width without swath discs-
Swath width with a pair of swath discs-
Swath width with two pair of swath discs-
Swath width with conditioner min1,4 m
Swath width with conditioner max2 m
Swath forming/conditionerRoller type conditioner RCB
Swath discs-
NOVACAT 302
 NOVACAT 302
MountingRear three-point
Mounting categoryCat. II / 2
Breakaway deviceMechanical breakaway device
Weight930 kg
Working width3,04 m
Transport height3,8 m
PTO Input Speed1000 rpm
Mower discs7 pcs.
Mower blades14 pcs.
Power requirement70 HP
Hectares/acres per hour3 ha/h
Outer track-
Wear skids5 pcs.
High-cut skids5 pcs.
High-cut skids inside / outside1 pcs.
Swath width without swath discs2,1 m
Swath width with a pair of swath discs1,7 m
Swath width with two pair of swath discs1,3 m
Swath width with conditioner min-
Swath width with conditioner max-
Swath forming/conditionerSwath discs
Swath discsOuter swath disc standard
NOVACAT 302 ED
 NOVACAT 302 ED
MountingRear three-point
Mounting categoryCat. III / 2
Breakaway deviceMechanical breakaway device
Weight1260 kg
Working width3,04 m
Transport height3,8 m
PTO Input Speed1000 rpm
Mower discs7 pcs.
Mower blades14 pcs.
Power requirement80 HP
Hectares/acres per hour3 ha/h
Outer track-
Wear skids5 pcs.
High-cut skids5 pcs.
High-cut skids inside / outside1 pcs.
Swath width without swath discs-
Swath width with a pair of swath discs-
Swath width with two pair of swath discs-
Swath width with conditioner min1,9 m
Swath width with conditioner max2,7 m
Swath forming/conditionerSteel tine conditioner
Swath discs-
NOVACAT 302 RCB
 NOVACAT 302 RCB
MountingRear three-point
Mounting categoryCat. III / 2
Breakaway deviceMechanical breakaway device
Weight1330 kg
Working width3,04 m
Transport height3,8 m
PTO Input Speed1000 rpm
Mower discs7 pcs.
Mower blades14 pcs.
Power requirement80 HP
Hectares/acres per hour3 ha/h
Outer track-
Wear skids5 pcs.
High-cut skids5 pcs.
High-cut skids inside / outside1 pcs.
Swath width without swath discs-
Swath width with a pair of swath discs-
Swath width with two pair of swath discs-
Swath width with conditioner min1,7 m
Swath width with conditioner max2,5 m
Swath forming/conditionerRoller type conditioner RCB
Swath discs-
NOVACAT 352 V
 NOVACAT 352 V
MountingRear three-point
Mounting categoryCat. III / 2
Breakaway deviceMechanical breakaway device
Weight1030 kg
Working width3,46 m
Transport height3,99 m
PTO Input Speed1000 rpm
Mower discs8 pcs.
Mower blades16 pcs.
Power requirement80 HP
Hectares/acres per hour3,4 ha/h
Outer track-
Wear skids6 pcs.
High-cut skids6 pcs.
High-cut skids inside / outside1 pcs.
Swath width without swath discs2,5 m
Swath width with a pair of swath discs2,1 m
Swath width with two pair of swath discs1,7 m
Swath width with conditioner min-
Swath width with conditioner max-
Swath forming/conditionerSwath discs
Swath discsOuter swath disc standard
 NOVACAT 302 CFNOVACAT 352NOVACAT 352 CFNOVACAT 352 EDNOVACAT 352 RCB
MountingRear three-point Rear three-point Rear three-point Rear three-point Rear three-point
Mounting categoryCat. III / 3 Cat. III / 3 Cat. III / 3 Cat. III / 3 Cat. III / 3
Breakaway deviceHydraulic breakaway device Hydraulic breakaway device Hydraulic breakaway device Hydraulic breakaway device Hydraulic breakaway device
Weight1400 kg980 kg1460 kg1340 kg1390 kg
Working width3,04 m3,46 m3,46 m3,46 m3,46 m
PTO Input Speed1000 rpm1000 rpm1000 rpm1000 rpm1000 rpm
Mower discs7 pcs.8 pcs.8 pcs.8 pcs.8 pcs.
Mower blades14 pcs.16 pcs.16 pcs.16 pcs.16 pcs.
Power requirement100 HP80 HP120 HP120 HP120 HP
Hectares/acres per hour3 ha/h3,4 ha/h3,4 ha/h3,4 ha/h3,4 ha/h
Outer track-----
Wear skids5 pcs.6 pcs.6 pcs.6 pcs.6 pcs.
High-cut skids5 pcs.6 pcs.6 pcs.6 pcs.6 pcs.
High-cut skids outside1 pcs.-1 pcs.--
High-cut skids inside / outside1 pcs.1 pcs.1 pcs.1 pcs.1 pcs.
Swath width without swath discs-2,5 m---
Swath width with a pair of swath discs-2,1 m---
Swath width with two pair of swath discs-1,7 m---
Swath width with conditioner min---2,2 m2,2 m
Swath width with conditioner max---3,1 m3 m
Swath forming/conditionerAuger Swath discs Auger Steel tine conditioner Roller type conditioner RCB
Swath discs-Outer swath disc standard ---
 NOVACAT 402NOVACAT 402 EDNOVACAT 442
MountingRear three-point Rear three-point Rear three-point
Mounting categoryCat. III / 3 Cat. III / 3 Cat. III / 3
Breakaway deviceHydraulic breakaway device Hydraulic breakaway device Hydraulic breakaway device
Weight1040 kg1390 kg1080 kg
Working width3,88 m3,88 m4,3 m
PTO Input Speed1000 rpm1000 rpm1000 rpm
Mower discs9 pcs.9 pcs.10 pcs.
Mower blades18 pcs.18 pcs.20 pcs.
Power requirement90 HP140 HP110 HP
Hectares/acres per hour4 ha/h4 ha/h4,5 ha/h
Outer track---
Wear skids7 pcs.7 pcs.8 pcs.
High-cut skids7 pcs.7 pcs.8 pcs.
High-cut skids outside---
High-cut skids inside / outside1 pcs.1 pcs.1 pcs.
Swath width without swath discs3,2 m-3,6 m
Swath width with a pair of swath discs2,7 m-3 m
Swath width with two pair of swath discs2,3 m-2,6 m
Swath width with conditioner min-2,6 m-
Swath width with conditioner max-3,5 m-
Swath forming/conditionerSwath discs Steel tine conditioner Swath discs
Swath discsOuter swath disc standard -Outer swath disc standard
NOVACAT 302 CF
 NOVACAT 302 CF
MountingRear three-point
Mounting categoryCat. III / 3
Breakaway deviceHydraulic breakaway device
Weight1400 kg
Working width3,04 m
PTO Input Speed1000 rpm
Mower discs7 pcs.
Mower blades14 pcs.
Power requirement100 HP
Hectares/acres per hour3 ha/h
Outer track-
Wear skids5 pcs.
High-cut skids5 pcs.
High-cut skids outside1 pcs.
High-cut skids inside / outside1 pcs.
Swath width without swath discs-
Swath width with a pair of swath discs-
Swath width with two pair of swath discs-
Swath width with conditioner min-
Swath width with conditioner max-
Swath forming/conditionerAuger
Swath discs-
NOVACAT 352
 NOVACAT 352
MountingRear three-point
Mounting categoryCat. III / 3
Breakaway deviceHydraulic breakaway device
Weight980 kg
Working width3,46 m
PTO Input Speed1000 rpm
Mower discs8 pcs.
Mower blades16 pcs.
Power requirement80 HP
Hectares/acres per hour3,4 ha/h
Outer track-
Wear skids6 pcs.
High-cut skids6 pcs.
High-cut skids outside-
High-cut skids inside / outside1 pcs.
Swath width without swath discs2,5 m
Swath width with a pair of swath discs2,1 m
Swath width with two pair of swath discs1,7 m
Swath width with conditioner min-
Swath width with conditioner max-
Swath forming/conditionerSwath discs
Swath discsOuter swath disc standard
NOVACAT 352 CF
 NOVACAT 352 CF
MountingRear three-point
Mounting categoryCat. III / 3
Breakaway deviceHydraulic breakaway device
Weight1460 kg
Working width3,46 m
PTO Input Speed1000 rpm
Mower discs8 pcs.
Mower blades16 pcs.
Power requirement120 HP
Hectares/acres per hour3,4 ha/h
Outer track-
Wear skids6 pcs.
High-cut skids6 pcs.
High-cut skids outside1 pcs.
High-cut skids inside / outside1 pcs.
Swath width without swath discs-
Swath width with a pair of swath discs-
Swath width with two pair of swath discs-
Swath width with conditioner min-
Swath width with conditioner max-
Swath forming/conditionerAuger
Swath discs-
NOVACAT 352 ED
 NOVACAT 352 ED
MountingRear three-point
Mounting categoryCat. III / 3
Breakaway deviceHydraulic breakaway device
Weight1340 kg
Working width3,46 m
PTO Input Speed1000 rpm
Mower discs8 pcs.
Mower blades16 pcs.
Power requirement120 HP
Hectares/acres per hour3,4 ha/h
Outer track-
Wear skids6 pcs.
High-cut skids6 pcs.
High-cut skids outside-
High-cut skids inside / outside1 pcs.
Swath width without swath discs-
Swath width with a pair of swath discs-
Swath width with two pair of swath discs-
Swath width with conditioner min2,2 m
Swath width with conditioner max3,1 m
Swath forming/conditionerSteel tine conditioner
Swath discs-
NOVACAT 352 RCB
 NOVACAT 352 RCB
MountingRear three-point
Mounting categoryCat. III / 3
Breakaway deviceHydraulic breakaway device
Weight1390 kg
Working width3,46 m
PTO Input Speed1000 rpm
Mower discs8 pcs.
Mower blades16 pcs.
Power requirement120 HP
Hectares/acres per hour3,4 ha/h
Outer track-
Wear skids6 pcs.
High-cut skids6 pcs.
High-cut skids outside-
High-cut skids inside / outside1 pcs.
Swath width without swath discs-
Swath width with a pair of swath discs-
Swath width with two pair of swath discs-
Swath width with conditioner min2,2 m
Swath width with conditioner max3 m
Swath forming/conditionerRoller type conditioner RCB
Swath discs-
NOVACAT 402
 NOVACAT 402
MountingRear three-point
Mounting categoryCat. III / 3
Breakaway deviceHydraulic breakaway device
Weight1040 kg
Working width3,88 m
PTO Input Speed1000 rpm
Mower discs9 pcs.
Mower blades18 pcs.
Power requirement90 HP
Hectares/acres per hour4 ha/h
Outer track-
Wear skids7 pcs.
High-cut skids7 pcs.
High-cut skids outside-
High-cut skids inside / outside1 pcs.
Swath width without swath discs3,2 m
Swath width with a pair of swath discs2,7 m
Swath width with two pair of swath discs2,3 m
Swath width with conditioner min-
Swath width with conditioner max-
Swath forming/conditionerSwath discs
Swath discsOuter swath disc standard
NOVACAT 402 ED
 NOVACAT 402 ED
MountingRear three-point
Mounting categoryCat. III / 3
Breakaway deviceHydraulic breakaway device
Weight1390 kg
Working width3,88 m
PTO Input Speed1000 rpm
Mower discs9 pcs.
Mower blades18 pcs.
Power requirement140 HP
Hectares/acres per hour4 ha/h
Outer track-
Wear skids7 pcs.
High-cut skids7 pcs.
High-cut skids outside-
High-cut skids inside / outside1 pcs.
Swath width without swath discs-
Swath width with a pair of swath discs-
Swath width with two pair of swath discs-
Swath width with conditioner min2,6 m
Swath width with conditioner max3,5 m
Swath forming/conditionerSteel tine conditioner
Swath discs-
NOVACAT 442
 NOVACAT 442
MountingRear three-point
Mounting categoryCat. III / 3
Breakaway deviceHydraulic breakaway device
Weight1080 kg
Working width4,3 m
PTO Input Speed1000 rpm
Mower discs10 pcs.
Mower blades20 pcs.
Power requirement110 HP
Hectares/acres per hour4,5 ha/h
Outer track-
Wear skids8 pcs.
High-cut skids8 pcs.
High-cut skids outside-
High-cut skids inside / outside1 pcs.
Swath width without swath discs3,6 m
Swath width with a pair of swath discs3 m
Swath width with two pair of swath discs2,6 m
Swath width with conditioner min-
Swath width with conditioner max-
Swath forming/conditionerSwath discs
Swath discsOuter swath disc standard
Medien

Videos

Qualität


Qualität

Quality

We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.

We use cookies and tracking technologies


User-friendliness is important to us, so we are constantly developing our offers and online services on the website. We would like to display suitable content and advertising for you. By continuing to use the website you agree to the use of cookies, except for Google marketing products. Personalised Google marketing products will only be used if you give your full consent ("Agree to all"). You can also customise the settings using the checkboxes provided.

Personal Google marketing products are only used if you click on "Agree".

Agreed Website use without personal Google marketing products.

You are welcome to call up further information and setting options in our data protection and cookie notes. Cookies | Data protection

Loading...
