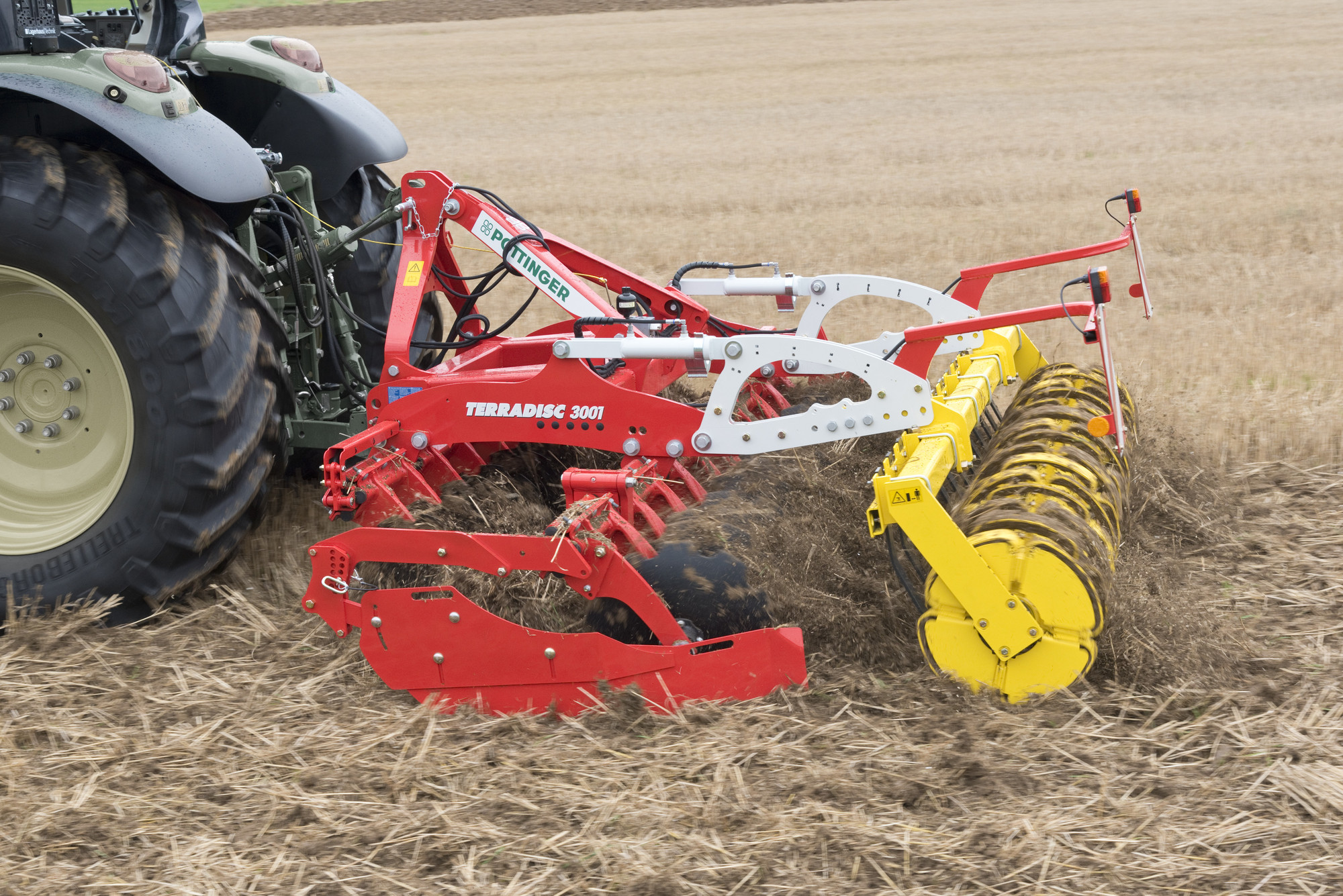

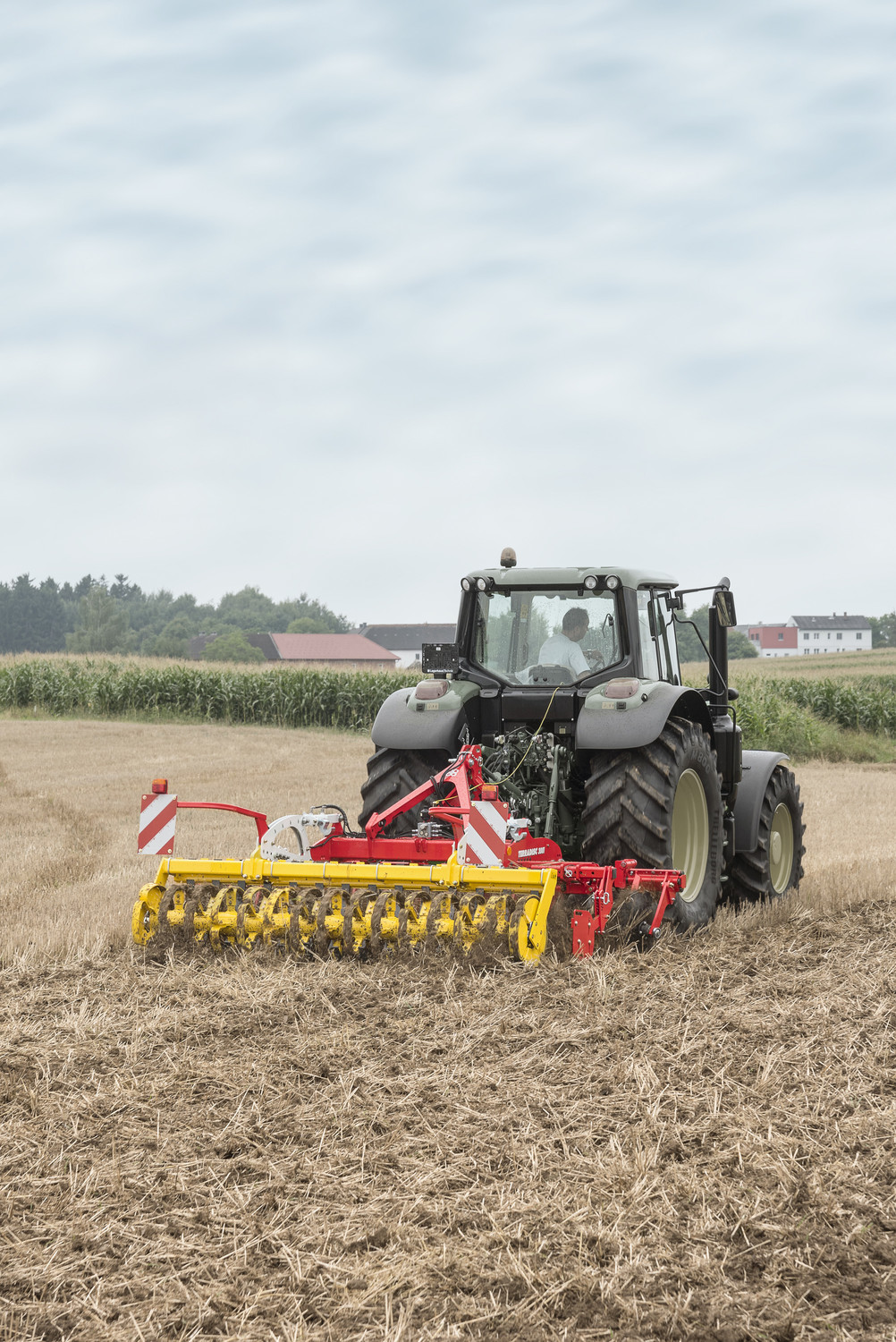

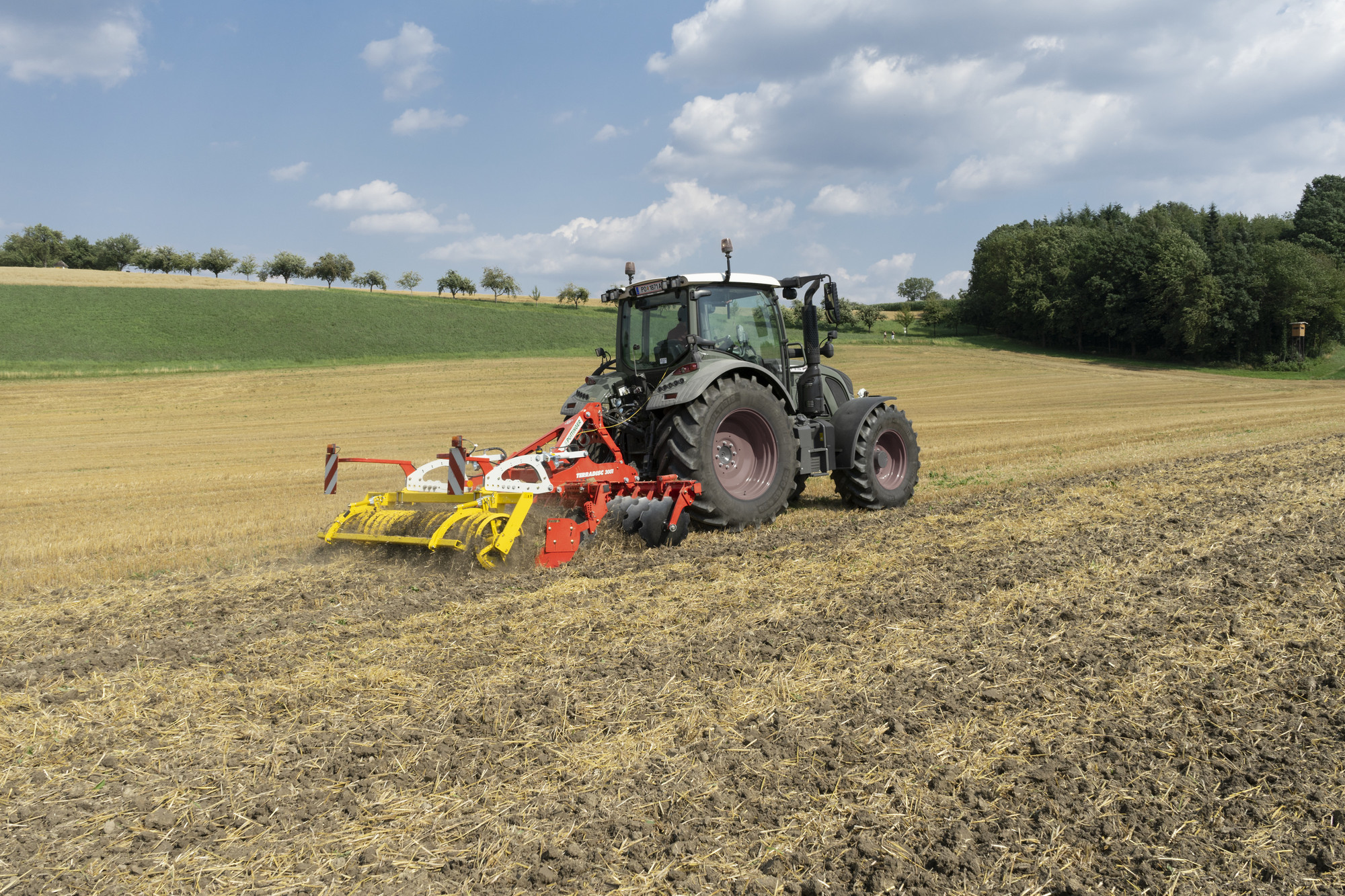

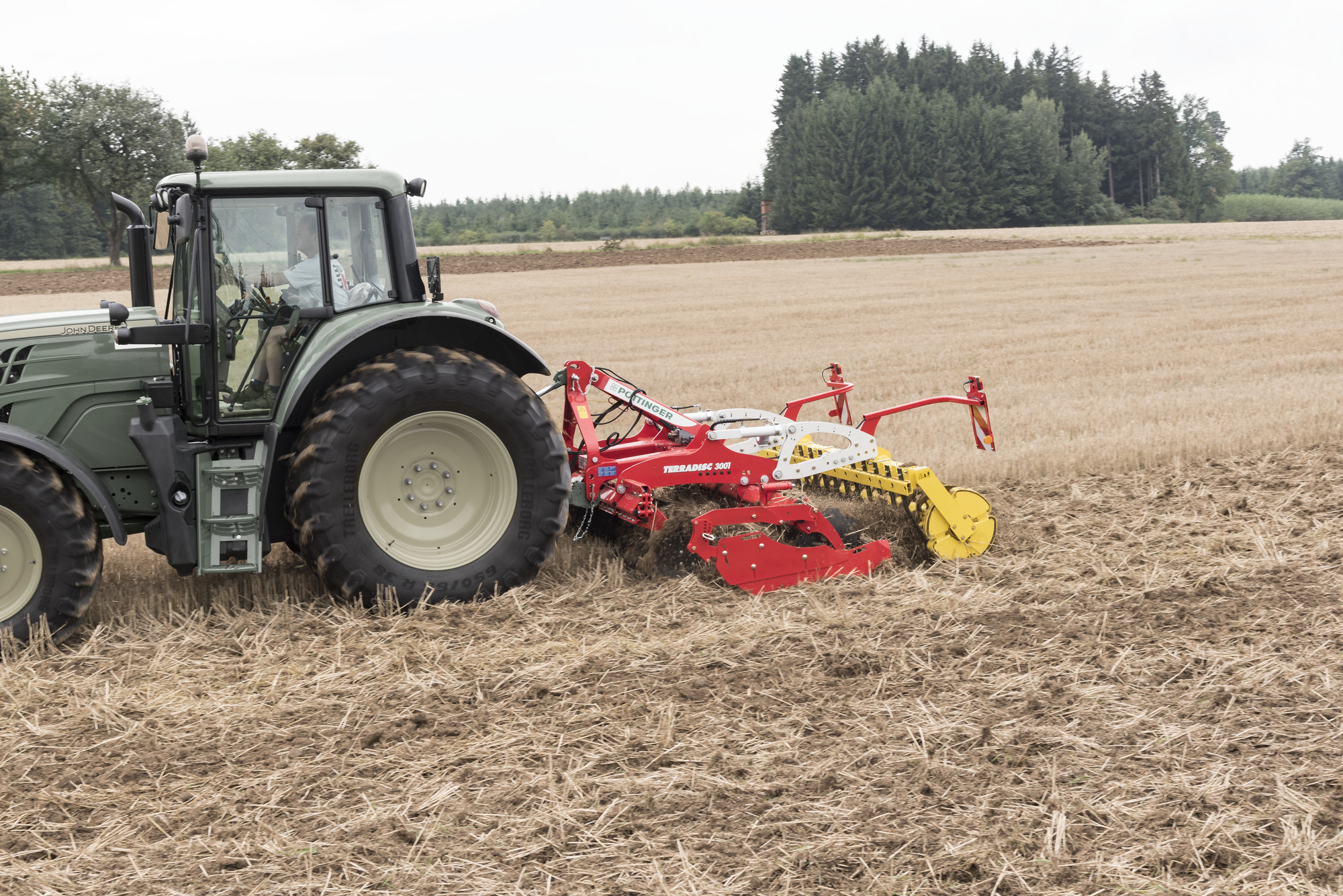

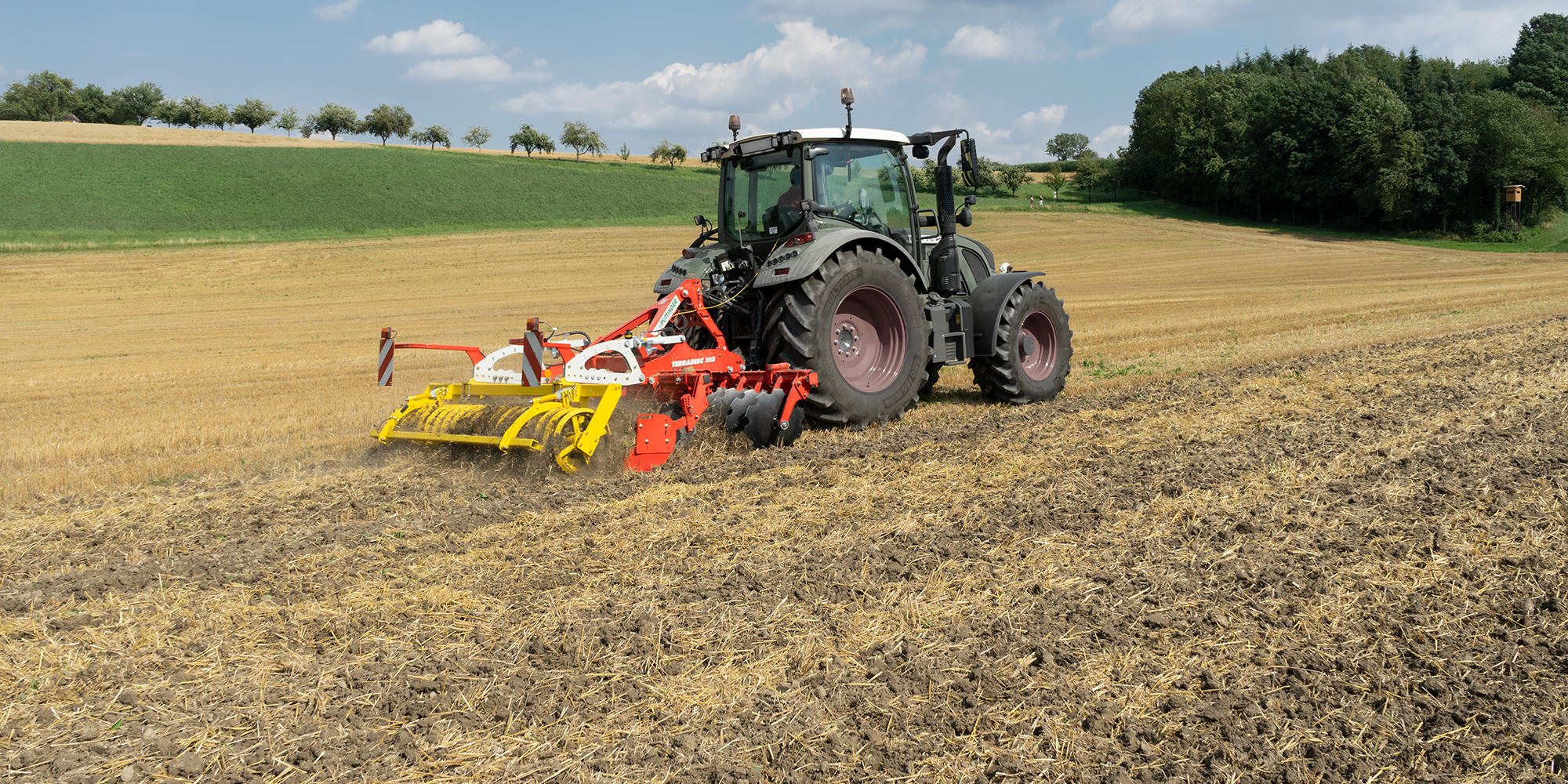

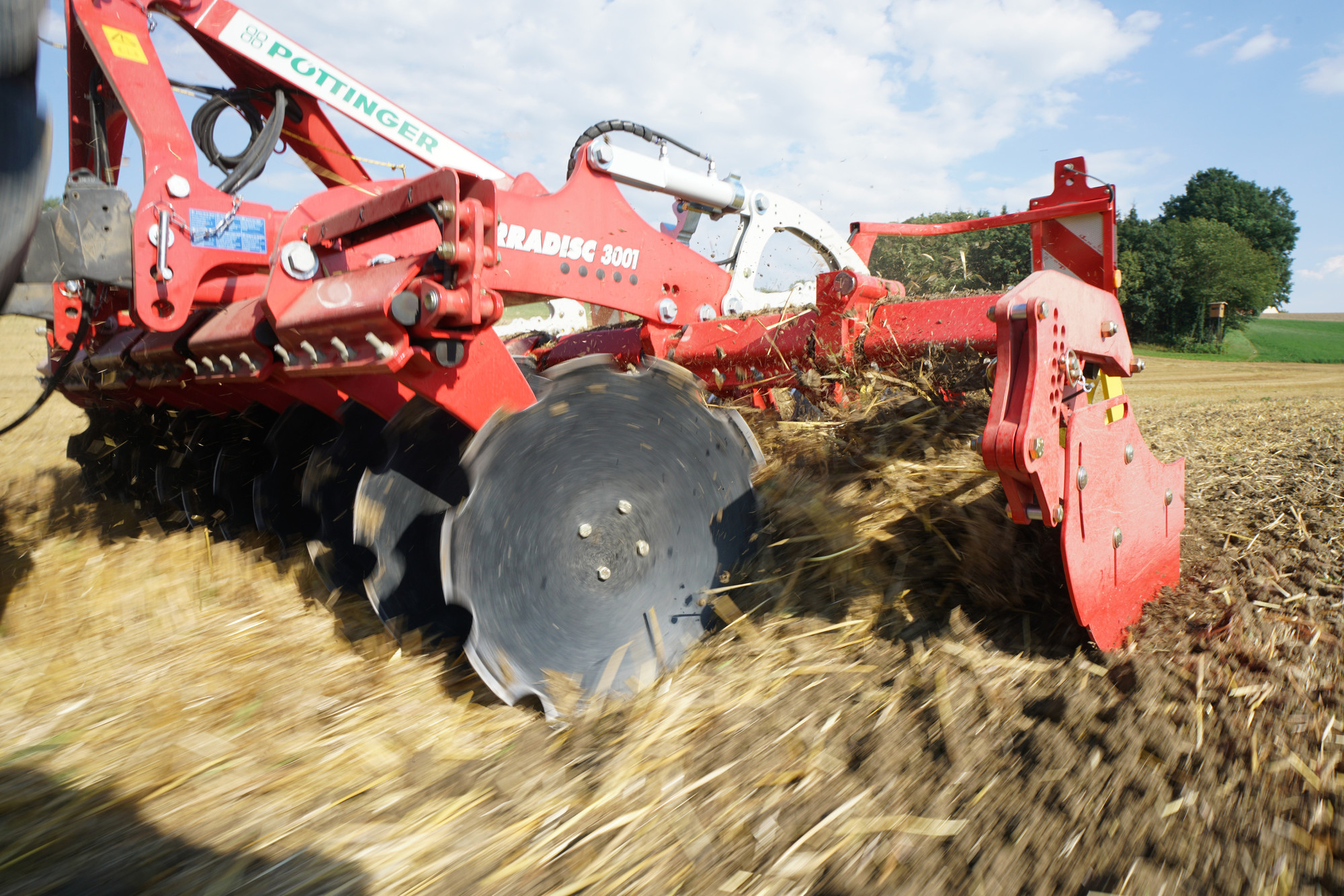

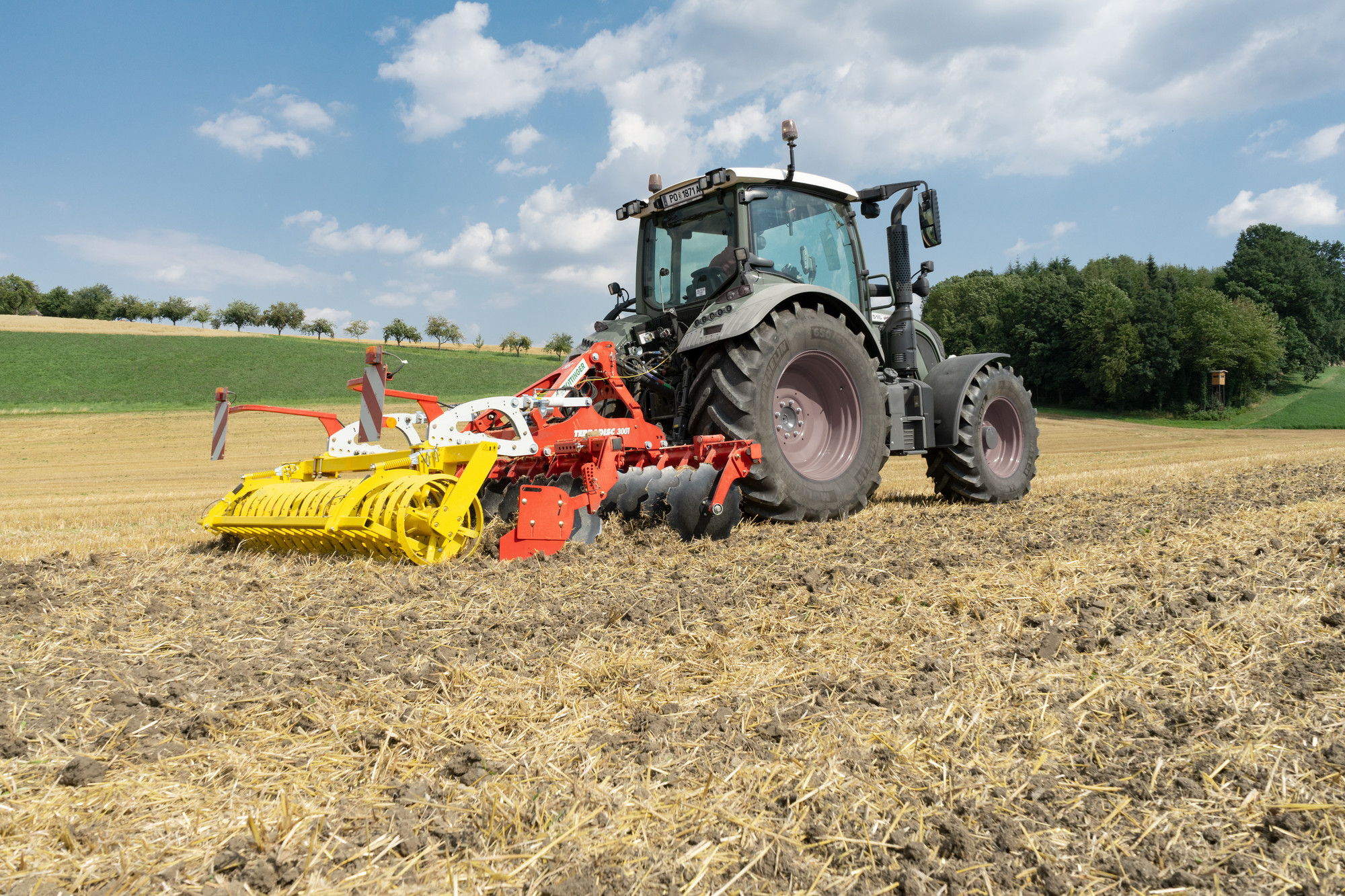

Compact design is a key feature of PÖTTINGER disc harrows. Working depths between 3 and 12 cm are possible. The offset configuration of the aggressively set discs mixes the harvest residues effectively into the soil.

Compact design is a key feature of PÖTTINGER disc harrows. Working depths between 3 and 12 cm are possible. The offset configuration of the aggressively set discs mixes the harvest residues effectively into the soil.




Technology

Technical data

 TERRADISC 3001TERRADISC 3501TERRADISC 4001
Working width9'10'' (3 m)11'6'' (3,5 m)13'1'' (4 m)
Number of discs24 pcs.28 pcs.32 pcs.
Disc diameter1'11'' (58 cm)1'11'' (58 cm)1'11'' (58 cm)
Spacing0'5'' (12,5 cm)0'5'' (12,5 cm)0'5'' (12,5 cm)
Gang spacing2'11'' (90 cm)2'11'' (90 cm)2'11'' (90 cm)
Under frame clearance2'6'' (75 cm)2'6'' (75 cm)2'6'' (75 cm)
Power requirement95 hp115 hp135 hp
Transport width9'10'' (3 m)11'6'' (3,5 m)13'1'' (4 m)
Weight of basic version3241 lbs (1470 kg)3660 lbs (1660 kg)4211 lbs (1910 kg)
Weight cage roller Ø 540 mm717 lbs (325 kg)-1058 lbs (480 kg)
Weight cage roller Ø 660 mm937 lbs (425 kg)-1345 lbs (610 kg)
Weight double cage roller1146 lbs (520 kg)-1676 lbs (760 kg)
Weight knife ring roller Ø 540 mm926 lbs (420 kg)1036 lbs (470 kg)1345 lbs (610 kg)
Weight pack ring roller Ø 550 mm1312 lbs (595 kg)1565 lbs (710 kg)1808 lbs (820 kg)
Weight Rotopack roller882 lbs (400 kg)--
Weight rubber packer roller Ø 590 mm1235 lbs (560 kg)--
Weight CONOROLL Ø 540 mm948 lbs (430 kg)1124 lbs (510 kg)1367 lbs (620 kg)
Weight Tandem CONOROLL Ø 560 mm1510 lbs (685 kg)-2094 lbs (950 kg)
TERRADISC 3001
 TERRADISC 3001
Working width9'10'' (3 m)
Number of discs24 pcs.
Disc diameter1'11'' (58 cm)
Spacing0'5'' (12,5 cm)
Gang spacing2'11'' (90 cm)
Under frame clearance2'6'' (75 cm)
Power requirement95 hp
Transport width9'10'' (3 m)
Weight of basic version3241 lbs (1470 kg)
Weight cage roller Ø 540 mm717 lbs (325 kg)
Weight cage roller Ø 660 mm937 lbs (425 kg)
Weight double cage roller1146 lbs (520 kg)
Weight knife ring roller Ø 540 mm926 lbs (420 kg)
Weight pack ring roller Ø 550 mm1312 lbs (595 kg)
Weight Rotopack roller882 lbs (400 kg)
Weight rubber packer roller Ø 590 mm1235 lbs (560 kg)
Weight CONOROLL Ø 540 mm948 lbs (430 kg)
Weight Tandem CONOROLL Ø 560 mm1510 lbs (685 kg)
TERRADISC 3501
 TERRADISC 3501
Working width11'6'' (3,5 m)
Number of discs28 pcs.
Disc diameter1'11'' (58 cm)
Spacing0'5'' (12,5 cm)
Gang spacing2'11'' (90 cm)
Under frame clearance2'6'' (75 cm)
Power requirement115 hp
Transport width11'6'' (3,5 m)
Weight of basic version3660 lbs (1660 kg)
Weight cage roller Ø 540 mm-
Weight cage roller Ø 660 mm-
Weight double cage roller-
Weight knife ring roller Ø 540 mm1036 lbs (470 kg)
Weight pack ring roller Ø 550 mm1565 lbs (710 kg)
Weight Rotopack roller-
Weight rubber packer roller Ø 590 mm-
Weight CONOROLL Ø 540 mm1124 lbs (510 kg)
Weight Tandem CONOROLL Ø 560 mm-
TERRADISC 4001
 TERRADISC 4001
Working width13'1'' (4 m)
Number of discs32 pcs.
Disc diameter1'11'' (58 cm)
Spacing0'5'' (12,5 cm)
Gang spacing2'11'' (90 cm)
Under frame clearance2'6'' (75 cm)
Power requirement135 hp
Transport width13'1'' (4 m)
Weight of basic version4211 lbs (1910 kg)
Weight cage roller Ø 540 mm1058 lbs (480 kg)
Weight cage roller Ø 660 mm1345 lbs (610 kg)
Weight double cage roller1676 lbs (760 kg)
Weight knife ring roller Ø 540 mm1345 lbs (610 kg)
Weight pack ring roller Ø 550 mm1808 lbs (820 kg)
Weight Rotopack roller-
Weight rubber packer roller Ø 590 mm-
Weight CONOROLL Ø 540 mm1367 lbs (620 kg)
Weight Tandem CONOROLL Ø 560 mm2094 lbs (950 kg)
