Perfect soil penetration
Customer benefits
Technology
Technical data
| TERRADISC 4001 T | TERRADISC 5001 T | TERRADISC 6001 T | |||
|---|---|---|---|---|---|
| Working width | 13'1'' (4 m) | 16'5'' (5 m) | 19'8'' (6 m) | ||
| Number of discs | 32 pcs. | 40 pcs. | 48 pcs. | ||
| Disc diameter | 1'11'' (58 cm) | 1'11'' (58 cm) | 1'11'' (58 cm) | ||
| Spacing | 0'5'' (12,5 cm) | 0'5'' (12,5 cm) | 0'5'' (12,5 cm) | ||
| Gang spacing | 2'11'' (90 cm) | 2'11'' (90 cm) | 2'11'' (90 cm) | ||
| Power requirement | 135 hp | 155 hp | 190 hp | ||
| Transport width | 9'2'' (2,8 m) | 9'2'' (2,8 m) | 9'2'' (2,8 m) | ||
| Weight of basic version | 8300 lbs (3765 kg) | 9513 lbs (4315 kg) | 10450 lbs (4740 kg) | ||
| Weight cage roller Ø 660 mm | 1345 lbs (610 kg) | 1689 lbs (766 kg) | 1874 lbs (850 kg) | ||
| Weight double cage roller | 1676 lbs (760 kg) | 1940 lbs (880 kg) | 2293 lbs (1040 kg) | ||
| Weight pack ring roller Ø 550 mm | 1808 lbs (820 kg) | 2227 lbs (1010 kg) | 2623 lbs (1190 kg) | ||
| Weight rubber packer roller Ø 590 mm | - | 2205 lbs (1000 kg) | 2469 lbs (1120 kg) | ||
| Weight Tandem CONOROLL Ø 560 mm | 2094 lbs (950 kg) | 2557 lbs (1160 kg) | 3020 lbs (1370 kg) | ||
| Weight tandem U-profile roller 600 mm Ø | 2183 lbs (990 kg) | 2579 lbs (1170 kg) | 3020 lbs (1370 kg) |
TERRADISC 4001 T
| Working width | 13'1'' (4 m) |
| Number of discs | 32 pcs. |
| Disc diameter | 1'11'' (58 cm) |
| Spacing | 0'5'' (12,5 cm) |
| Gang spacing | 2'11'' (90 cm) |
| Power requirement | 135 hp |
| Transport width | 9'2'' (2,8 m) |
| Weight of basic version | 8300 lbs (3765 kg) |
| Weight cage roller Ø 660 mm | 1345 lbs (610 kg) |
| Weight double cage roller | 1676 lbs (760 kg) |
| Weight pack ring roller Ø 550 mm | 1808 lbs (820 kg) |
| Weight rubber packer roller Ø 590 mm | - |
| Weight Tandem CONOROLL Ø 560 mm | 2094 lbs (950 kg) |
| Weight tandem U-profile roller 600 mm Ø | 2183 lbs (990 kg) |
TERRADISC 5001 T
| Working width | 16'5'' (5 m) |
| Number of discs | 40 pcs. |
| Disc diameter | 1'11'' (58 cm) |
| Spacing | 0'5'' (12,5 cm) |
| Gang spacing | 2'11'' (90 cm) |
| Power requirement | 155 hp |
| Transport width | 9'2'' (2,8 m) |
| Weight of basic version | 9513 lbs (4315 kg) |
| Weight cage roller Ø 660 mm | 1689 lbs (766 kg) |
| Weight double cage roller | 1940 lbs (880 kg) |
| Weight pack ring roller Ø 550 mm | 2227 lbs (1010 kg) |
| Weight rubber packer roller Ø 590 mm | 2205 lbs (1000 kg) |
| Weight Tandem CONOROLL Ø 560 mm | 2557 lbs (1160 kg) |
| Weight tandem U-profile roller 600 mm Ø | 2579 lbs (1170 kg) |
TERRADISC 6001 T
| Working width | 19'8'' (6 m) |
| Number of discs | 48 pcs. |
| Disc diameter | 1'11'' (58 cm) |
| Spacing | 0'5'' (12,5 cm) |
| Gang spacing | 2'11'' (90 cm) |
| Power requirement | 190 hp |
| Transport width | 9'2'' (2,8 m) |
| Weight of basic version | 10450 lbs (4740 kg) |
| Weight cage roller Ø 660 mm | 1874 lbs (850 kg) |
| Weight double cage roller | 2293 lbs (1040 kg) |
| Weight pack ring roller Ø 550 mm | 2623 lbs (1190 kg) |
| Weight rubber packer roller Ø 590 mm | 2469 lbs (1120 kg) |
| Weight Tandem CONOROLL Ø 560 mm | 3020 lbs (1370 kg) |
| Weight tandem U-profile roller 600 mm Ø | 3020 lbs (1370 kg) |
MyPÖTTINGER
- Get valuable information and tips on all PÖTTINGER machines
- Specific information on your PÖTTINGER machines in "My Machines".
- Instruction manuals, spare parts lists, maintenance information, as well as all technical details available online
- Machine-specific documentation for all PÖTTINGER machines built from 1997 onwards available online
www.mypoettinger.com
Videos

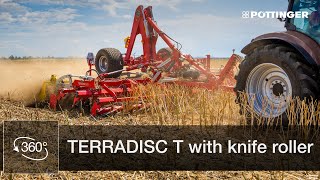

Trailed TERRADISC compact disc harrow with knife roller
TERRADISC disc harrows
PÖTTINGER TERRADISC 6001 T disc harrows
![PÖTTINGER TEGOSEM catch crop sowing system [en]](https://i1.ytimg.com/vi/0yoi-Gyd-uQ/mqdefault.jpg "PÖTTINGER TEGOSEM catch crop sowing system [en]")
PÖTTINGER TEGOSEM catch crop sowing system [en]
![PÖTTINGER TERRADISC compact disc harrows with TEGOSEM catch crop system [en]](https://i1.ytimg.com/vi/Ka1TmH7xQnM/mqdefault.jpg "PÖTTINGER TERRADISC compact disc harrows with TEGOSEM catch crop system [en]")
PÖTTINGER TERRADISC compact disc harrows with TEGOSEM catch crop system [en]
TERRADISC disc harrows - TWIN ARM, tough and reliable
Brochures
Image gallery
Quality
We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.
