The best soil

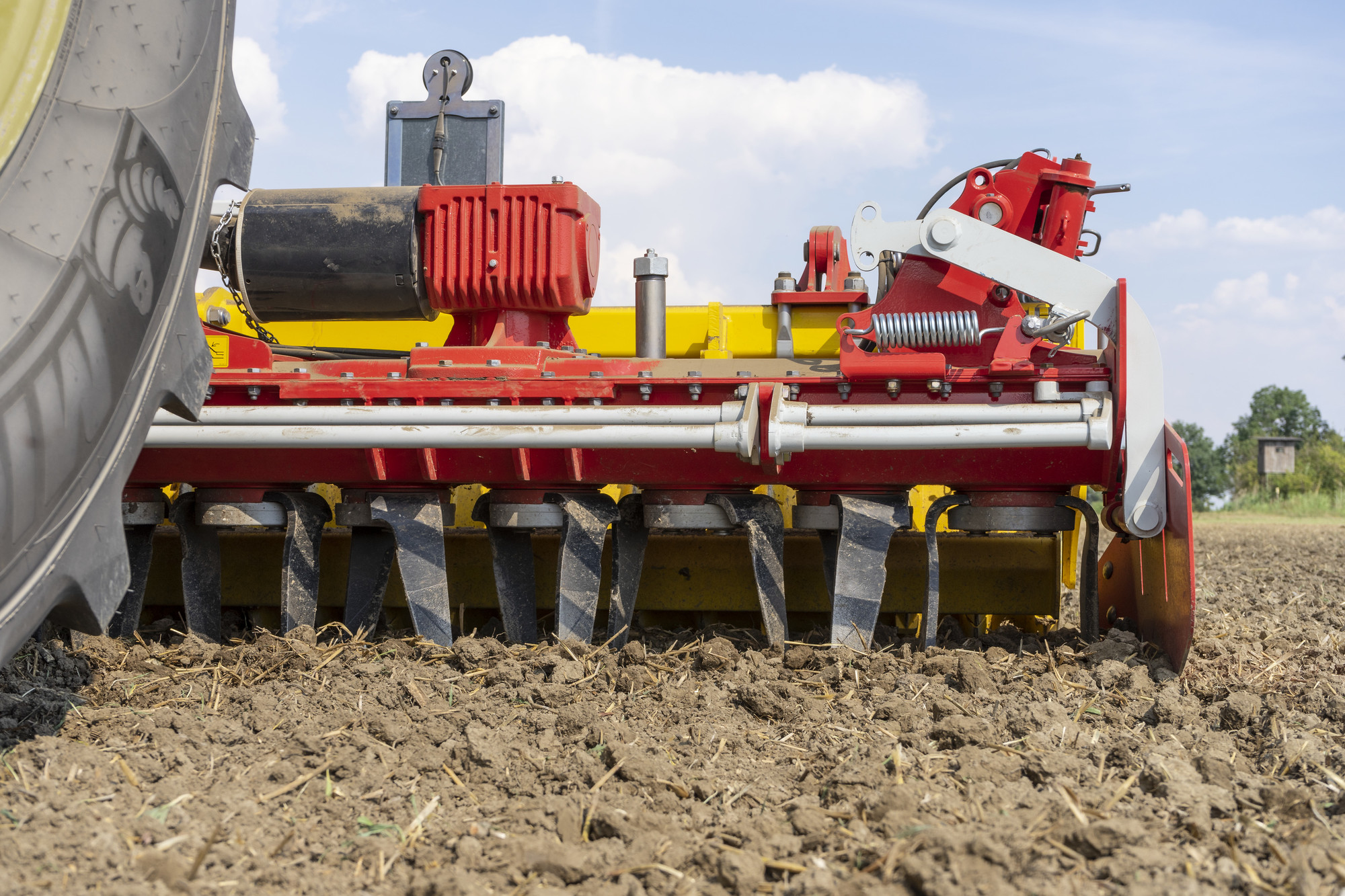

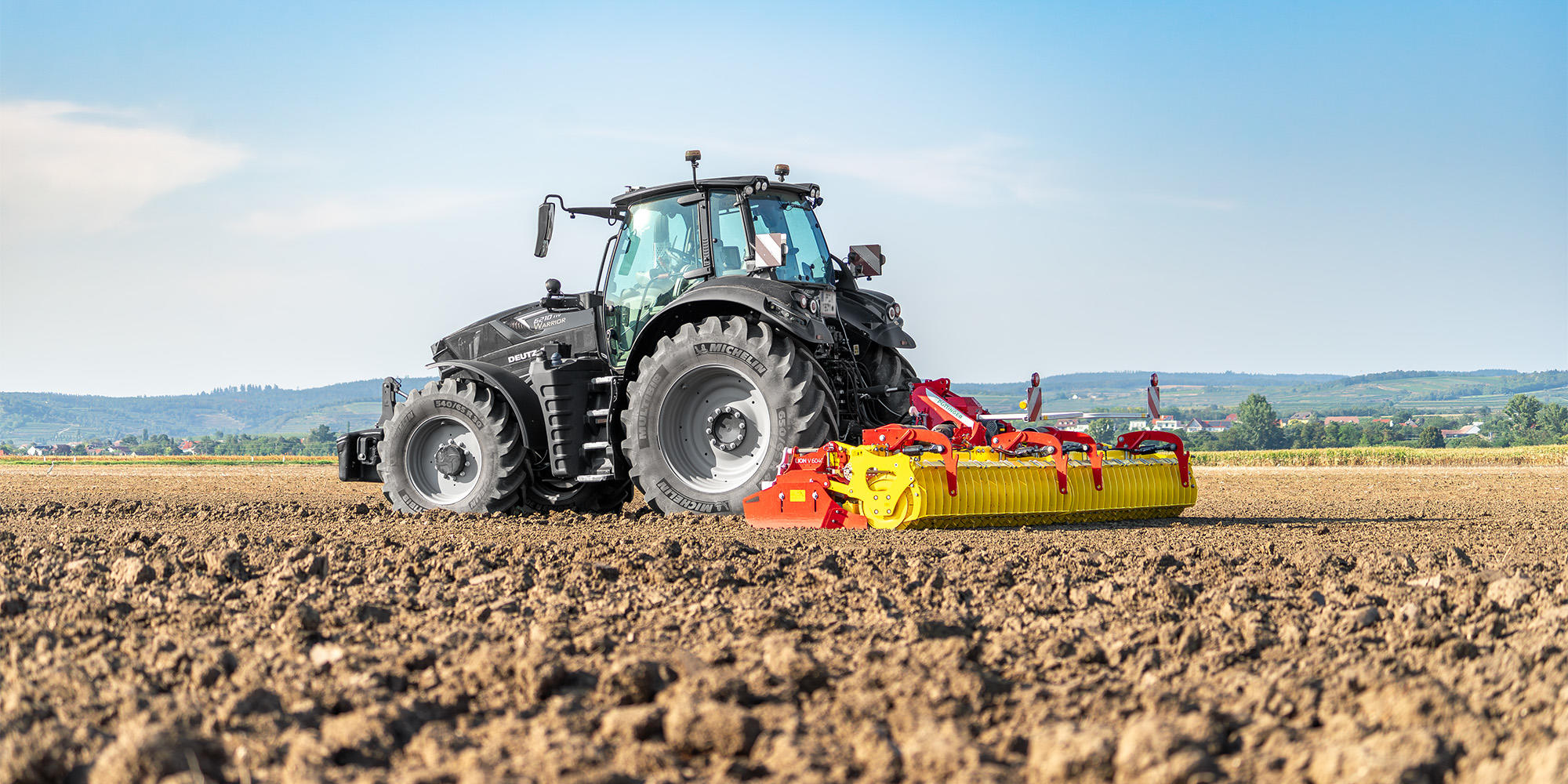

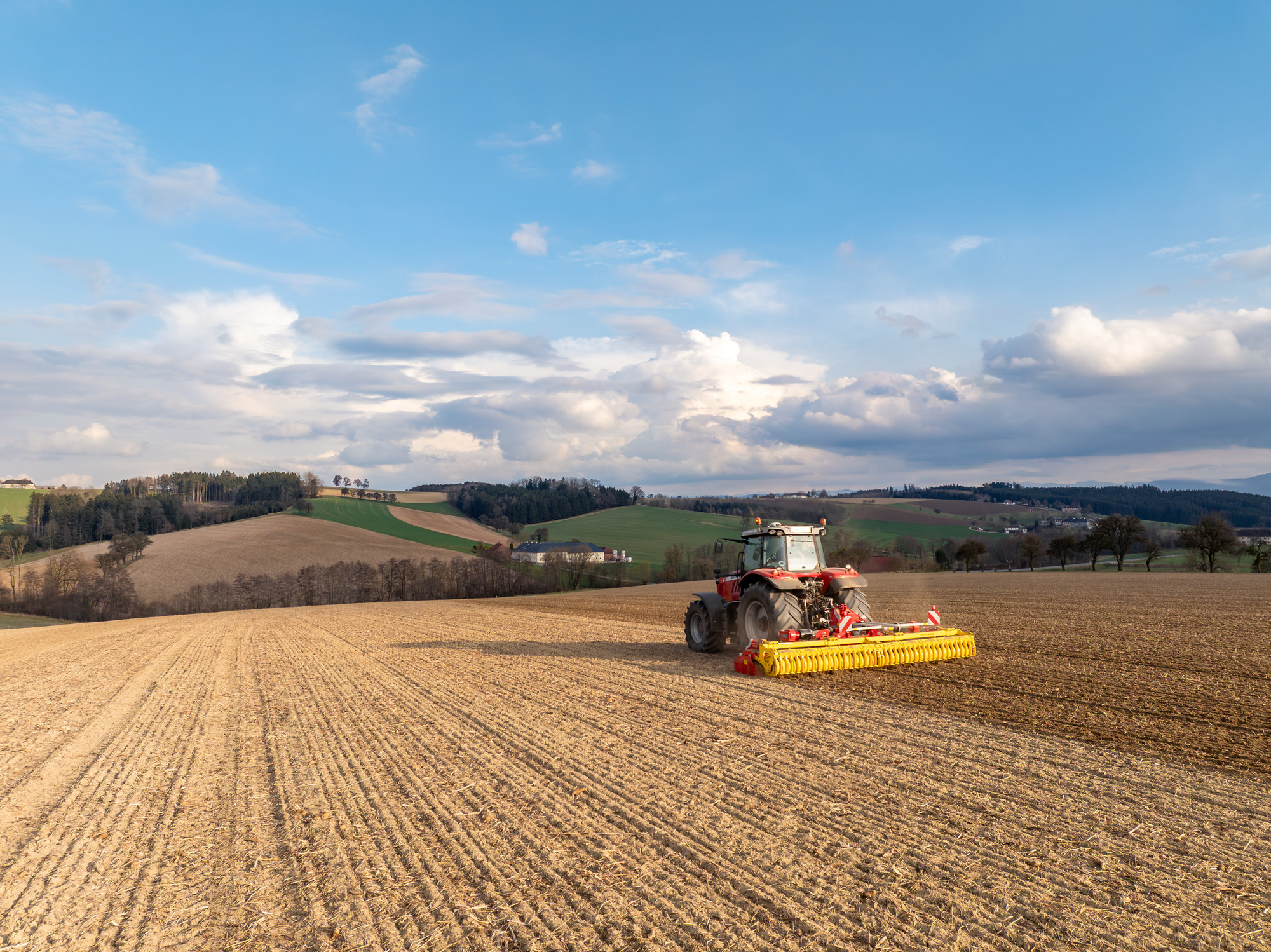

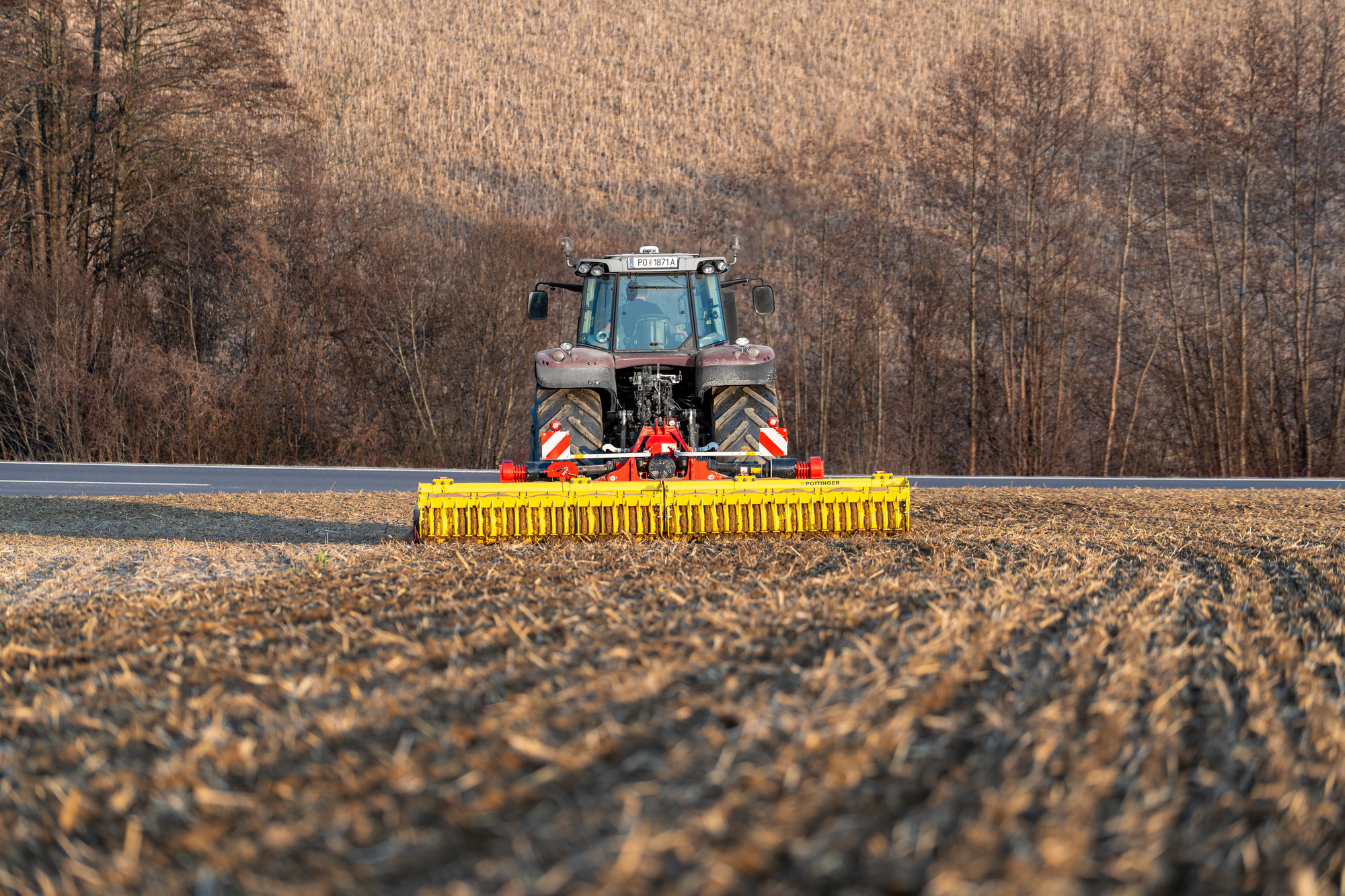

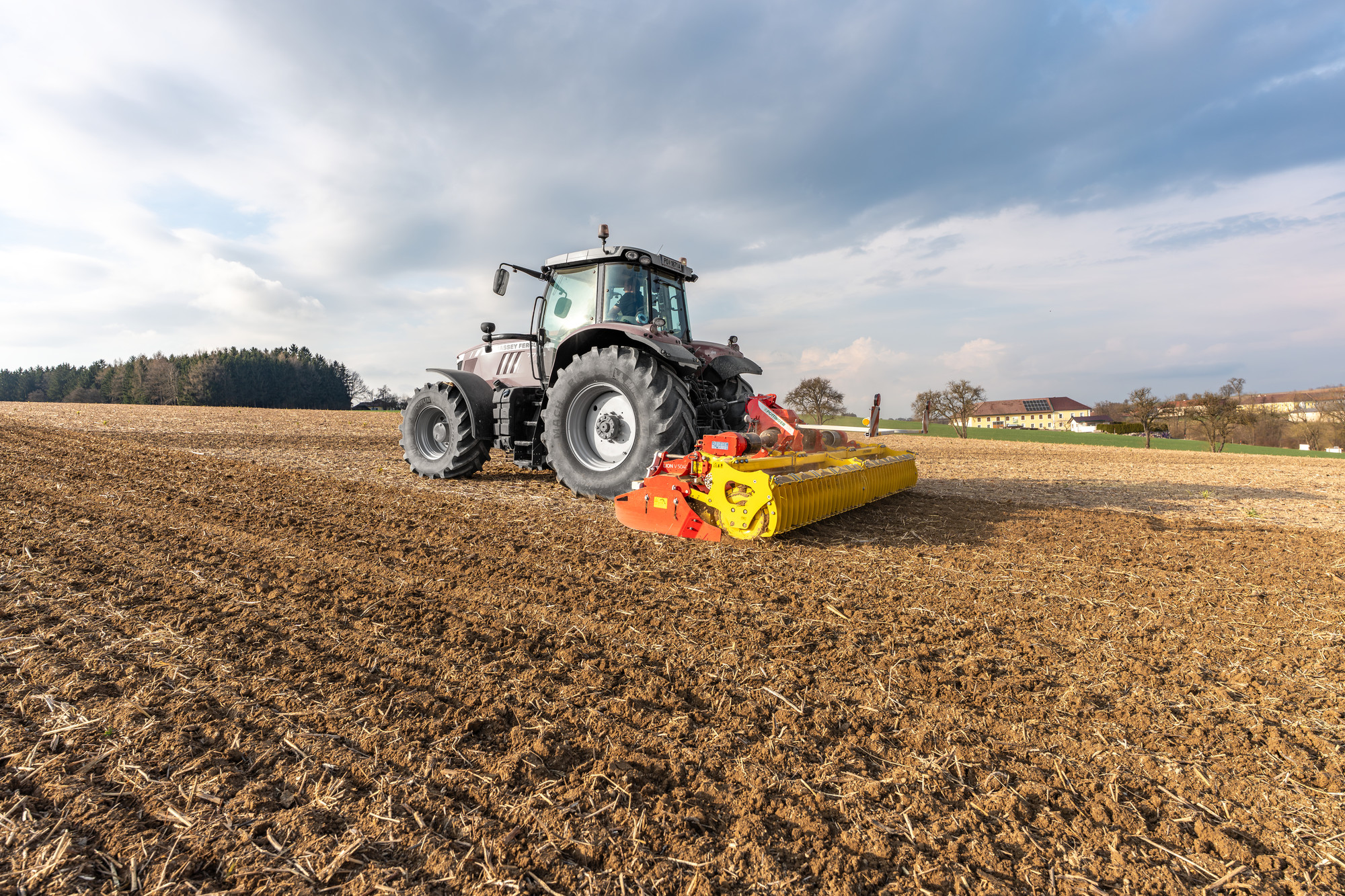

The power harrow plays an important role in many arable farming scenarios. Best quality tilth and excellent mixing of the soil to form a perfect seedbed are highlights of PÖTTINGER power harrows. Combined with a seed drill, this machine becomes a flexible and high output combination delivering perfect drilling results. We offer a tailor-made solution featuring many equipment versions to cover all soil types and different sizes of farm.
The power harrow plays an important role in many arable farming scenarios. Best quality tilth and excellent mixing of the soil to form a perfect seedbed are highlights of PÖTTINGER power harrows. Combined with a seed drill, this machine becomes a flexible and high output combination delivering perfect drilling results. We offer a tailor-made solution featuring many equipment versions to cover all soil types and different sizes of farm.
Customer benefits
Technology
Technical data
LION V 4040 | LION V 5040 | LION V 6040 | |||
|---|---|---|---|---|---|
| Working width | 13'1.48'' (4 m) | 16'4.85'' (5 m) | 19'8.22'' (6 m) | ||
| Rotor | 16 pcs. | 20 pcs. | 24 pcs. | ||

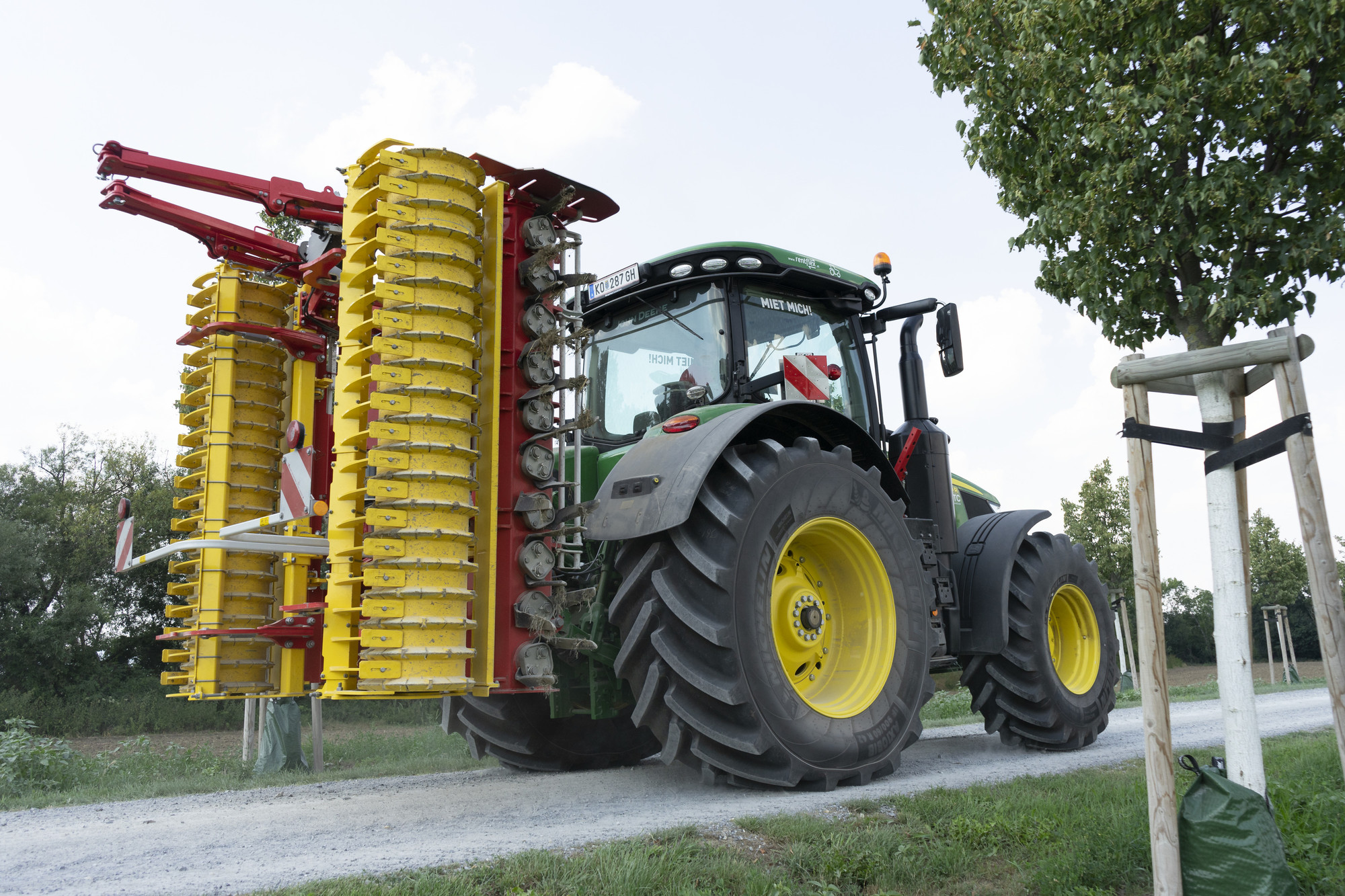

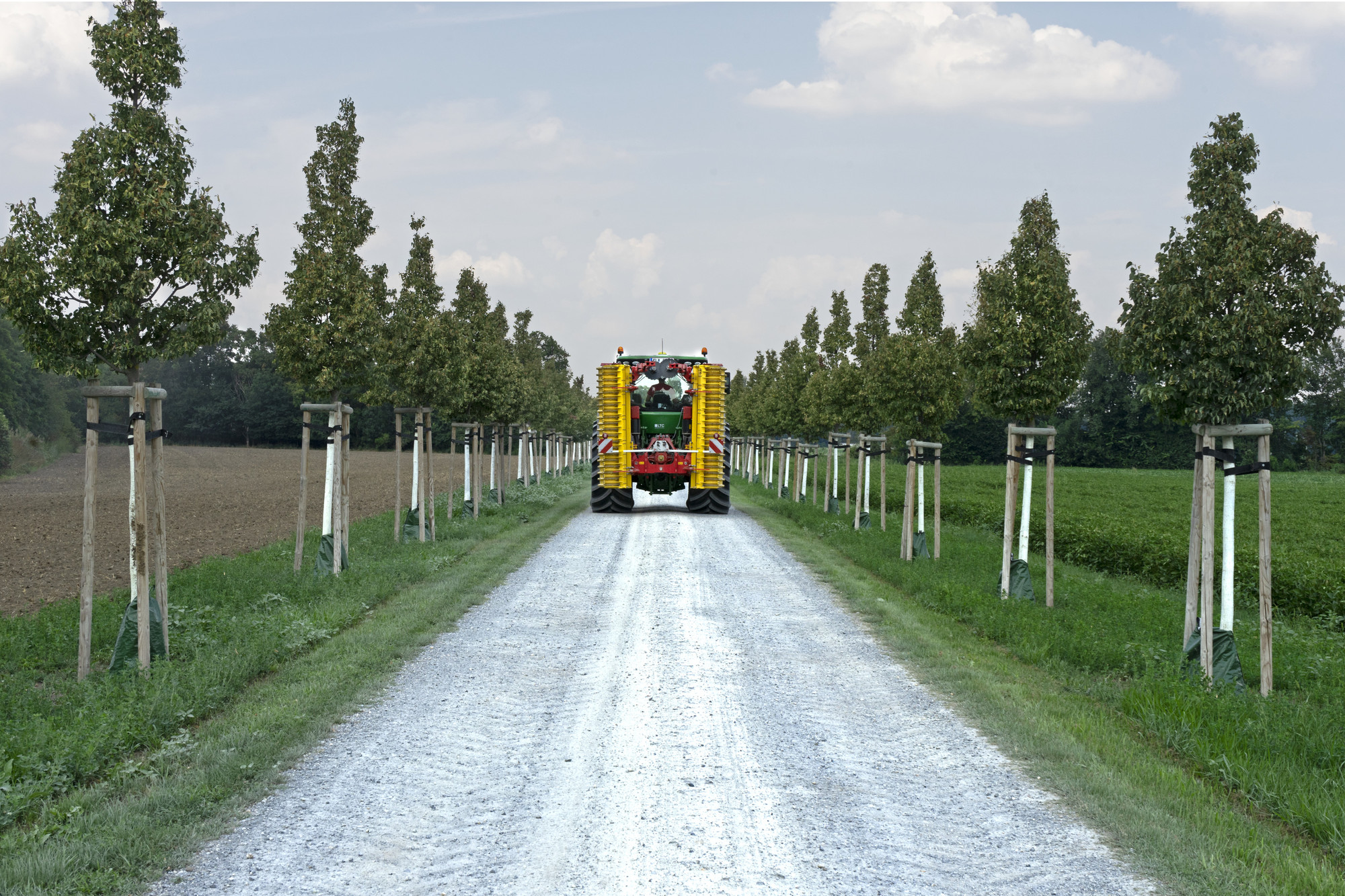

| Transport width | 8'4.39'' (2,55 m) | 8'4.39'' (2,55 m) | 8'4.39'' (2,55 m) | ||
| Power requirement | 150 - 320 hp | 150 - 320 hp | 150 - 320 hp | ||

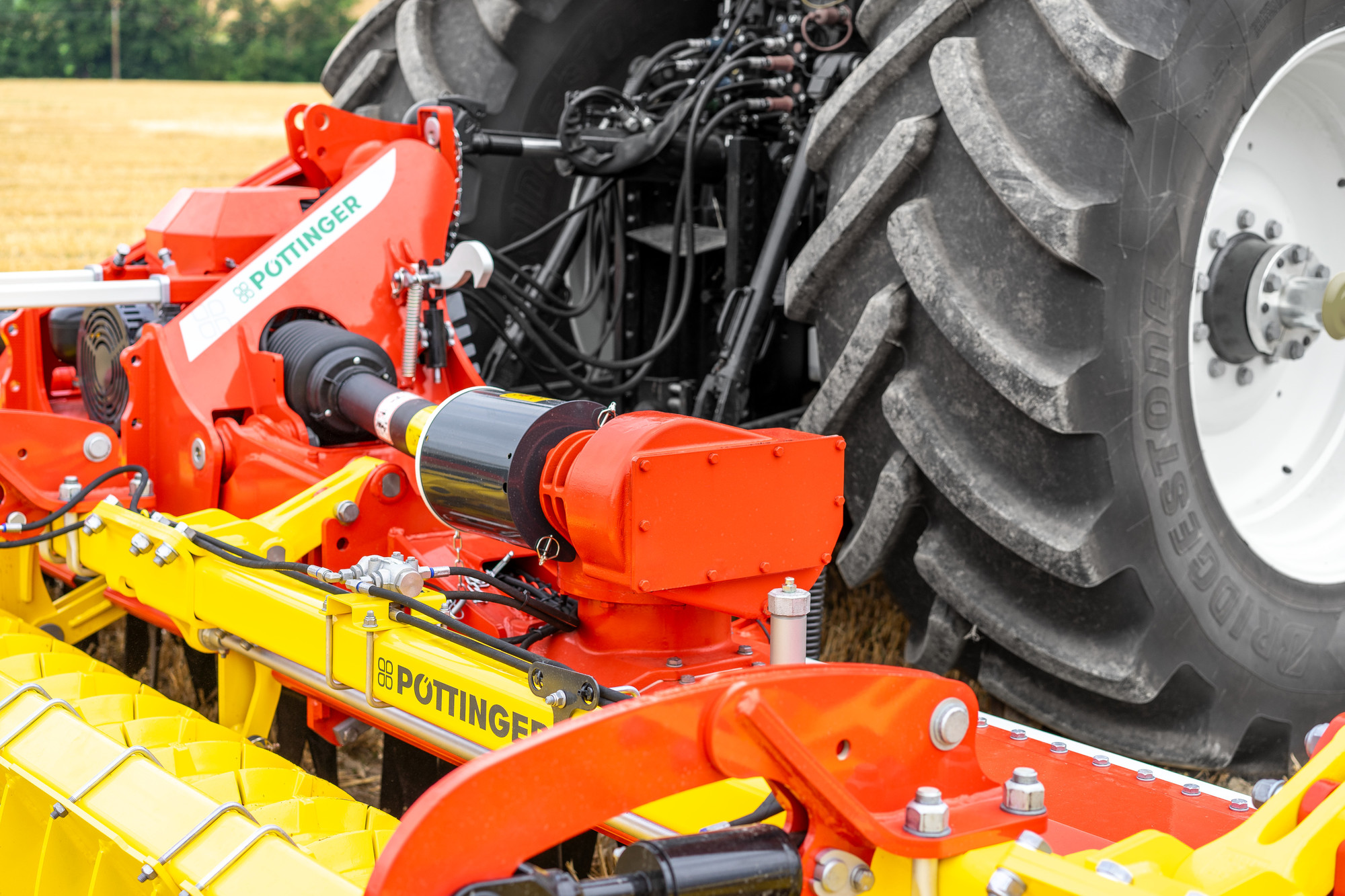

| PTO speed | 1000 rpm | 1000 rpm | 1000 rpm | ||
| Rotor speed | 342 rpm | 342 rpm | 342 rpm | ||
| Tine dimensions | 0.59'' x 1'0.99'' (15 x 330 mm) | 0.59'' x 1'0.99'' (15 x 330 mm) | 0.59'' x 1'0.99'' (15 x 330 mm) | ||
| Weight cage roller Ø 540 mm | - | 1365 lbs (619 kg) | 1499 lbs (680 kg) | ||
| Weight toothed packer roller Ø 500 mm coated | 1742 lbs (790 kg) | 1973 lbs (895 kg) | 2304 lbs (1045 kg) | ||
| Weight toothed packer roller Ø 550 mm coated | 1918 lbs (870 kg) | 2293 lbs (1040 kg) | 2932 lbs (1330 kg) | ||
| Weight crumbling packer roller Ø 525 mm coated | - | 2601 lbs (1180 kg) | 2976 lbs (1350 kg) | ||
| Weight pack ring roller Ø 550 mm coated | 1984 lbs (900 kg) | 2910 lbs (1320 kg) | 3549 lbs (1610 kg) | ||
| Weight prism packer roller Ø 500 mm coated; 12,5 cm row spacing | 2337 lbs (1060 kg) | 2822 lbs (1280 kg) | - | ||
| Weight prism packer roller Ø 600 mm coated; 12,5 cm row spacing | 2635 lbs (1195 kg) | 3142 lbs (1425 kg) | - | ||
| Weight prism packer roller Ø 500 mm coated; 15 cm row spacing | - | 2822 lbs (1280 kg) | 3307 lbs (1500 kg) | ||
| Weight prism packer roller Ø 600 mm coated; 15 cm row spacing | - | - | - |
LION V 4040
| Working width | 13'1.48'' (4 m) |
| Rotor | 16 pcs. |
| Transport width | 8'4.39'' (2,55 m) |
| Power requirement | 150 - 320 hp |
| PTO speed | 1000 rpm |
| Rotor speed | 342 rpm |
| Tine dimensions | 0.59'' x 1'0.99'' (15 x 330 mm) |
| Weight cage roller Ø 540 mm | - |
| Weight toothed packer roller Ø 500 mm coated | 1742 lbs (790 kg) |
| Weight toothed packer roller Ø 550 mm coated | 1918 lbs (870 kg) |
| Weight crumbling packer roller Ø 525 mm coated | - |
| Weight pack ring roller Ø 550 mm coated | 1984 lbs (900 kg) |
| Weight prism packer roller Ø 500 mm coated; 12,5 cm row spacing | 2337 lbs (1060 kg) |
| Weight prism packer roller Ø 600 mm coated; 12,5 cm row spacing | 2635 lbs (1195 kg) |
| Weight prism packer roller Ø 500 mm coated; 15 cm row spacing | - |
| Weight prism packer roller Ø 600 mm coated; 15 cm row spacing | - |
LION V 5040
| Working width | 16'4.85'' (5 m) |
| Rotor | 20 pcs. |
| Transport width | 8'4.39'' (2,55 m) |
| Power requirement | 150 - 320 hp |
| PTO speed | 1000 rpm |
| Rotor speed | 342 rpm |
| Tine dimensions | 0.59'' x 1'0.99'' (15 x 330 mm) |
| Weight cage roller Ø 540 mm | 1365 lbs (619 kg) |
| Weight toothed packer roller Ø 500 mm coated | 1973 lbs (895 kg) |
| Weight toothed packer roller Ø 550 mm coated | 2293 lbs (1040 kg) |
| Weight crumbling packer roller Ø 525 mm coated | 2601 lbs (1180 kg) |
| Weight pack ring roller Ø 550 mm coated | 2910 lbs (1320 kg) |
| Weight prism packer roller Ø 500 mm coated; 12,5 cm row spacing | 2822 lbs (1280 kg) |
| Weight prism packer roller Ø 600 mm coated; 12,5 cm row spacing | 3142 lbs (1425 kg) |
| Weight prism packer roller Ø 500 mm coated; 15 cm row spacing | 2822 lbs (1280 kg) |
| Weight prism packer roller Ø 600 mm coated; 15 cm row spacing | - |

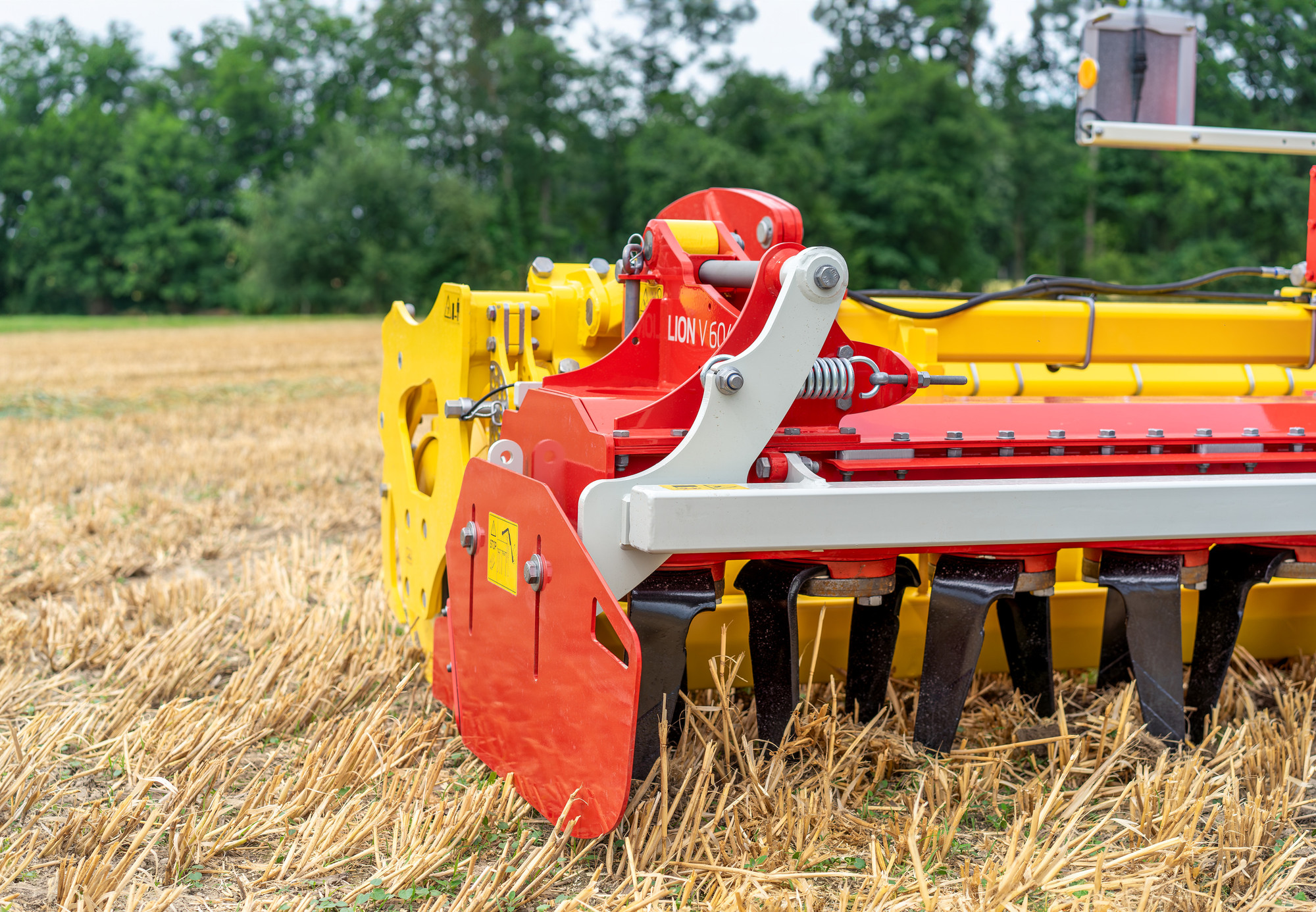

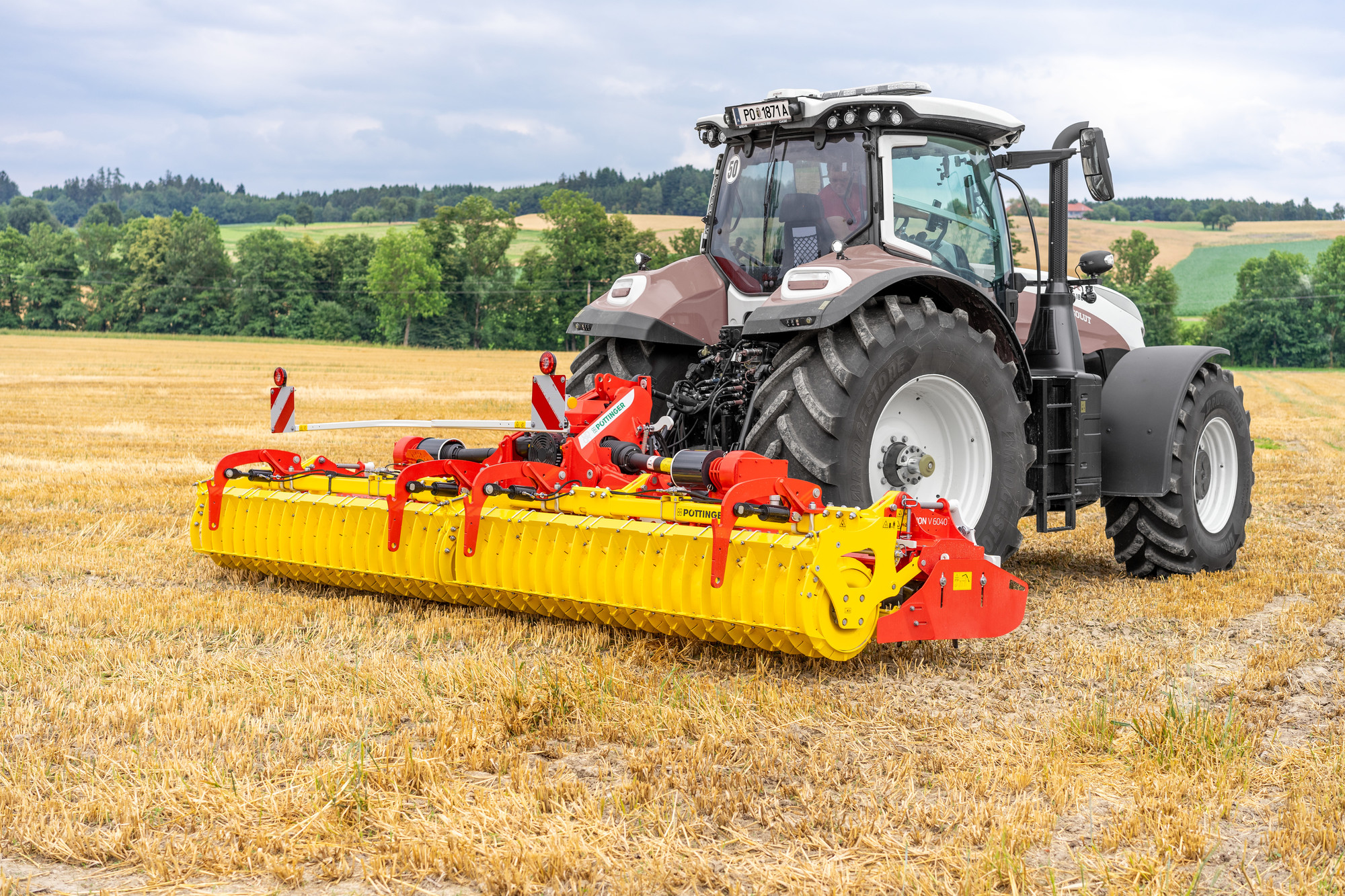

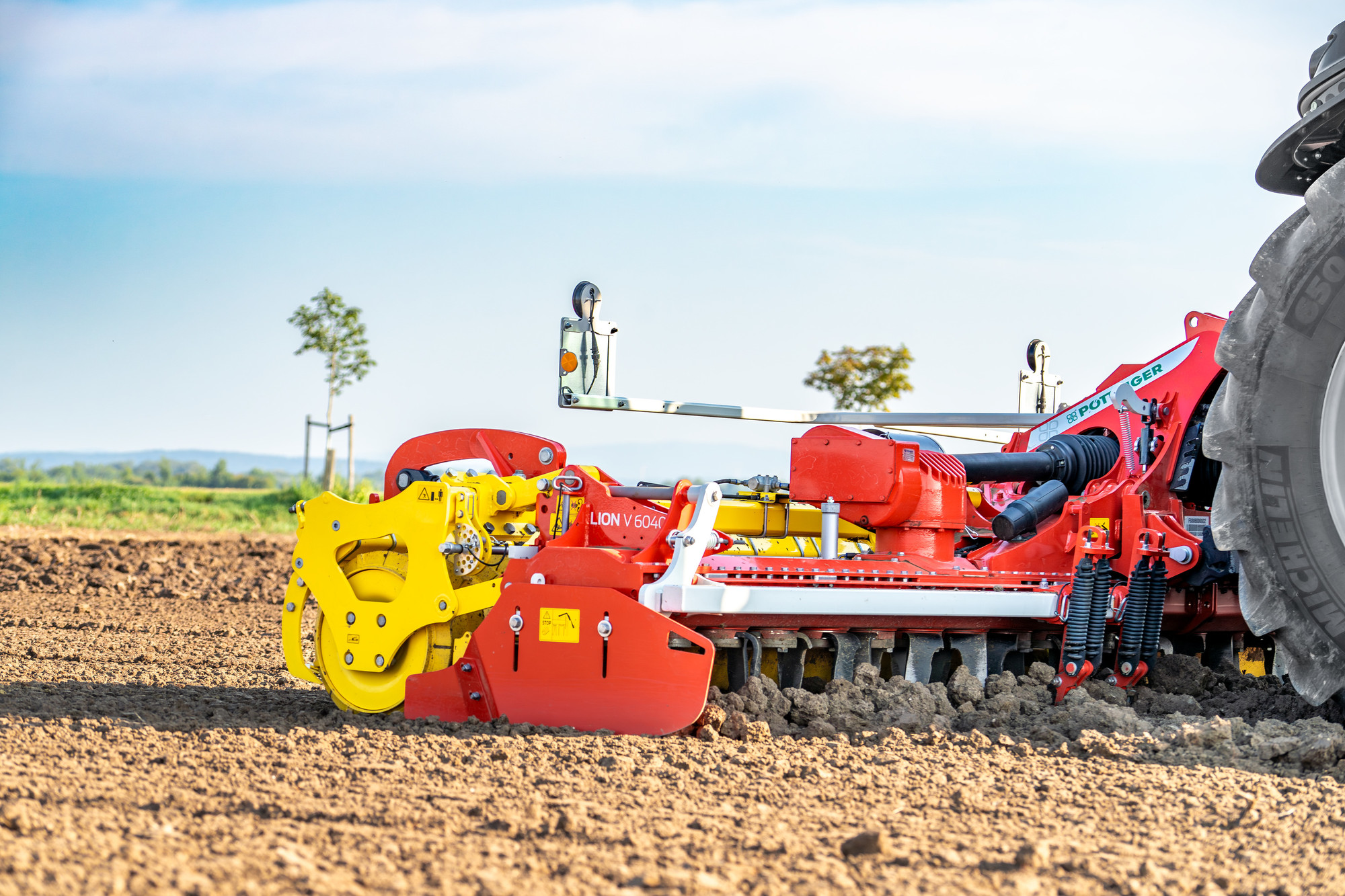

LION V 6040
| Working width | 19'8.22'' (6 m) |
| Rotor | 24 pcs. |
| Transport width | 8'4.39'' (2,55 m) |
| Power requirement | 150 - 320 hp |
| PTO speed | 1000 rpm |
| Rotor speed | 342 rpm |
| Tine dimensions | 0.59'' x 1'0.99'' (15 x 330 mm) |
| Weight cage roller Ø 540 mm | 1499 lbs (680 kg) |
| Weight toothed packer roller Ø 500 mm coated | 2304 lbs (1045 kg) |
| Weight toothed packer roller Ø 550 mm coated | 2932 lbs (1330 kg) |
| Weight crumbling packer roller Ø 525 mm coated | 2976 lbs (1350 kg) |
| Weight pack ring roller Ø 550 mm coated | 3549 lbs (1610 kg) |
| Weight prism packer roller Ø 500 mm coated; 12,5 cm row spacing | - |
| Weight prism packer roller Ø 600 mm coated; 12,5 cm row spacing | - |
| Weight prism packer roller Ø 500 mm coated; 15 cm row spacing | 3307 lbs (1500 kg) |
| Weight prism packer roller Ø 600 mm coated; 15 cm row spacing | - |
MyPÖTTINGER
- Get valuable information and tips on all PÖTTINGER machines
- Specific information on your PÖTTINGER machines in "My Machines".
- Instruction manuals, spare parts lists, maintenance information, as well as all technical details available online
- Machine-specific documentation for all PÖTTINGER machines built from 1997 onwards available online
www.mypoettinger.com
Videos
LION 103 C - Your benefits
Brochures
Image gallery
Quality
We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.
