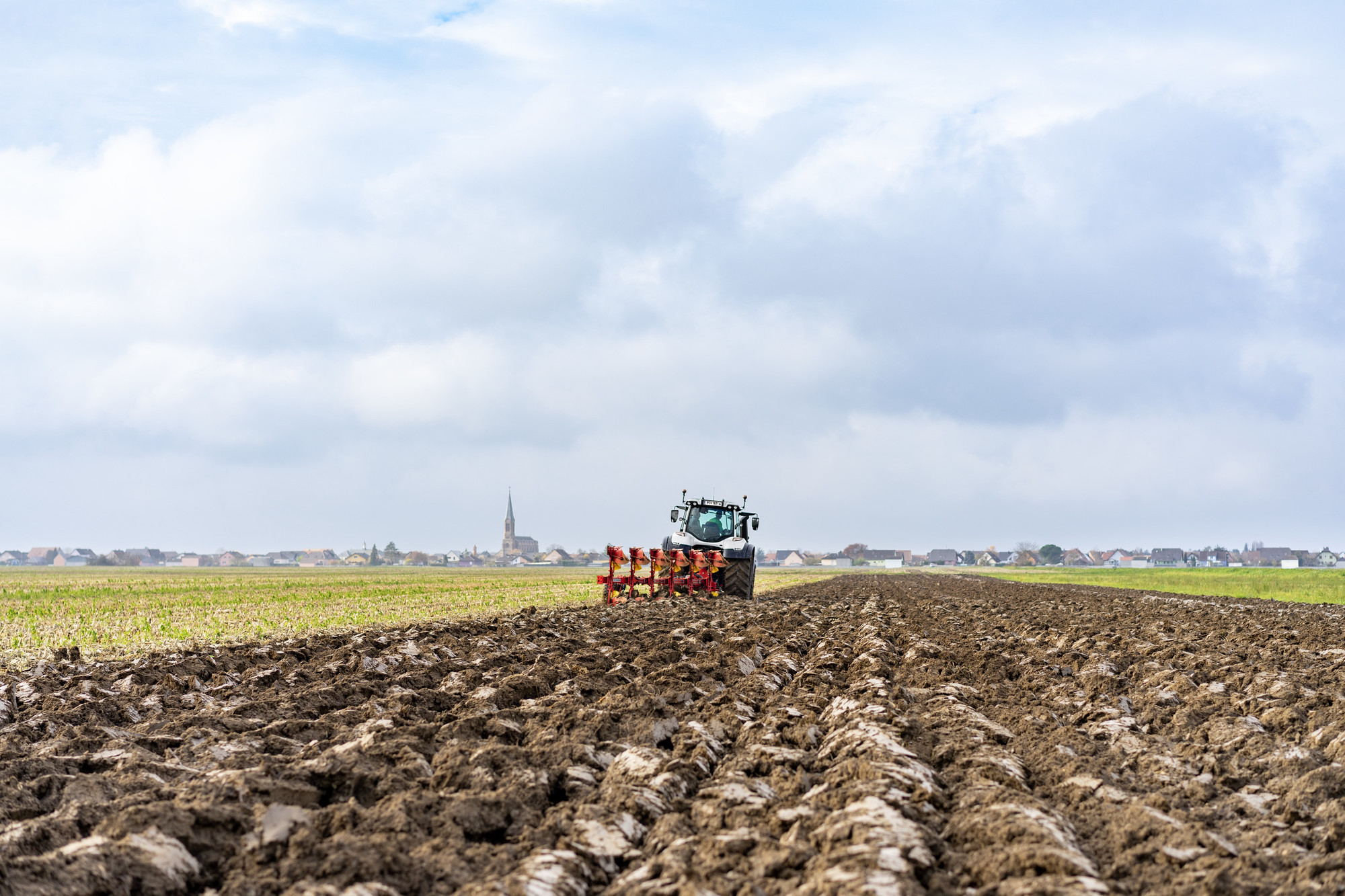

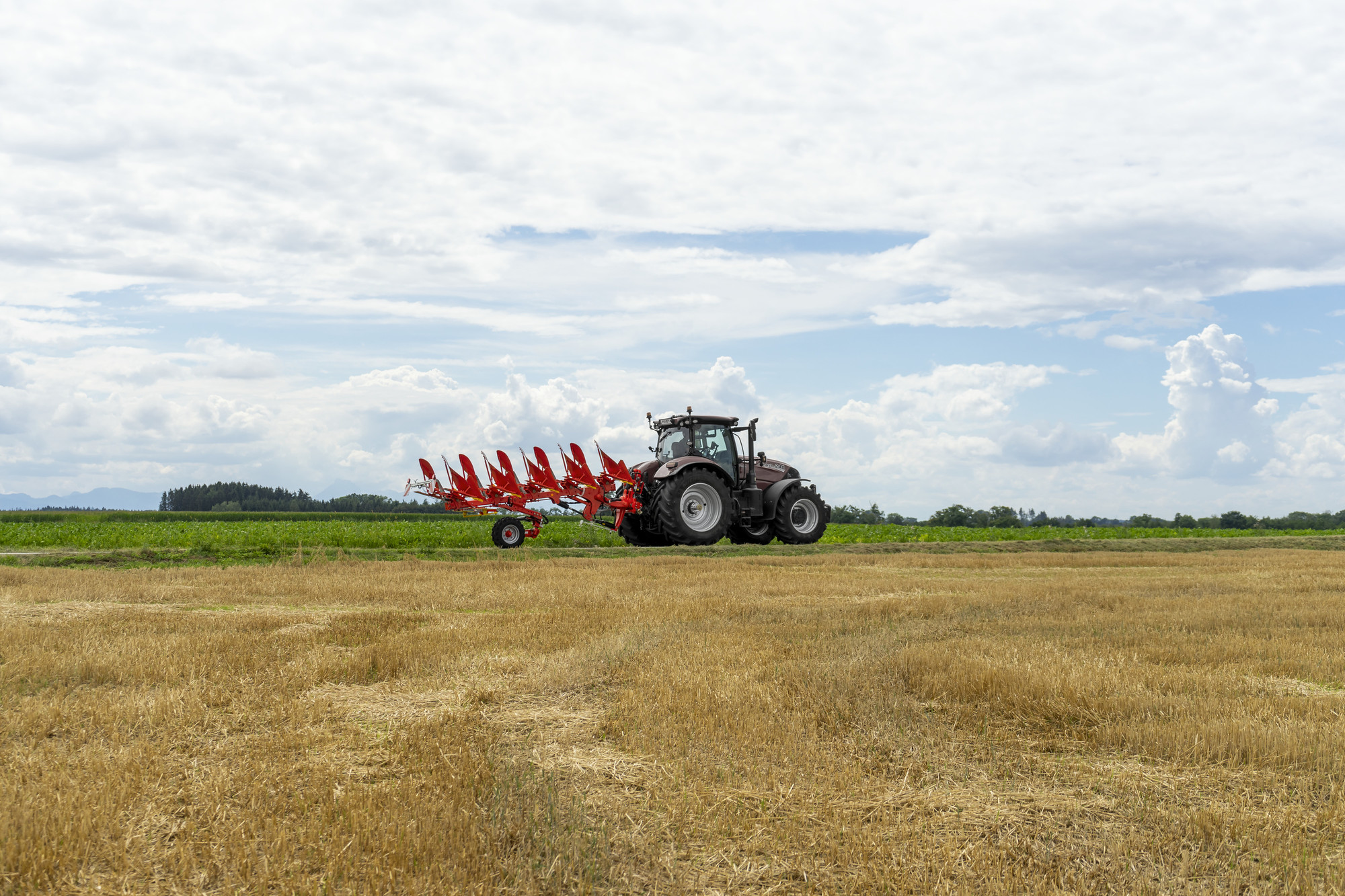

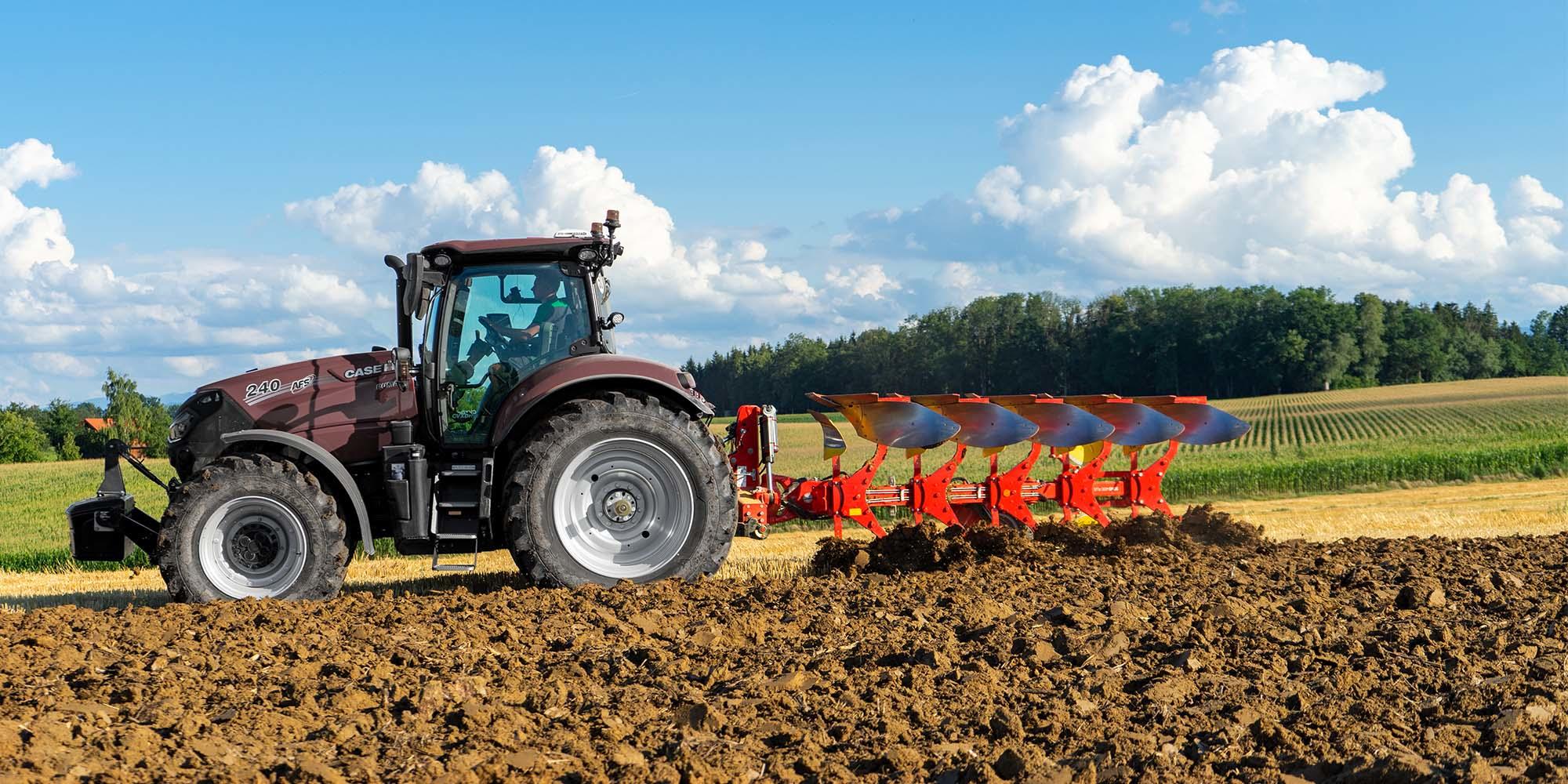

SERVO 4000 Heavy hitch-mounted reversible ploughs



A straightforward and intuitive control centre, an extremely robust turnover mechanism and a durable plough beam as well as optimised mounting geometry, these are all essential factors that were taken into account during the development of the SERVO 4000. Teamed up with proven mouldboards, these ploughs have been engineered to deliver perfect working results year after year.

A straightforward and intuitive control centre, an extremely robust turnover mechanism and a durable plough beam as well as optimised mounting geometry, these are all essential factors that were taken into account during the development of the SERVO 4000. Teamed up with proven mouldboards, these ploughs have been engineered to deliver perfect working results year after year.

Customer benefits



Technology

Technology

Technical data

 SERVO 4000 (4)SERVO 4000 (5)SERVO 4000 (6)
Beam dimensions140 x 140 mm140 x 140 mm140 x 140 mm
Under frame clearance80, 90 cm80, 90 cm80, 90 cm
Interbody distance95
102 cm		95
102 cm		95
102 cm
Leg dimensions80 x 35 mm80 x 35 mm80 x 35 mm

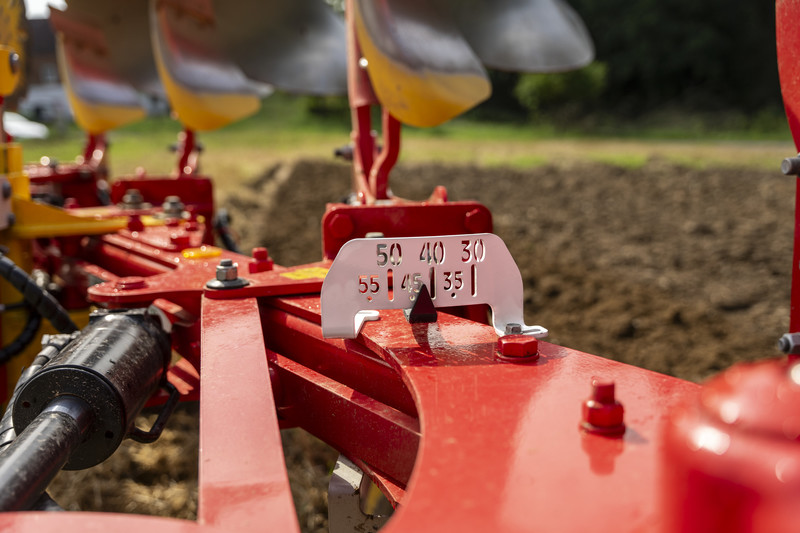

Body spacing and furrow widths95 (30-35-40-45-50-55)
102 (32-38-43-48-54-59) cm		95 (30-35-40-45-50-55)
102 (32-38-43-48-54-59) cm		95 (30-35-40-45-50-55)
102 (32-38-43-48-54-59) cm
Power requirement140 - 280 HP170 - 320 HP180 - 360 HP
Weight1630 kg1900 kg2120 kg
SERVO 4000 (4)
Beam dimensions140 x 140 mm
Under frame clearance80, 90 cm
Interbody distance95
102 cm
Leg dimensions80 x 35 mm
Body spacing and furrow widths95 (30-35-40-45-50-55)
102 (32-38-43-48-54-59) cm
Power requirement140 - 280 HP
Weight1630 kg
SERVO 4000 (5)
Beam dimensions140 x 140 mm
Under frame clearance80, 90 cm
Interbody distance95
102 cm
Leg dimensions80 x 35 mm
Body spacing and furrow widths95 (30-35-40-45-50-55)
102 (32-38-43-48-54-59) cm
Power requirement170 - 320 HP
Weight1900 kg
SERVO 4000 (6)
Beam dimensions140 x 140 mm
Under frame clearance80, 90 cm
Interbody distance95
102 cm
Leg dimensions80 x 35 mm
Body spacing and furrow widths95 (30-35-40-45-50-55)
102 (32-38-43-48-54-59) cm
Power requirement180 - 360 HP
Weight2120 kg

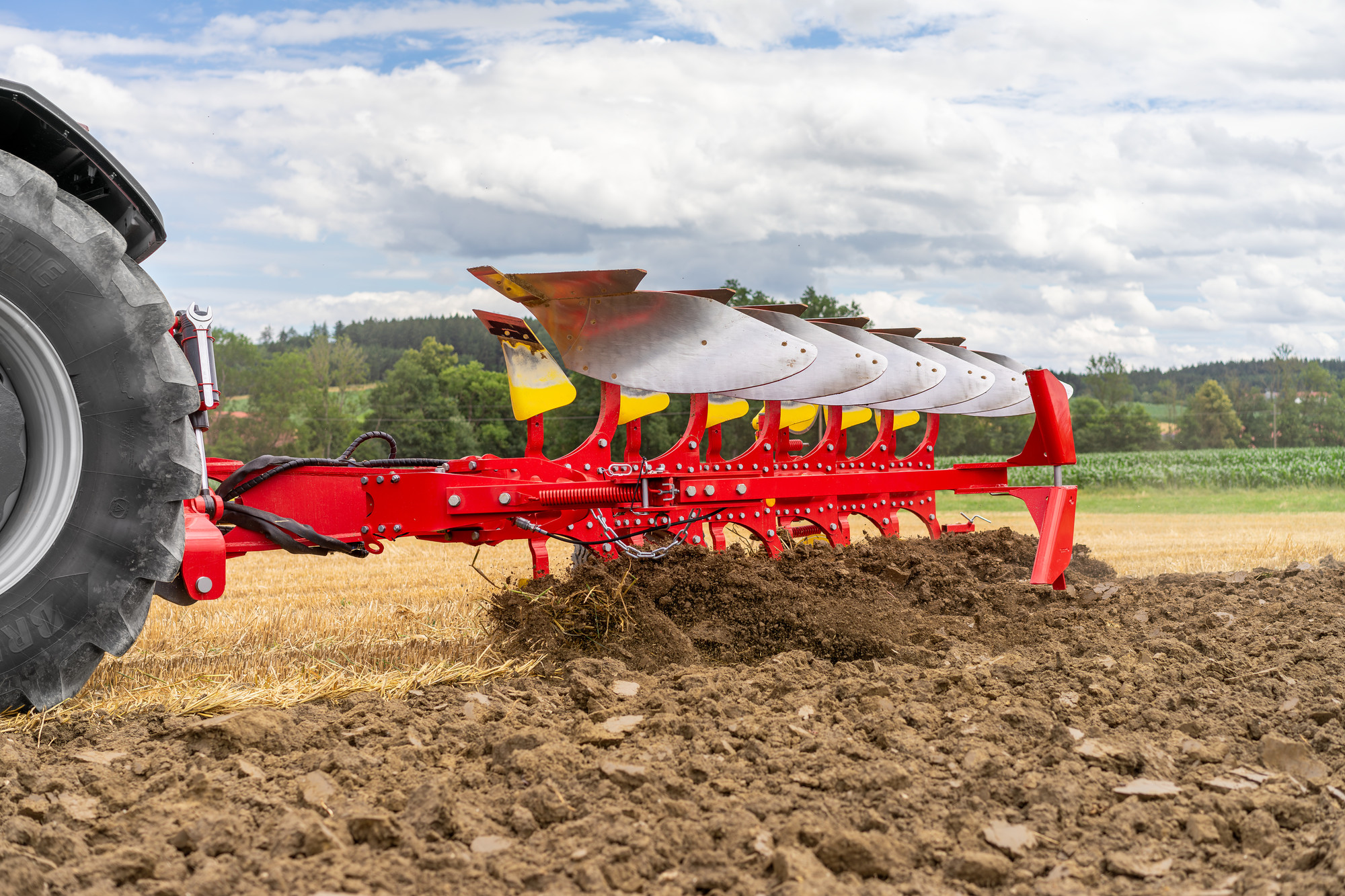

 SERVO 4000 N (4)
SERVO 4000 N (5)
SERVO 4000 N (6)
Beam dimensions140 x 140 mm140 x 140 mm140 x 140 mm
Under frame clearance80 cm80 cm80 cm
Interbody distance95
102 cm		95
102 cm		95 cm
Leg dimensions80 x 35 mm80 x 35 mm80 x 35 mm
Body spacing and furrow widths95 (30-35-40-45-50-55)
102 (32-38-43-48-54-59) cm		95 (30-35-40-45-50-55)
102 (32-38-43-48-54-59) cm		95 (30-35-40-45-50-55) cm
Power requirement180 - 300 HP200 - 360 HP220 - 360 HP
Weight1830 kg2160 kg2460 kg
SERVO 4000 N (4)
Beam dimensions140 x 140 mm
Under frame clearance80 cm
Interbody distance95
102 cm
Leg dimensions80 x 35 mm
Body spacing and furrow widths95 (30-35-40-45-50-55)
102 (32-38-43-48-54-59) cm
Power requirement180 - 300 HP
Weight1830 kg
SERVO 4000 N (5)
Beam dimensions140 x 140 mm
Under frame clearance80 cm
Interbody distance95
102 cm
Leg dimensions80 x 35 mm
Body spacing and furrow widths95 (30-35-40-45-50-55)
102 (32-38-43-48-54-59) cm
Power requirement200 - 360 HP
Weight2160 kg
SERVO 4000 N (6)
Beam dimensions140 x 140 mm
Under frame clearance80 cm
Interbody distance95 cm
Leg dimensions80 x 35 mm
Body spacing and furrow widths95 (30-35-40-45-50-55) cm
Power requirement220 - 360 HP
Weight2460 kg

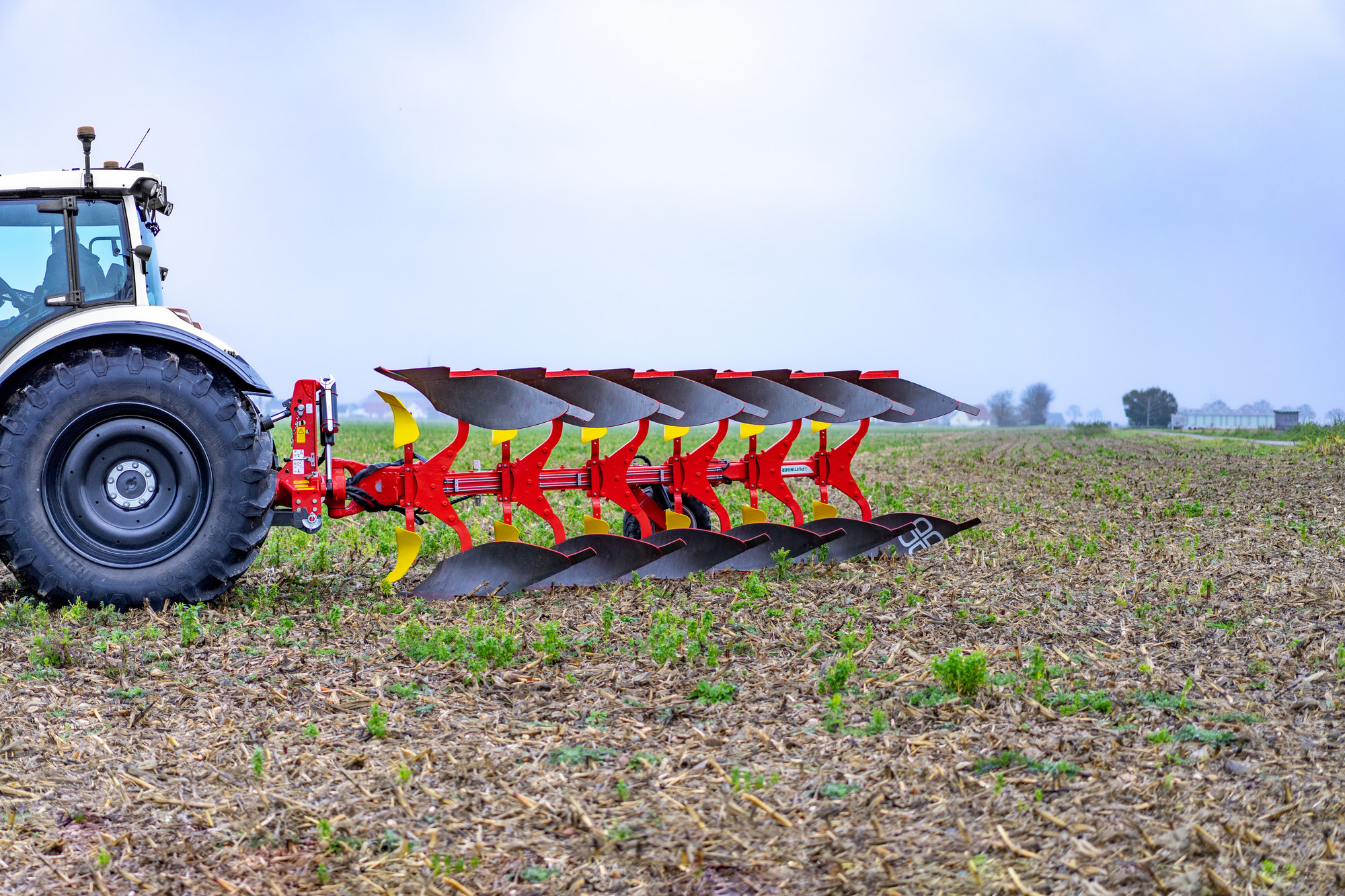

 SERVO 4000 P (4)SERVO 4000 P (5)SERVO 4000 P (6)
Beam dimensions140 x 140 mm140 x 140 mm140 x 140 mm
Under frame clearance80, 90 cm80, 90 cm80, 90 cm
Interbody distance95
102 cm		95
102 cm		95
102 cm
Leg dimensions80 x 35 mm80 x 35 mm80 x 35 mm
Body spacing and furrow widths95 (30-55)
102 (32-59) cm		95 (30-55)
102 (32-59) cm		95 (30-55)
102 (32-59) cm
Power requirement140 - 280 HP170 - 320 HP180 - 360 HP
Weight1650 kg1930 kg2200 kg
SERVO 4000 P (4)
Beam dimensions140 x 140 mm
Under frame clearance80, 90 cm
Interbody distance95
102 cm
Leg dimensions80 x 35 mm
Body spacing and furrow widths95 (30-55)
102 (32-59) cm
Power requirement140 - 280 HP
Weight1650 kg
SERVO 4000 P (5)
Beam dimensions140 x 140 mm
Under frame clearance80, 90 cm
Interbody distance95
102 cm
Leg dimensions80 x 35 mm
Body spacing and furrow widths95 (30-55)
102 (32-59) cm
Power requirement170 - 320 HP
Weight1930 kg
SERVO 4000 P (6)
Beam dimensions140 x 140 mm
Under frame clearance80, 90 cm
Interbody distance95
102 cm
Leg dimensions80 x 35 mm
Body spacing and furrow widths95 (30-55)
102 (32-59) cm
Power requirement180 - 360 HP
Weight2200 kg

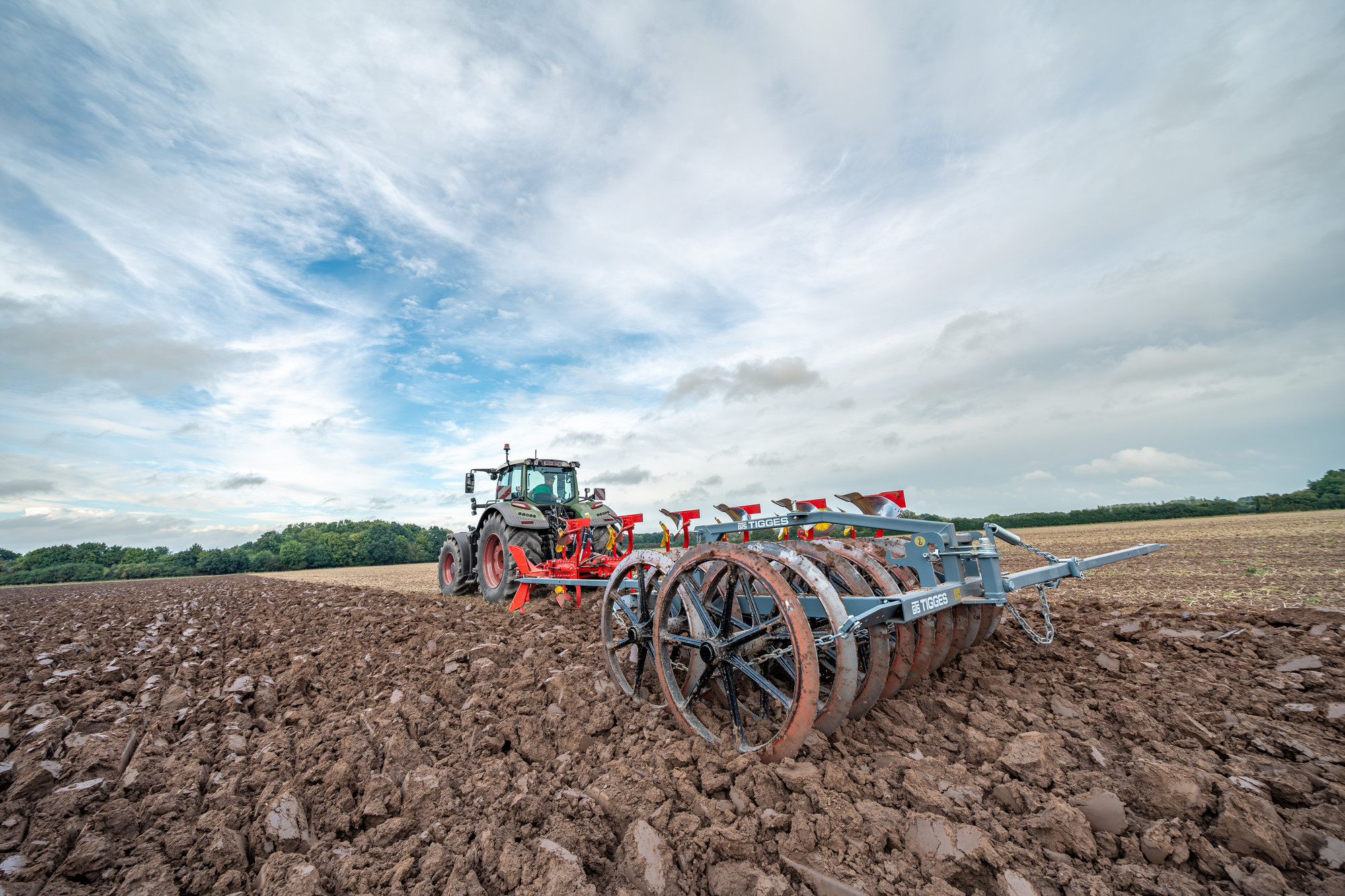

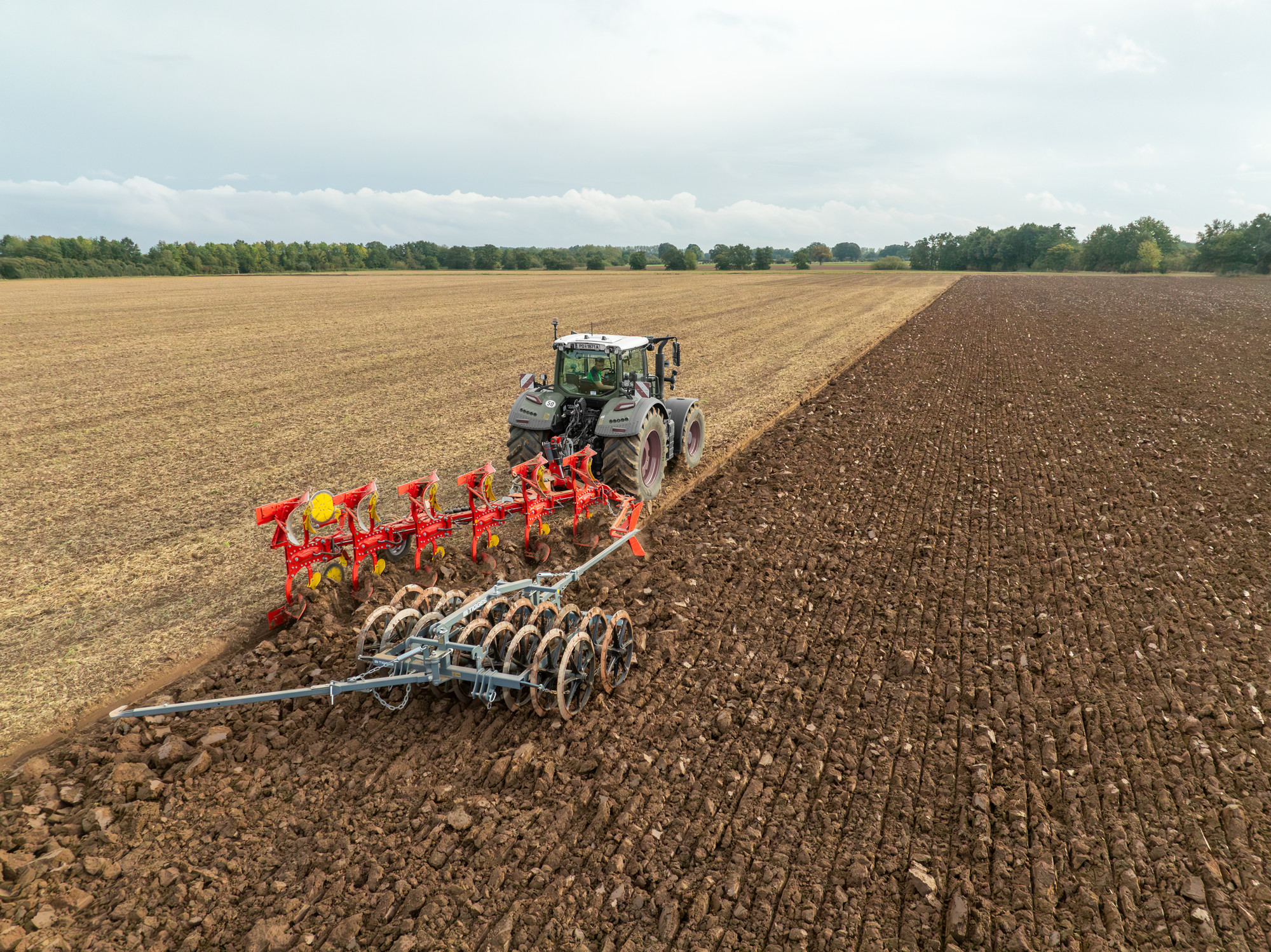

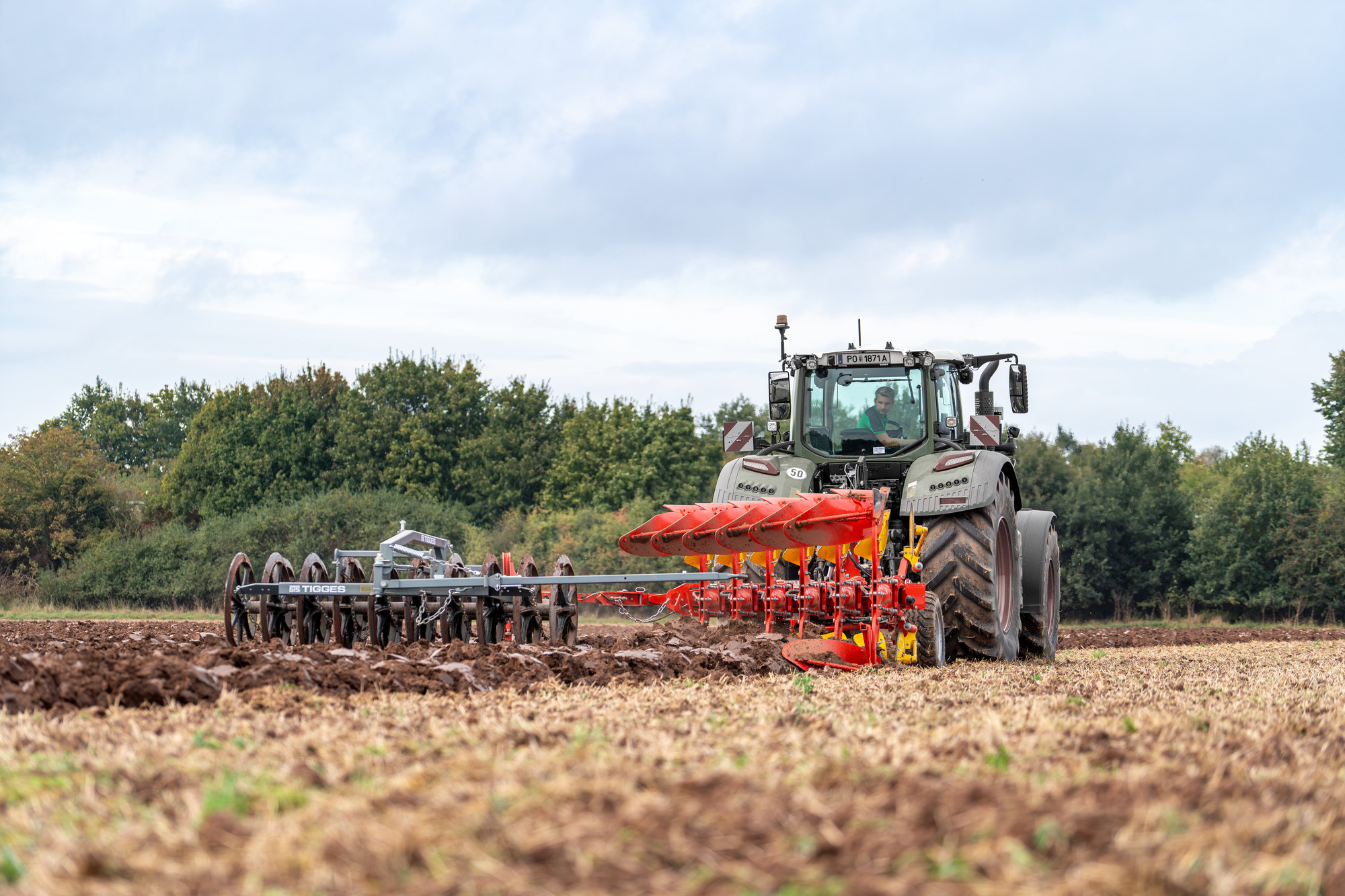

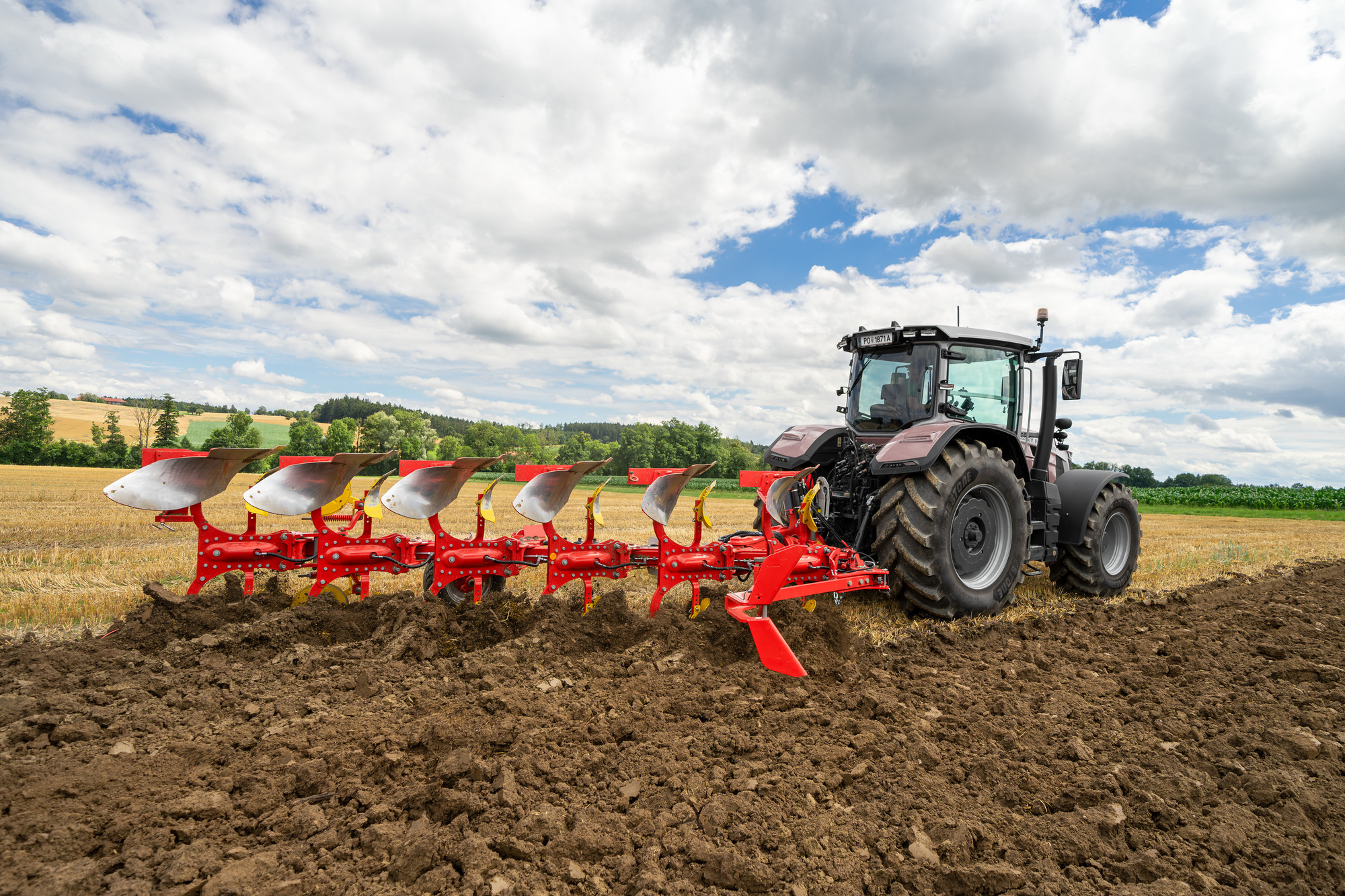

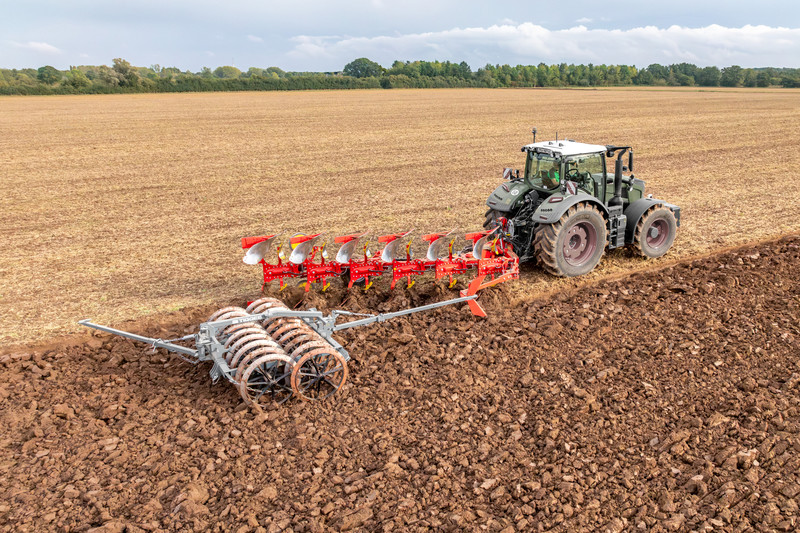

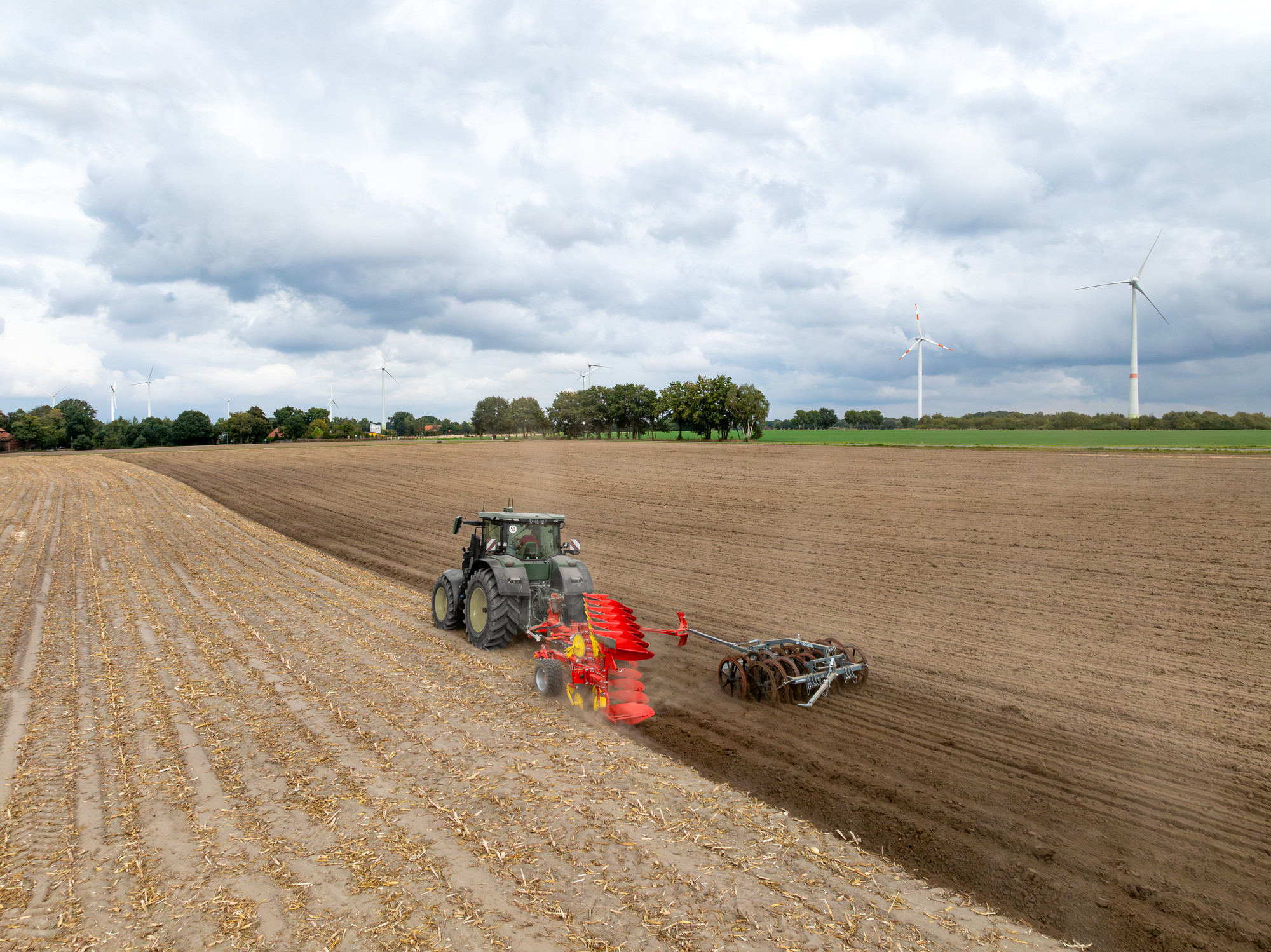

 SERVO 4000 PN (4)
SERVO 4000 PN (5)
SERVO 4000 PN (6)
Beam dimensions140 x 140 mm140 x 140 mm140 x 140 mm
Under frame clearance80 cm80 cm80 cm
Interbody distance95
102 cm		95
102 cm		95 cm
Leg dimensions80 x 35 mm80 x 35 mm80 x 35 mm
Body spacing and furrow widths95 (30-55)
102 (32-59) cm		95 (30-55)
102 (32-59) cm		95 (30-55) cm
Power requirement180 - 300 HP200 - 360 HP220 - 360 HP
Weight1850 kg2180 kg2520 kg
SERVO 4000 PN (4)
Beam dimensions140 x 140 mm
Under frame clearance80 cm
Interbody distance95
102 cm
Leg dimensions80 x 35 mm
Body spacing and furrow widths95 (30-55)
102 (32-59) cm
Power requirement180 - 300 HP
Weight1850 kg
SERVO 4000 PN (5)
Beam dimensions140 x 140 mm
Under frame clearance80 cm
Interbody distance95
102 cm
Leg dimensions80 x 35 mm
Body spacing and furrow widths95 (30-55)
102 (32-59) cm
Power requirement200 - 360 HP
Weight2180 kg
SERVO 4000 PN (6)
Beam dimensions140 x 140 mm
Under frame clearance80 cm
Interbody distance95 cm
Leg dimensions80 x 35 mm
Body spacing and furrow widths95 (30-55) cm
Power requirement220 - 360 HP
Weight2520 kg
