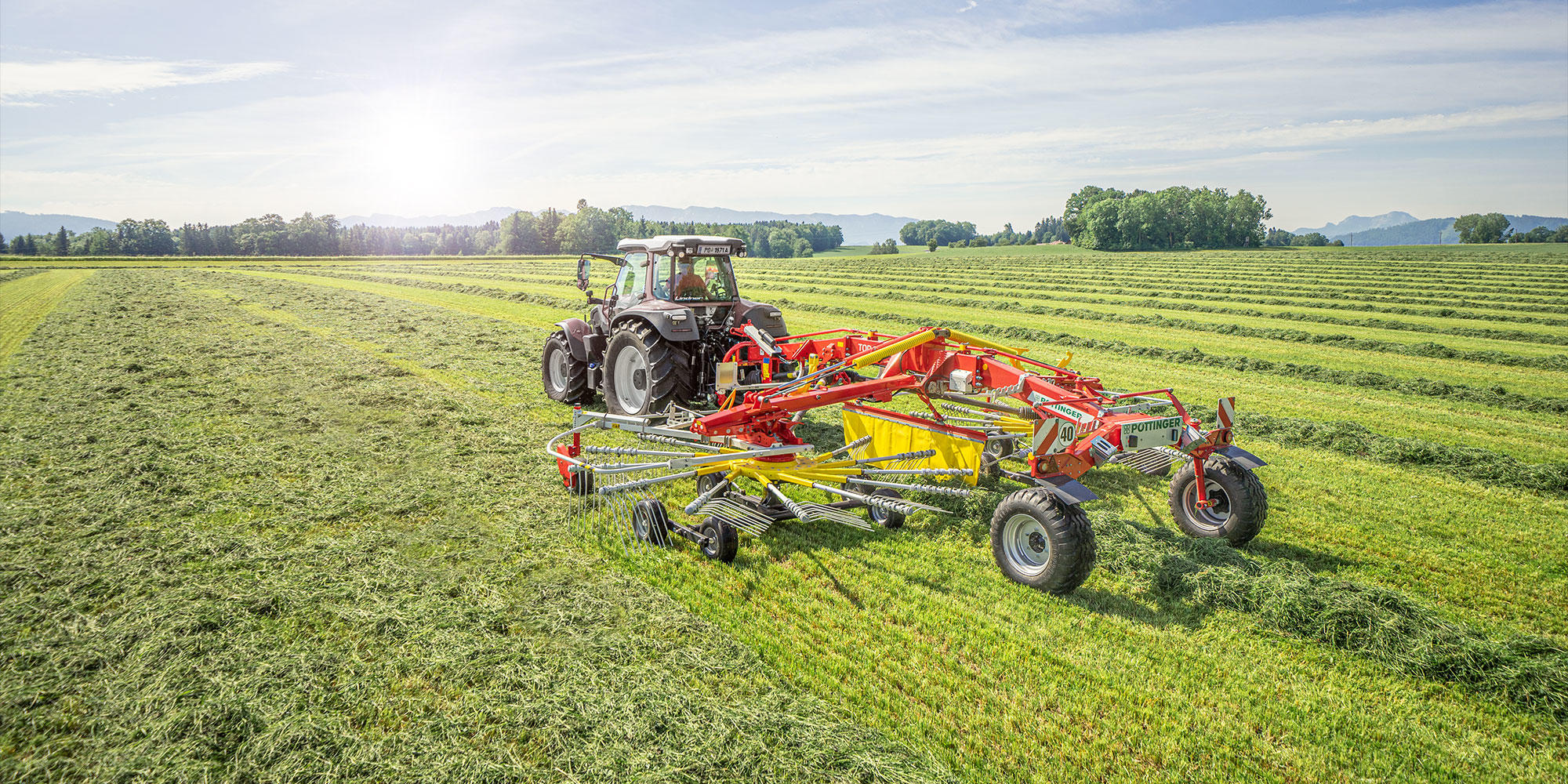

TOP C Rakes with 2 rotors with centre swath delivery



TOP centre-swath rakes guarantee you get uniform swaths in all conditions. Their design makes them easy to operate. Thanks to the working width adjustment, on many models the swath width can be easily matched to the next harvesting machine.

Video abspielen Videos Prospekte Brochures

TOP centre-swath rakes guarantee you get uniform swaths in all conditions. Their design makes them easy to operate. Thanks to the working width adjustment, on many models the swath width can be easily matched to the next harvesting machine.

Customer benefits



Technology

Technology

Technical data

 TOP 612TOP 612 CTOP 702 CTOP 762 C CLASSICTOP 762 C
Working width5,9 m m5,9 m m6,25 - 6,9 m m6,75 - 7,5 m m6,75 - 7,5 m m
Working width adjustmentFixed width Fixed width Mechanical Mechanical Mechanical
Swath width1 m1 m1 - 1,8 m1,1 - 2 m1,1 - 2 m
Rotor diameter2,82 m2,8 m3,07 m3,3 m3,3 m
Rotor diameter front/rear-----
Transport width2,7 / m2,55 / m2,55 / 2,9 m2,55 / 2,9 m2,55 / 2,9 m
Transport height3,4 m3,52 m3,8 m3,99 m3,99 m
Transport length3,13 m5,15 m5,83 m5,83 m5,83 m
Transport length-----
Parking height without tine arms removed3,19 m3,52 m3,8 m3,99 m3,99 m
Parking height with tine arms removed *2,7 m2,92 m3,3 m3,5 m3,5 m
Tine arms per rotor11 pcs.11 pcs.11 pcs.11 pcs.13 pcs.
Tine arms per rotor rear / front-----
Removable tine carrier arms per rotor11 11 11 11 13
Tines per tine arm4 pcs.4 pcs.4 pcs.4 pcs.4 pcs.

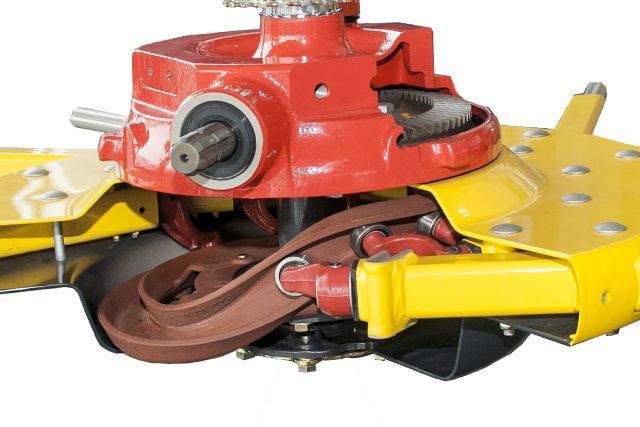

Rotor unitTOPTECH PLUS TOPTECH PLUS TOPTECH PLUS TOPTECH PLUS TOPTECH PLUS
PTO Input Speed540 rpm540 rpm540 rpm540 rpm540 rpm
Weight1010 kg1470 kg1680 kg1800 kg1940 kg
Power requirement60 HP40 HP50 HP60 HP60 HP
MountingRear three-point Trailed Trailed Trailed Trailed
Tyres — chassis-260/70-15,3 260/70-15,3 260/70-15,3 260/70-15,3
Swath placement in direction of travelCentre Centre Centre Centre Centre
Height adjustment systemCrank handle adjuster Crank handle adjuster Crank handle adjuster Crank handle adjuster Crank handle adjuster
AxleSingle axle 3-wheel chassis 3-wheel chassis 3-wheel chassis 5-wheel chassis incl, tandem axles
Rotor tyres (standard)16 x 6,5-8 16 x 6,5-8 16 x 6,5-8 16 x 6,5-8 16 x 6,5-8
Jockey wheels-Inner jockey wheels on all rotors Inner jockey wheels on all rotors Inner jockey wheels on all rotors Inner jockey wheels on all rotors
Wide-angle PTO shaft optionalWide-angle drive shaft on one end Wide-angle drive shaft on one end Wide-angle drive shaft on one end Wide-angle drive shaft on one end Wide-angle drive shaft on one end
 TOP 882 CTOP 962 C
Working width7,7 - 8,8 m m8,9 - 9,6 m m
Working width adjustmentHydraulic Hydraulic
Swath width1,3 - 2,6 m1,3 - 2,2 m
Rotor diameter3,7 m4,3 m
Rotor diameter front/rear--
Transport width2,9 / m2,95 / m
Transport height3,99 m3,95 m
Transport length6,5 m7 m
Transport length--
Parking height without tine arms removed3,99 m4,6 m
Parking height with tine arms removed *-3,85 m
Tine arms per rotor13 pcs.15 pcs.
Tine arms per rotor rear / front--
Removable tine carrier arms per rotor13 15
Tines per tine arm4 pcs.4 pcs.
Rotor unitTOPTECH PLUS TOPTECH PLUS
PTO Input Speed540 rpm540 rpm
Weight2620 kg3130 kg
Power requirement70 HP80 HP
MountingTrailed Trailed
Tyres — chassis340/55-16 340/55-16
Swath placement in direction of travelCentre Centre
Height adjustment systemCrank handle adjuster Crank handle adjuster
Axle5-wheel chassis incl, tandem axles 6-wheel chassis incl, tandem axles
Rotor tyres (standard)16 x 6,5-8 16 x 6,5-8
Jockey wheelsInner jockey wheels on all rotors Inner jockey wheels on all rotors
Wide-angle PTO shaft optionalWide-angle drive shaft on one end Wide-angle drive shaft on one end

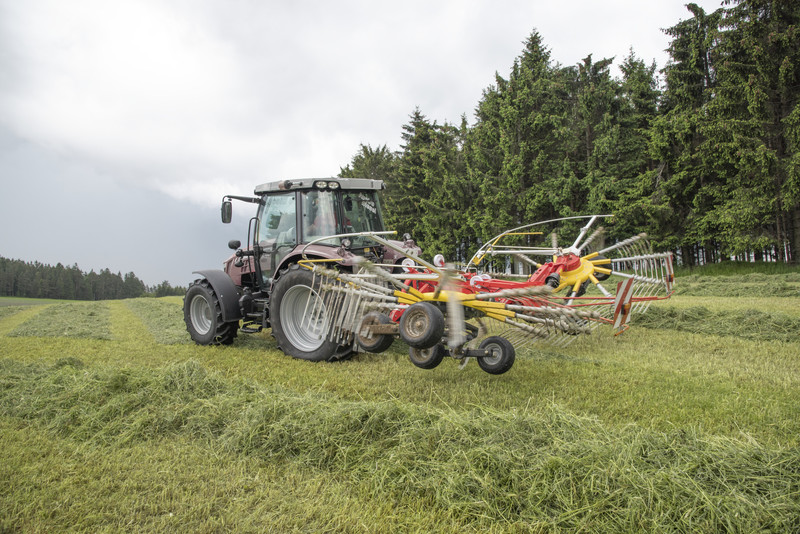

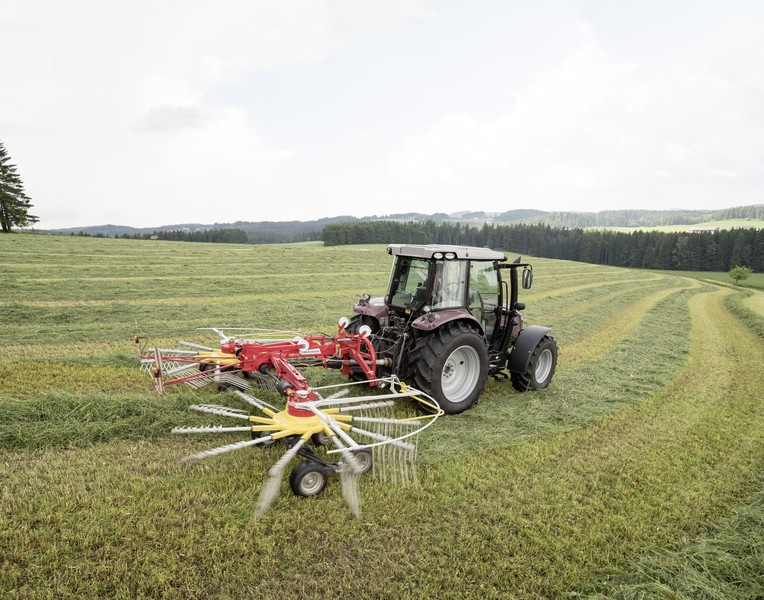

TOP 612
Working width5,9 m m
Working width adjustmentFixed width
Swath width1 m
Rotor diameter2,82 m
Rotor diameter front/rear-
Transport width2,7 / m
Transport height3,4 m
Transport length3,13 m
Transport length-
Parking height without tine arms removed3,19 m
Parking height with tine arms removed *2,7 m
Tine arms per rotor11 pcs.
Tine arms per rotor rear / front-
Removable tine carrier arms per rotor11
Tines per tine arm4 pcs.
Rotor unitTOPTECH PLUS
PTO Input Speed540 rpm
Weight1010 kg
Power requirement60 HP
MountingRear three-point
Tyres — chassis-
Swath placement in direction of travelCentre
Height adjustment systemCrank handle adjuster
AxleSingle axle
Rotor tyres (standard)16 x 6,5-8
Jockey wheels-
Wide-angle PTO shaft optionalWide-angle drive shaft on one end
TOP 612 C
Working width5,9 m m
Working width adjustmentFixed width
Swath width1 m
Rotor diameter2,8 m
Rotor diameter front/rear-
Transport width2,55 / m
Transport height3,52 m
Transport length5,15 m
Transport length-
Parking height without tine arms removed3,52 m
Parking height with tine arms removed *2,92 m
Tine arms per rotor11 pcs.
Tine arms per rotor rear / front-
Removable tine carrier arms per rotor11
Tines per tine arm4 pcs.
Rotor unitTOPTECH PLUS
PTO Input Speed540 rpm
Weight1470 kg
Power requirement40 HP
MountingTrailed
Tyres — chassis260/70-15,3
Swath placement in direction of travelCentre
Height adjustment systemCrank handle adjuster
Axle3-wheel chassis
Rotor tyres (standard)16 x 6,5-8
Jockey wheelsInner jockey wheels on all rotors
Wide-angle PTO shaft optionalWide-angle drive shaft on one end
TOP 702 C
Working width6,25 - 6,9 m m
Working width adjustmentMechanical
Swath width1 - 1,8 m
Rotor diameter3,07 m
Rotor diameter front/rear-
Transport width2,55 / 2,9 m
Transport height3,8 m
Transport length5,83 m
Transport length-
Parking height without tine arms removed3,8 m
Parking height with tine arms removed *3,3 m
Tine arms per rotor11 pcs.
Tine arms per rotor rear / front-
Removable tine carrier arms per rotor11
Tines per tine arm4 pcs.
Rotor unitTOPTECH PLUS
PTO Input Speed540 rpm
Weight1680 kg
Power requirement50 HP
MountingTrailed
Tyres — chassis260/70-15,3
Swath placement in direction of travelCentre
Height adjustment systemCrank handle adjuster
Axle3-wheel chassis
Rotor tyres (standard)16 x 6,5-8
Jockey wheelsInner jockey wheels on all rotors
Wide-angle PTO shaft optionalWide-angle drive shaft on one end
TOP 762 C CLASSIC
Working width6,75 - 7,5 m m
Working width adjustmentMechanical
Swath width1,1 - 2 m
Rotor diameter3,3 m
Rotor diameter front/rear-
Transport width2,55 / 2,9 m
Transport height3,99 m
Transport length5,83 m
Transport length-
Parking height without tine arms removed3,99 m
Parking height with tine arms removed *3,5 m
Tine arms per rotor11 pcs.
Tine arms per rotor rear / front-
Removable tine carrier arms per rotor11
Tines per tine arm4 pcs.
Rotor unitTOPTECH PLUS
PTO Input Speed540 rpm
Weight1800 kg
Power requirement60 HP
MountingTrailed
Tyres — chassis260/70-15,3
Swath placement in direction of travelCentre
Height adjustment systemCrank handle adjuster
Axle3-wheel chassis
Rotor tyres (standard)16 x 6,5-8
Jockey wheelsInner jockey wheels on all rotors
Wide-angle PTO shaft optionalWide-angle drive shaft on one end

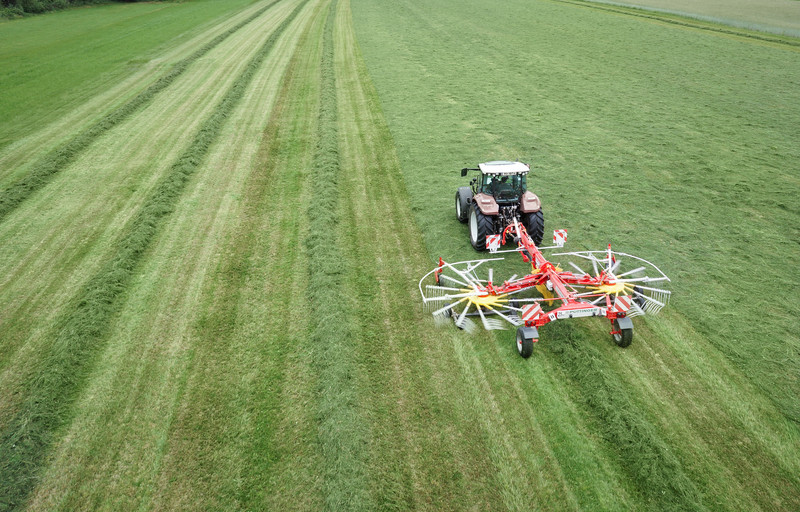

TOP 762 C
Working width6,75 - 7,5 m m
Working width adjustmentMechanical
Swath width1,1 - 2 m
Rotor diameter3,3 m
Rotor diameter front/rear-
Transport width2,55 / 2,9 m
Transport height3,99 m
Transport length5,83 m
Transport length-
Parking height without tine arms removed3,99 m
Parking height with tine arms removed *3,5 m
Tine arms per rotor13 pcs.
Tine arms per rotor rear / front-
Removable tine carrier arms per rotor13
Tines per tine arm4 pcs.
Rotor unitTOPTECH PLUS
PTO Input Speed540 rpm
Weight1940 kg
Power requirement60 HP
MountingTrailed
Tyres — chassis260/70-15,3
Swath placement in direction of travelCentre
Height adjustment systemCrank handle adjuster
Axle5-wheel chassis incl, tandem axles
Rotor tyres (standard)16 x 6,5-8
Jockey wheelsInner jockey wheels on all rotors
Wide-angle PTO shaft optionalWide-angle drive shaft on one end

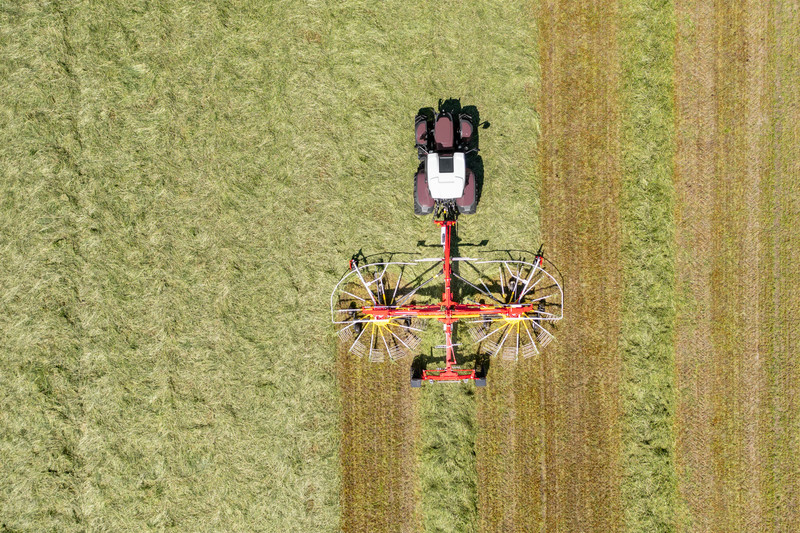

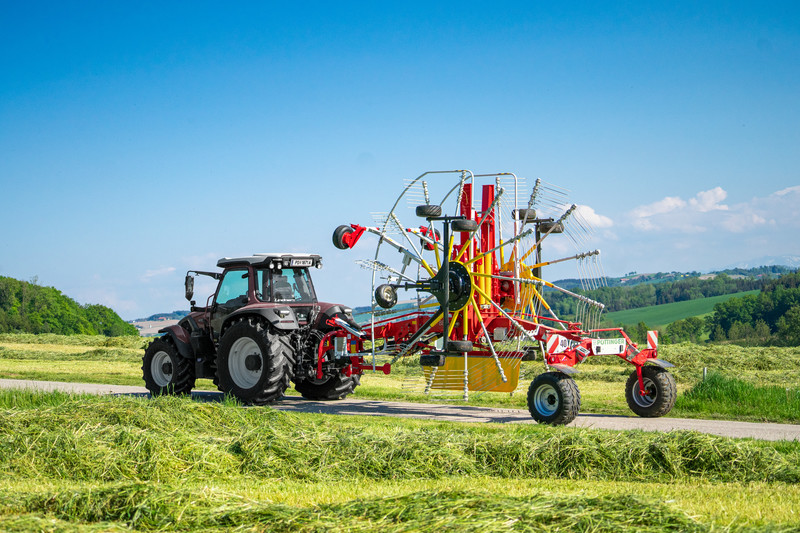

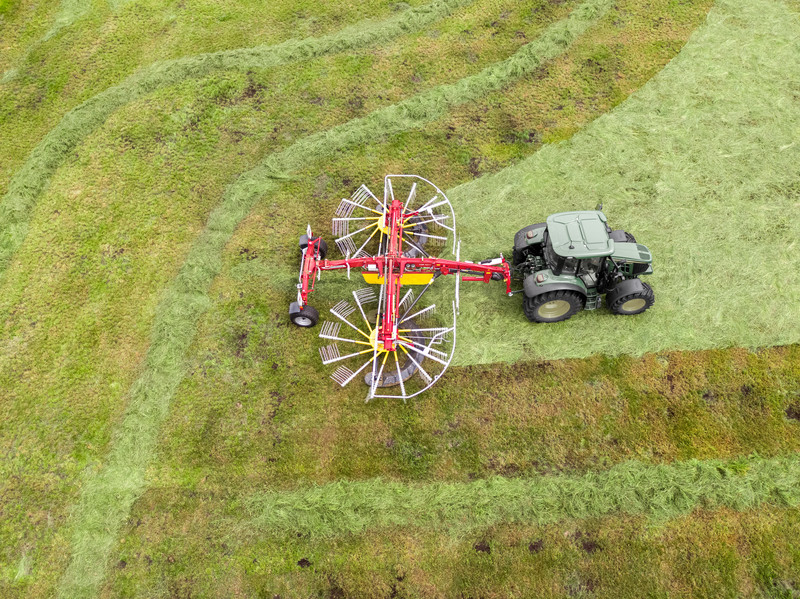

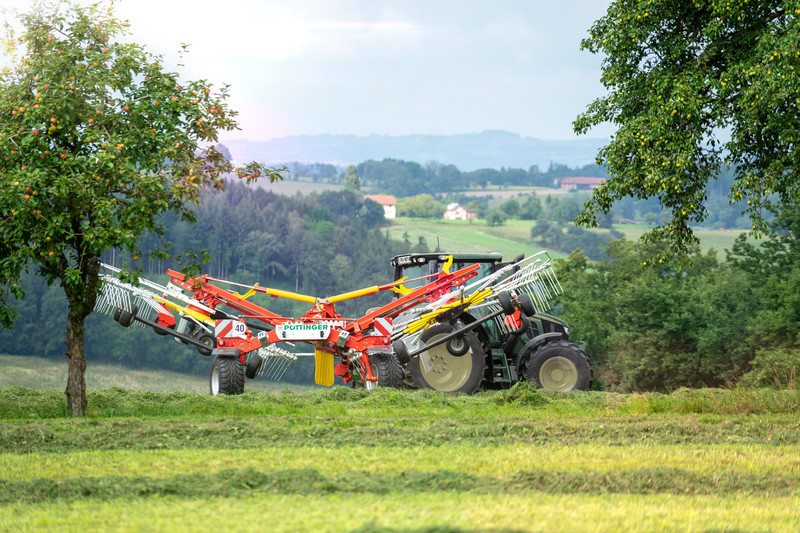

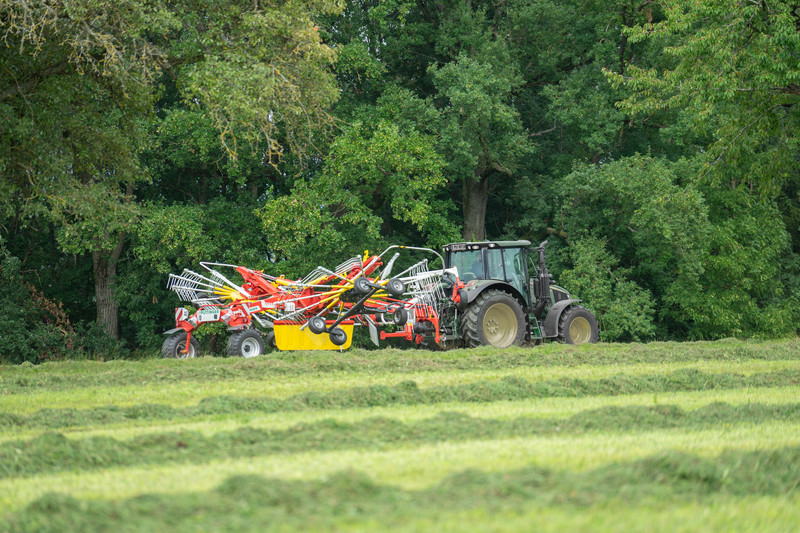

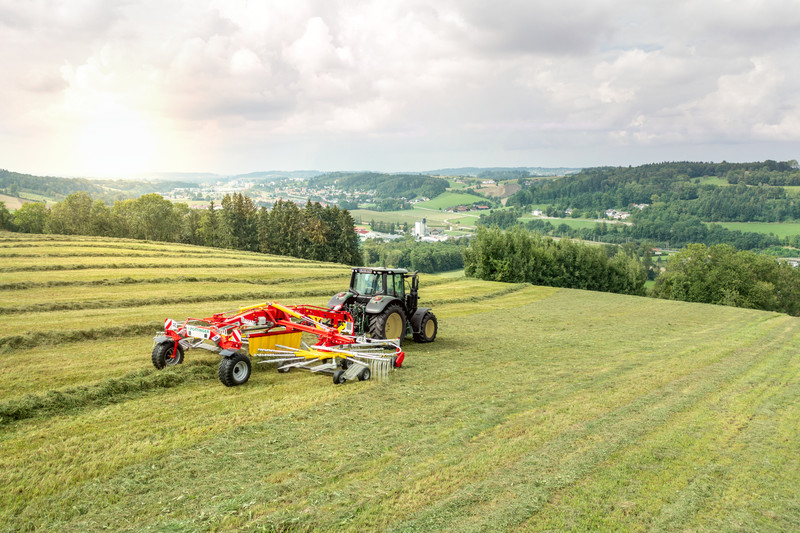

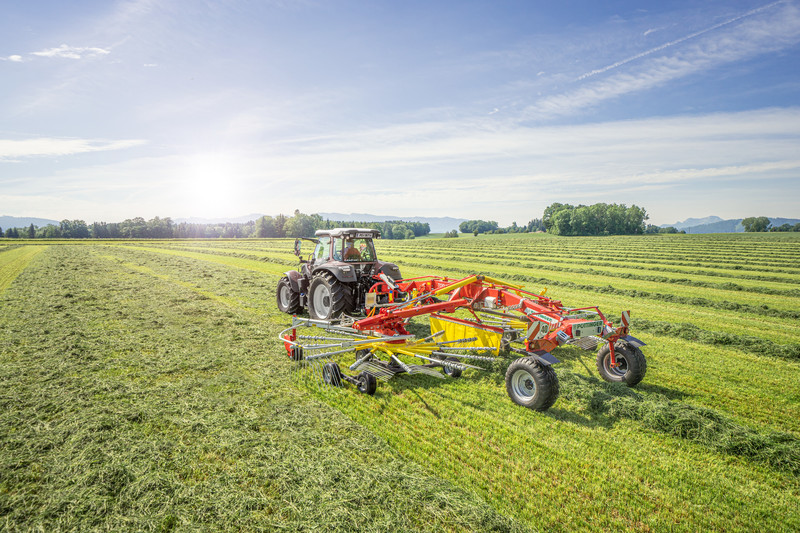

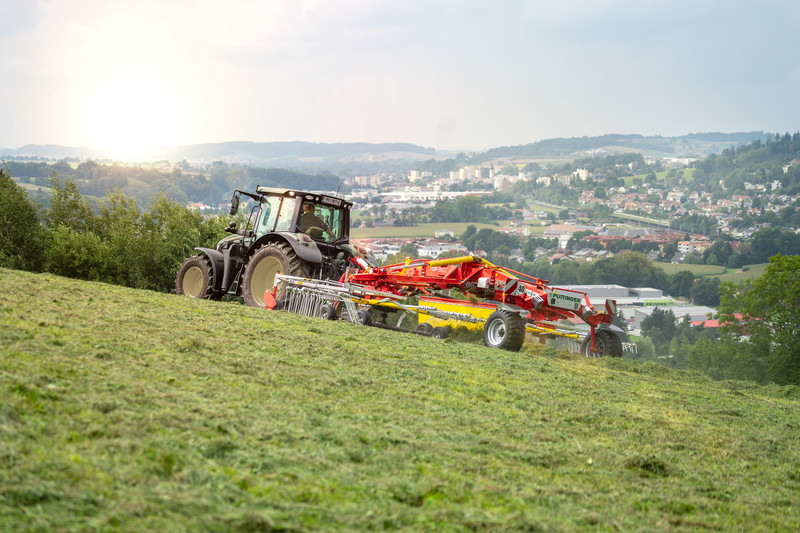

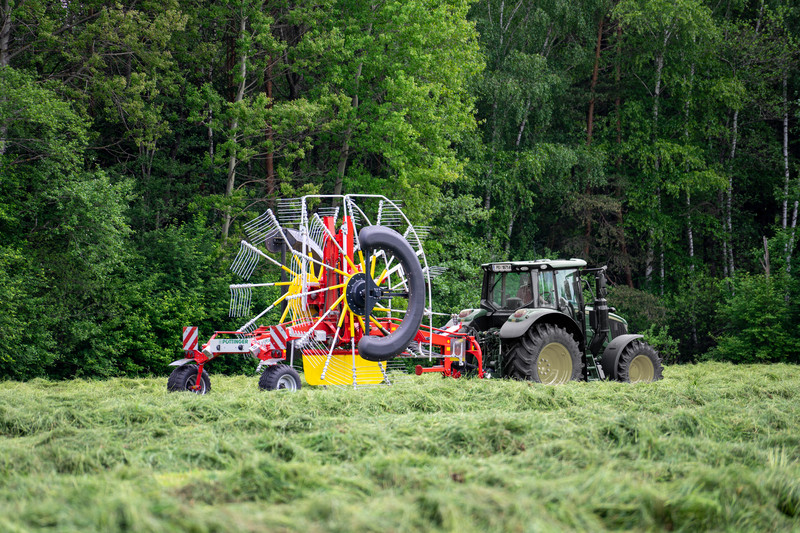

TOP 882 C
Working width7,7 - 8,8 m m
Working width adjustmentHydraulic
Swath width1,3 - 2,6 m
Rotor diameter3,7 m
Rotor diameter front/rear-
Transport width2,9 / m
Transport height3,99 m
Transport length6,5 m
Transport length-
Parking height without tine arms removed3,99 m
Parking height with tine arms removed *-
Tine arms per rotor13 pcs.
Tine arms per rotor rear / front-
Removable tine carrier arms per rotor13
Tines per tine arm4 pcs.
Rotor unitTOPTECH PLUS
PTO Input Speed540 rpm
Weight2620 kg
Power requirement70 HP
MountingTrailed
Tyres — chassis340/55-16
Swath placement in direction of travelCentre
Height adjustment systemCrank handle adjuster
Axle5-wheel chassis incl, tandem axles
Rotor tyres (standard)16 x 6,5-8
Jockey wheelsInner jockey wheels on all rotors
Wide-angle PTO shaft optionalWide-angle drive shaft on one end

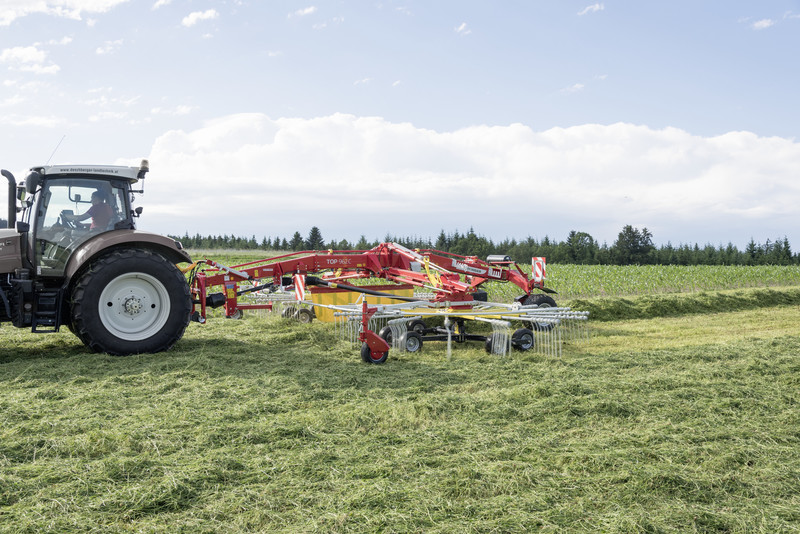

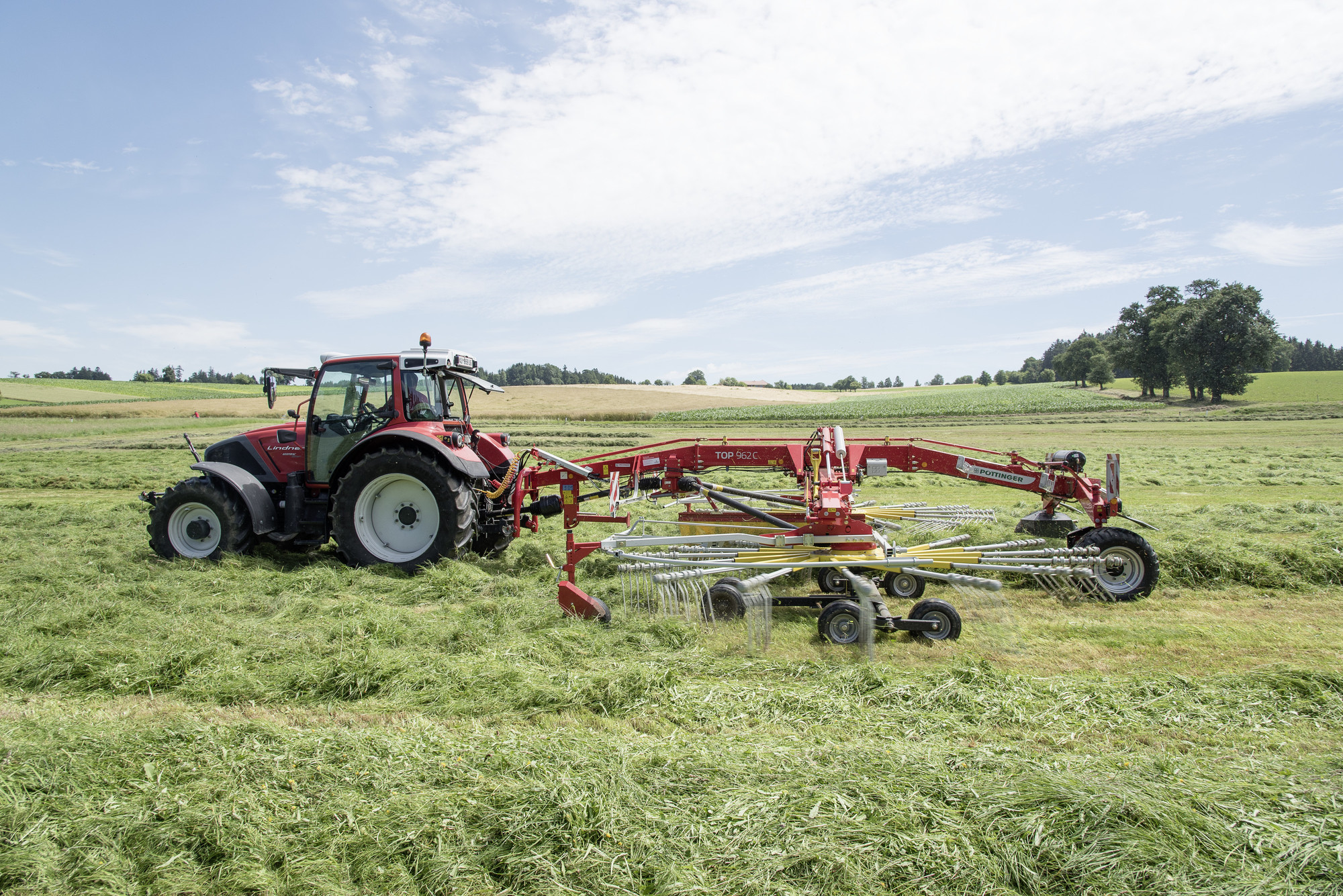

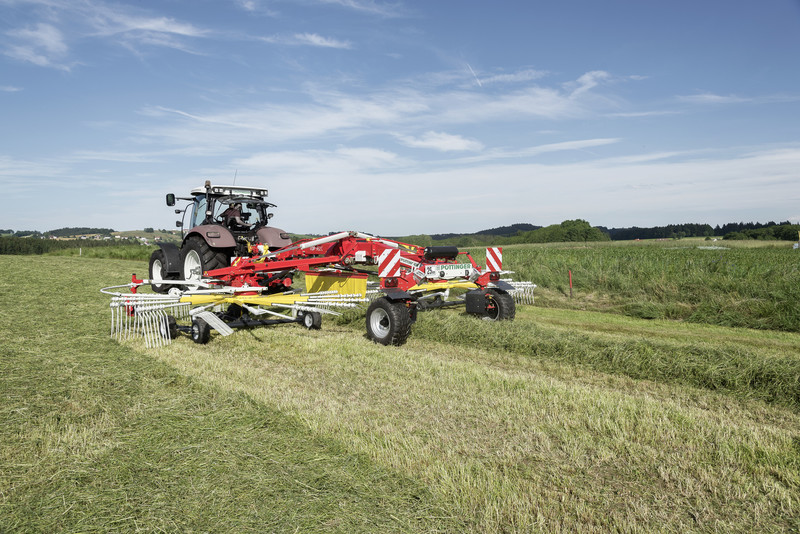

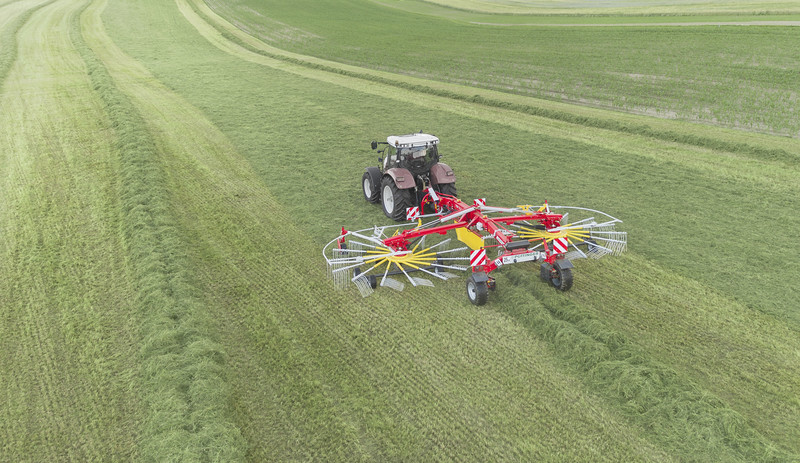

TOP 962 C
Working width8,9 - 9,6 m m
Working width adjustmentHydraulic
Swath width1,3 - 2,2 m
Rotor diameter4,3 m
Rotor diameter front/rear-
Transport width2,95 / m
Transport height3,95 m
Transport length7 m
Transport length-
Parking height without tine arms removed4,6 m
Parking height with tine arms removed *3,85 m
Tine arms per rotor15 pcs.
Tine arms per rotor rear / front-
Removable tine carrier arms per rotor15
Tines per tine arm4 pcs.
Rotor unitTOPTECH PLUS
PTO Input Speed540 rpm
Weight3130 kg
Power requirement80 HP
MountingTrailed
Tyres — chassis340/55-16
Swath placement in direction of travelCentre
Height adjustment systemCrank handle adjuster
Axle6-wheel chassis incl, tandem axles
Rotor tyres (standard)16 x 6,5-8
Jockey wheelsInner jockey wheels on all rotors
Wide-angle PTO shaft optionalWide-angle drive shaft on one end
